GENSET MPM 6/230 SYI SINGLE-THREEPHASE MOTOR WELDER 6KVA STAGE V
Welding type: Electrode / Tig
Maximum threephase power: 6.0 KVA
Maximum threephase power: 4.8 KW
Maximum singlephase power: 2.0 KVA
Maximum singlephase power: 1.6 KW
Fuel: Diesel
Voltage: 230/400 V
Frequency: 50 Hz
Engine: Yanmar L100V
Number of cylinders: 1
Displacement: 435 cm3
Mechanical power: 8.8 HP
Starter: Electric
Tank capacity: 10.5 l
Consumption: 1.5 Lt/h
Acoustic power: 96 (71 dB at 7 mt)
Length: 885 mm
Width: 630 mm
Height: 775 mm
Weight: 170 Kg
- Phase
- Single phase / Three phase
- Protection degree
- IP23
- Height (mm)
- 775
- Length (mm)
- 885
- Engine manufacturer
- Yanmar
- Engine
- Yanmar L100V
- Sockets configuration
- 1 x 400V 16A CEE - 1 x 230V 32A CEE
- Cooling
- Water
- Maximum power single phase (KW)
- 4.8
- Maximum power three phase (KW)
- 1.6
- Maximum power three phase (KVA)
- 2
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Emissions Regulations
- Stage 5
- Motor insulation class
- H
- Fuel tank capacity (L)
- 10.5
- Consumption (L/h)
- 1.5
- Acoustic power
- 96 dB(A)
- Acoustic pressure
- 71 dB(A) at 7 m
- Silenced
- Yes
- Super silenced
- Yes
- Product type
- Engine driven welder
- Voltage regulator
- No

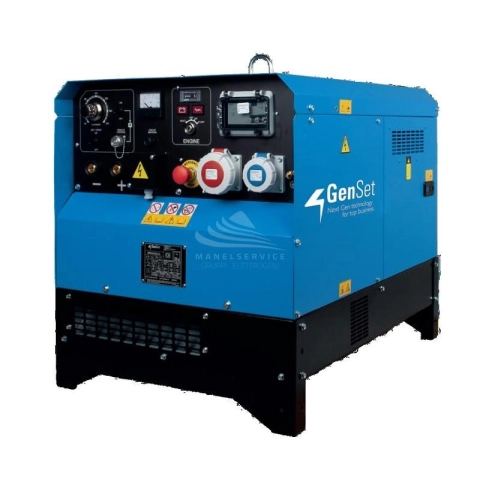

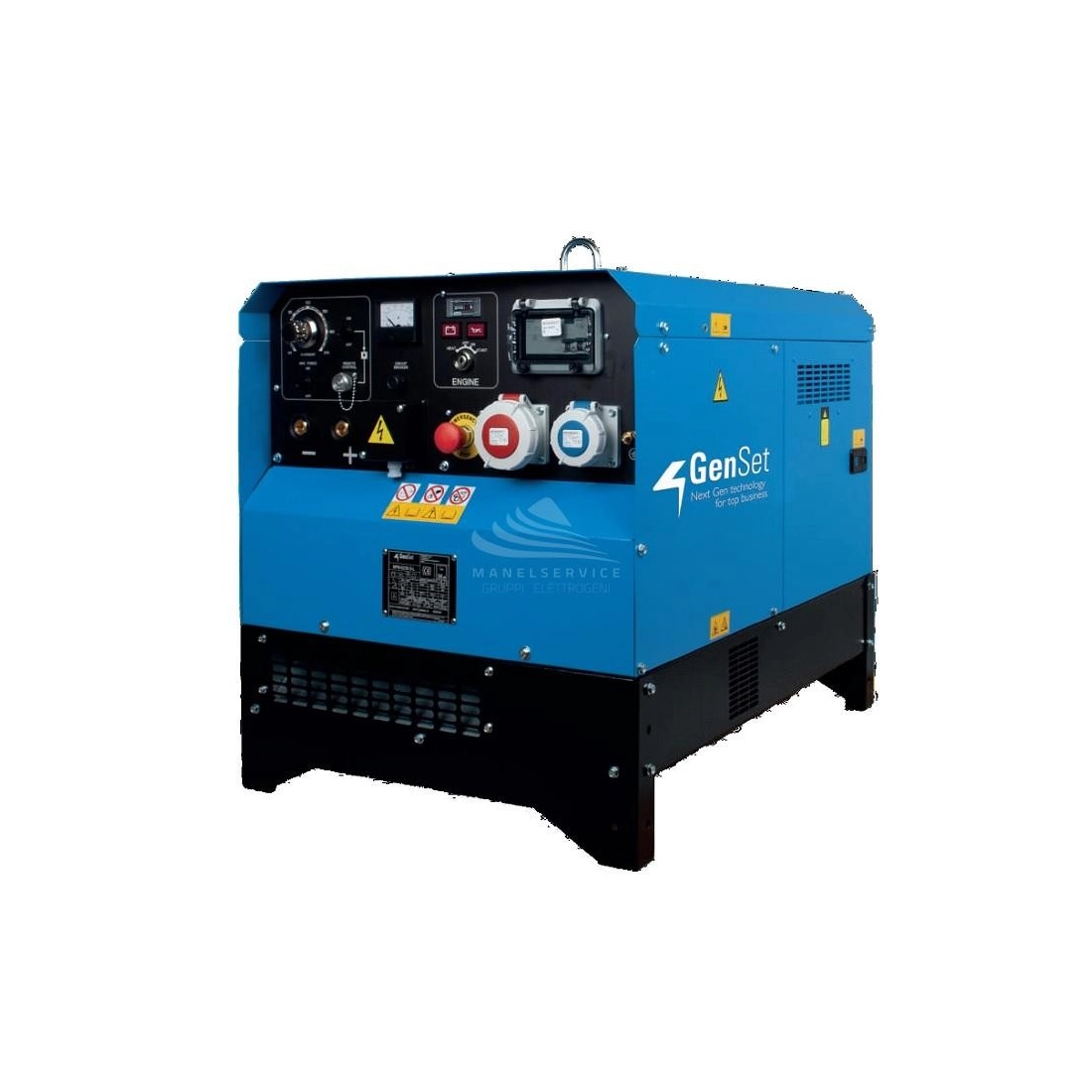

GENSET MPM 6/230 SYI SINGLE-PHASE/THREE-PHASE MOTOR WELDER 6KVA
GENSET MPM 6/230 SYI is a single-phase/three-phase engine driven welder equipped with a Yanmar L100V motor capable of delivering a maximum power of 6 KVA.
The engine of the GENSET MPM 6/230 SYI engine driven welder is diesel powered and is equipped with a variable speed drive.
The GENSET MPM 6/230 SYI is a professional engine driven welder suitable for a variety of applications and its enclosure makes this engine driven welder one of the quietest in its class, keeping its noise level below 96 dB(A).
The GENSET MPM 6/230 SYI is easy to transport and relocate for any application thanks to its convenient central lifting hook.
The GENSET MPM 6/230 SYI has a large tank capacity of up to 10.5 litres. The tank is equipped with a fuel gauge with User Friendly opening, which makes the cap safe and convenient to open and close.
In addition, this welder also has a low fuel consumption, in fact it is able to ensure an autonomy of about 6 h at 75% load.
TECHNICAL CHARACTERISTICS GENSET MPM 6/230 SYI:
Welding type: Electrode / Tig
Maximum threephase power: 6.0 KVA
Maximum threephase power: 4.8 KW
Maximum singlephase power: 2.0 KVA
Maximum singlephase power: 1.6 KW
Fuel: Diesel
Voltage: 230/400 V
Frequency: 50 Hz
Engine: Yanmar L100V
Number of cylinders: 1
Displacement: 435 cm3
Mechanical power: 8.8 HP
Starter: Electric
Tank capacity: 10.5 l
Consumption: 1.5 Lt/h
Acoustic power: 96 (71 dB at 7 mt)
Length: 885 mm
Width: 630 mm
Height: 775 mm
Weight: 170 Kg
If you're looking for other products like the GENSET then you can browse our extensive catalogue dedicated to motor welding machines.
Images and technical data are not binding.
* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
