Maximum single-phase power: 10 KVA
Maximum power single-phase: 8 KW
Fuel: Diesel
Voltage: 230/400 V
Frequency: 50/60 Hz
Engine: Yanmar 4TNV88 (STAGE V)
Starting: Electric
Consumption: 3.5 Lt/h
Length: 1855 mm
Width: 737 mm
Height: 1119 mm
Weight: 895 Kg
Super silenced
Data sheet
Specific References

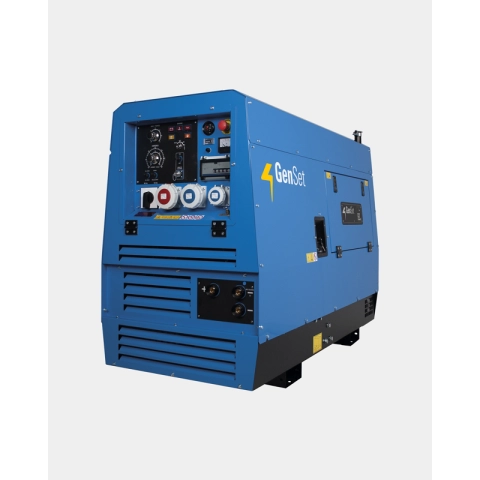

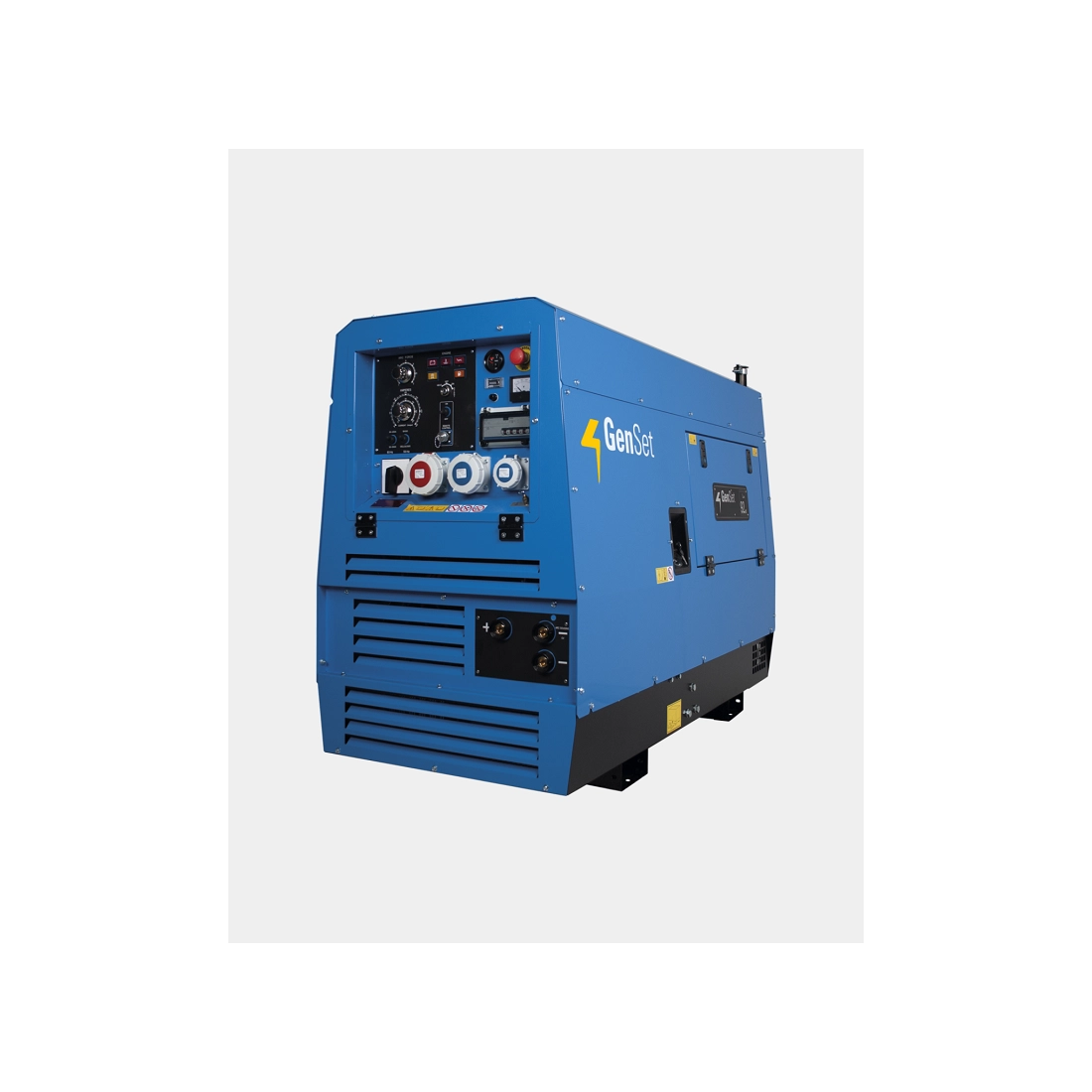

The motorwelder GENSET MPM 500 Y 50/60 Hz with 10 KVA singlephase diesel engine and electric start, suitable for electrode welding and gouging.
The GENSET MPM 500 Y motorwelder also has a low fuel consumption: only 3. 5 Lt/h at 75% of the load.
The GENSET MPM 500 Y motorwelder, thanks to the high quality and efficiency of its components, is suitable for DC electrodes with a maximum diameter of 8 mm.
CONTINUOUS CURRENT MOTORWELDING OF 500A WITH SINGLE-PHASE ALTERNATED CURRENT GENERATOR DESEL ENGINE 1500/1800 RPM
70 L TANK
Welding method: Electrode/Gouging

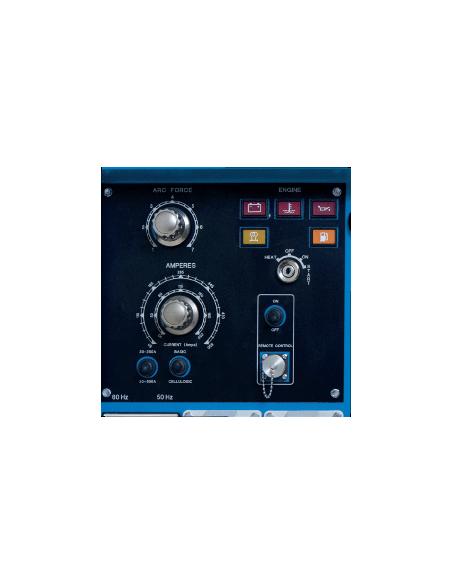

Automatic engine stop device with warning lights for:
- battery charge failure
- low fuel level
- low oil pressure
- high water temperature
1 CEE 32 A socket, 230V
1 CEE 32 A socket, 110V
1 CEE 16 A socket, 110V
Protection for power outlets
Battery 12V
Fuel level indicator
Single-phase voltmeter
Counter
50/60 Hz switch
Emergency stop button
Remote control socket

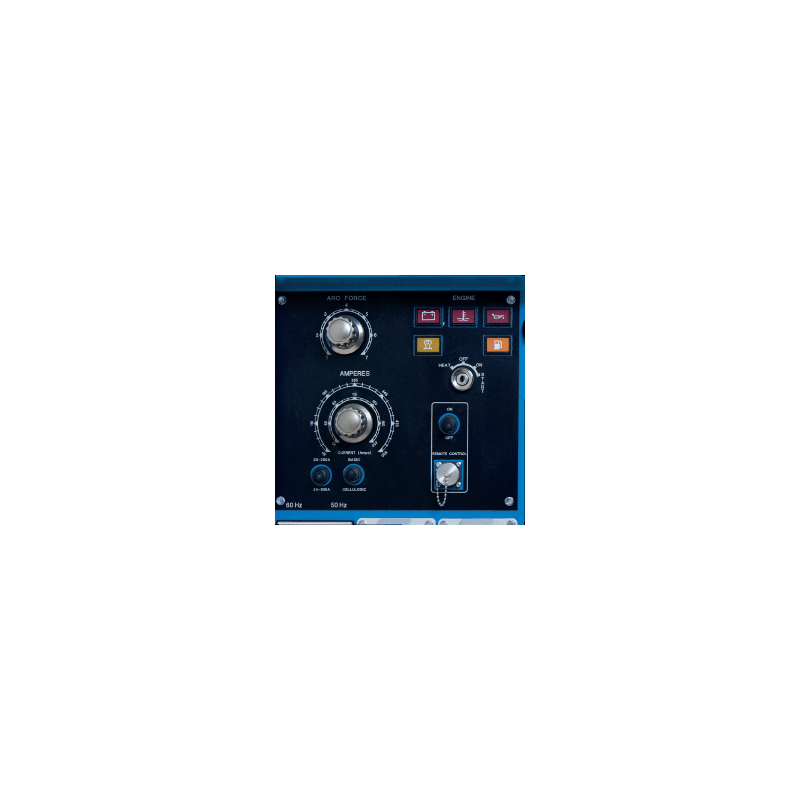

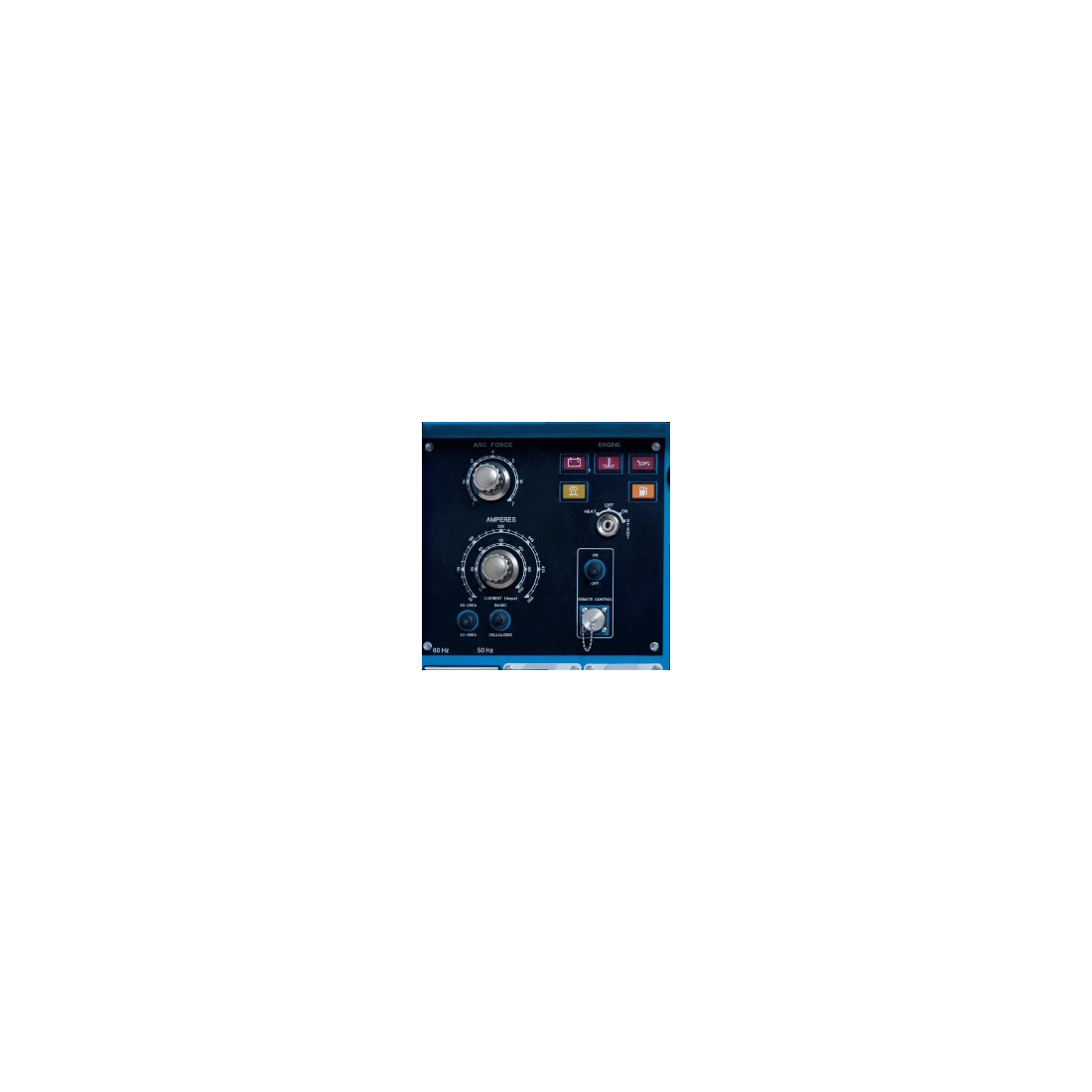

Forced Arc Adjustment potentiometer
Arc Gouging socket

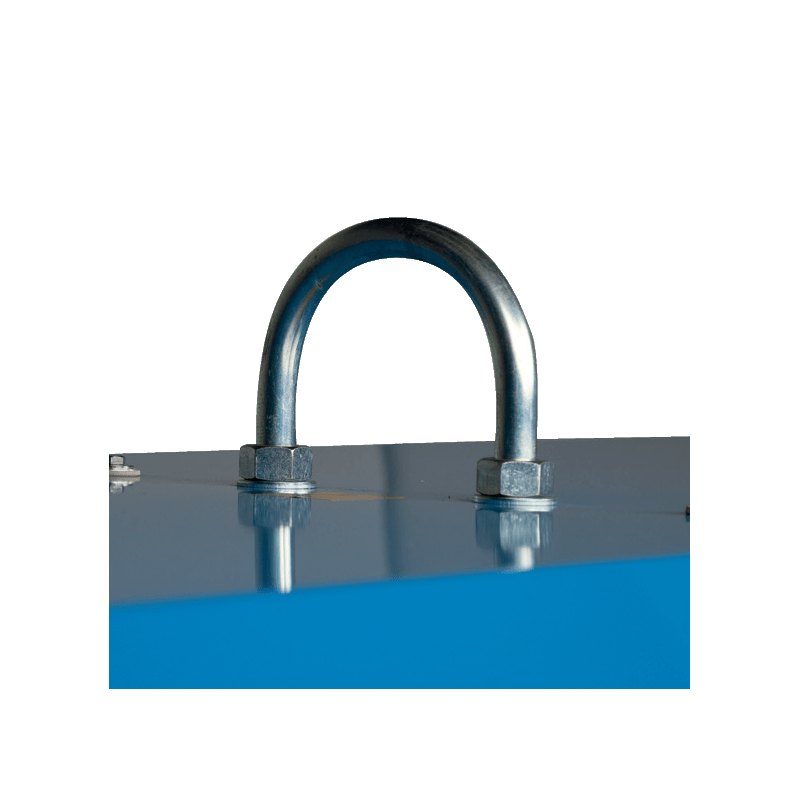

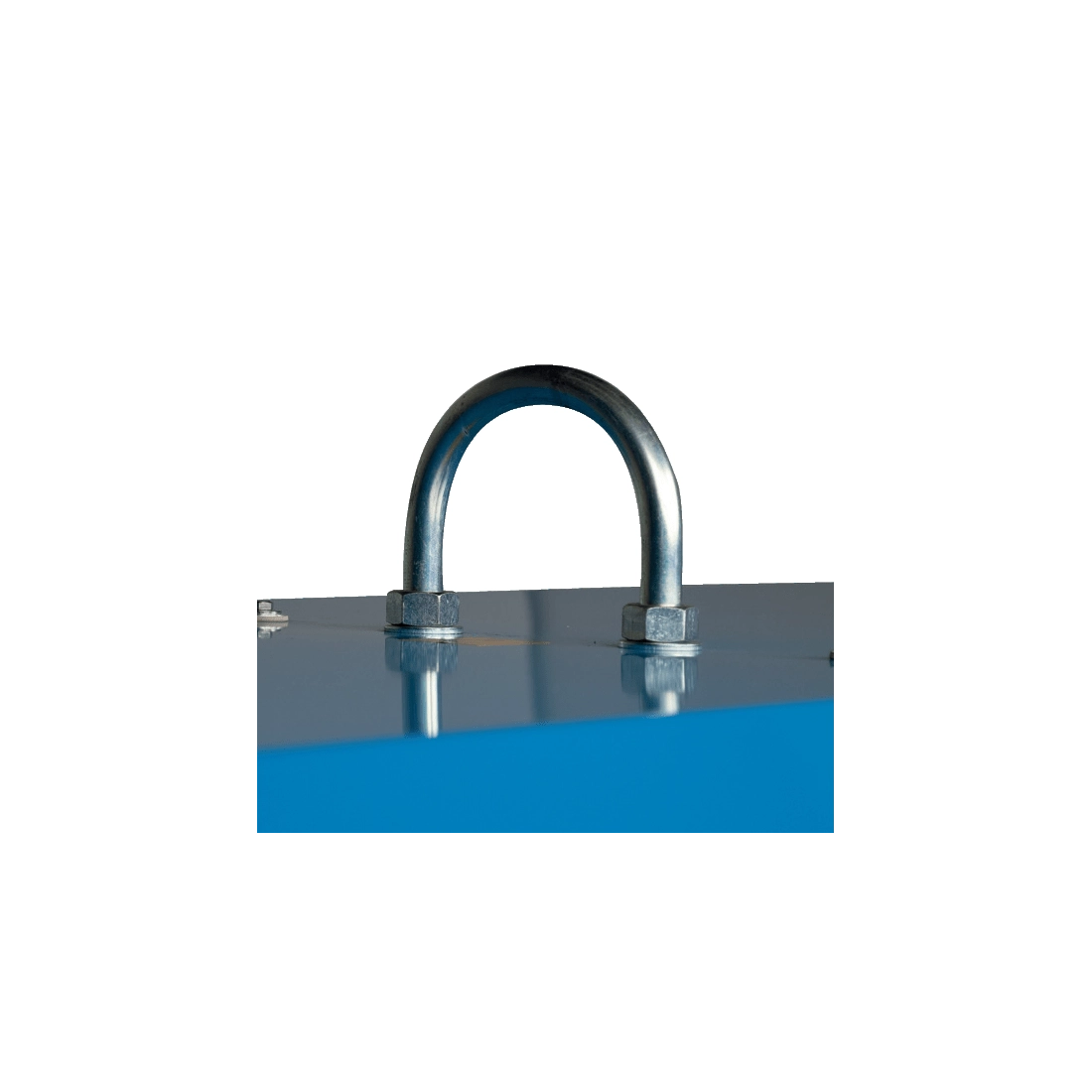

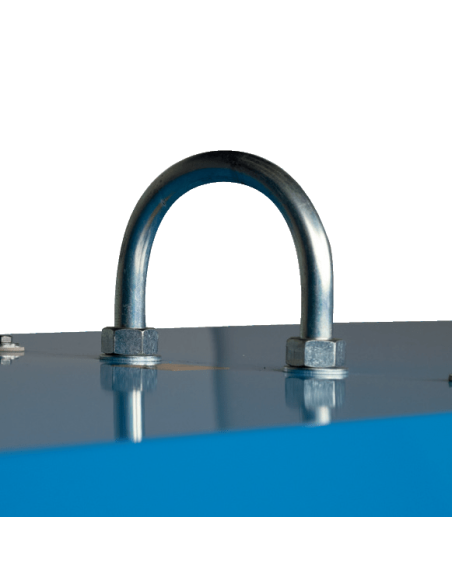

Central lifting hook
Fork pass
Lwa noise level 95 (70 dB at 7 mt)
Dc welding 60 Hz
Intermittance at 60%: 450A - 38V
Intermittance at 100%: 400A - 36V
Electronic regulation (DC mode): 30A - 500A
Trigger voltage: 70V
Maximum electrode diameter: 8 mm
Ac generator 60 Hz
Type: asynchronous, self-excited and self-protected
Single-phase power (maximum): 10kVA - 240V / 5 kVA - 120 V
Power factor: cos ф 0.8
Ac generator 50 Hz
Type: asynchronous, self-excited and self-protected
Single-phase power (maximum): 10kVA - 230V / 5 kVA - 115 V
Power factor: cos ф 0.8
Diesel engine at 1500 or 1800 rpm Yanmar 4TNV88 - 4 cyl. - 2190 cm³
Maximum power: 24.1 HP (18 kWm) 1500 rpm - 29.4 HP (21.6 kWm) 1800 rpm
Boosting: electric (12Vdc)
Cooling system: water
Fuel consumption at 75% load: 3.5lt/h 1500 rpm - 4.7lt/h 1800 rpm
Isolation class: H
Ambient temperature: 40 °C (*)
Reference altitude: 1000 m (*)
Protection class: IP 23

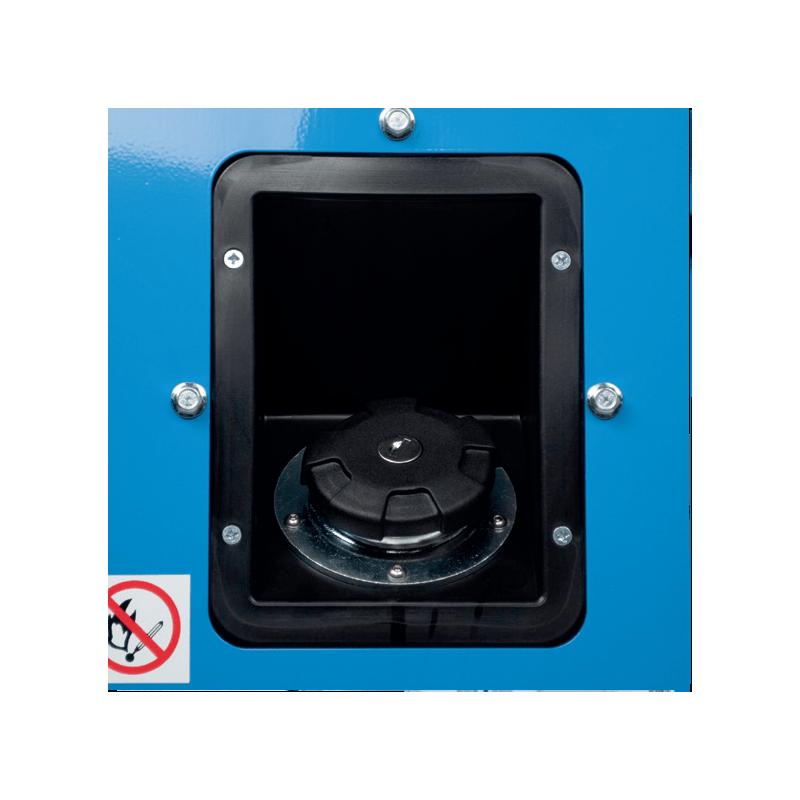

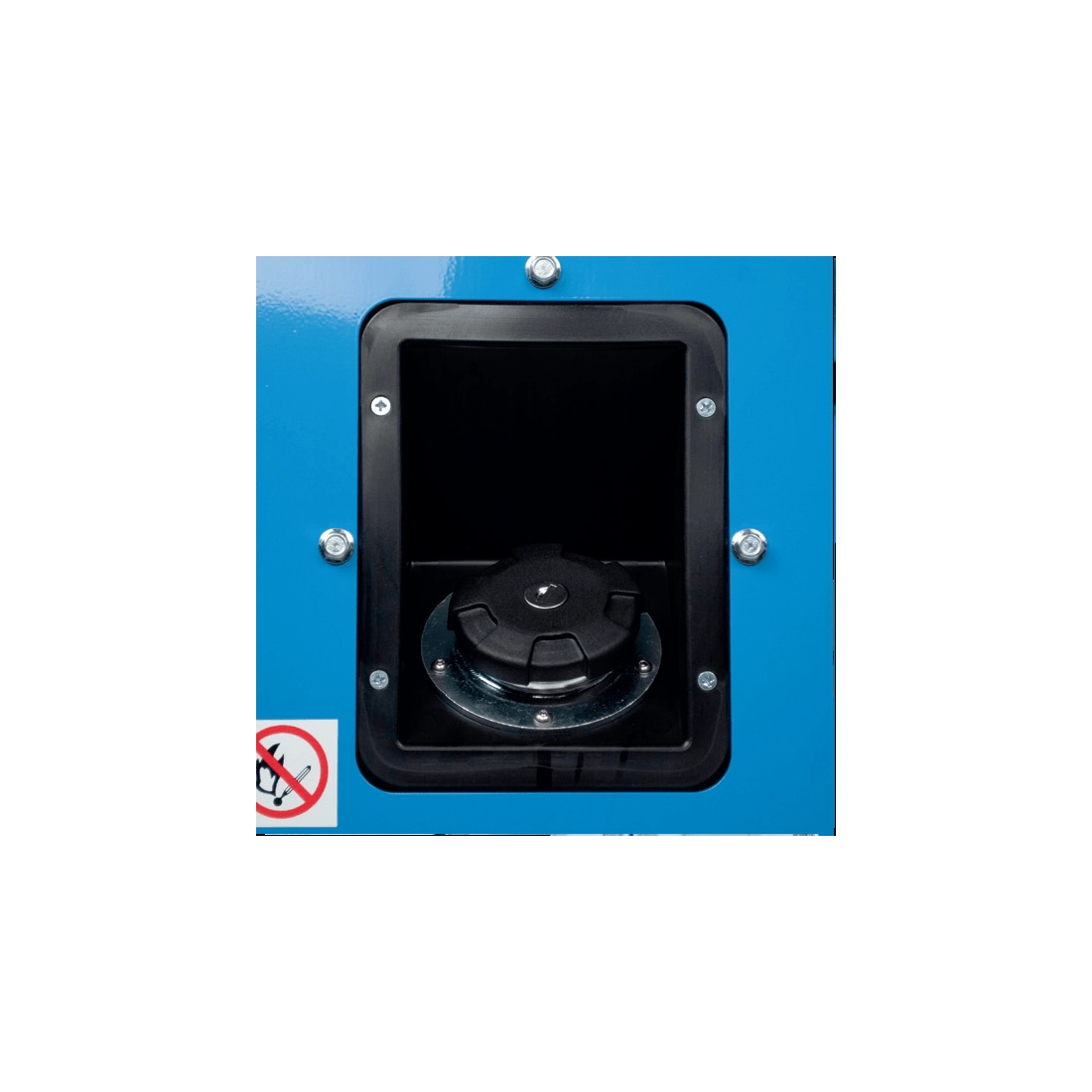

Fuel tank capacity: 70 lt
Dimensions (L x W x H): 1855 x 737 x 1119 mm
Dry weight: 895 kg
On-board polarity inverter
Spark arrester muffler
Differential switch (ELCB) for single-phase 240/230 V output
Differential switch (ELCB) for single-phase 120/115 V output
MIG welding
TIG welding
Automatic stop for low coolant level
GRT2W: trolley with 2 pneumatic wheels and drawbar for slow towing
GRT4W: trolley with 4 pneumatic wheels and drawbar for slow towing
Remote control unit 20 mt cable
Welding cables Ø 50 mm2 (20+15 mt) with accessories
Polarity reverser module
