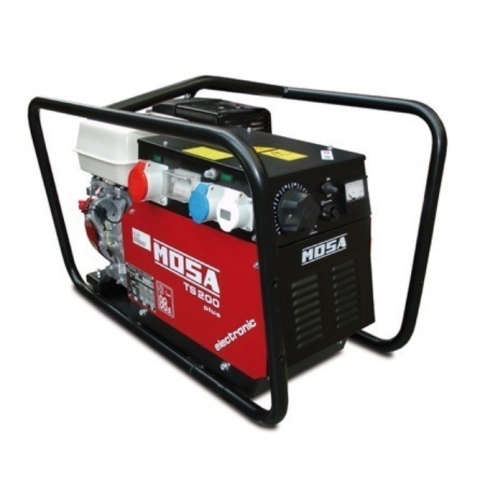

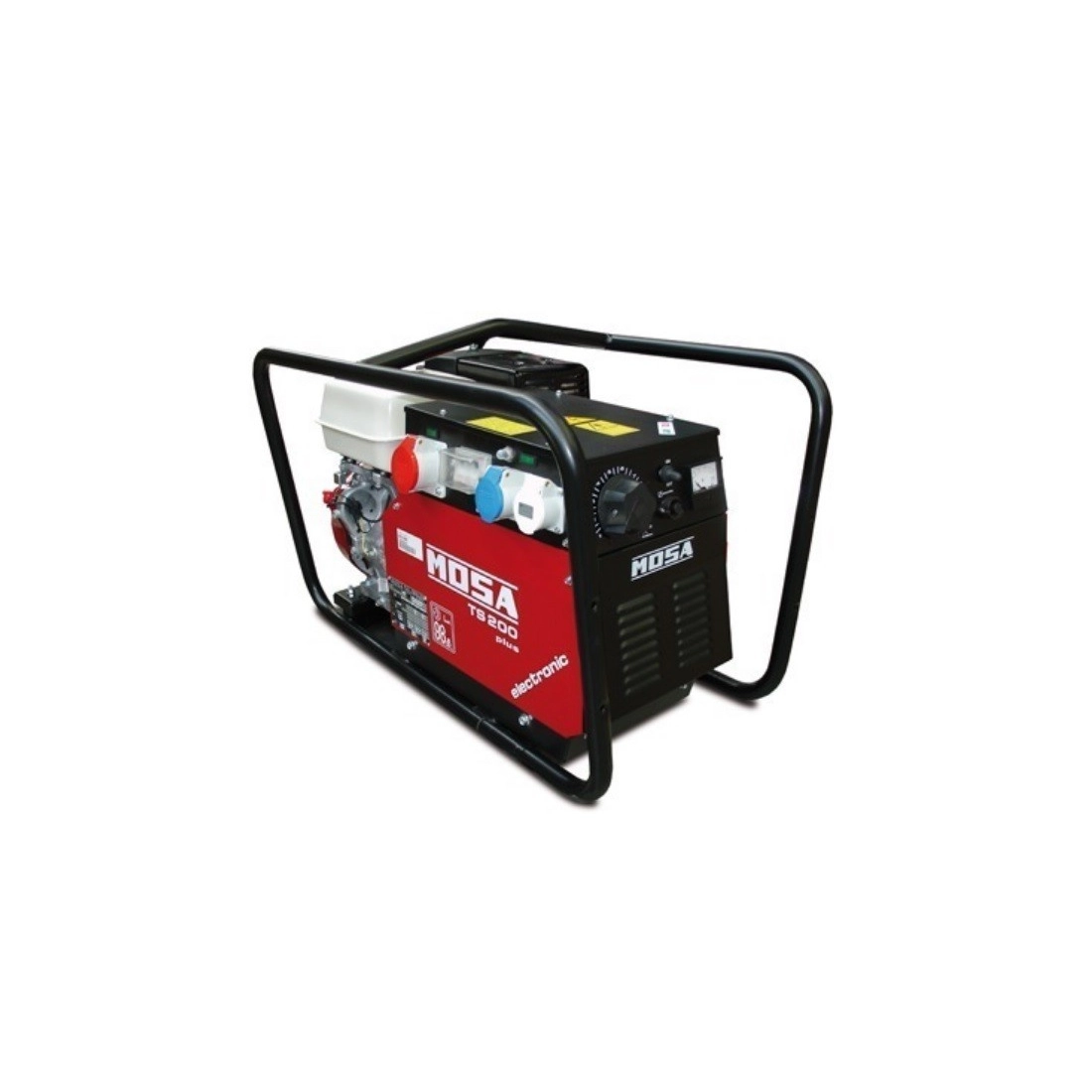

MOSA TS 200 BS/EL MOTORWELDING 6 KVA

MOSA TS 200 BS/EL is a three-phase motorwelder equipped with a KOHLER CH440 engine with gasoline power supply, capable of delivering a power of 6KVA.

The MOSA TS 200 BS/EL is a motorwelding machine that performs the dual function of current source for arc welding and current generator for auxiliary generation.

The motorwelder MOSA TS 200 BS/EL is intended for industrial and professional use. Driven by an endothermic engine, it is composed of several parts such as: the engine, the alternator, the electrical and electronic controls, the body and a protective structure.

The assembly is carried out on a steel structure on which elastic supports are foreseen in order to absorb vibrations and eventually eliminate resonances that would produce noise.

MOSA TS 200 BS/EL motorwelder is equipped with an Isolation Monitor to prevent intentional connection of the PE (12) earth terminal to an earth system. Located on the front of the machine, the Isolation Monitor continuously monitors the ground insulation of active parts. If the insulation resistance drops below the set fault value, the Insulation Monitor will interrupt the power supply to the connected equipment.

TECHNICAL CHARACTERISTICS MOSA TS 200 BS/EL

Fuel: Gasoline
Phase type: Single phase / Three phase
Voltage: 230 V / 400 V
Maximum power Single-phase 230 V (kVA): 4
Maximum power three-phase 400 V (kVA): 6

ENGINE DATA
Model: KOHLER CH440
Stand-by net output: 8.2 kWm (11.1 hp)
PRP net output: 6.4 kWm (8.7 hp)
Cylinders / Displacement: 1 / 389 cm³ (0.39 lt)
Bore/Stroke: 88/64 (mm)
Compression Ratio: 8.2 : 1
Speed Governor: Mechanical
75% PRP: 2.4 l/h
50% PRP: 1.6 l/h

DC WELDING DATA
Adjustment range: 20 ÷ 155 A
Current (A): 155 A at 60% - 120 A at 100%.
Type of current: DC
Trigger voltage (open-circuit voltage) 65 V
Arc penetration No
Welding type: MMA STICK
Supported electrodes: all maximum diameter 3.25 mm

GENERAL SPECIFICATIONS
Tank capacity 6.1 l
Fuel consumption (60% welding): 2 l/h
Autonomy (welding 60%): 3 h
Degree of protection: IP 23
Acoustic output LwA: 98 dB(A) (73 dB(A) @ 7 m)
Length (mm): 870
Width (mm): 525
Height (mm): 590
Dry weight (Kg): 106
