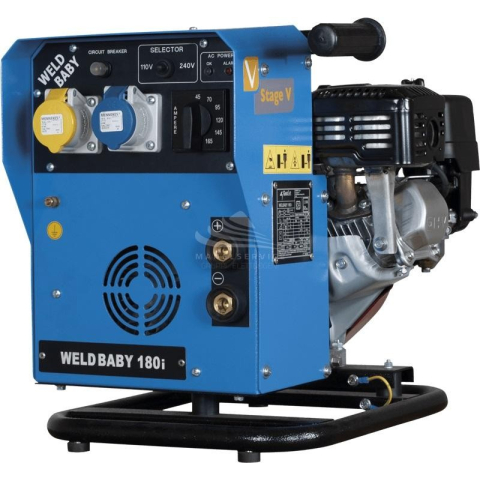

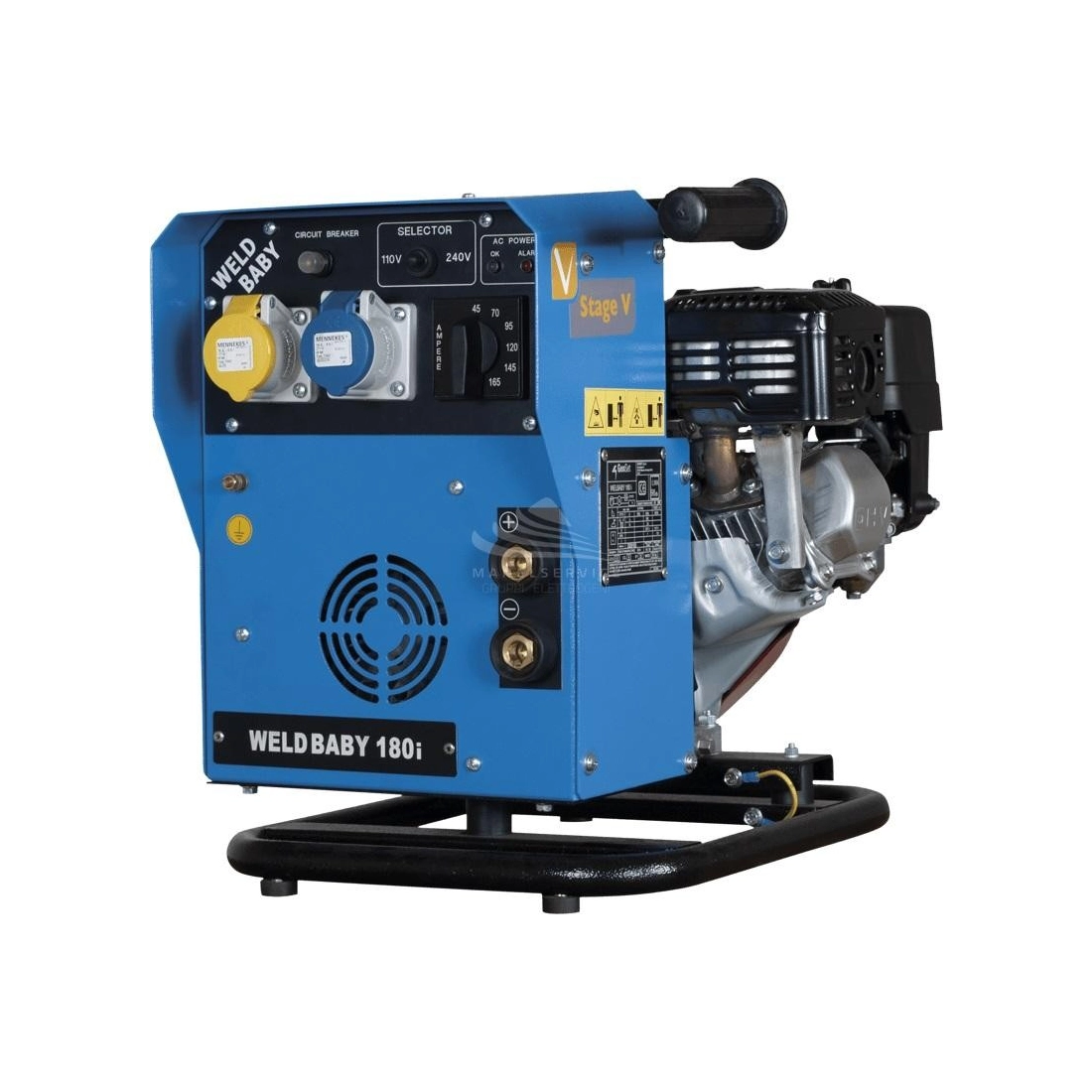

GENSET WELDBABY 180i - ENGINE DRIVEN WELDER 1 KVA INVERTER

Name: GENSET WELDBABY 180i - ENGINE DRIVEN WELDER 1 KVA INVERTER
Brand: GENSET
SKU: WELDBABY 180i
Price: 2626.66 EUR
Availability: InStock

Reference WELDBABY 180i

Welding method: Electrode
Automatic stop for low oil level
Acoustic power Lwa 98 (73 dB at 7 mt)
DC welding
Intermittance at 60%: 165 A - 24 V
Current adjustment: 40 A - 165 A
Trigger voltage: 70 V
Maximum electrode diameter: 4 mm
Synchronous 50 Hz AC generator, permanent magnets (PMG)
Single-phase power: 1 kVA - 230 V AC
Single-phase power: 0.5 kVA - 110 V AC
Power factor: cos ф 1
Petrol engine 4000 rpm

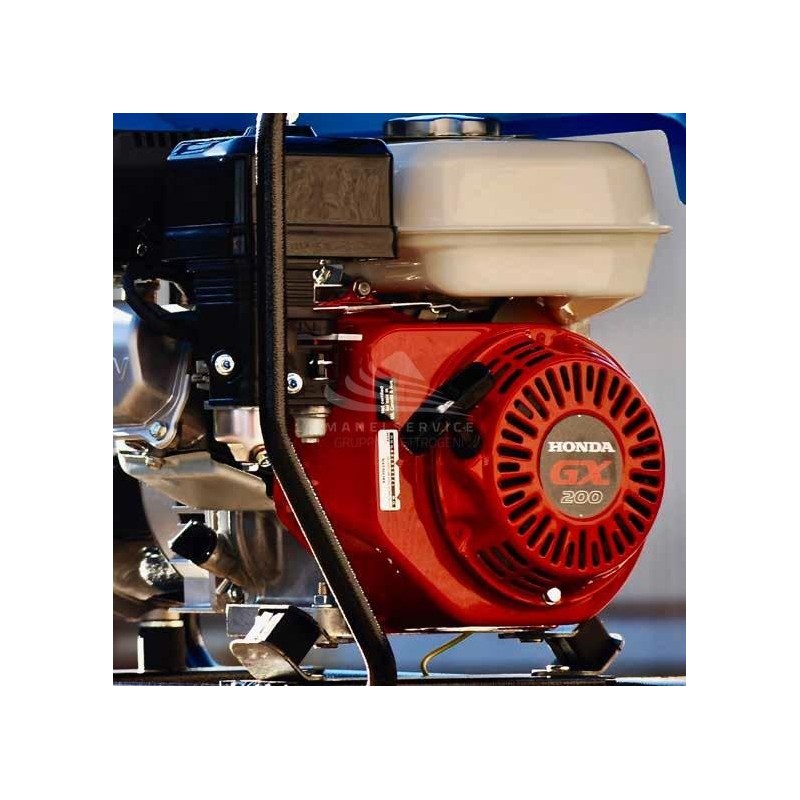

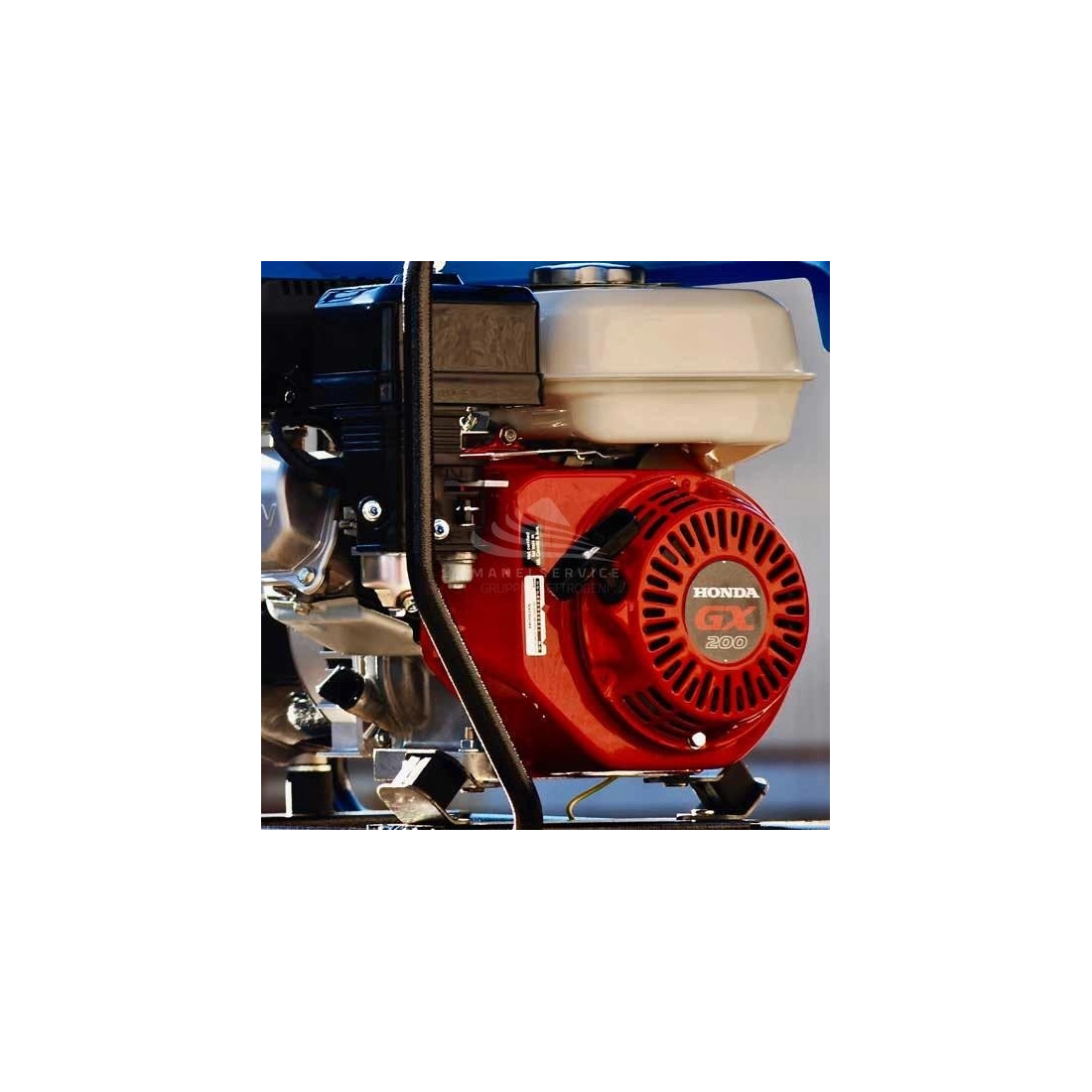

Type: Honda GX 200 OHV - STAGE V - 1 cyl. - 7,2 HP (5,3 kWm) - 196 cm3
Cooling: air
Start: pull-wire
Fuel tank capacity: 3,8 lt
Fuel consumption at 75% load: 1,8 lt/h
Isolation class: H
Protection class: IP 23
Dimensions (L x W x H): 510 x 440 x 460 mm
Dry weight: 35 kg

List price

4,587.20 € tax incl.

3,760.00 € tax excl.

Discounted Price

2,626.66 € tax incl.

2,153.00 € tax excl.

Shipping from 24.40 € to Italy buy it today. tax incl.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference WELDBABY 180i

Data sheet

Phase: Single phase
Maximum power single phase (KW): 1
Maximum power single phase (KVA): 1
Fuel: Gasoline
Frequency (Hz): 50
Voltage (V): 110 / 230
Sockets configuration: 1 x 230V 16A CEE - 1 x 110V 16A CEE
Engine: Honda GX200, 4 stroke, OHV
Emissions Regulations: Stage 5
Engine rpm (rpm): 4000
Ignition: Recoil
Starting system: Pull starter
Engine capacity (cm³): 196
Number cylinders: 1
Cooling: Air
Alternator: Synchronous
Protection degree: IP23
Motor insulation class: H
Regulation current (A): 40 - 165
Open circuit voltage (V): 70
Maximum diameter electrodes (mm): 4
Intermittence: 165 A al 60%
Fuel tank capacity (L): 3.8
Consumption (L/h): 1.8
Running time (h): 2.11
Acoustic power: 98 dB(A)
Acoustic pressure: 73 dB(A) at 7 m
Length (mm): 510
Width (mm): 440
Height (mm): 460
Dry weight (Kg): 35
Silenced: No
Super silenced: No
Product type: Engine driven welder

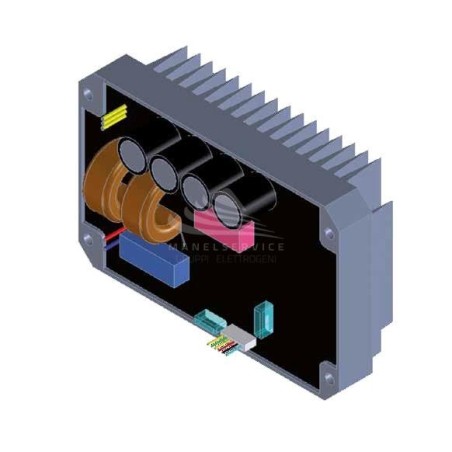

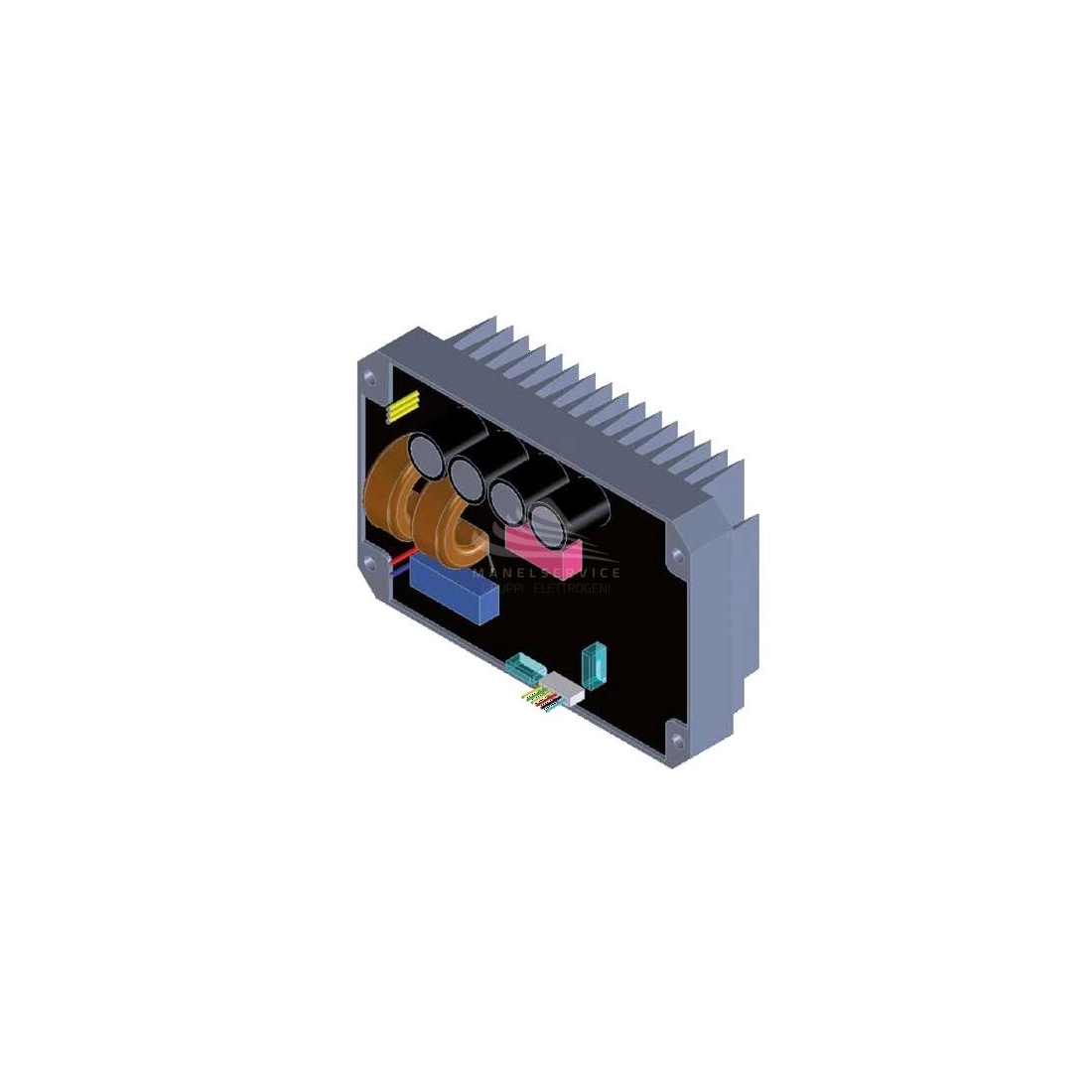

Voltage regulator: Inverter
Engine manufacturer: Honda

Specific References

Condition New

GENSET WELDBABY 180I MOTORWELDING FROM 1 KVA INVERTER ENGINE HONDA STAGE V

GENSET WELDBABY 180i electrode welding machine with Honda gasoline engine of 4000 rpm stage V single-phase 1 KVA with manual start and with Inverter voltage regulator.
Thanks to its compact size and very low weight, the GENSET WELDBABY 180i is a lightweight and easy-to-transport motor welder.
The GENSET also has a low fuel consumption: only 1.8 Lt/h at 75% load.
Thanks to the high quality and efficiency of its components, this motor welder is suitable for welding DC electrodes with a maximum diameter of 4 mm.

The GENSET WELDBABY 180i has a low fuel consumption of only 1.8 Lt/h at 75% load.

WELDING MACHINE WITH INVERTER
CONTINUOUS CURRENT OF 165 A
WITH SINGLE-PHASE ALTERNATED CURRENT GENERATOR
BENZINE ENGINE 4000 RPM/MIN STAGE V

Technical characteristics of the GENSET WELDBABY 180i motor welder

Welding method: Electrode
Automatic stop for low oil level

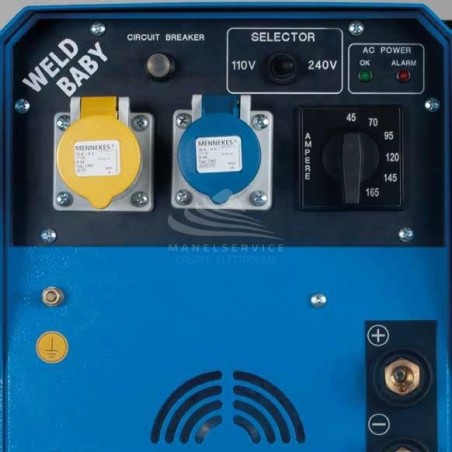

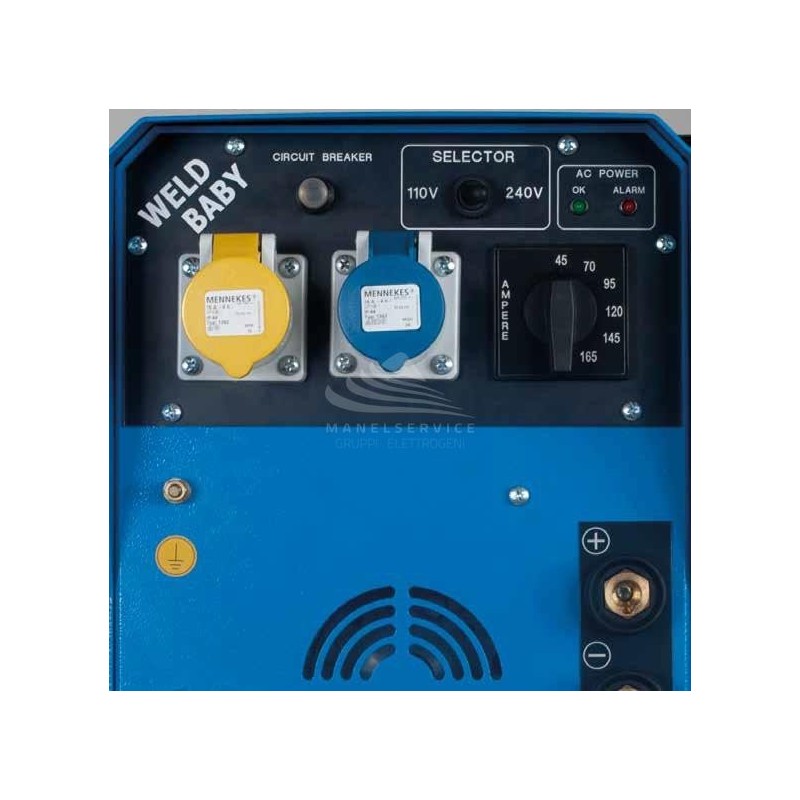

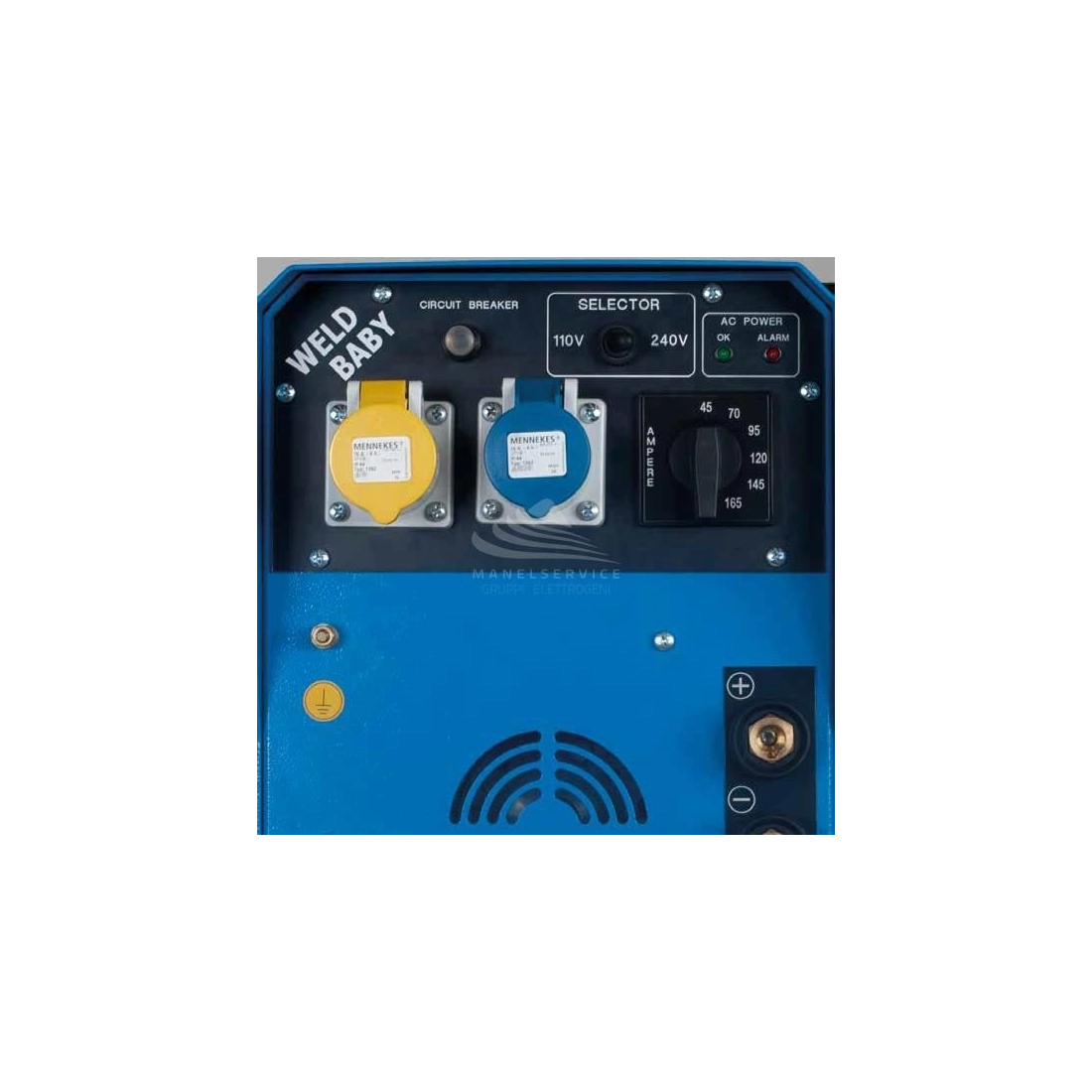

1 single-phase CEE 16 A 110 V AC outlet
1 single-phase CEE 16 A 230 V AC outlet
Thermal protection
Automatic return to idle speed in the absence of load
Acoustic power Lwa 98 (73 dB at 7 mt)
DC welding
Intermittance at 60%: 165 A - 24 V
Current adjustment: 40 A - 165 A
Trigger voltage: 70 V
Maximum electrode diameter: 4 mm
Synchronous 50 Hz AC generator, permanent magnets (PMG)
Single-phase power: 1 kVA - 230 V AC
Single-phase power: 0.5 kVA - 110 V AC
Power factor: cos ф 1
Petrol engine 4000 rpm
Type: Honda GX 200 OHV - STAGE V - 1 cyl. - 7,2 HP (5,3 kWm) - 196 cm3
Cooling: air
Start: pull-wire
Fuel tank capacity: 3,8 lt
Fuel consumption at 75% load: 1,8 lt/h
Isolation class: H
Environmental temperature: 40 °C (*)
Reference altitude: 1000 mt (*)
Protection class: IP 23
Dimensions (L x W x H): 510 x 440 x 460 mm
Dry weight: 35 kg

For more information on this and similar products please feel free to contact us.
Images and technical data not binding.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
