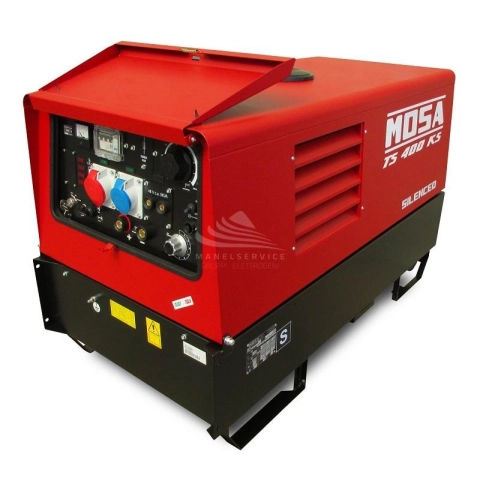

MOSA TS400 KSX/EL SUPERSILENCED MOTORWELDING

MOSA TS400 KS/EL are motorwelding equipped with a KOHLER KD 625-2 diesel engine and an asynchronous three-phase alternator capable of delivering a power of 13KVA.

MOSA TS400 KS/EL can be used simultaneously as a welder and as a three-phase and single-phase generator set.
The welding current is continuous and can weld any type of electrode (basic, rutile, cellulosic) up to 8 mm in diameter.

MOSA TS400 KS/EL can be used simultaneously as a motorwelding  and as a three-phase and single-phase generator.

The MOSA TS400 KS/EL motorwelding  are suitable for a wide range of uses, including work on metal structures and piping.

The MOSA TS400 KS/EL motorwelding  is equipped with a sturdy frame, which not only protects the machine from shocks, but also reduces noise emission making it super quiet, with a sound emission of 71 dB perceived at 7 m

Versions on request
- Auxiliary output: 400Y - 230I - 48I: N.1 x 400V 3P+N+T CEE / N.1 x 230V 32A 2P+T CEE
- Auxiliary output: 400Y - 230I: N.1 x 400V 3P+N+T CEE / N.2 x 230V 32A 2P+T CEE
- Auxiliary output: 400Y - 230I - 110I CTE: N.1 x 400V

TECHNICAL FEATURES MOSA TS400 KS/EL

Fuel: Diesel
Phase Type: SinglePhase / ThreePhase
Voltage: 48 V / 110 V / 230 V / 400 V
Maximum SinglePhase 48 V output (kVA): 5
Maximum SinglePhase 110 V output (kVA): 3. 5
Maximum singlephase 230 V power (kVA): 7
Maximum threethase 400 V power (kVA): 13
Welding current (A): 400 A at 35% - 350 A at 60% - 300 A at 100%
Welding current type: DC
Welding type: MMA STICK - TIG
Electrodes supported: all maximum diameter 8 mm
Silenced: Silenced 71 dB(A) @ 7m
LENGTH (mm): 1455
WIDTH (mm): 840
HEIGHT (mm): 880
Dry weight (Kg): 465
Electrical power

Are you looking for a motorwelding with different technical characteristics? Here you can find the full range MOSA or other specialized brands

Images and technical data are not binding and may be subject to revision by the supplier.
