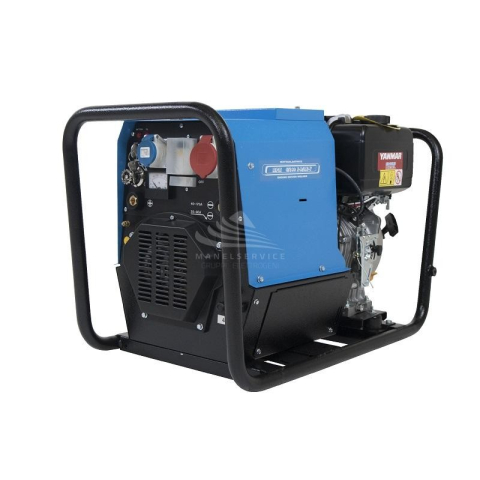

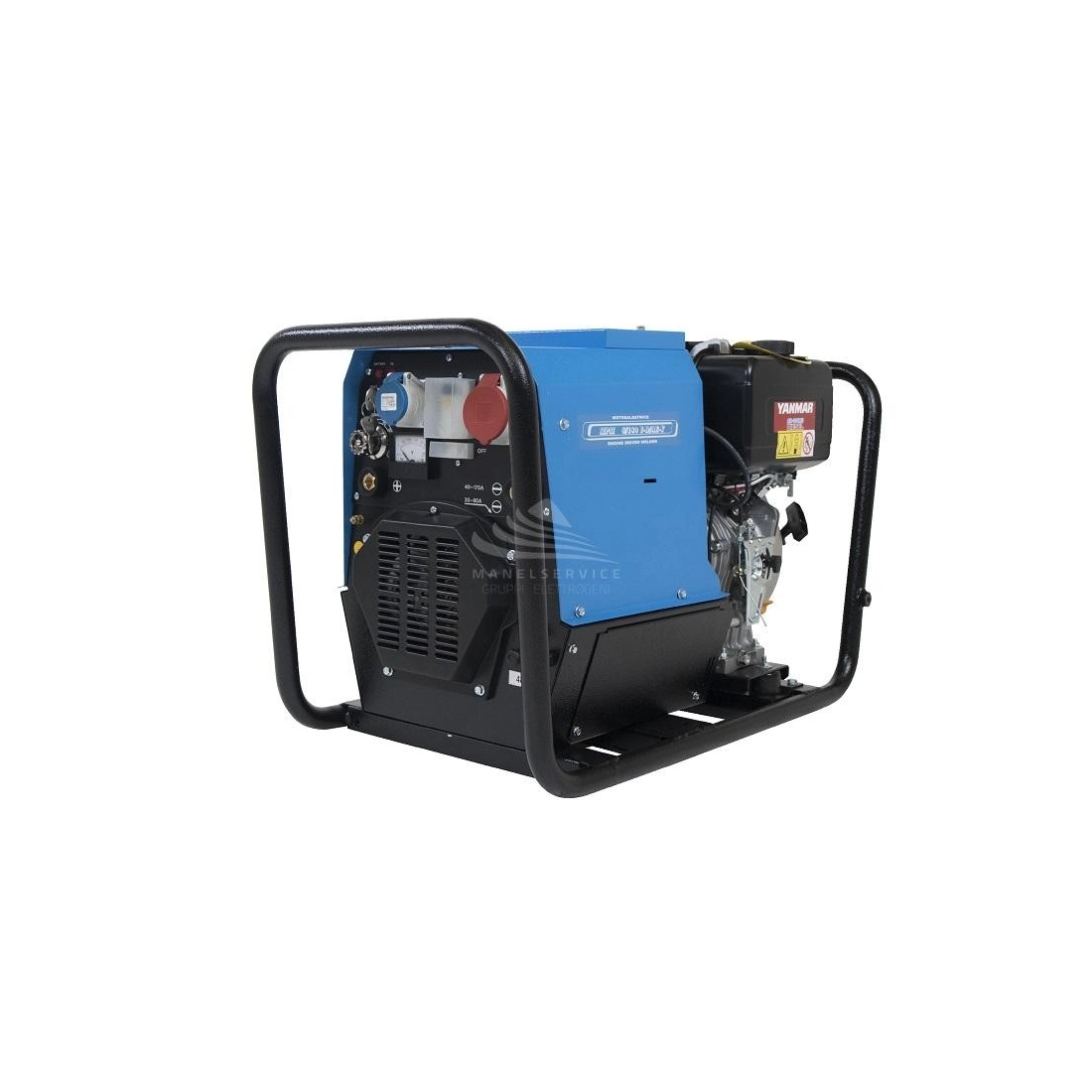

GENSET MPM 5/180 I-D/AE-Y - ENGINE DRIVEN WELDER 5 KVA

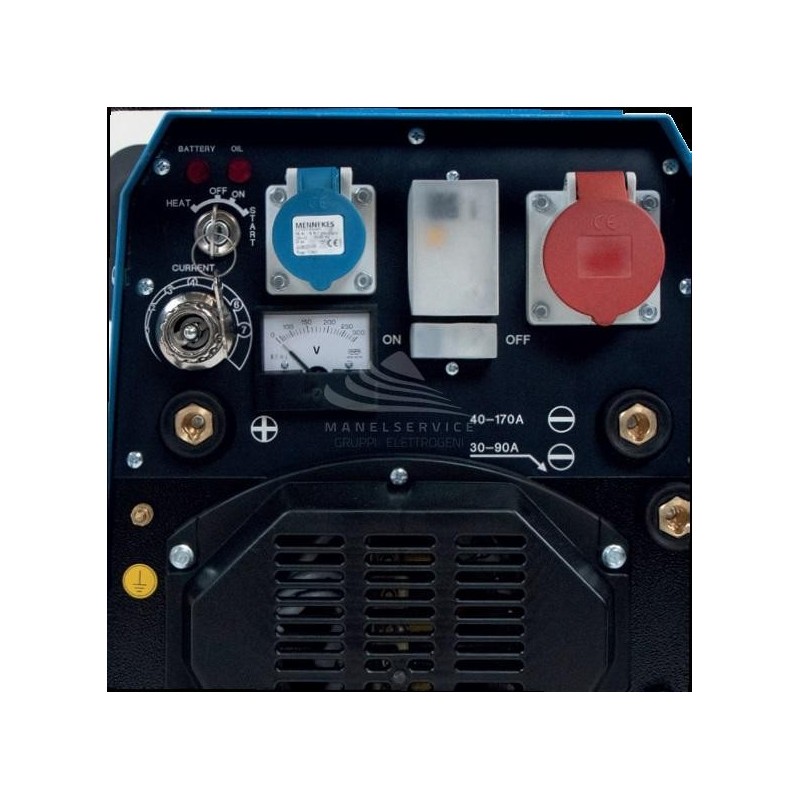

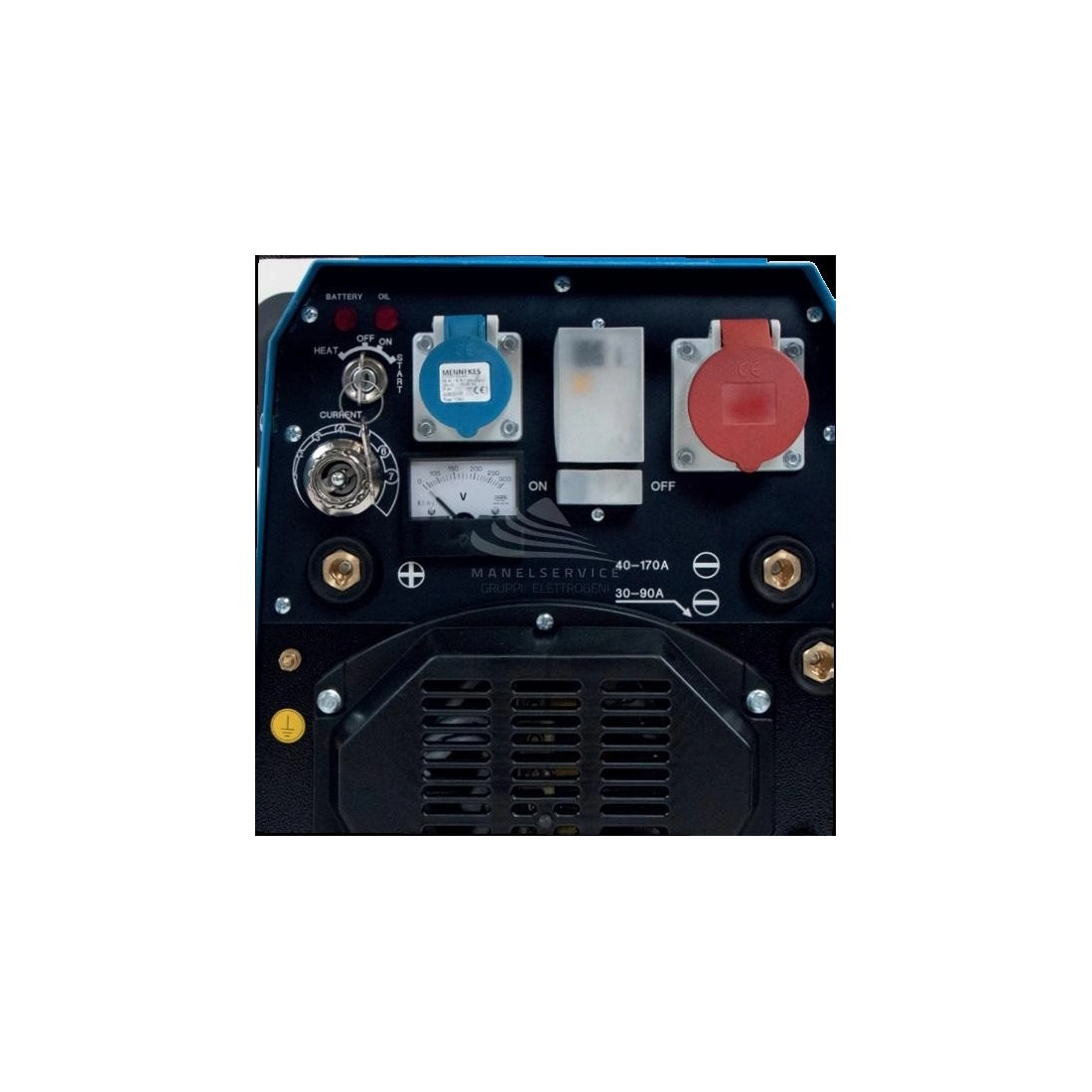

GENSET MPM 5/180 I-D/AE-Y - Control panel

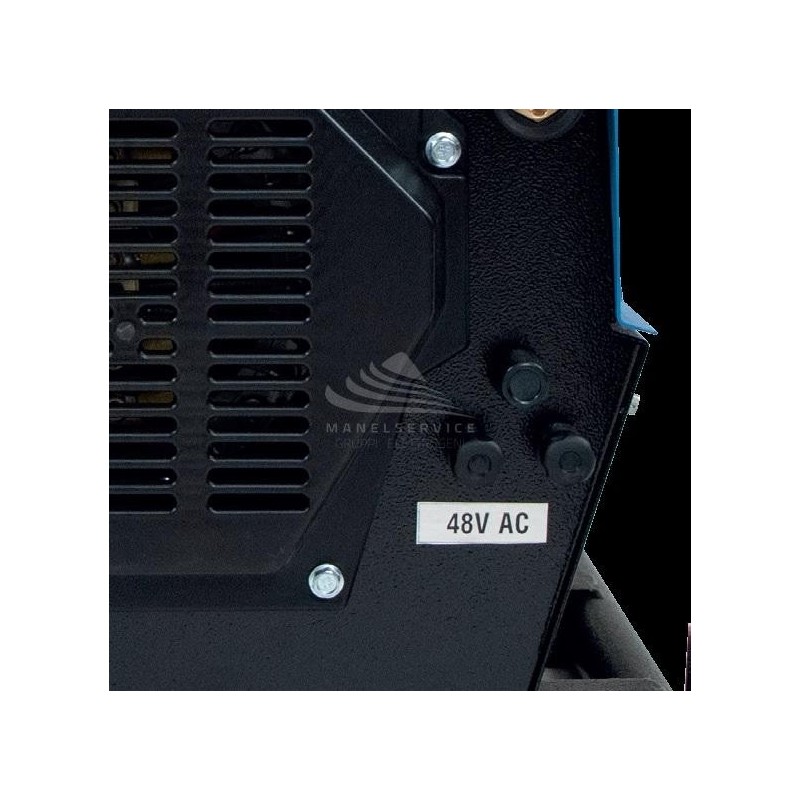

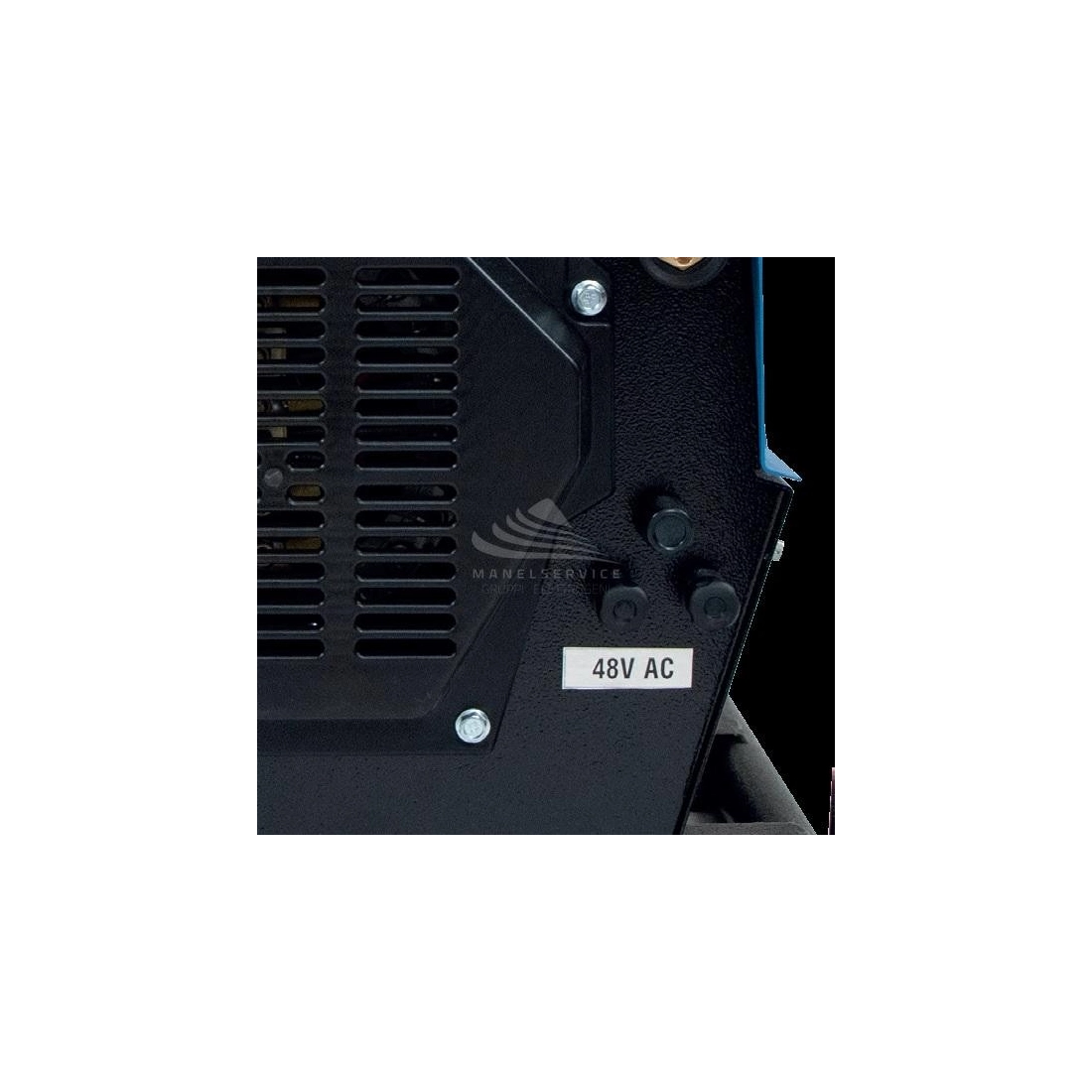

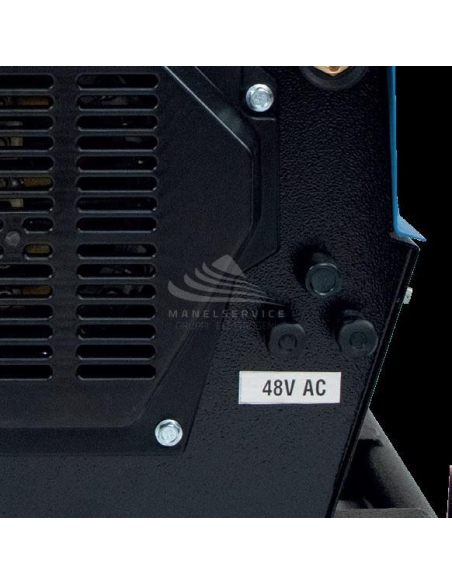

GENSET MPM 5/180 I-D/AE-Y - 48V Power source

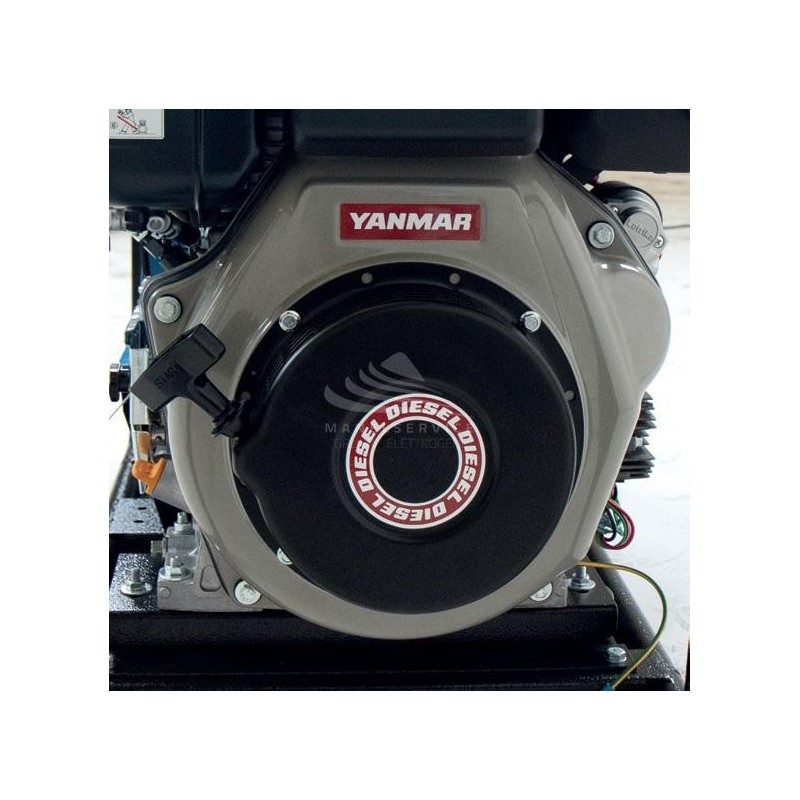

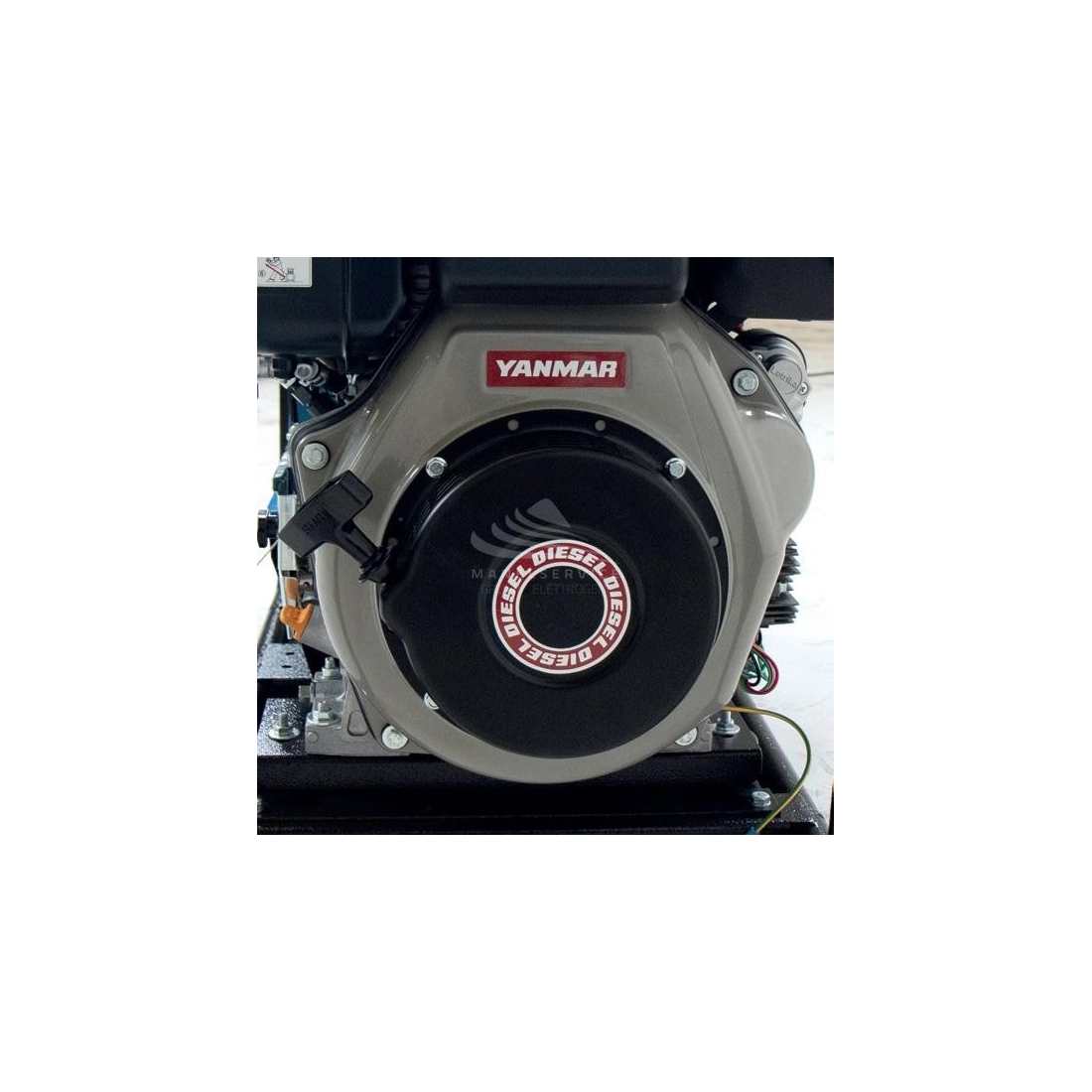

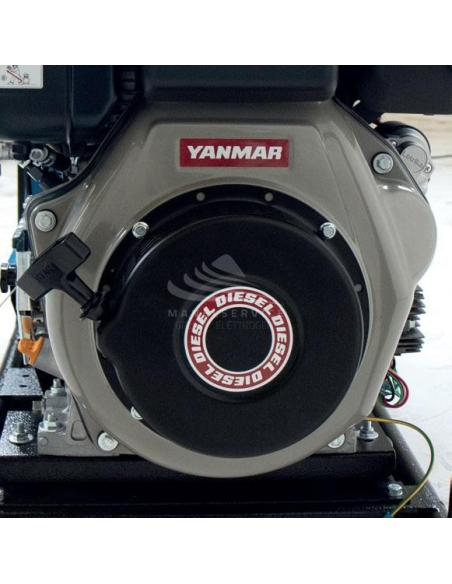

GENSET MPM 5/180 I-D/AE-Y - Yanmar engine

Reference MPM 5/180 I-D/AE-Y

Maximum threephase output: 5 KVA
Threephase maximum output: 4 KW
Threephase continuous use output: 4.5 KVA
Threephase continuous use output: 3.6 KW
Single-phase maximum power: 4 KVA
Single phase maximum power: 3.2 KW
Fuel: Diesel
Voltage: 230/400 V
Frequency: 50 Hz
Engine: Yanmar L100V (STAGE V)
Starting: Electric
Consumption: 1.5 Lt/h
Length: 950 mm
Width: 480 mm
Height: 574 mm
Weight: 148 Kg

Download Scheda tecnica MPM 5/180I-D/AE-Y Download Technical data MPM 5/180I-D/AE-Y

Product Details
Description

Phase: Single phase / Three phase
Maximum power single phase (KW): 3.2
Maximum power single phase (KVA): 4
Maximum power three phase (KW): 4
Continuous power three phase (KW): 3.6
Maximum power three phase (KVA): 5
Continuous power three phase (KVA): 4.5
Fuel: Diesel
Voltage (V): 230 / 400
Sockets configuration: 1 x 400V 16A CEE - 1 x 230V 16A CEE
Engine: Yanmar L100V, 4 stroke
Emissions Regulations: Stage 5
Engine rpm (rpm): 3000
Starting system: Electric
Engine capacity (cm³): 435
Number cylinders: 1
Cooling: Air
Alternator: Asynchronous
Protection degree: IP23
Motor insulation class: H
Regulation current (A): 40 - 170
Open circuit voltage (V): 90
Maximum diameter electrodes (mm): 4
Intermittence: 170 A al 35% / 180 A al 40% / 140 A al 60%
Consumption (L/h): 1.5
Acoustic power: 99 dB(A)
Acoustic pressure: 74 dB(A) at 7 m
Length (mm): 950
Width (mm): 480
Height (mm): 574
Dry weight (Kg): 148
Silenced: No
Super silenced: No
Product type: Engine driven welder
Voltage regulator: No
Engine manufacturer: Yanmar

Brand

MOTORWELDING MACHINE WITH ELECTRODE DC GENSET MPM 5-180 I-D-AE-Y THREEPHASE/MONOPHASE 5KVA

GENSET MPM 5-180 I-D-AE-Y DC electrode motorwelder with a 5KVA threephase singlephase diesel engine and electric start.
Thanks to its compact size and very low weight, the GENSET MPM 5-180 I-D-AE-Y motorwelder is lightweight and easy to transport.
The GENSET MPM 5-180 I-D-AE-Y also has a low fuel consumption: only 1.5 Lt/h at 75% load.
The GENSET engine driven welder, thanks to the high quality and efficiency of its components, is suitable for welding DC electrodes with a maximum diameter of 4 mm.

Main advantages of the GENSET MPM 5-180 I-D-AE-Y motorwelding machine

MOTORWELDING MACHINE WITH CONTINUOUS CURRENT 170A
WITH ALTERNATE CURRENT THREEPHASE AND SINGLEPHASE GENERATOR
AUXILIARY POWER AVAILABLE
DIESEL ENGINE 3000 RPM

Technical characteristics of the GENSET MPM 5-180 I-D-AE-Y motorwelder

Welding method: Electrode
Signaling lights for:
- battery charge failure
- low oil pressure
Battery 12V
Differential magnetothermal switch
Power output protections
1 threephase CEE 400V - 16A outlet
1 singlephase CEE 230V - 16A outlet
48Voltmeter
Lwa 99 (74 dB at 7 mt)
DC welding
Current adjustment: electromechanical
Intermittance at 35%: 170A - 27V
Intermittance at 40%: 180A - 20V
Intermittance at 60%: 140A - 26V
Electronic adjustment (DC mode): 40A - 170A
Trigger voltage: 90V
Maximum electrode diameter: 4 mm
Ac 50 Hz asynchronous, self-excited and self-protected alternator
Threephase (emergency) power: 5kVA - 400V
Threephase power (continuous): 4.5kVA - 400V
Singlephase power (maximum): 4kVA - 230V
Singlephase power (maximum): 1.5kVA - 48V
Factor cos ? 0.8
Diesel engine 3000 rpm
Type: Yanmar L100V - STAGE V - 1 cyl. - 435 cm3
8.4 HP (6.3 kWm)
Boosting: electric (12Vdc)
Cooling: air
Fuel tank capacity: 30 lt
Fuel consumption at 75% load: 1.5 lt/h
Isolation class: H
Environmental temperature: 40 °C (*)
Reference altitude: 1000 m (*)
Protection class: IP 23
Dimensions (L x W x H): 950 x 480 x 574 mm
Dry weight: 148 kg
Discover our wide range of motorwelding machines click here!

Images and technical data are not binding.

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
