TECNOGEN SD220LTE

OUT OF STOCK

Welding at 60%: 170
Maximum three-phase power: 8 KVA
Fuel: Diesel
Voltage: 400V
Engine: Lombardini 25LD330
Boosting: Electric
Length: 990 mm
Width: 550 mm
Height: 670 mm
Weight: 160 Kg

Payment methods:

Product: TECNOGEN SD220LTE

Start of Rental

End of Rental

Where to collect / receive the Product

Do you need cables?

SÌNO

Additional Tank?

SÌNO

PERSONAL DATA

Name

Surname

Phone

Company

City

State

Postal Code

Country

VAT or CF

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Ask a question

Product: TECNOGEN SD220LTE

Full Name

Company

Phone

City

Country

Postal code

Message

reCAPTCHA

Offer on letterhead

Product: TECNOGEN SD220LTE

Name

Surname

Company

VAT

Phone

City

Country

Postal code

Shipping address

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference SD220LTE

Data sheet

Phase: Three phase
Maximum power single phase (KVA): 3.2
Maximum power three phase (KVA): 8
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Engine: HONDA GC160
Engine rpm (rpm): 3000
Starting system: Electric
Engine capacity (cm³): 160
Number cylinders: 2
Cooling: Air
Welding current (A): 180 al 35% - 170 al 60%
Fuel tank capacity (L): 40
Consumption (L/h)
Running time (h): 2,5
Length (mm): 78
Width (mm): 52
Height (mm): 670
Dry weight (Kg): 160
Inverter: No
AVR: No
Compound: No
Silenced: Yes
Super silenced: No

Specific References

Condition New

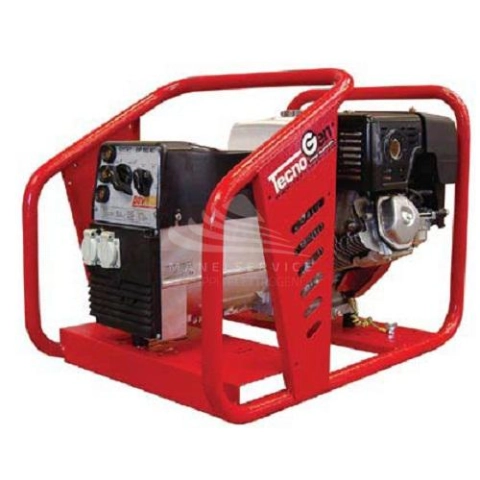

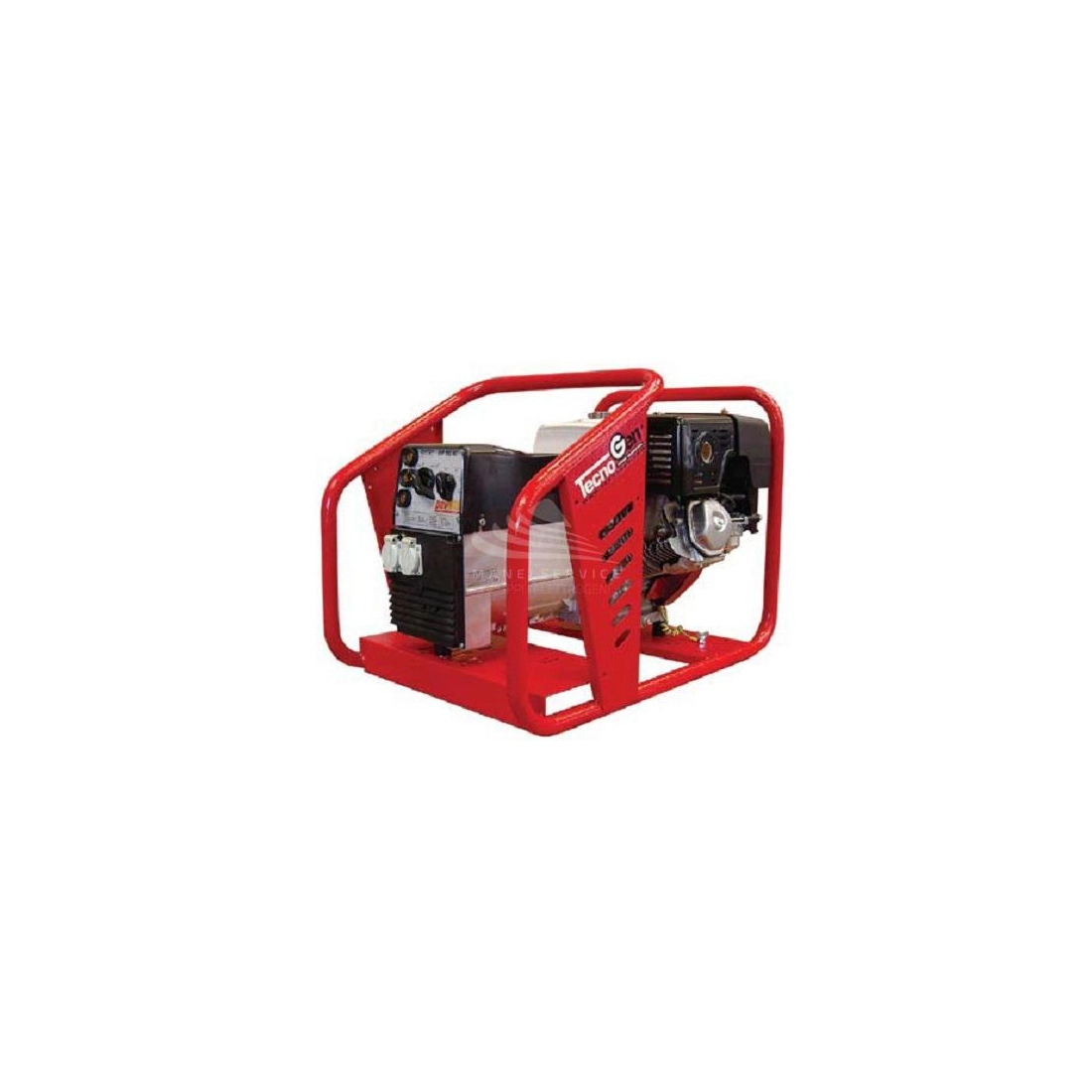

TECNOGEN SD220LTE MOTORWELDER 8KVA

TECNOGEN SD220LTE is a motorwelder equipped with a Lombardini 25LD330 gasoline engine, capable of delivering a three-phase power of 8KVA.

TECNOGEN SD220LTE is a motorwelder with a welding current of 120 to 160A max., with an air-cooled, 3600 RPM max. gasoline engine in an open frame complete with recoil starter.

TECNOGEN SD220LTE is equipped with a sturdy frame to protect a powerful Lombardini 25LD330 engine capable of delivering a three-phase power of 8KVA with a maximum load consumption of 2.4 L/h.

TECNOGEN SD220LTE is with electric start with 12V battery supplied with acid or manual with self-winding, with QM115 control panel composed of three-phase EEC socket 2P+E 16A, thermal protection, three-phase Schuko socket 2P+E 16A.

Technical characteristics TECNOGEN SD220LTE

Welding at 60%: 170
Maximum three-phase power: 8 KVA
Fuel: Diesel
Voltage: 400V
Engine: Lombardini 25LD330
Boosting: Electric
Length: 990 mm
Width: 550 mm
Height: 670 mm
Weight: 160 Kg

Are you looking for a power welding machine with different technical features? Here you can find the full range of TECNOGEN and other specialized brands.

The images are purely indicative.
