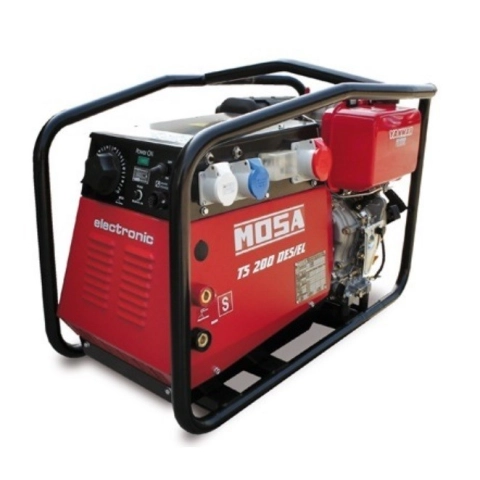

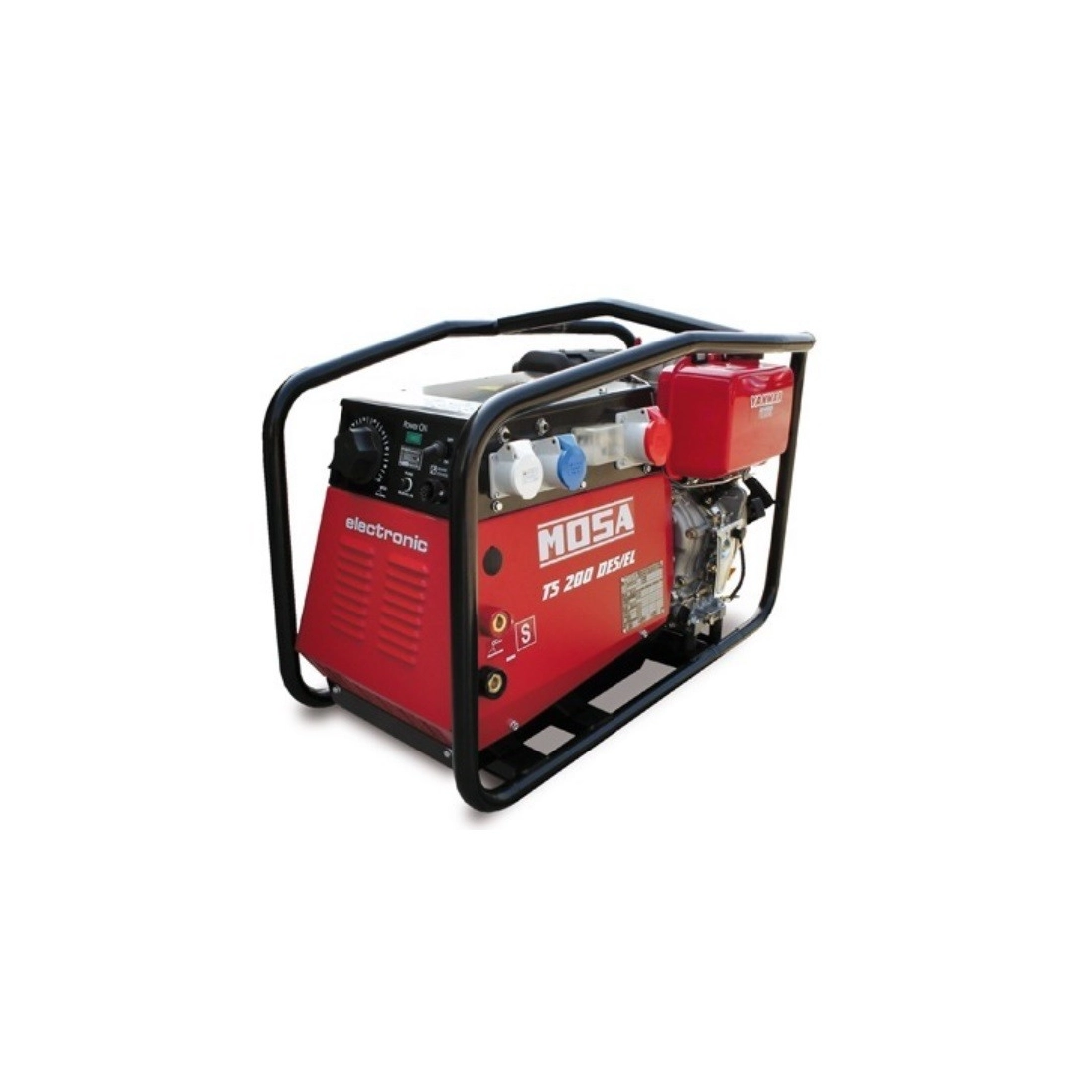

MOSA TS 200 DES/EL STAGE 5 Diesel Engine Driven Welder

Name: MOSA TS 200 DES/EL STAGE 5 Diesel Engine Driven Welder
Brand: MOSA
SKU: C0JP5060
Price: 4135.8 EUR
Availability: InStock

Reference C0JP5060 STD

Fuel: Petrol
YANMAR L100 V STAGE 5 engine
Phase Type: Single-phase / Three-phase
Voltage: 230 V / 400 V
Maximum power Single-phase 230 V (kVA): 4
Maximum three-phase power 400 V (kVA): 6
Welding current (A): 170 A at 60% - 130 A at 100%.
Type of welding current: DC
Welding type: MMA STICK
Electrodes supported: all
Maximum diameter 3.25 mm
Silenced: NO
LENGTH (mm): 900
WIDTH (mm): 550
HEIGHT (mm): 660
Dry weight (Kg): 150

List price

8,027.60 € tax incl.

6,580.00 € tax excl.

Discounted Price

4,135.80 € tax incl.

3,390.00 € tax excl.

Shipping from 61.00 € to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference C0JP5060 STD

Data sheet

Phase: Single phase / Three phase
Maximum power single phase (KW): 4
Maximum power single phase (KVA): 5
Maximum power three phase (KW): 4.8
Maximum power three phase (KVA): 6
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 48 / 230 / 400
Sockets configuration: 1x400V 16A 3P+N+T CEE 1x230V 16A 2P+T CEE 1x48V 32A 2P CEE
Engine: Yanmar L 100 V STAGE 5
Emissions Regulations: Stage 5
Engine rpm (rpm): 3000
Starting system: Manual
Engine capacity (cm³): 435
Number cylinders: 1
Cooling: Air
Alternator: Asynchronous three-phase, self-excited, self-regulated, brushless
Protection degree: IP23
Motor insulation class: H
Regulation current (A): 20 - 170
Welding current (A): 170 at 60% - 130 at 100%
Open circuit voltage (V): 65
Maximum diameter electrodes (mm): 3.25
Type of welding current: DC
Type of welding: MMA
Fuel tank capacity (L): 5.5
Consumption (L/h): 1
Running time (h): 5.5
Acoustic power: 99 dB(A)
Acoustic pressure: 74 dB(A) at 7 m
Length (mm): 900
Width (mm): 550
Height (mm): 620
Dry weight (Kg): 150
Silenced: No
Super silenced: No
Engine manufacturer: Yanmar

Specific References

Condition New

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
