TELWIN THUNDER 304 CE KOHLER

825002
      TELWIN THUNDER 304 CE KOHLER
      TELWIN THUNDER 304 CE KOHLER

      OUT OF PRODUCTION

      Phase Type: Three-phase
      Frequency: 50 Hz
      Voltage: 400 V
      Welding Current Type: DC
      Welding Type: MMA
      No-load Voltage: 85 V
      Current Adjustment: 40 - 300 A
      Max DC Current (EN 60974-1): 300 @ 35 % A
      Power: 18. 6kW
      Mechanical Power: 25Hp
      DC Current: 250 A
      Electrode Diameter: 1.6 - 6 mm
      Fuel: Gasoline
      Motor: KOHLER CH730
      Start: Electric
      RPM: 3000 rpm
      Protection Class: IP23
      Displacement: 725 cm3
      Servoir Capacity: 18 l
      Acoustic Power: 78 @ 7m dB
      Length: 940 mm
      Width: 570 mm
      Height: 790 mm
      Weight: 166 Kg

      Ask a question
      Offer on letterhead
      Ask for availability
      Download PDF
      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      TELWIN
      825002

      Data sheet

      Phase
      Single phase / Three phase
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Engine
      Kohler CH730, 4 stroke
      Engine rpm (rpm)
      3000
      Starting system
      Electric
      Engine capacity (cm³)
      725
      Cooling
      Air
      Single-phase power (KVA)
      4
      Three-phase power (KVA)
      10
      Protection degree
      IP23
      No-load voltage (V)
      85
      Regulation current (A)
      40 - 300
      Diameter electrodes (mm)
      1.6 - 6
      Type of welding current
      DC
      Type of welding
      MMA
      Current max (A)
      300
      Fuel tank capacity (L)
      18
      Acoustic pressure
      78 dB(A) at 7 m
      Length (mm)
      940
      Width (mm)
      570
      Height (mm)
      790
      Weight (Kg)
      166

      Specific References

      EAN13
      8004897872476

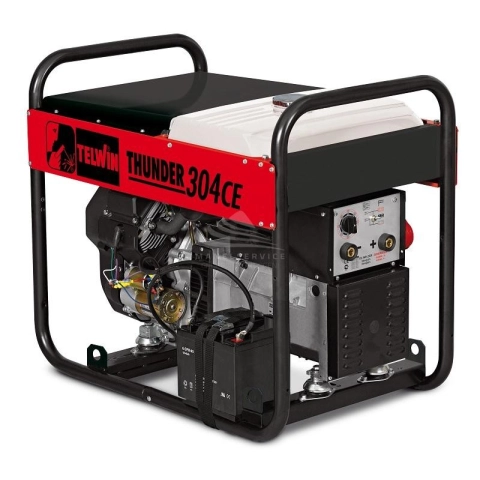

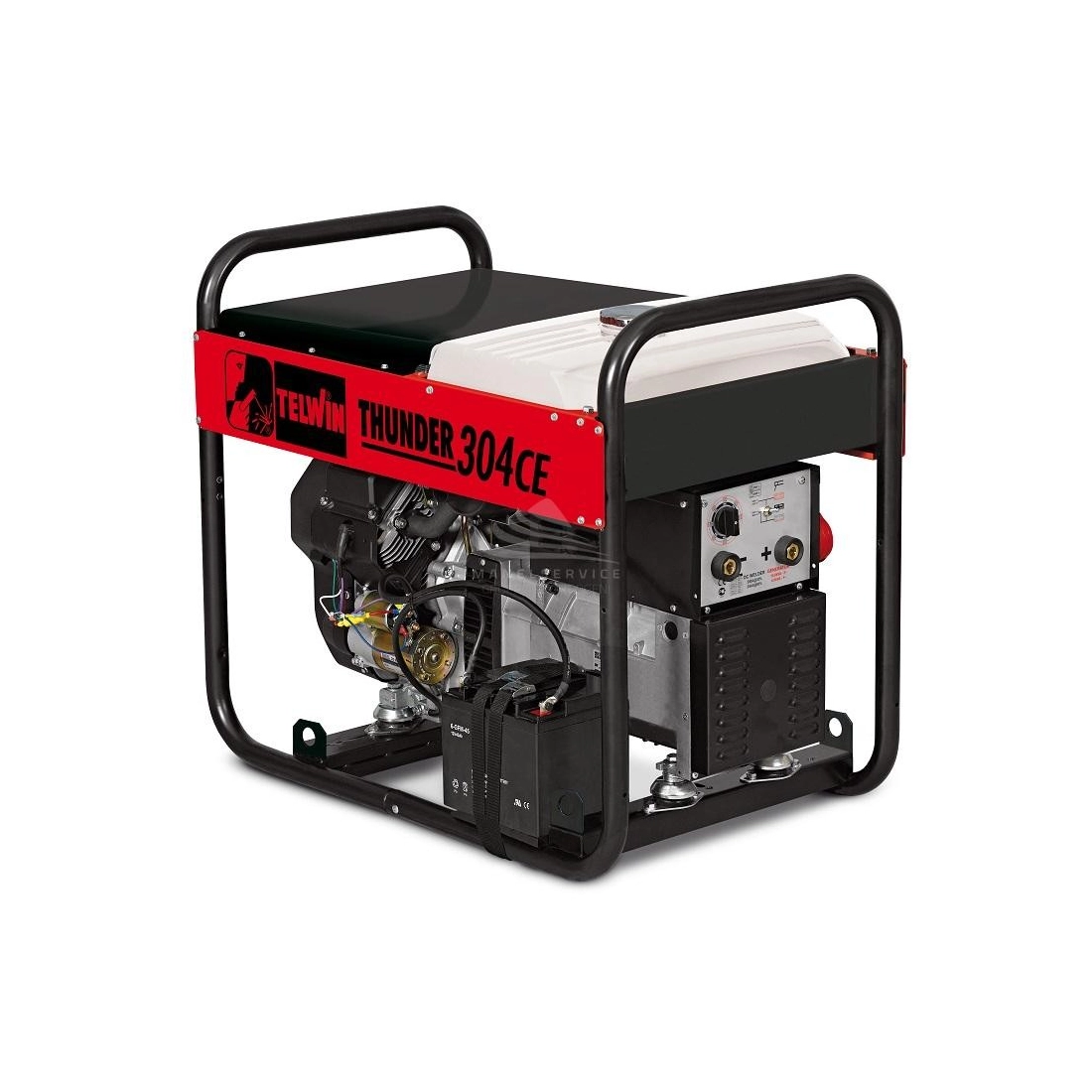

      TELWIN THUNDER 304CE MOTORWELDING MACHINE 18,6kW

      TELWIN THUNDER 304CE is a motorwelder equipped with a KOHLER CH730 engine powered by gasoline, it delivers a threephase power of 18.6kW.

      TELWIN THUNDER 304CE is a gasoline engine driven welder with KOHLER CH730 inverter technology engine with high frequency permanent magnet alternator for MMA and TIG-DC electrode welding with smear ignition.

      TELWIN THUNDER 304CE can be used as a singlephase and threephase AC generator to power all types of power tools (e.g. grinders, drills, dowels, breakers, etc.), compressors, neon and incandescent lighting systems, etc.

      Features:
      - Air-cooled 4-stroke twin-cylinder gasoline engine
      - Electric start with ignition key
      - Three ranges of welding current adjustment
      - Three-phase 10.0 KVA socket and single-phase 4.0 KVA socket with protection
      - Thermostatic protection
      - Automatic low oil pressure lock
      - Fuel tank with level indicator.

      CARACTERISTICS:
      - Three-phase 10.0 KVA socket and single-phase 4.0 KVA socket with protection
      - Thermostatic protection
      - Automatic low oil pressure lock
      - Fuel tank with level indicator.

      TECHNICAL FEATURES TELWIN THUNDER 304CE

      Phase Type: Three-phase
      Frequency: 50 Hz
      Voltage: 400 V
      Welding Current Type: DC
      Welding Type: MMA
      No-load Voltage: 85 V
      Current Adjustment: 40 - 300 A
      Max DC Current (EN 60974-1): 300 @ 35 % A
      Power: 18. 6kW
      Mechanical Output: 25Hp
      DC Current: 250 A
      Electrode Diameter: 1.6 - 6 mm
      Fuel: Gasoline
      Motor: KOHLER CH730
      Start: Electric
      RPM: 3000 rpm
      Protection Class: IP23
      Displacement: 725 cm3
      Servoir Capacity: 18 l
      Acoustic Power: 78 @ 7m dB
      Length: 940 mm
      Width: 570 mm
      Height: 790 mm
      Weight: 166 Kg

      Are you looking for a welding machine with different technical characteristics? Here you can find the whole range TELWIN or other specialized brands.

      Images and technical data are not binding.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
