TECNOGEN SH220T

Reference SH220T

OUT OF STOCK

Soldering at 60%: 170
Maximum three-phase power: 7.5KVA
Fuel: Gasoline
Voltage: 400V
Engine: Honda GX390
Start: Manual
Length: 920 mm
Width: 520 mm
Height: 660 mm
Weight: 80 Kg

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference SH220T

Data sheet

Phase: Single phase / Three phase
Maximum power single phase (KVA): 3.5
Maximum power three phase (KVA): 7.5
Fuel: Gasoline
Frequency (Hz): 50
Voltage (V): 230 / 400
Engine: HONDA GC160
Engine rpm (rpm): 3000
Starting system: Manual
Engine capacity (cm³): 160
Number cylinders: 1
Cooling: Air
Welding current (A): 180 al 35% - 170 al 60%
Fuel tank capacity (L): 6.5
Consumption (L/h): 0,8 al 75% del carico
Running time (h): 2,5
Acoustic power: 95 dB(A)
Length (mm): 78
Width (mm): 52
Height (mm): 56
Dry weight (Kg): 27
Inverter: No
AVR: No
Compound: No
Silenced: Yes
Super silenced: No

Specific References

Condition New

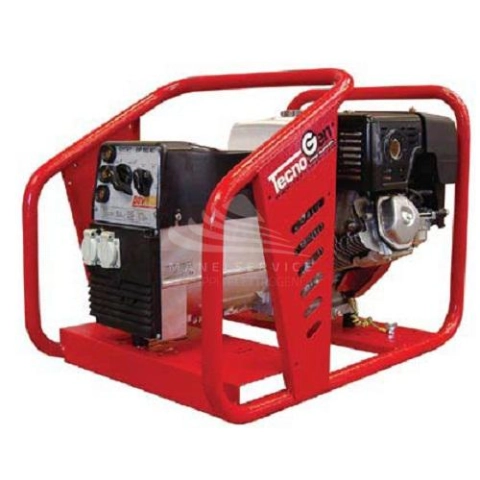

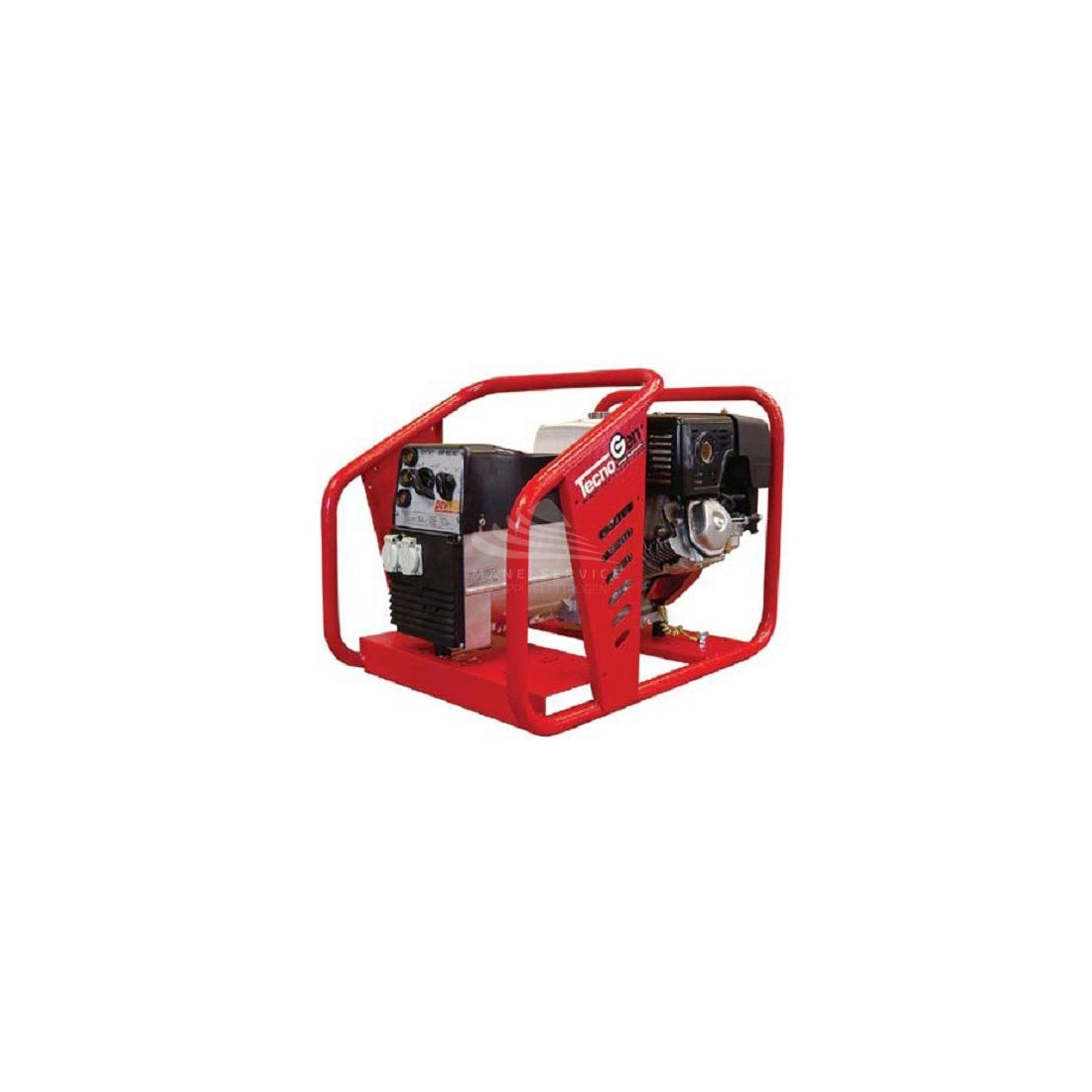

TECNOGEN SH220T MOTORWELDER 7,5KVA

TECNOGEN SH220T is a motorwelder equipped with a Honda GX390 gasoline engine, capable of delivering a threephase power of 7.5KVA.

TECNOGEN SH220T is a motorwelder with a welding current of 120 to 160A max., equipped with an air-cooled, 3600 rpm max. gasoline engine in an open frame complete with recoil starter.

TECNOGEN SH220T features a sturdy frame to protect a powerful HONDA GX390 motor capable of delivering a threephase power of 7,5KVA with a maximum load consumption of 2.4 L/h.

TECNOGEN SH220T has an electric start with 12V battery supplied with acid or manual with self-winding, with QM115 control panel composed of a threephase EEC socket 2P+E 16A, thermal protection, threephase Schuko socket 2P+E 16A.

Technical features TECNOGEN SH220T

Soldering at 60%: 170
Maximum three-phase power: 7.5KVA
Fuel: Gasoline
Voltage: 400V
Engine: Honda GX390
Start: Manual
Length: 920 mm
Width: 520 mm
Height: 660 mm
Weight: 80 Kg

Are you looking for a power welding machine with different technical characteristics? Here you can find the full range of TECNOGEN and other specialized brands.

The images are purely indicative.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
