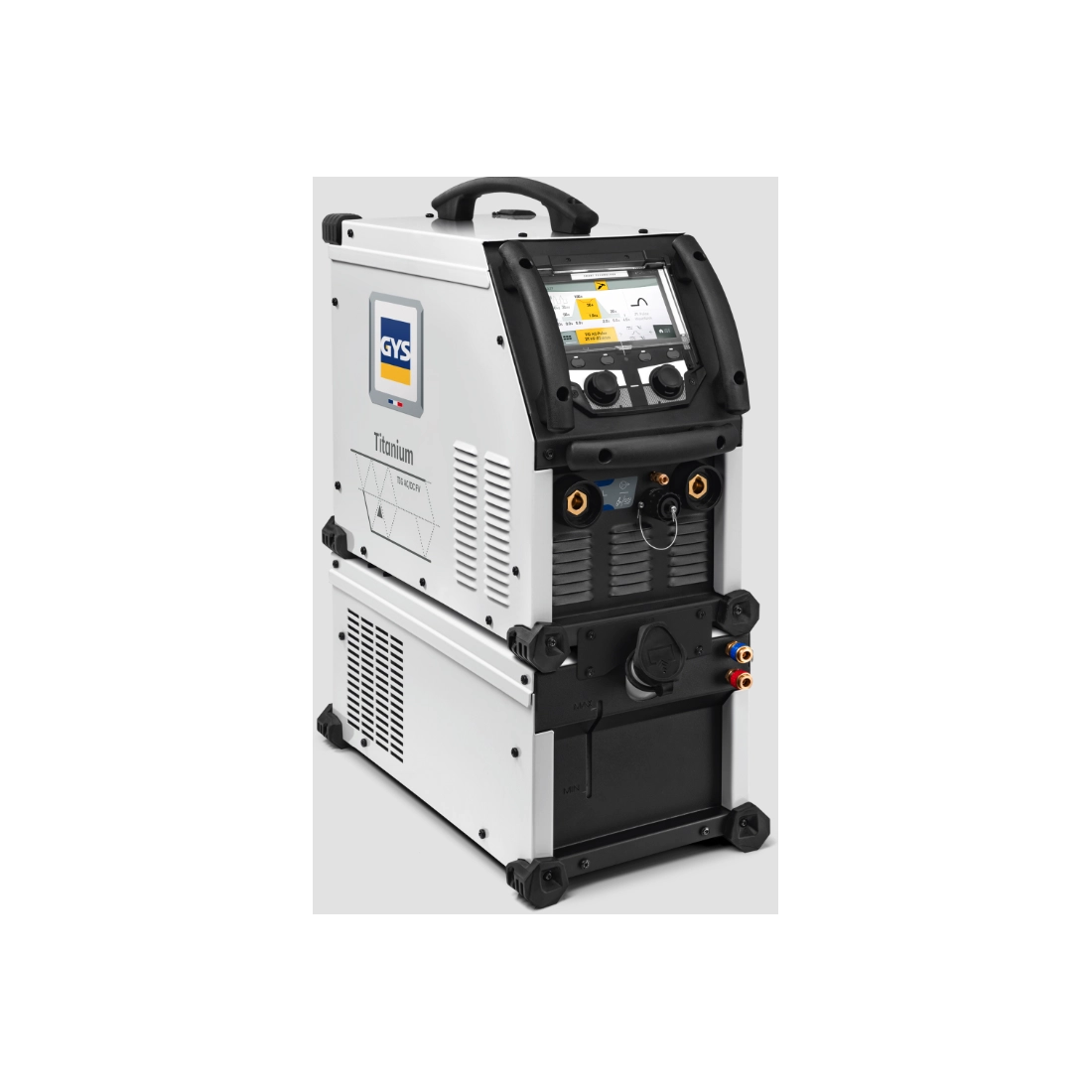

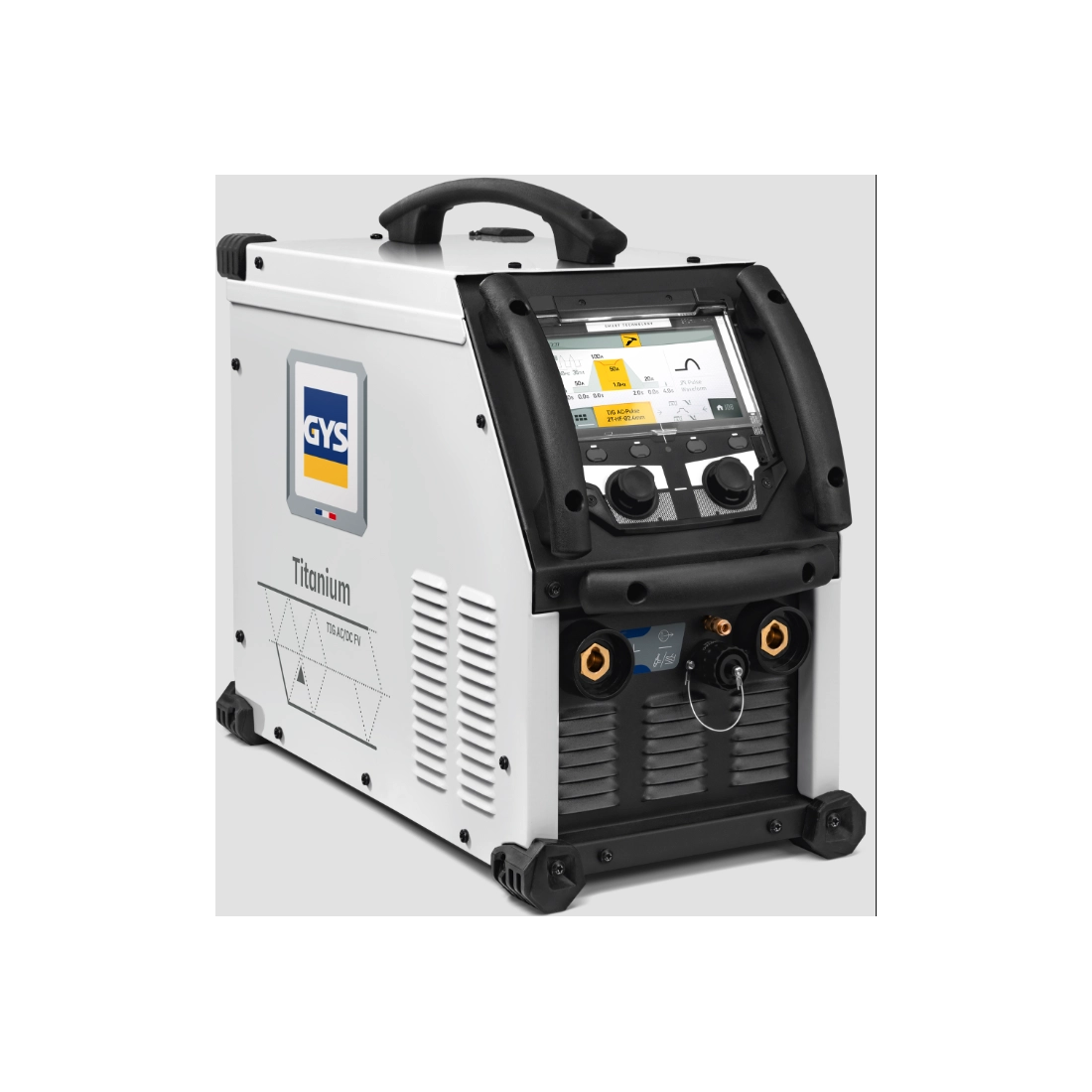

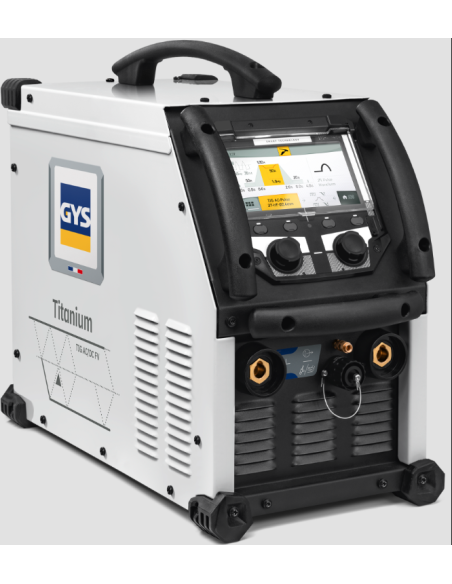

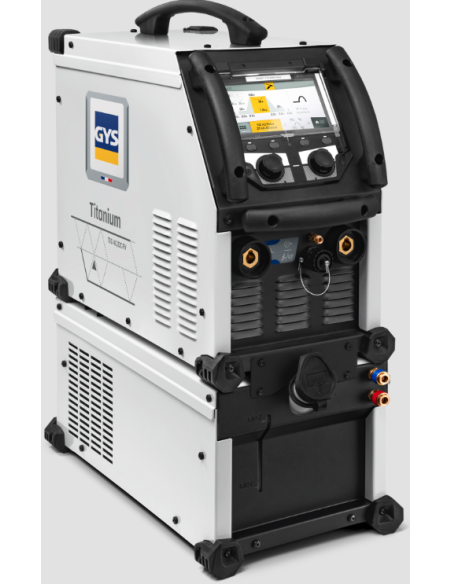

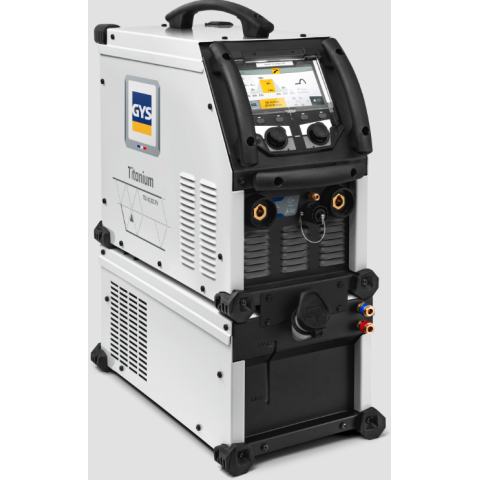

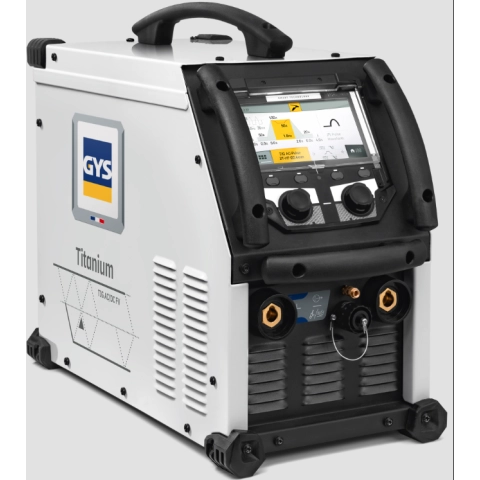

The GYS TITANIUM 231 AC/DC FV is a compact, professional TIG welding machine designed for those seeking power, precision, and reliability in a single tool.
Thanks to its AC/DC technology, it easily handles steel, stainless steel, aluminum, copper, and titanium, delivering clean, consistent results in every application.
TIG AC, TIG DC, and MMA modes—combined with pulsed welding—allow for superior arc control and minimize deformation and overheating,
even on thin sheet metal. The XL digital interface makes adjusting all parameters simple,
while the ergonomic design and advanced functions ensure comfort and productivity throughout the workday.
Ideal for professionals, workshops, and metal fabrication shops, the TITANIUM 231 AC/DC FV is a top-tier choice for precision TIG welding.

Technical specifications:

Model: TITANIUM 231 AC/DC FV
Type: Compact AC/DC TIG power source
Power supply: Single-phase
Supply voltage: 110 V / 230 V
Frequency: 50/60 Hz
Current draw at 110 V: 25 A
Current draw at 230 V: 16 A
Generator compatibility: ±15%
Recommended generator power: 8.5 kW
TIG AC/DC range at 110 V: 3–140 A
TIG AC/DC range at 230 V: 3–230 A
MMA range at 110 V: 5–120 A
MMA range at 230 V: 5–230 A
Pulsed TIG DC: 0.1–20 kHz
Pulsed TIG AC: 0.1–500 Hz
Pulsed MMA: 0.4–800 Hz
Open-circuit voltage U₀: 60 V
Reduced voltage Uᵣ: 25.6 V
Welding cable cross-section: 35/50 mm²
Dimensions: 58 × 26 × 44 cm
Weight: 20.1 kg
Protection rating: IP23

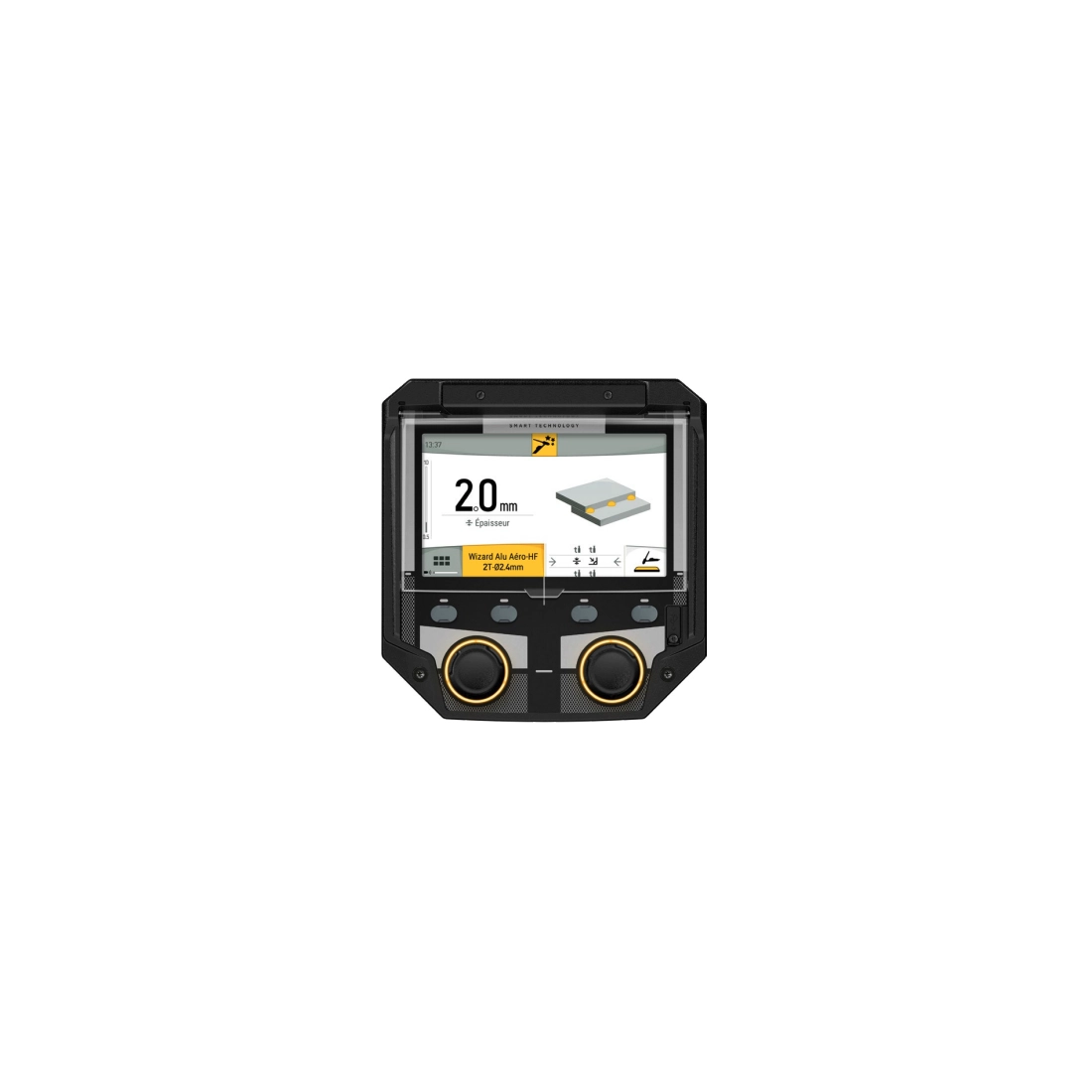

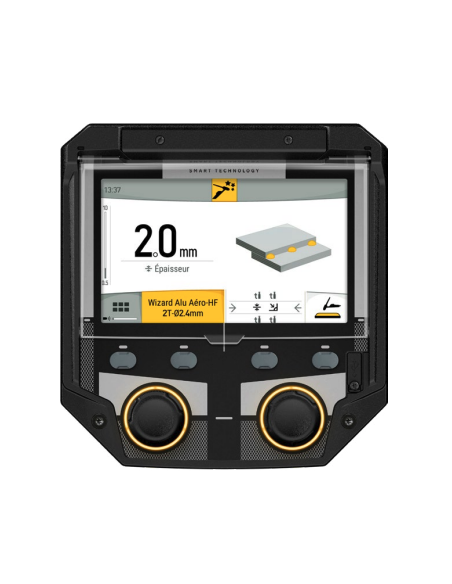

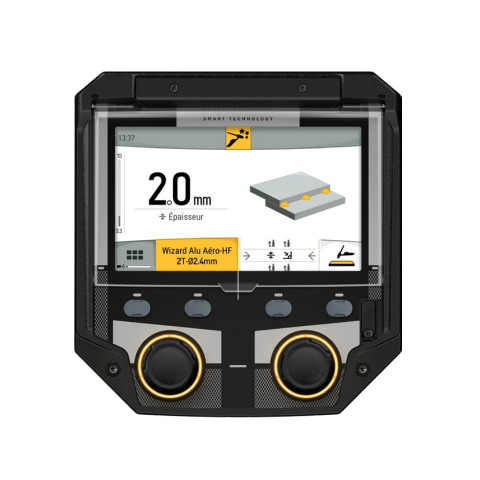

Display: 5-inch color XL interface
Interface levels: Easy, Pro, Expert
Interface: multilingual and customizable
