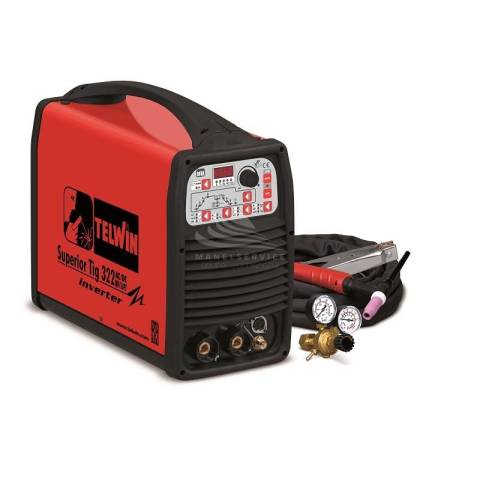

TELWIN SUPERIOR TIG 322 AC/DC-HF/LIFT 400V

Reference 816130

DISCONTINUED PRODUCT

Phase: Three phase
Frequency: 50/60 Hz
Voltage: 400 V
Type of welding: TIG/MMA
No-load voltage: 64 V
Regulation current: 5 - 270 A
Current max: 270 A
Diameter electrodes: 1.6 - 5 mm
Length: 530 mm
Width: 240 mm
Height: 450 mm
Weight: 34 Kg

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 816130

Data sheet

Phase: Three phase
Frequency (Hz): 50 / 60
Voltage (V): 400
Efficiency (%): 85
Protection degree: IP23
No-load voltage (V): 64
Regulation current (A): 5 - 270
Diameter electrodes (mm): 1.6 - 5
Type of welding: MMA / MIG
Current max (A): 270
Length (mm): 530
Width (mm): 240
Height (mm): 450
Voltage regulator: Inverter
Weight (Kg): 34

Specific References

EAN13: 8004897997681

Microprocessor controlled, TIG (high frequency HF or LIFT striking), PULSE TIG and MMA inverter welding machine in direct and alternating current (AC/DC).
Use with a wide range of materials such assteel, stainless steel, aluminium, titanium, copper, nickel, magnesium and their alloys.
Features:
- pulse and EASY pulse operation
- 9 customized welding programmes
- TIG regulations:bi-level, start up/end current, spot welding time, pre/post gas, current up/down slope, balance DC/AC, square wave frequency
- MMA regulations: arc force and hot start according to the type of electrode in use
- anti-stick device
- remote control and G.R.A. water cooling connector
- storage on on-board E2PROM of the last 10 alarms
- thermostatic, overvoltage, undervoltage, inside dirtiness, overcurrent, phase failure, water cooling unit protections.
Complete with TIG welding accessories.

Not binding images and technical data.
