TELWIN TECHNOMIG 223 TREO SYNERGIC 230V
      TELWIN TECHNOMIG 223 TREO SYNERGIC 230V

      TELWIN TECHNOMIG 223 TREO SYNERGIC 230V

      816058

      DISCONTINUED PRODUCT

      Phase: Single phase
      Frequency: 50/60 Hz
      Voltage: 230 V
      Type of welding: MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift
      No-load voltage: 78 V
      Regulation current: 20 - 220 A
      Current max: 180 A
      Diameter electrodes: 1.6 - 4 mm
      Steel welding wire diameter: 0.6 - 1 mm
      Inox welding wire diameter: 0.8 - 1 mm
      Aluminium welding wire diameter: 0.8 - 1 mm
      Flux cored welding wire diameter: 0.8 - 1.2 mm
      Brazing wire diameter: 0.8 - 1 mm
      Length: 870 mm
      Width: 530 mm
      Height: 1665 mm
      Weight: 52 Kg

      Custom Quote
      Product: TELWIN TECHNOMIG 223 TREO SYNERGIC 230V

      PERSONAL DATA


      Ask a question
      Product: TELWIN TECHNOMIG 223 TREO SYNERGIC 230V
      Offer on letterhead
      Product: TELWIN TECHNOMIG 223 TREO SYNERGIC 230V
      TELWIN
      816058

      Data sheet

      Phase
      Single phase
      Frequency (Hz)
      50 / 60
      Voltage (V)
      230
      Efficiency (%)
      84
      Protection degree
      IP23
      No-load voltage (V)
      78
      Regulation current (A)
      20 - 220
      Diameter electrodes (mm)
      1.6 - 4
      Ø steel welding wire (mm)
      0.6 - 1
      Ø inox welding wire (mm)
      0.8 - 1
      Ø aluminium welding wire (mm)
      0.8 - 1
      Ø flux cored welding wire (mm)
      0.8 - 1.2
      Ø brazing wire (mm)
      0.8 - 1
      Type of welding
      Multiprocess
      MIG-MAG welding
      MIG-MAG/FLUX/BRAZING
      Current max (A)
      180
      Length (mm)
      870
      Width (mm)
      530
      Height (mm)
      1665
      Voltage regulator
      Inverter
      Weight (Kg)
      52

      Specific References

      EAN13
      8004897935539

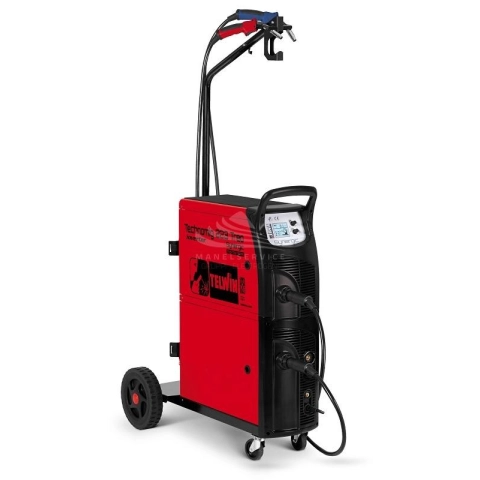

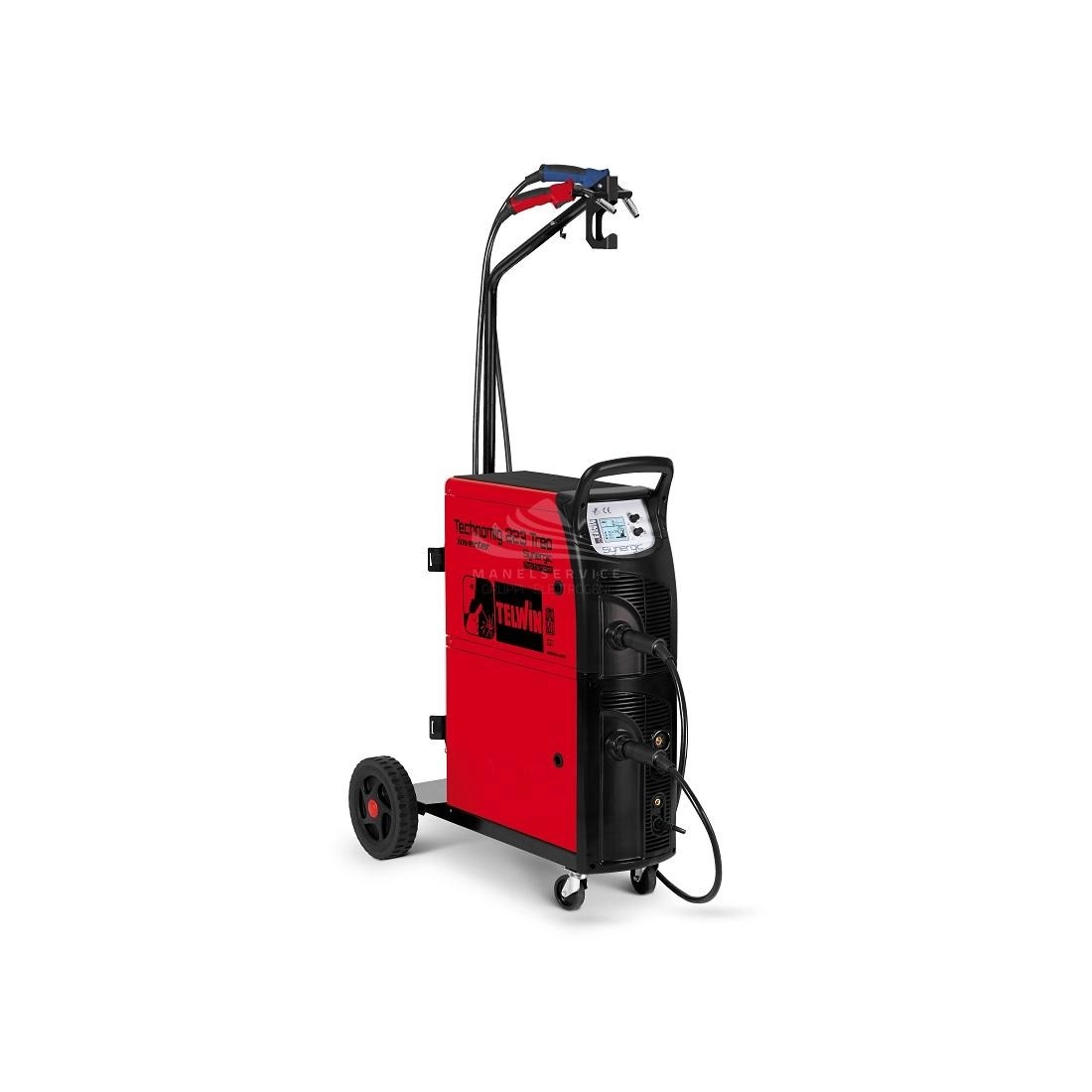

      Microprocessor controlled MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift inverter multiprocess welding machine.
      It is particularly suitable for use in body shops and allows the immediate use of three different torches: two standard mig and an optional spool gun.
      This feature enables the user to work directly on different materials without any need to change the torch or the wire spool and this confirms Technomig 223 Treo to be the unique solution for any repair or maintenance needs.
      The traditional mig torches are suitable for welding steel, HSS high strength steels, stainless steel and mig-brazing of galvanized sheets, while the spool gun torch is specific for aluminium welding even when working far away from the generator.
      The quick SYNERGIC regulation of the welding parameters, thanks to the ONE TOUCH LCD SYNERGY technology, makes this product easy to use.
      The made-in-Telwin ATC technology achieves with ease excellent welds on thin thicknesses thanks to an advanced control of the arc. The operator can also intervene manually along the arc length: this adjustment means the weld seam can be modified according to the welder's style.
      The ONE TOUCH LCD graphic display allows for a better reading of all welding parameters.
      Features:
      -17 synergy curves available
      - visualization on LCD display of welding parameters
      - regulation of: wire speed upslope, electronic reactance, burn-back time, post gas
      - choice of 2/4 times, spot operation
      - thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 5%) protections.
      Complete with 2 MIG-MAG torches, cable and clamp.


      Not binding images and technical data.
