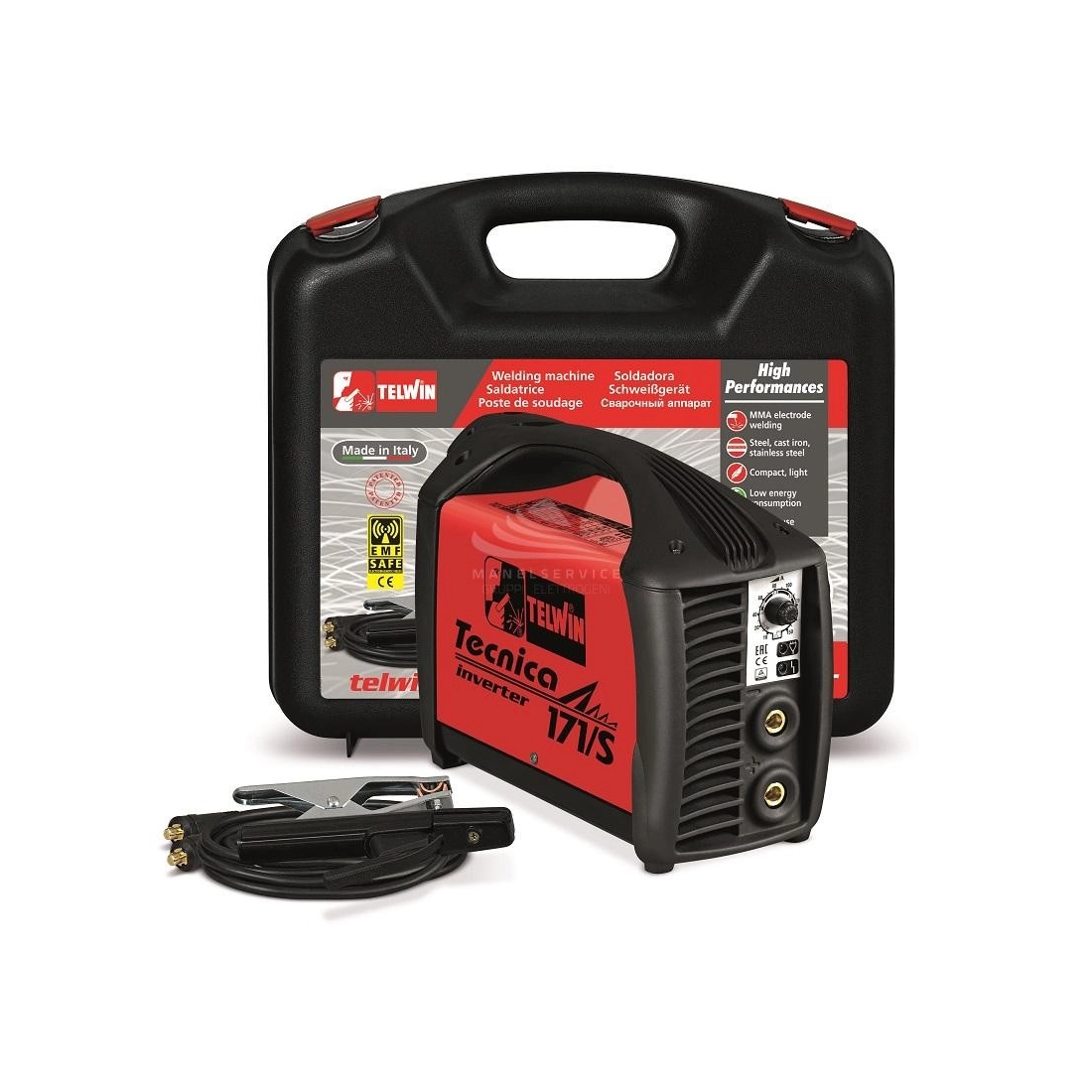

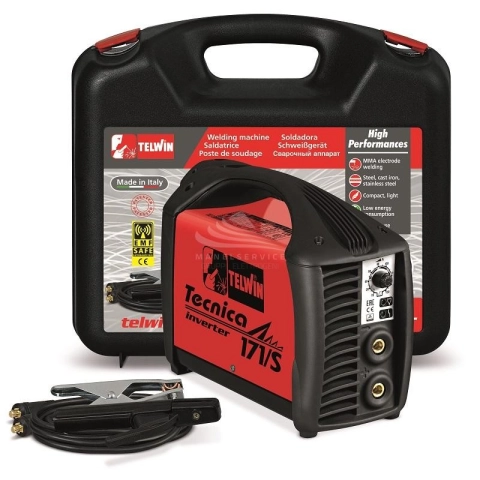

TELWIN TECNICA 171/S 230V ACX PLASTIC CARRY CASE
816203
OUT OF PRODUCTION
Phase: Single phase
Frequency: 50/60 Hz
Voltage: 230 V
Type of welding current: DC
Type of welding: MMA / TIG
No-load voltage: 75 V
Regulation current: 10 - 150 A
Current max: 140 A
Diameter electrodes: 1.6 - 4 mm
Length: 480 mm
Width: 170 mm
Height: 380 mm
Weight: 6.6 Kg
816203
Data sheet
- Phase
- Single phase
- Frequency (Hz)
- 50 / 60
- Voltage (V)
- 230
- Efficiency (%)
- 86
- Protection degree
- IP23
- Maximum permissible current (A)
- 28
- No-load voltage (V)
- 75
- Regulation current (A)
- 10 - 150
- Diameter electrodes (mm)
- 1.6 - 4
- Type of welding current
- DC
- Type of welding
- MMA / MIG
- Current max (A)
- 140
- Length (mm)
- 480
- Width (mm)
- 170
- Height (mm)
- 380
- Voltage regulator
- Inverter
- Weight (Kg)
- 6.6
Specific References
- EAN13
- 8004897810027
MMA and TIG inverter, electrode welding machine in direct current (DC) with scratch striking.
Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron, etc.
Features:
- Compact and light
- High welding current stability in spite of mains voltage fluctuations
- Arc force, hot start and anti-stick devices
- Thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.
Complete with MMA welding accessories and plastic carry case.
Not binding images and technical data.
