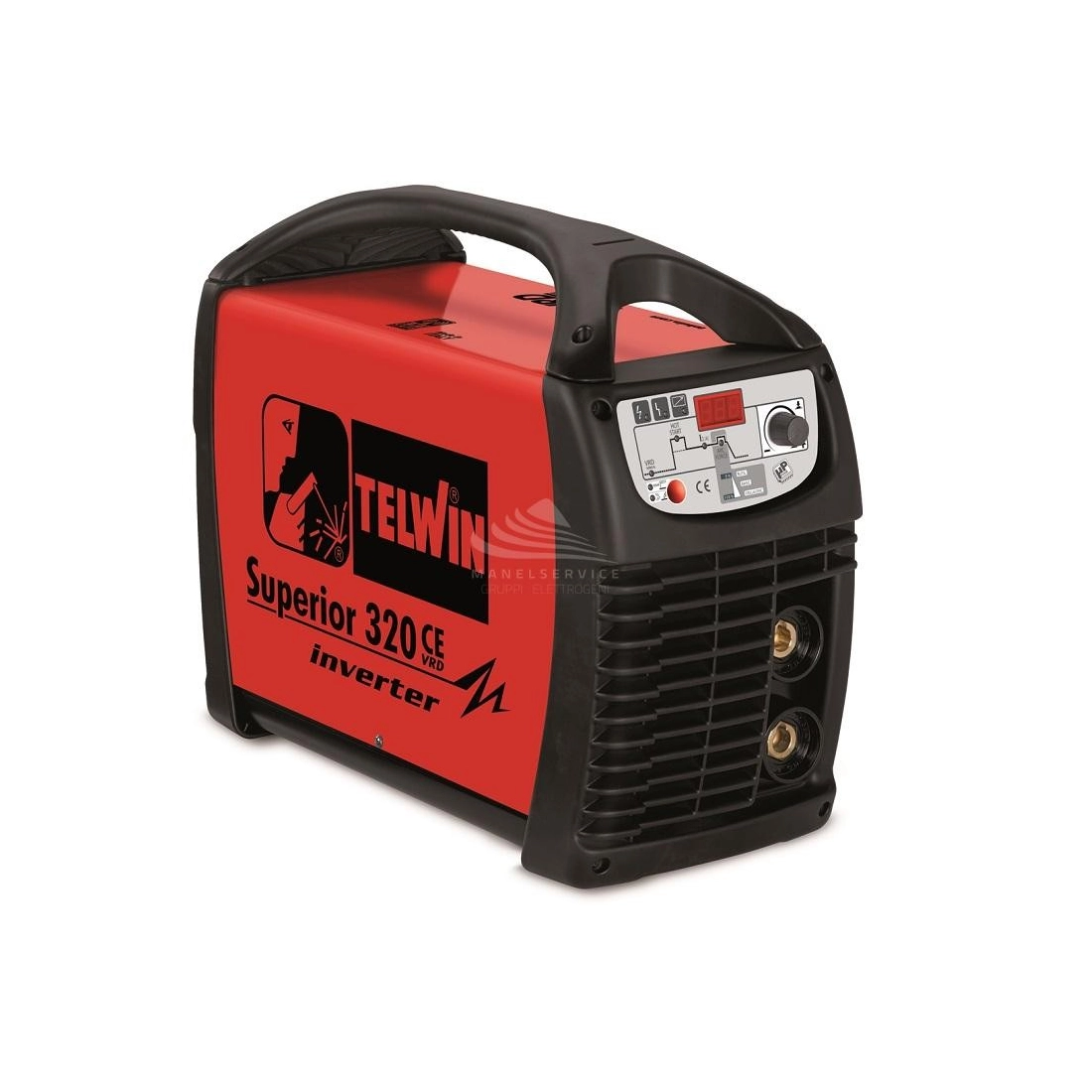

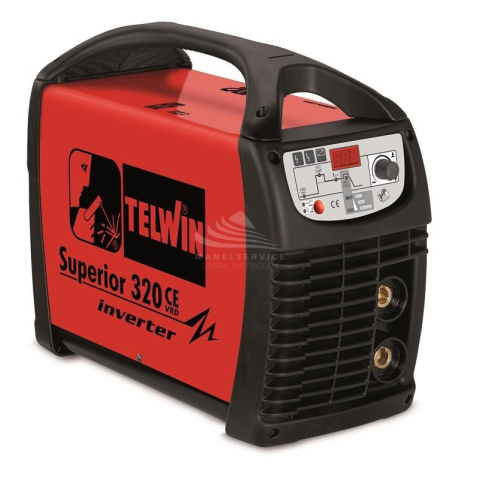

TELWIN SUPERIOR 320 CE VRD 230-400V

Phase: Single phase / Three phase
Frequency: 50/60 Hz
Voltage: 230/400 V
Type of welding current: DC
Type of welding: MMA / TIG
No-load voltage: 60 / 63 V
Regulation current: 10-250 / 10-270 A
Current max: 220 / 270 A
Diameter electrodes: 1.6 - 6 mm
Length: 460 mm
Width: 190 mm
Height: 360 mm
Weight: 10.2 Kg

Payment methods:

Product: TELWIN SUPERIOR 320 CE VRD 230-400V

Start of Rental

End of Rental

Where to collect / receive the Product

Do you need cables?

SÌNO

Additional Tank?

SÌNO

PERSONAL DATA

Name

Surname

Phone

Company

City

State

Postal Code

Country

VAT or CF

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Ask a question

Product: TELWIN SUPERIOR 320 CE VRD 230-400V

Full Name

Company

Phone

City

Country

Postal code

Message

reCAPTCHA

Offer on letterhead

Product: TELWIN SUPERIOR 320 CE VRD 230-400V

Name

Surname

Company

VAT

Phone

City

Country

Postal code

Shipping address

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 816036

Data sheet

Phase: Single phase / Three phase
Frequency (Hz): 50 / 60
Voltage (V): 230 / 400
Efficiency (%): 90
Protection degree: IP23
Maximum permissible current (A): 19 / 24.4
No-load voltage (V): 60 / 63
Regulation current (A): 10 - 250 / 10 - 270
Diameter electrodes (mm): 1.6 - 6
Type of welding current: DC
Type of welding: MMA / MIG
Current max (A): 220 / 270
Length (mm): 460
Width (mm): 190
Height (mm): 360
Voltage regulator: Inverter
Weight (Kg): 10.2

Specific References

EAN13: 8004897942070

Condition New

MMA and TIG-LIFT inverter welding machine in direct current (DC), with microprocessor control.
Designed for welding cellulosic electrodes and coated electrodes such as aluminium, rutile, basic, stainless steel, cast iron with diameter up to 6 mm.
Features:
- Compact and light
- High welding current stability in spite of mains voltage fluctuations
- Immediate control of the welding droplets transfer
- Regulation of arc force and hot start according to the type of electrode in use
- Anti-stick device
- VRD device
- Remote control connector
- Thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.

Not binding images and technical data.
