HELVI FOX 165
      HELVI FOX 165

      HELVI FOX 165

      99820050

      Phase type: Single-phase
      Frequency: 50/60 Hz
      Voltage: 230 V
      Power: 1900 VA
      Type of welding: Multiprocess
      Open-circuit voltage: 54 V (MMA) / 24 V (MIG)
      Current regulation: 20 - 150 A (MMA) / 25 - 150 A (MIG)
      Duty cycle at 40°: 100 A at 40% - 65 A at 100% (MMA) / 150 A at 25% - 75 A at 100% (MIG)
      Maximum current: 150 A
      Steel welding wire diameter: 0.6 - 1 mm
      Stainless steel welding wire diameter: 0.8 - 1 mm
      Flux cored welding rod diameter: 0.9 mm
      Brazing wire diameter: 0.8 - 1 mm
      Electrode diameter: 1.6 - 3.25 mm
      Electrode type: 6013 - 7018 - CrNi
      Insulation: H
      Degree of protection: IP22S
      Length: 480 mm
      Width: 220 mm
      Height: 385 mm
      Weight: 10.5 Kg

      List price
      1,342.00 € tax incl.
      1,100.00 € tax excl.
      Discounted Price
      550.00 € tax incl.
      450.82 € tax excl.
      Shipping Free to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: HELVI FOX 165

      PERSONAL DATA


      Ask a question
      Product: HELVI FOX 165
      Offer on letterhead
      Product: HELVI FOX 165
      HELVI
      99820050

      Data sheet

      Phase
      Single phase
      Frequency (Hz)
      50 / 60
      Voltage (V)
      230
      Protection degree
      IP22S
      Power (VA)
      1900
      Motor insulation class
      H
      No-load voltage (V)
      54 (MMA) / 24 (MIG)
      Regulation current (A)
      20 - 150 (MMA) / 25 - 150 (MIG)
      Welding current (A)
      100 at 40% - 65 at 100% (MMA) / 150 at 25% - 75 at 100% (MIG)
      Diameter electrodes (mm)
      1 - 3.5
      Ø steel welding wire (mm)
      0.6 - 1
      Ø inox welding wire (mm)
      0.8 - 1
      Ø flux cored welding wire (mm)
      0.9
      Ø brazing wire (mm)
      0.8 - 1
      Type of welding
      Multiprocess
      Current max (A)
      150
      Length (mm)
      480
      Width (mm)
      220
      Height (mm)
      385
      Product type
      Welding machine
      Weight (Kg)
      8.8

      Specific References

      New

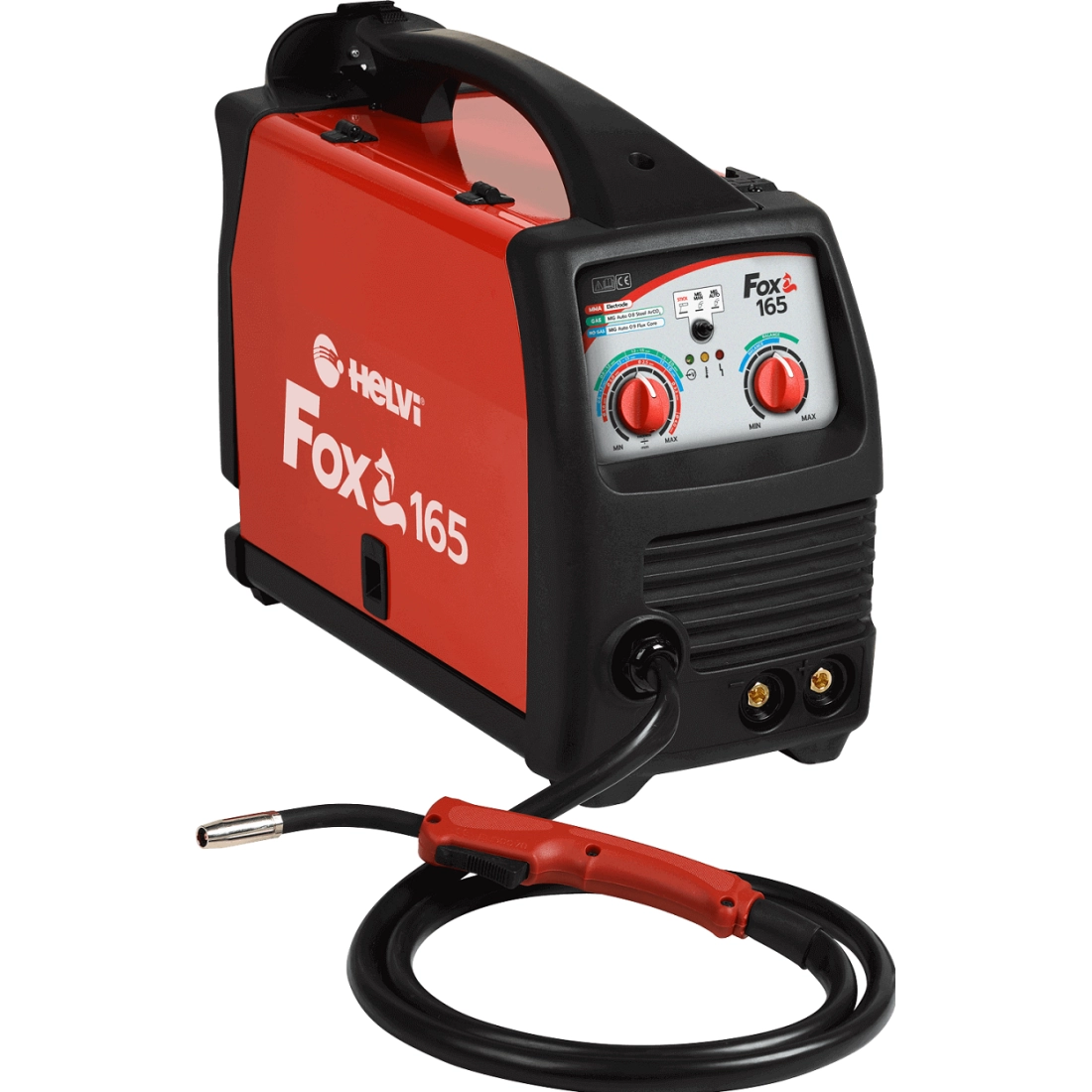

      HELVI FOX165 Welding machine

      HELVI FOX165 is a multi-process welding machine for MMA and MIG welding. HELVI FOX165 is a welding machine that can weld steel, stainless steel, flux cored welding wire and brazing wire.

      The main features of the HELVI FOX165 are:
      - Inverter technology
      - Automatically compensates for power grid imbalances
      - Lightness and versatility
      - Convenient patented torch and cable holder compartment
      - Easy adjustment thanks to reference scales
      - Excellent results even for inexperienced welders
      - Suitable for use with generator

      HELVI FOX165 is a single-phase welding machine with 230 V power supply and 50/60 Hz frequency. The HELVI FOX165 welding machine has a rated power of 60% of 1900 VA for a maximum current of 150 A.
      The HELVI FOX165 welding machine is designed for MMA and MIG welding with electrodes ranging from 1,6 mm to 3,25 mm in diameter and for wires of different materials:
      - steel (diameter from 0,6 mm to 1 mm)
      - stainless steel (diameter from 0,8 mm to 1 mm)
      - animated (diameter from 0,9 mm)
      - brazing (diameter from 0,8 mm to 1 mm)

      The no-load voltage of the HELVI FOX165 welding machine is 54 V in MMA and 24 V in MIG and has a current regulation from 20 A up to 150 A (MMA) and from 25 A up to 150 A (MIG).
      The HELVI FOX165 welding machine has H insulation and IP22S protection rating.
      HELVI FOX165 is very compact and comfortable to transport thanks to its light weight of about 10 Kg and the comfortable handle.

      Technical characteristics of the HELVI FOX165 welding machine:
      Phase type: Single-phase
      Frequency: 50/60 Hz
      Voltage: 230 V
      Power: 1900 VA
      Type of welding: Multiprocess
      Open-circuit voltage: 54 V (MMA) / 24 V (MIG)
      Current regulation: 20 - 150 A (MMA) / 25 - 150 A (MIG)
      Duty cycle at 40°: 100 A at 40% - 65 A at 100% (MMA) / 150 A at 25% - 75 A at 100% (MIG)
      Maximum current: 150 A
      Steel welding wire diameter: 0.6 - 1 mm
      Stainless steel welding wire diameter: 0.8 - 1 mm
      Flux cored welding rod diameter: 0.9 mm
      Brazing wire diameter: 0.8 - 1 mm
      Electrode diameter: 1.6 - 3.25 mm
      Electrode type: 6013 - 7018 - CrNi
      Insulation: H
      Degree of protection: IP22S
      Length: 480 mm
      Width: 220 mm
      Height: 385 mm
      Weight: 10.5 Kg

      If instead you are looking for another product similar to the HELVI FOX165 welding inverter, then we recommend you look at the entire range dedicated to welding machines.

      Images and technical data are not binding.
