TELWIN TECHNOLOGY TIG 182 AC/DC-HF/LIFT 230V

Reference 816024

DISCONTINUED PRODUCT

Phase: Single phase
Frequency: 50/60 Hz
Voltage: 230 V
Type of welding: TIG/MMA
No-load voltage: 94 V
Regulation current: 5 - 160 A
Current max: 160 A
Diameter electrodes: 1.6 - 3.2 mm
Length: 430 mm
Width: 170 mm
Height: 340 mm
Weight: 13.7 Kg

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 816024

Data sheet

Phase: Single phase
Frequency (Hz): 50 / 60
Voltage (V): 230
Efficiency (%): 75
Protection degree: IP23
No-load voltage (V): 94
Regulation current (A): 5 - 160
Diameter electrodes (mm): 1.6 - 3.2
Type of welding: MMA / MIG
Current max (A): 160
Length (mm): 430
Width (mm): 170
Height (mm): 340
Voltage regulator: Inverter
Weight (Kg): 13.7

Specific References

EAN13: 8004897812137

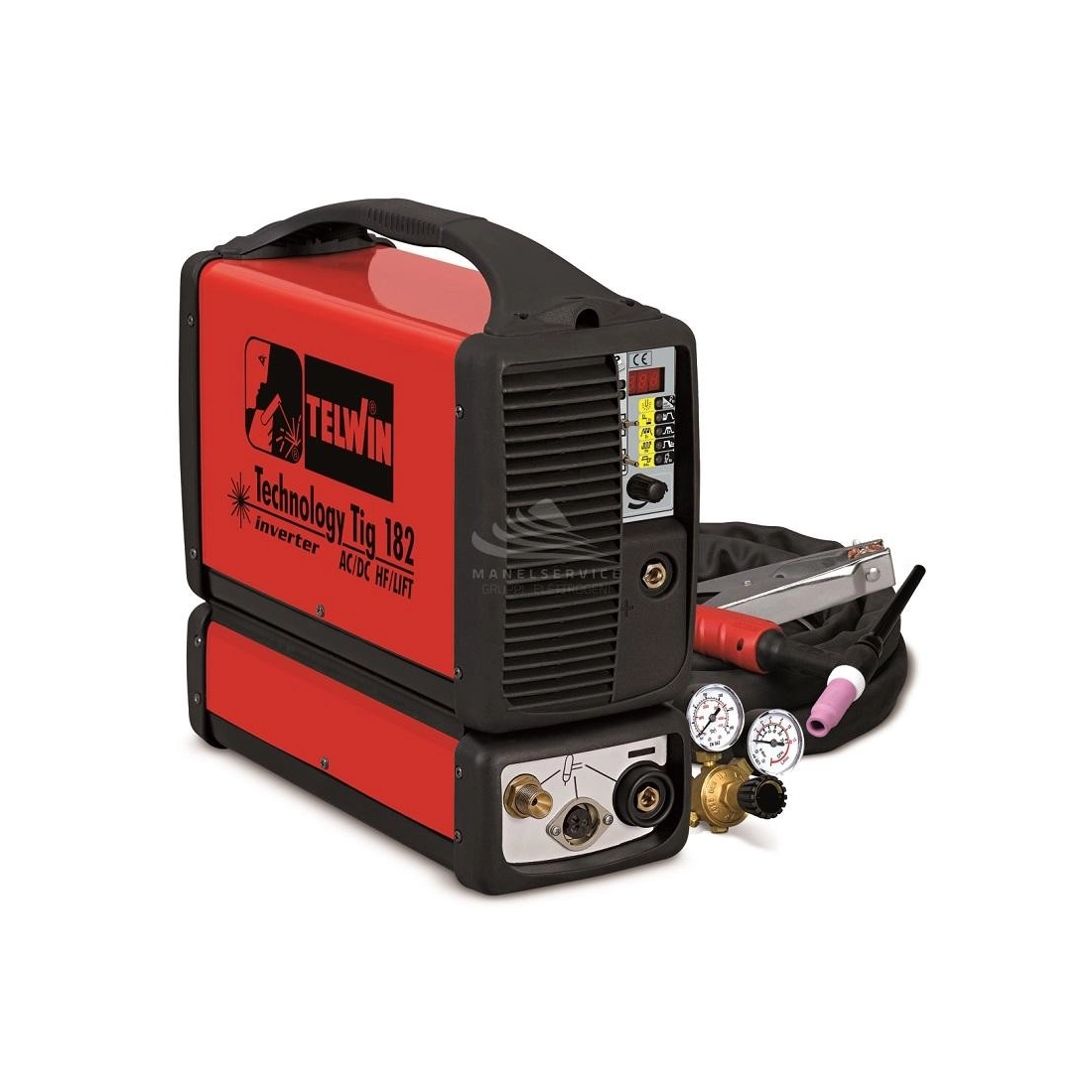

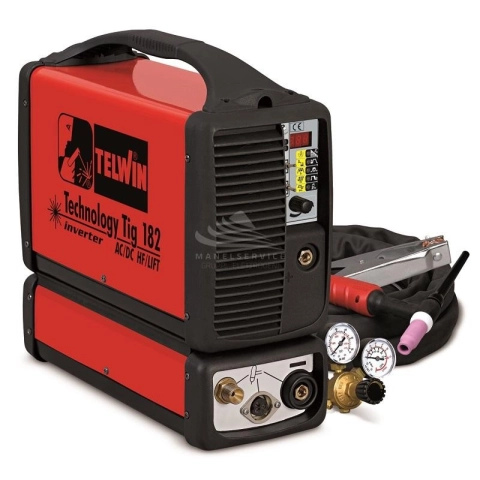

Microprocessor controlled, TIG (high frequency HF or LIFT striking), PULSE TIG and MMA inverter welding machine in direct and alternating current (AC/DC).
Use with a wide range of materials such as steel, stainless steel, aluminium, titanium, copper, nickel, magnesium and their alloys.
Features:
- TIG regulations: post gas, current down slope/time, bi-level, balance
- MMA regulations: arc force according to the type of electrode in use
- 2/4 times operation
- hot start and anti-stick devices
- remote control connector
- MMA electrodes: rutile, basic, stainless steel and cast iron
- thermostatic, overcurrent, overvoltage, undervoltage protections.
Complete with TIG welding accessories.

Not binding images and technical data.
