HELVI WELDING MACHINE PUMA 256 MIG-MMA-TIG

99820061
      HELVI WELDING MACHINE PUMA 256 MIG-MMA-TIG
      HELVI WELDING MACHINE PUMA 256 MIG-MMA-TIG

      Power supply: (1ph) 230V ± 10% - 50/60Hz
      Abs. power 60%: MIG: 5.6 KW / MMA: 5.6 KW / TIG: 5.6 KW
      Open circuit voltage: MIG: 30 V / MMA: 56 V / TIG: 10 V
      Regulation range: MIG: 30 ÷ 250 A / MMA: 20 ÷ 200 A / TIG: 10 ÷ 250 A
      Duty cycle 40°C: MIG: 250A @ 30%-190A @ 60%-170A @ 30% / MMA: 200A @ 30%-170A @ 60%-150A @ 100% / TIG: 250A @ 30%-190A @ 60%-170A @ 100%
      Iron: 0.8 ÷ 1.0 Ø mm
      Stainless Steel: 0.8 ÷ 1.0 Ø mm
      Aluminium: 1,0 ÷ 1,2 Ø mm
      Flux-cored wire: 1,0 ÷ 1,2 Ø mm
      CuSi₃: 0.8 mm Ø
      Ø Electrode diameter: 1.6 ÷ 4 Ø mm
      Electrode type: 6013 rutile - 7018 basic
      Insulation: H
      Protection class: IP23S
      Length: 450 mm
      Width: 840mm
      Height: 710mm
      Box size: 365x895x650 mm
      Gross/net weight: 32 Kg / 30 Kg

      List price
      3,516.04 € tax incl.
      2,882.00 € tax excl.
      Discounted Price
      1,582.22 € tax incl.
      1,296.90 € tax excl.
      Shipping from 36.60 € to Italy buy it today.
      Calculate Shipping Cost
      Ask a question
      Offer on letterhead
      Quantity :
      Download PDF
      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      HELVI
      99820061

      Data sheet

      Frequency (Hz)
      50 / 60
      Voltage (V)
      230
      Protection degree
      IP23S
      Motor insulation class
      H
      No-load voltage (V)
      MIG: 30 V / MMA: 56 V / TIG: 10 V
      Type of welding
      MIG / MMA / TIG
      Length (mm)
      450
      Width (mm)
      840
      Height (mm)
      710
      Product type
      Welding machine
      Weight (Kg)
      32
      Duty Cycle 40°
      MIG: 250A @ 30% - 190A @ 60% -170A @ 100% / MMA: 200A @ 30% - 170A @ 60% - 150A @ 100% / TIG: 250A @ 30% - 190A @ 60% - 170A @ 100%
      Power consumption 60%
      MIG: 5,6 KW / MMA: 5,6 KW / TIG: 5,6 KW
      Adjustment range
      MIG: 30 ÷ 250A / MMA: 20 ÷ 200 A / TIG: 10 ÷ 250 A
      Iron
      0,8 ÷ 1,0 Ø mm
      Inox Steel
      0,8 ÷ 1,0 Ø mm
      Aluminium
      1,0 ÷ 1,2 Ø mm
      Animated wire
      1,0 ÷ 1,2 Ø mm
      CuSi₃
      0,8 Ø mm
      Electrode type
      6013 rutile - 7018 basico
      Electrode diameter
      1,6 ÷ 4 Ø mm

      Specific References

      New

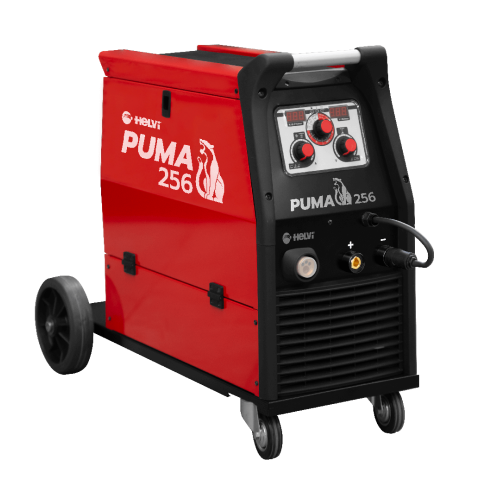

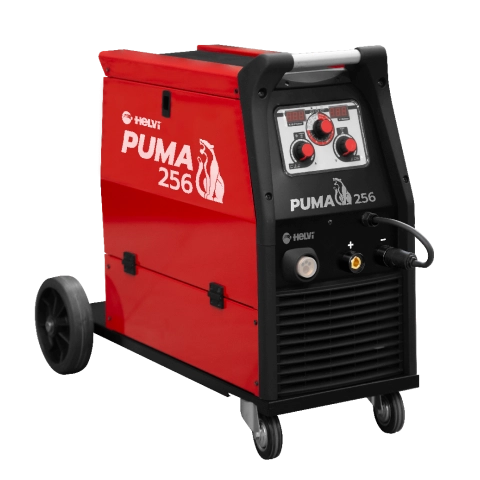

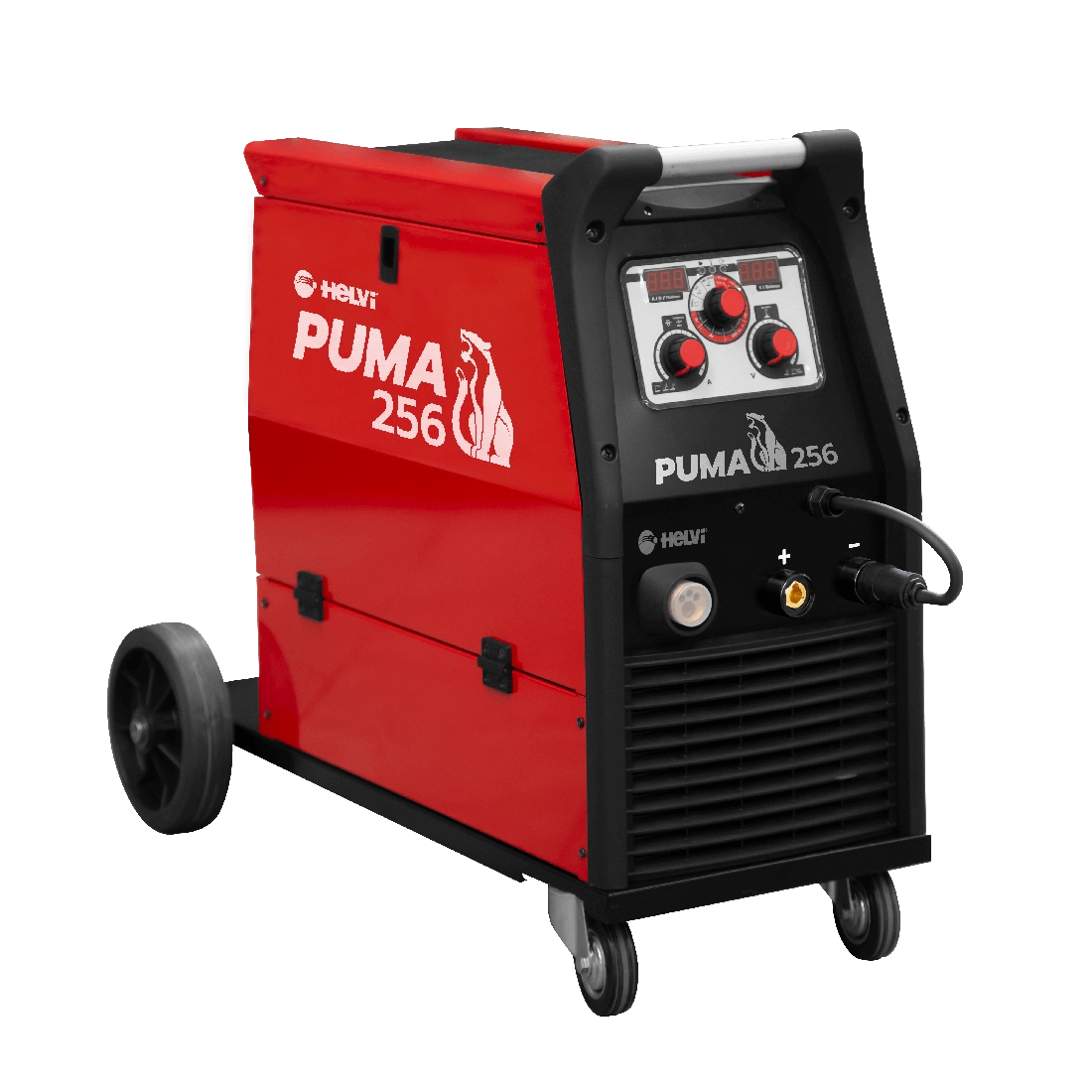

      HELVI WELDING MACHINE PUMA 256 MIG-MMA-TIG

      The HELVI WELDING MACHINE PUMA 256 is a single-phase inverter device for MIG/MAG, TIG and STICK welding. It is a professional and versatile solution offering excellent quality.

      Main features of the HELVI PUMA256:
      MIG/MAG, TIG and STICK welding
      Digital display for parameter display
      Motor ramp adjustment
      Automatic wire feed for soft arc initiation.

      HELVI Integrated canister holder. In MIG mode, HELVI provides welders the possibility of manual and total synergy. Motor ramp adjustment, automatic wire approach for soft arc initiation. Its simplicity and versatility make it ideal for use in body shops, small carpentries, maintenance work, and for professional welders. All functions are easily selected on the front panel. There are digital displays to show the voltage and current and the various selected parameters. It allows the use of 200 mm or 300 mm diameter wire coils and has an integrated cylinder holder. The welder is equipped with an inverter motor that guarantees high energy efficiency and clean, precise work. The ramp-up of the motor allows the arc to start gradually, avoiding spatter and smearing. Automatic wire feed facilitates arc initiation and enables uniform work for welders. The integrated canister holder makes the equipment more compact and easy to transport.

      Technical specifications of the HELVI  PUMA 256 :
      Power supply: 230 V ± 10% - 50/60 Hz

      HELVI  PUMA 256 MIG:
      Power consumption: 60% 5.6 kW
      No-load voltage: 30 V
      Regulation range: 30 ÷ 250A
      Duty cycle: 40°C / 250A @ 30% / 190A @ 60% / 170A @ 30%
      Applicable materials: iron, stainless steel, aluminium, flux-cored wire, CuSi₃.

      HELVI PUMA 256 TIG:
      Welding current: 20 ÷ 250A
      Duty cycle: 40°C / 250A @ 30%

      HELVI PUMA 256 STICK:
      Welding current: 20 ÷ 400A
      Duty cycle: 40°C / 400A @ 30% / 300A @ 60% / 250A @ 100%
      Electrode diameter: 1.6 ÷ 4 Ø mm

      Electrode type: 6013 rutile - 7018 basic
      Insulation: H
      Degree of protection: IP23S
      Dimensions: 450 x 840 x 710 mm
      Weight: 32 kg

      If, on the other hand, you are looking for another product similar to the HELVI PUMA 256 inverter then we recommend that you view our entire range of welding machines.

      Images and technical data not binding.

      ""* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
