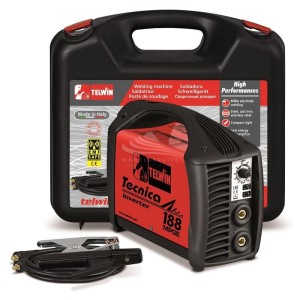

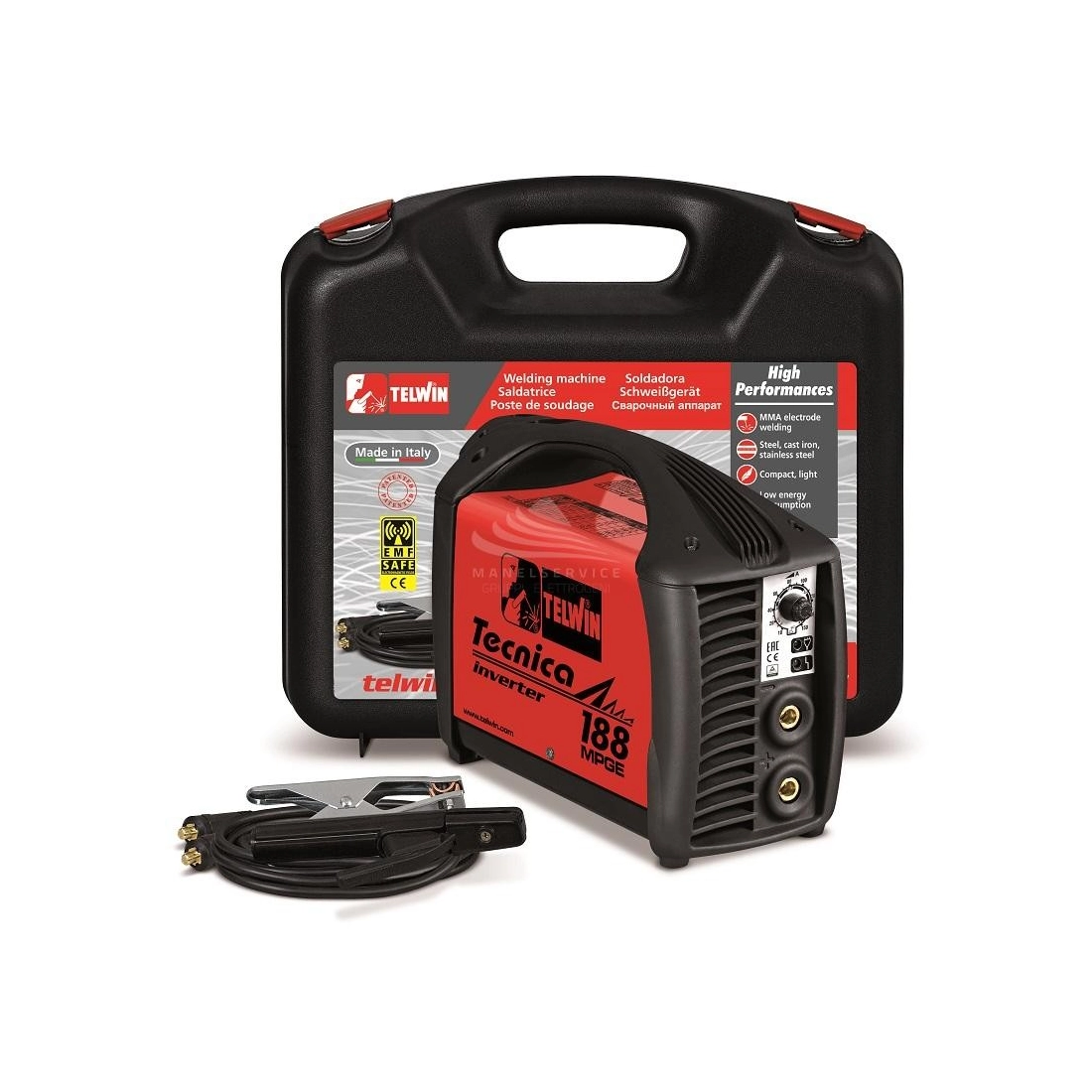

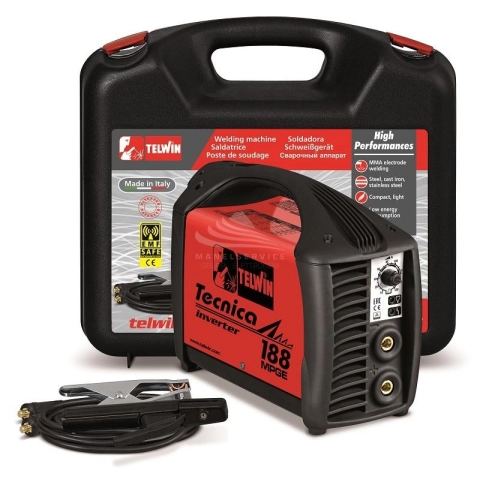

TELWIN TECNICA 188 MPGE 230V ACX PLASTIC CARRY CASE

Reference 816212

DISCONTINUED PRODUCT

Phase: Single phase
Frequency: 50/60 Hz
Voltage: 230 V
Type of welding current: DC
Type of welding: MMA / TIG
No-load voltage: 75 V
Regulation current: 10 - 150 A
Current max: 140 A
Diameter electrodes: 1.6 - 4 mm
Length: 420 mm
Width: 170 mm
Height: 380 mm
Weight: 7 Kg

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 816212

Data sheet

Phase: Single phase
Frequency (Hz): 50 / 60
Voltage (V): 230
Efficiency (%): 86
Protection degree: IP23
Maximum permissible current (A): 28
No-load voltage (V): 75
Regulation current (A): 10 - 150
Diameter electrodes (mm): 1.6 - 4
Type of welding current: DC
Type of welding: MMA / MIG
Current max (A): 140
Length (mm): 420
Width (mm): 170
Height (mm): 380
Voltage regulator: Inverter
Weight (Kg): 7

Specific References

EAN13: 8004897828718

Condition New

MMA and TIG inverter, electrode welding machine in direct current (DC) with scratch striking.
Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron, etc.
Recommended for motorgenerators, this model grants high performance despite power supply instability, thanks to the MPGE multiprotections: control device of the wave form, filter against input peaks, stabilization ofoscillations.
Features:
- Compact and light
- High welding current stability in spite of mains voltage fluctuations
- Arc force, hot start and anti-stick devices
- Thermostatic, overvoltage, undervoltage, overcurrent protections.
Complete with MMA welding accessories and plastic carry case.

Not binding images and technical data.
