Discounted price
tax incl.
tax incl.
1,622.30 €
1,329.75 € tax excl.
1,329.75 € tax excl.
Contacts: +39 011 25 35 33 - info@manelservice.com

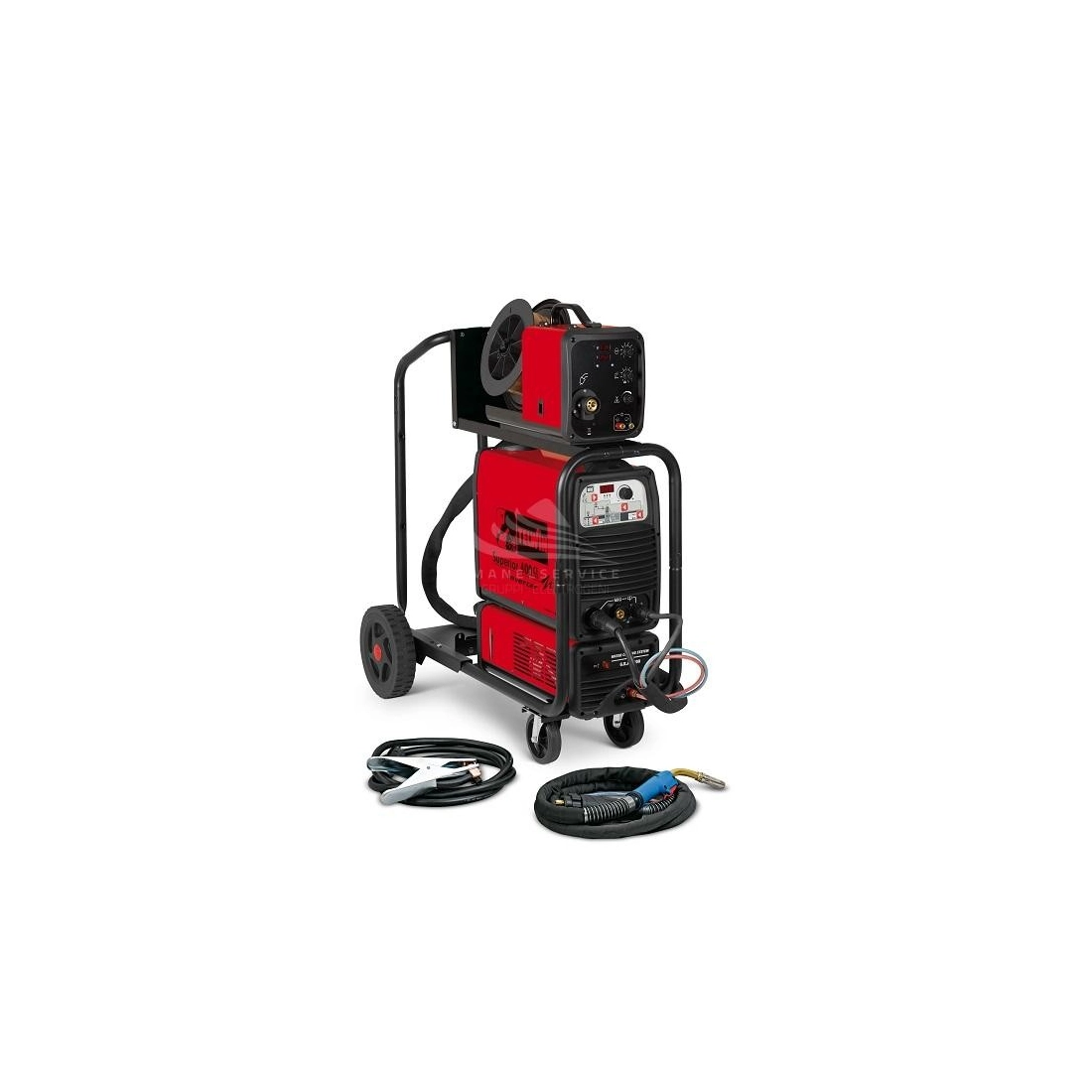

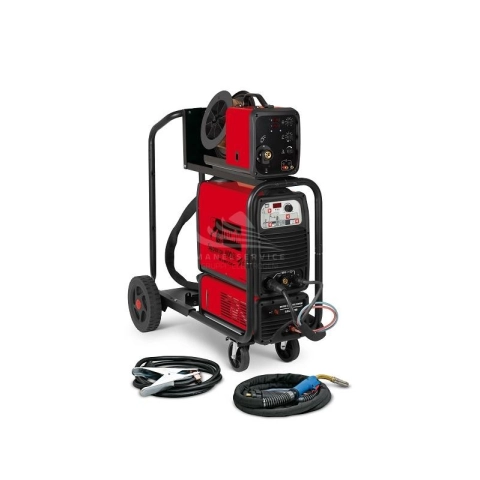

TELWIN SUPERIOR 400 CE VRD MIG PACK AQUA 230-400V
816042
OUT OF PRODUCTION
Phase: Single phase / Three phase
Frequency: 50/60 Hz
Voltage: 230 / 400 V
Type of welding: MIG-MAG/FLUX/MMA/TIG DC-Lift
No-load voltage: 63 / 62 V
Regulation current: 10 - 300 / 10 - 350 A
Current max: 250 / 330 A
Diameter electrodes: 1.6 - 6 mm
Steel welding wire diameter: 0.6 - 1.6 mm
Inox welding wire diameter: 0.8 - 1.6 mm
Aluminium welding wire diameter: 0.8 - 1.6 mm
Flux cored welding wire diameter: 1 - 1.6 mm
Brazing wire diameter: 0.8 - 1.2 mm
Length: 950 mm
Width: 450 mm
Height: 1200 mm
Weight: 80 Kg
816042
Data sheet
- Phase
- Single phase / Three phase
- Frequency (Hz)
- 50 / 60
- Voltage (V)
- 230 / 400
- Efficiency (%)
- 86
- Protection degree
- IP23
- No-load voltage (V)
- 63 / 62
- Regulation current (A)
- 10 - 300 / 10 - 350
- Diameter electrodes (mm)
- 1.6 - 6
- Ø steel welding wire (mm)
- 0.6 - 1.6
- Ø inox welding wire (mm)
- 0.8 - 1.6
- Ø aluminium welding wire (mm)
- 0.8 - 1.6
- Ø flux cored welding wire (mm)
- 1 - 1.6
- Ø brazing wire (mm)
- 0.8 - 1.2
- Type of welding
- Multiprocess
- MIG-MAG welding
- MIG-MAG/FLUX
- Current max (A)
- 250 / 330
- Length (mm)
- 950
- Width (mm)
- 450
- Height (mm)
- 1200
- Voltage regulator
- Inverter
- Weight (Kg)
- 80
Specific References
- EAN13
- 8004897948379
High power MIG-MAG/FLUX/MMA/TIG multi-process inverter generator suitable for heavy duty use on worksites and industrial environments.
MIG-MAG welding of all types of steels and steel by-products and MMA welding of all types of electrodes up to 6 mm in diameter.
The optional removable wire feeder and connection cables make it possible to increase the field of intervention.
Compactness andeasy transport features guarantee high levels of mobility and flexibility of use.
Complete with wirefeeder, MIG-MAG welding accessories, trolley and water cooling unit GRA 4000.
Not binding images and technical data.
