TELWIN MOTOINVERTER 204 CE HONDA
815793
DISCONTINUED PRODUCT
Phase Type: Single-Phase
Maximum Power: 6.6KW
Frequency: 50 Hz
Voltage: 230 V
Welding Current Type: DC
Welding Type: MMA / TIG
No-load Voltage: 112 V
Current Adjustment: 5-190 A
Maximum Current: 160 A
Electrode Diameter: 1. 6 - 4 mm
Fuel: Gasoline
Motor: Honda GX270
Start: Manual
Length: 840 mm
Width: 470 mm
Height: 480 mm
Weight: 58 Kg
815793
Data sheet
- Phase
- Single phase
- Frequency (Hz)
- 50
- Voltage (V)
- 230
- Engine
- Honda GX270, 4 stroke
- Engine rpm (rpm)
- 3400
- Starting system
- Manual
- Engine capacity (cm³)
- 270
- Cooling
- Air
- Power (KW)
- 6.6
- Protection degree
- IP23
- No-load voltage (V)
- 112
- Regulation current (A)
- 5 - 190
- Diameter electrodes (mm)
- 1.6 - 4
- Type of welding current
- DC
- Type of welding
- MMA / MIG
- Current max (A)
- 160
- Fuel tank capacity (L)
- 6
- Acoustic power
- 97 dB(A)
- Length (mm)
- 840
- Width (mm)
- 470
- Height (mm)
- 480
- Voltage regulator
- Inverter
- Weight (Kg)
- 58
Specific References
- EAN13
- 8004897740935
New

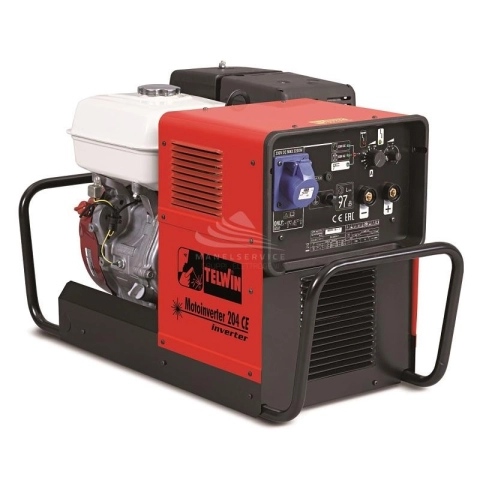

TELWIN MOTOINVERTER 204 CE MOTOR WELDING MACHINE 6,6KW
TELWIN MOTOINVERTER 204CE is a motor welder equipped with a Honda GX270 engine powered by gasoline, delivers a three-phase power of 6.6KW.
TELWIN MOTOINVERTER 204CE is a petrol engine driven welder with HONDA inverter technology engine with high frequency permanent magnet alternator for MMA and TIG-DC electrode welding with smear ignition.
TELWIN MOTOINVERTER 204CE allows incredible flexibility of use with a wide variety of electrodes: rutile, basic, cellulosic, stainless, cast iron, etc. It can also be used as a direct current (DC) generator for powering power tools such as drills, grinders, etc.
Features:
- 4-stroke gasoline engine with recoil start and air cooling
- Automatic block for no oil
- Motor overspeed protection
-. Continuous adjustment of the welding current
- High stability of the current to variations in motor speed
- Arc force devices, hot start, anti-stick
- Welding-generator selector switch
- Thermostatic protection.
THE TECHNICAL CHARACTERISTICS TELWIN MOTOINVERTER 204CE
Phase Type: Single-Phase
Maximum Power: 6.6KW
Frequency: 50 Hz
Voltage: 230 V
Welding Current Type: DC
Welding Type: MMA / TIG
No-load Voltage: 112 V
Current Adjustment: 5-190 A
Maximum Current: 160 A
Electrode Diameter: 1. 6 - 4 mm
Fuel: Gasoline
Motor: Honda GX270
Start: Manual
Length: 840 mm
Width: 470 mm
Height: 480 mm
Weight: 58 Kg
Are you looking for a welding machine with different technical characteristics? Here you can find the whole range TELWIN or other specialized brands.
Images and technical data are not binding.
* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
