ZANARDI HM1 180 A.C. Brushless Alternator-Welder

Reference: HM1 180 A.C. J609b OPTN1

Condition: New product

Rpm: 3000 rpm
Frequency: 50 Hz
Single-phase power: 6 KVA
Voltage: 115/230 V
T.H.D.: Less than 6%.
Cos Phi: 1
Degree of protection: IP23
Voltage Regulator: Capacitor
Welding machine function:
Welding type: electrode (MMA)
Welding current: 55-180 Ampere
Welding voltage: 39-58 V
AC welding voltage: 21.5-27 V
Usage factor: 180 A at 35% - 140 A at 60%
Electrode diameter: 1.5-4 mm
Drive power: 11 Hp
Noise level: 60 dB(A) at 7 meters
Air volume: 3.28 m³/min
Weight: 39 Kg

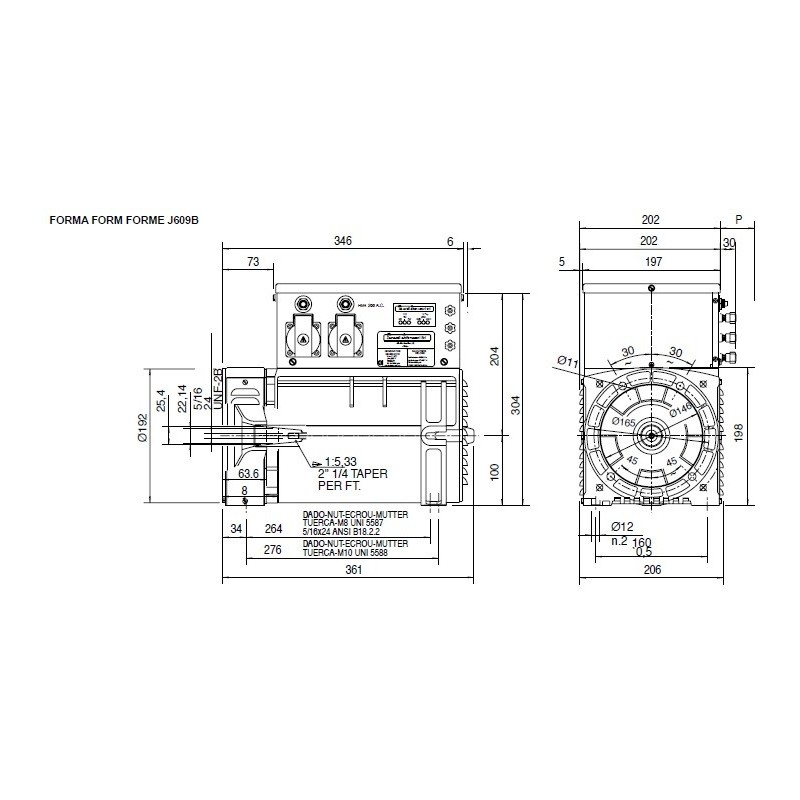

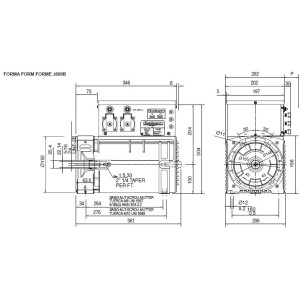

Length: 346 mm - 396 mm in form B3B14
Width: 236 mm
Height: 304 mm - 318 mm in shape B3B14

Technical features

Phase: Single phase
Continuous power single phase (KW): 6
Continuous power single phase (KVA): 6
Frequency (Hz): 50
Voltage (V): 115 / 230
Engine rpm (rpm): 3000
Poles: 2
Single-phase power (KVA): 6
Protection degree: IP23
Motor insulation class: H
Mechanical power (hp): 11
Current (A): 180
Current range (A): 55-180
Welding current (A): 180 A @ 35% - 140 A @ 60%
Welding voltage min/max (V): 21.5-27
Open circuit voltage (V): 58
Diameter electrodes (mm): 1.5-4
Maximum diameter electrodes (mm): 4
Type of welding current: AC
Type of welding: MMA
Acoustic pressure: 60 dB(A) at 7 m
Length (mm): 346
Width (mm): 236
Height (mm): 304
Brushes: No
PMG: No
Type of alternator: Constant Speed
Voltage regulator: Capacitor
Weight (Kg): 39

Details

The AC brushless generators-welders series denominated HM1 guarantees unlimited operation with minimum maintenance. In fact, its particular system enables the user to have full maximum power – either as a single phase generator or as a welder. With a distribution along the sides of the unit for output sockets, the product is really easy to use and delivers great accessibility and a comprehensive number of different panel options.

The AC welder is governed by a selector switch which controls the two functions (generator or welder) and by a commutator which regulates the welding current with seven positions on two scales (one scale for 130 amp version). All of this is packed inside a solid and rugged aluminium structure with a compact and light design and IP23 protection level.
All units have insulation systems to Class H requirements through advanced impregnation processes and material selection.

The HM1 series has been engineered to satisfy the most common end-user needs and the use of a single phase generator with good performances is complemented by an excellent AC welder. This permits the use of the most common diameters of rutile-type electrodes.

Not-binding images and data.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
