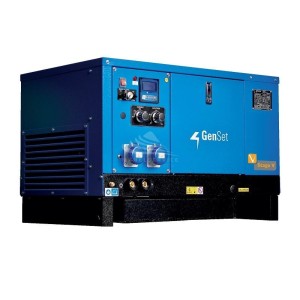

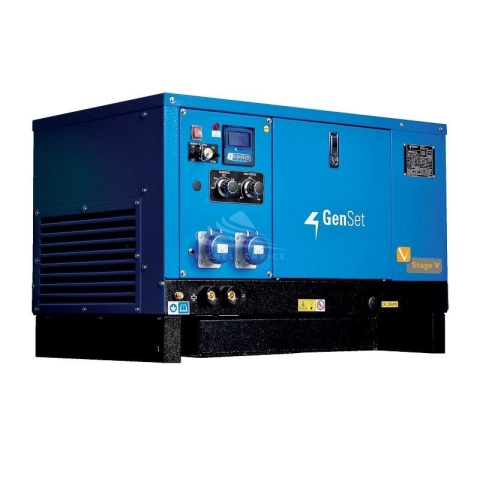

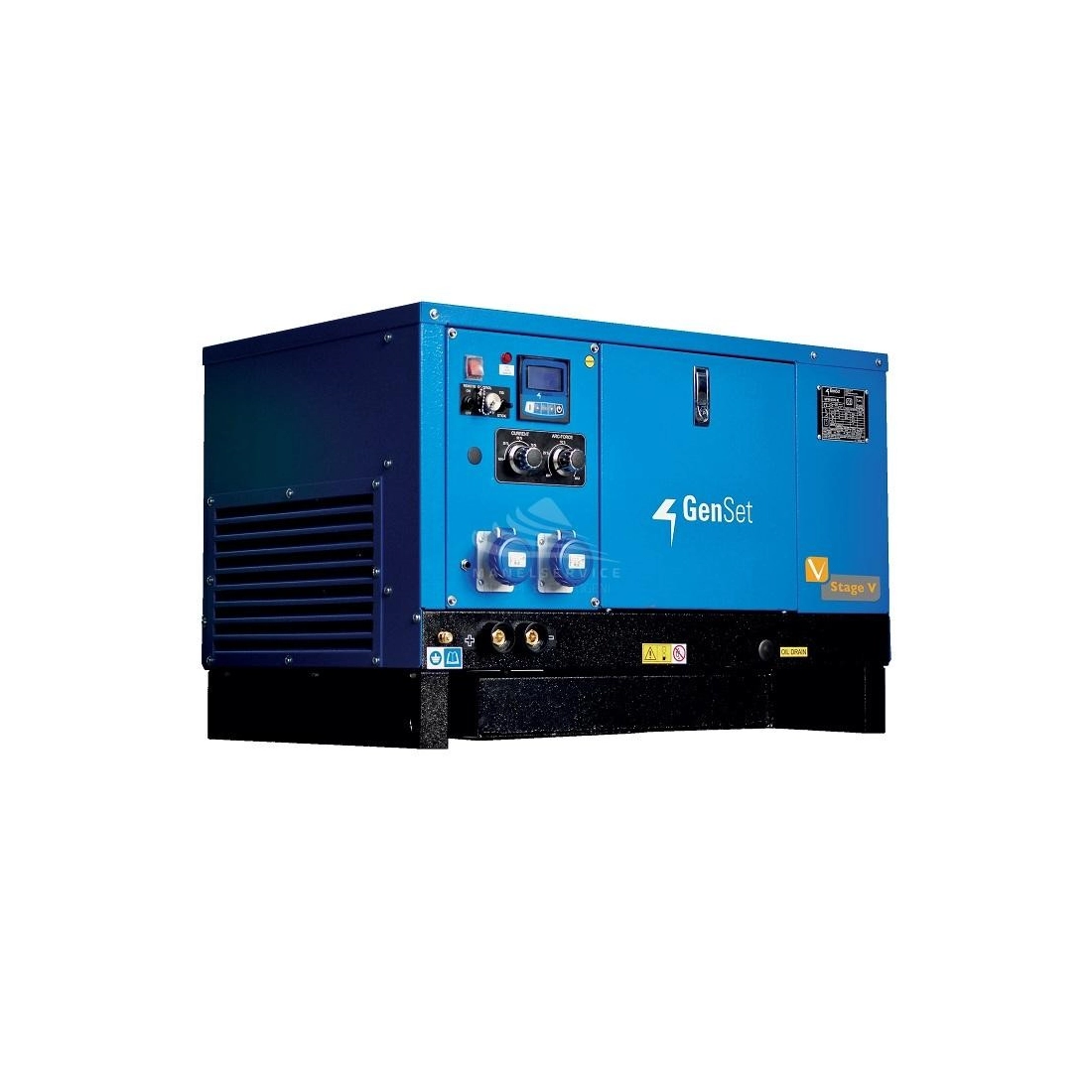

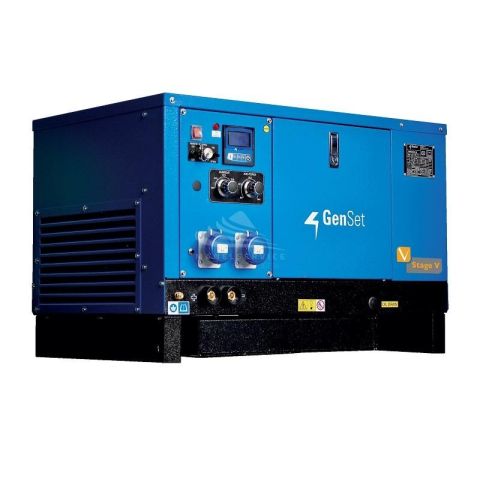

GENSET MPM 6/230 KI - ENGINE DRIVEN WELDER 6 KVA INVERTER

Name: GENSET MPM 6/230 KI - ENGINE DRIVEN WELDER 6 KVA INVERTER
Brand: GENSET
SKU: MPM 6/230 KI

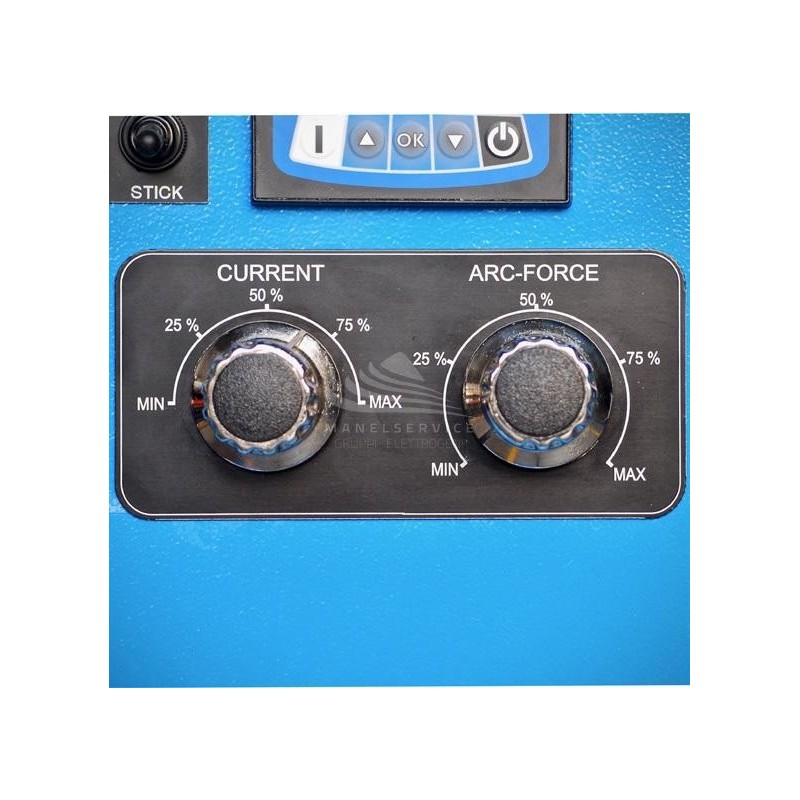

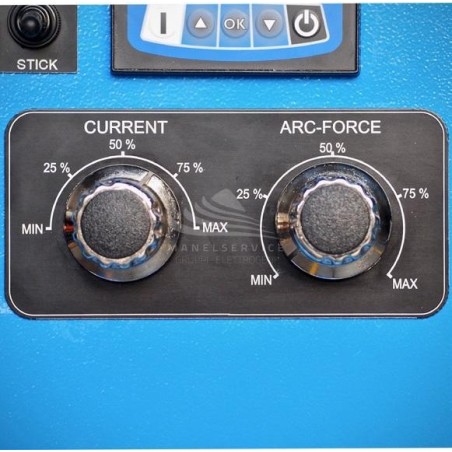

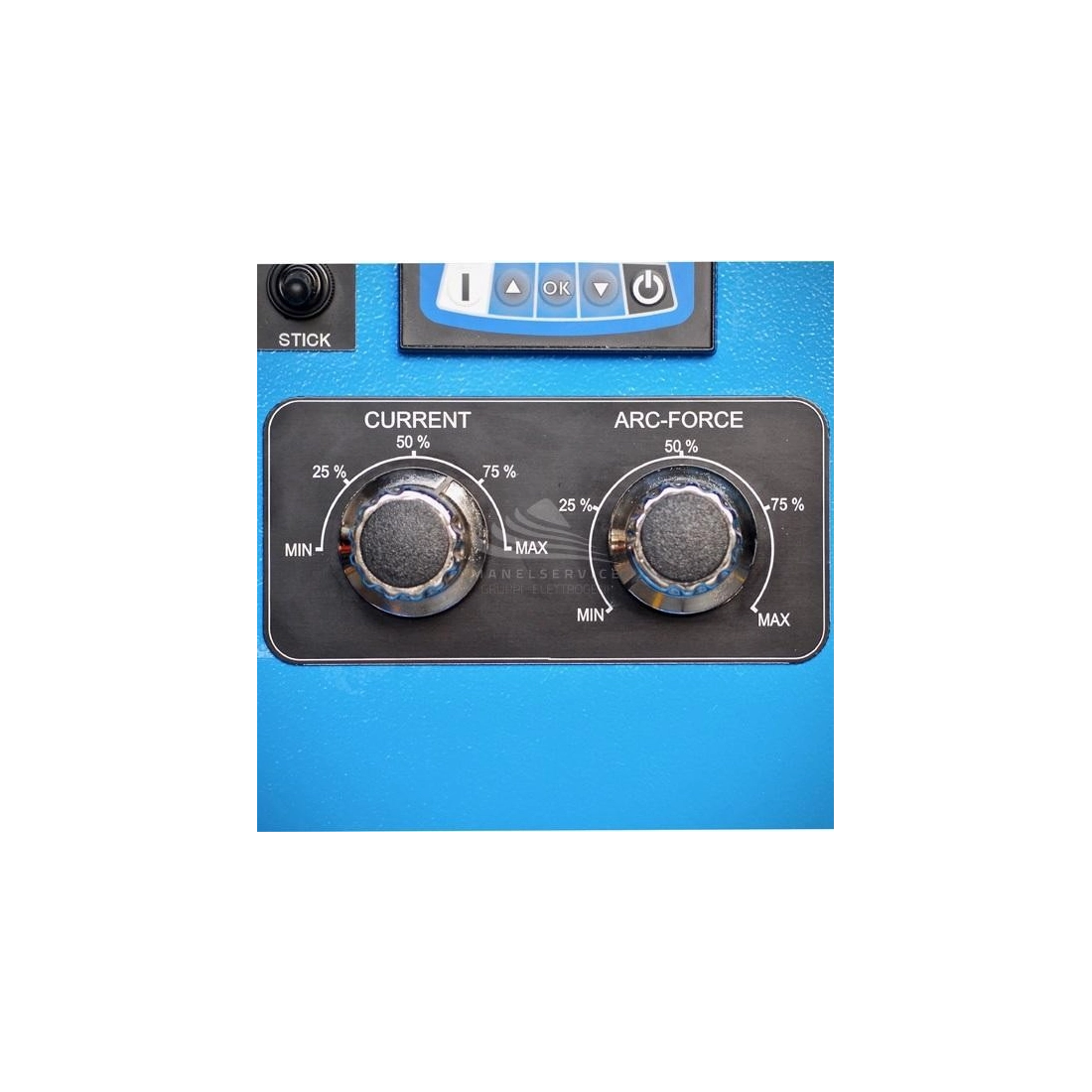

GENSET MPM 6/230 KI - Welding settings knobs

Reference MPM 6/230 KI

OUT OF PRODUCTION

Maximum single-phase power: 6 KVA
Maximum power single-phase: 6 KW
Fuel: Diesel
Voltage: 230/400 V
Frequency: 50 Hz
Engine: Kubota Z482 (STAGE V)
Starting: Electric
Consumption: 1.7 Lt/h
Length: 950 mm
Width: 650 mm
Height: 660 mm
Weight: 214 Kg
Super silent
Inverter

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference MPM 6/230 KI

Data sheet

Phase: Single phase / Three phase
Maximum power single phase (KW): 6
Maximum power single phase (KVA): 6
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 2 x 230V 16A CEE
Engine: KUBOTA Z482
Emissions Regulations: Stage 5
Starting system: Electric
Engine capacity (cm³): 479
Number cylinders: 2
Cooling: Water
Alternator: Synchronous
Protection degree: IP23
Motor insulation class: H
Regulation current (A): 20 - 240
Open circuit voltage (V): 90
Maximum diameter electrodes (mm): 6
Intermittence: 240 A al 35% / 180 A al 60%
Fuel tank capacity (L): 24
Consumption (L/h): 1.7
Running time (h): 14.12
Acoustic power: 93 dB(A)
Acoustic pressure: 68 dB(A) at 7 m
Length (mm): 950
Width (mm): 650
Height (mm): 660
Dry weight (Kg): 214
Silenced: Yes
Super silenced: Yes
Product type: Engine driven welder
Voltage regulator: Inverter
Engine manufacturer: Kubota

Specific References

Condition New

MOTOR WELDING WITH ELECTRODE DC GENSET MPM 6-230KI THREEPHASE SINGLEPHASE 6 KVA INVERTER

GENSET MPM 6-230KI electrode and TIG motorwelder with 6 KVA singlephase STAGE V variable speed diesel engine with electric start and with Inverter voltage regulator.
Thanks to its compact size and very low weight, the GENSET MPM 6-230KI motorwelder is light and easy to transport.
The GENSET MPM 6-230KI also has a low fuel consumption: only 1.7 Lt/h at 75% of the load.
The GENSET MPM 6-230KI motorwelder, thanks to the high quality and efficiency of its components, is suitable for welding DC electrodes with a maximum diameter of 6 mm.

Main advantages of the GENSET MPM 6-230KI motorwelder

CONTINUOUS CURRENT MOTOR WELDING 240A
WITH SINGLEPHASE ALTERNATED CURRENT GENERATOR
Silenced version
VARIABLE RPM STAGE V DIESEL ENGINE

Technical characteristics of the GENSET

Welding method: Electrode / Tig
Forced arc selector
Remote control socket
Fuel reserve indicator
Battery 12V built-in
Thermal protection
2 singlephase sockets CEE 230V - 16A
Engine oil extraction hose
Central lifting hook
Logic with digital display for reading the following parameters:
generator voltage, battery voltage, frequency, hour meter,
oil pressure, engine temperature, failure to start;
complete with automatic engine stop device with
alarm indication on the display in case of:
-low oil pressure
-high water temperature
- over/under alternator voltage
- over/under alternator frequency
Noise level: Lwa 93 (68 dB at 7 mt)
Welding current adjustment: electronic
Intermittance at 35%: 240A
Intermittance at 60%: 180A
Continuous adjustment: 20A - 240A
Trigger voltage: 90V
Maximum electrode diameter: 6 mm
Type: synchronous, permanent magnets (PMG)
Single-phase power (maximum): 6kVA - 230V
Power factor: cos ф 1

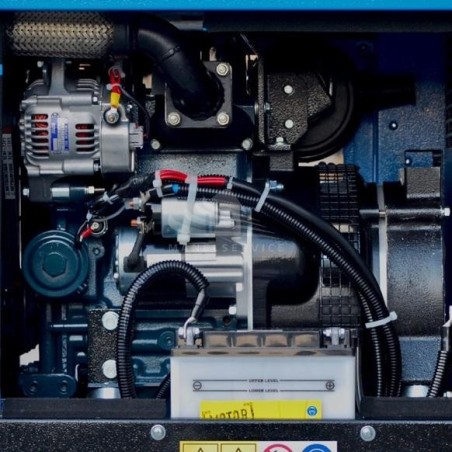

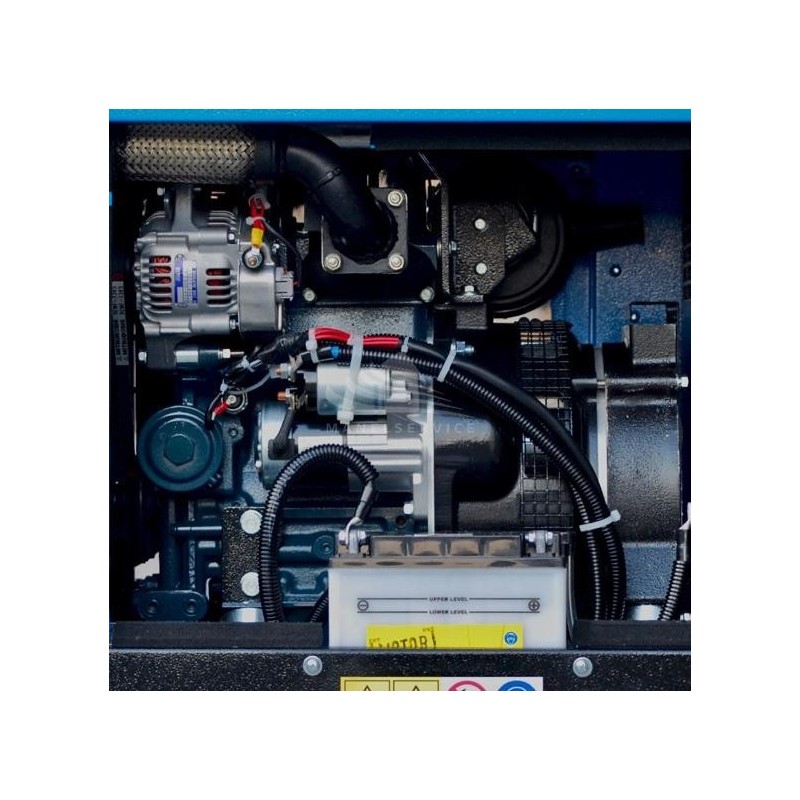

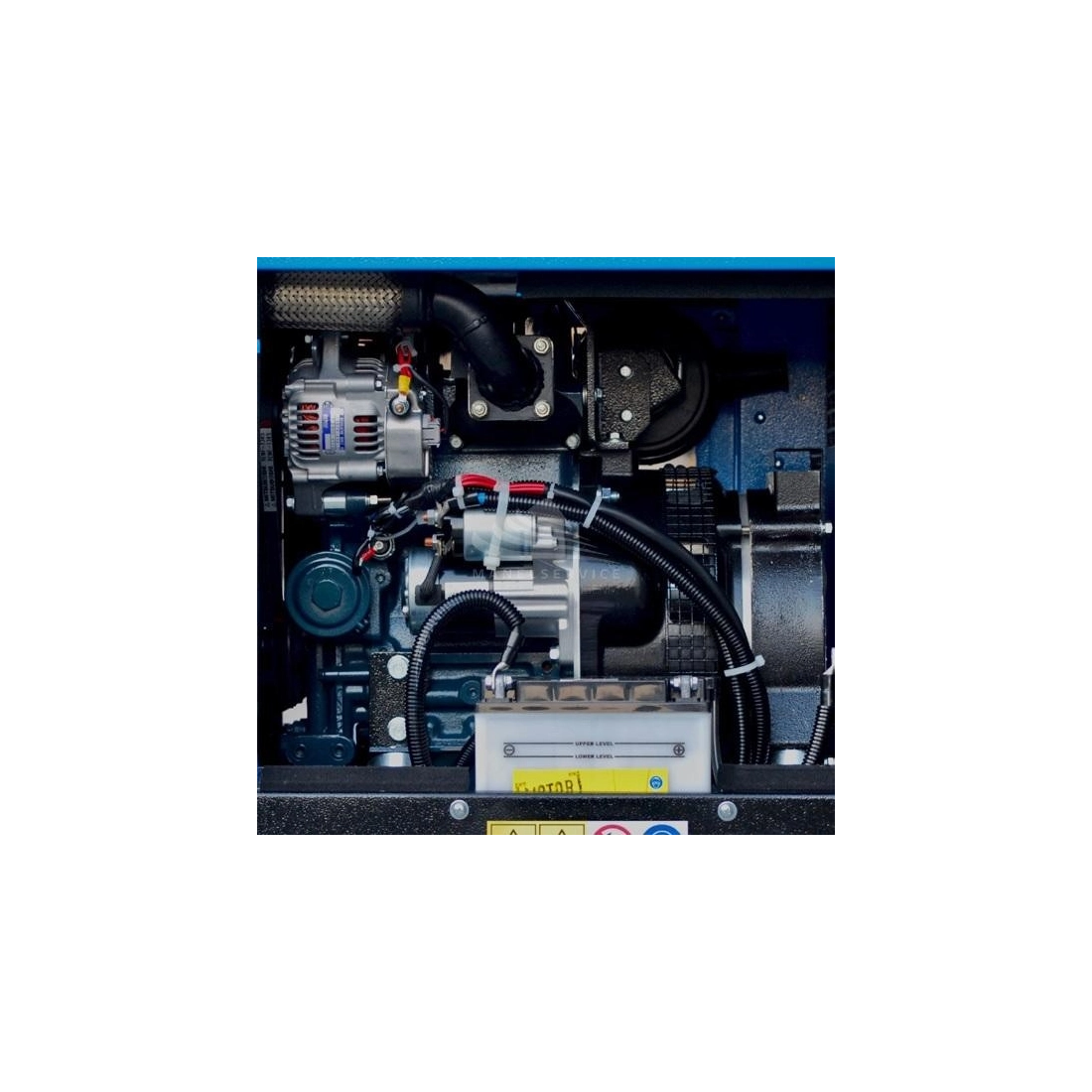

Kubota Z482 Diesel engine - STAGE V - 2 cyl. - 479 cm3
Maximum power: 10.2 HP (7.5 kWm)
Boosting: electric (12Vdc)
Cooling: water
Fuel consumption at 75% load: 1.7 lt/h
Isolation class: H
Environmental temperature: 40 °C (*)
Reference altitude: 1000 m (*)
Protection class: IP 23
Fuel tank capacity: 24 lt
Dimensions (L x W x H): 950 x 650 x 660 mm
Dry weight: 214 kg

Discover our wide range of motorwelding machines click here!
Images and technical data are not binding.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
