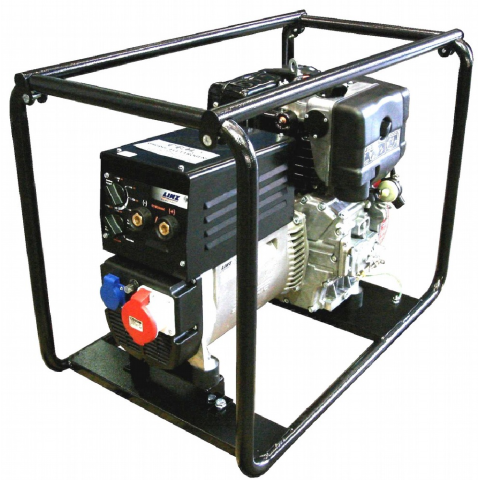

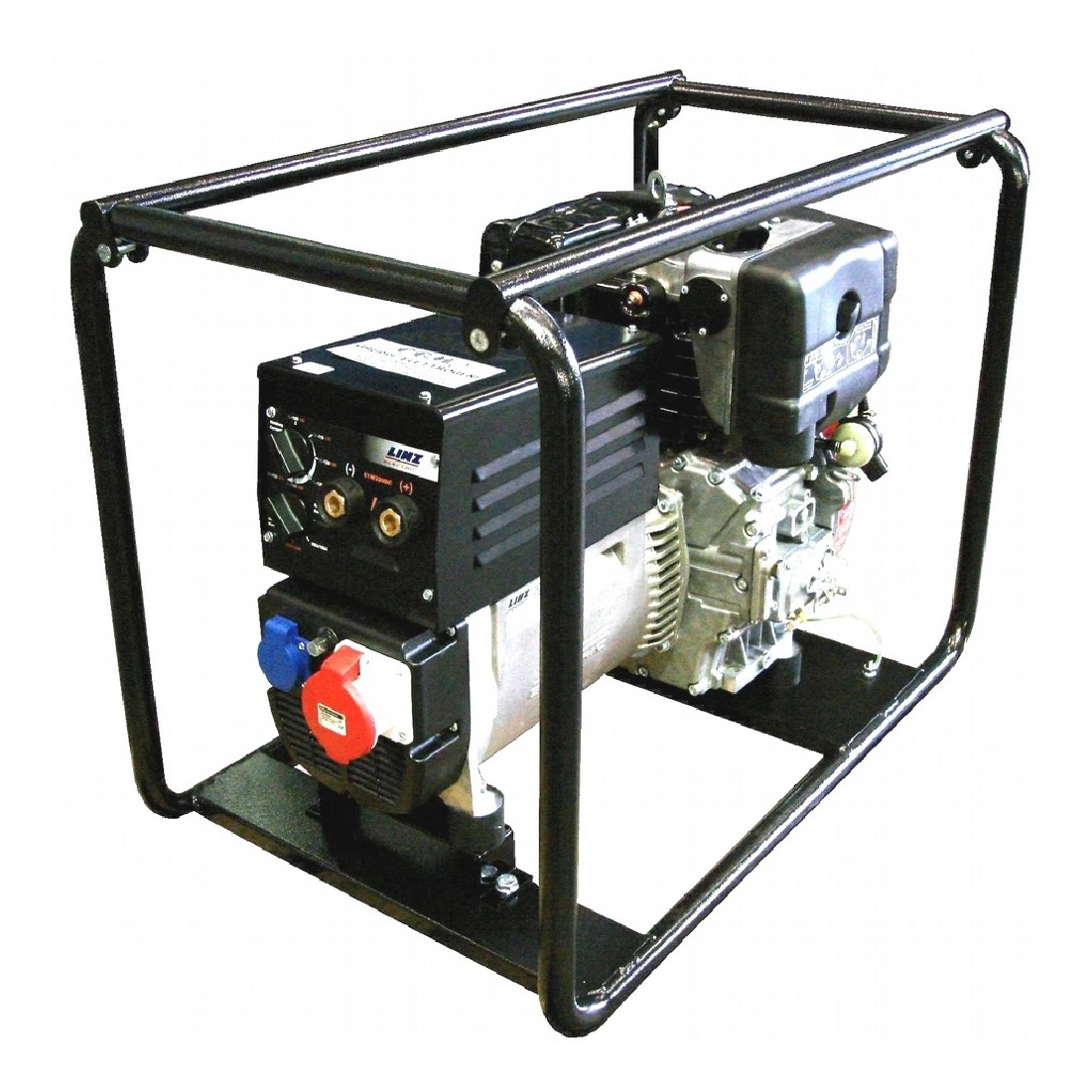

CGM 170SDE - MOTOSALDATRICE A STRAPPO
CGM 170SDE /
OUT OF STOCK
Phase type : Single-phase
Maximum single-phase power : 2.4 KW / 3 KVA
Engine : Lombardini 15 LD 350
Fuel: Diesel
Cylinders : 1
Displacement : 349 cm3
Maximum engine power : 6.3 HP
Welding at 50%: 170
Tank : 4.3 Lt
Socket : N.2 x 230V SCHUKO
Boosting : Electric with battery
Acoustic Power : 77 dB(A) at 7 m
Voltage : 230 V
Frequency : 50 Hz
Power Factor : 0. 8
Welding current : 45-170 A
Number of turns : 3000 rpm
Autonomy : 4.7 h
Consumption at 3/4 load : 0.9 L/h
Oil capacity : 1. 2 Lt
Alternator : SINCRO, with brushes
Number of Poles : 2
Number of Phases : 1
Welding voltage : 21.8 - 26.6 V
Power consumption : 9. 5 hp / 7.5 KW
Voltage regulation : Condenser
Width : 860 mm
Length : 520 mm
Height : 650 mm
Weight : 160 Kg
CGM 170SDE /
Data sheet
- Phase
- Single phase
- Maximum power single phase (KW)
- 2.4
- Maximum power single phase (KVA)
- 3
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Voltage (V)
- 230
- Sockets configuration
- 2 x 230V SCHUKO
- Engine
- Lombardini 15LD350
- Engine rpm (rpm)
- 3000
- Starting system
- Electric
- Engine capacity (cm³)
- 349
- Number cylinders
- 1
- Oil capacity (L)
- 1.2
- Cooling
- Air
- Alternator
- With brushes
- Poles
- 2
- Welding current (A)
- 170A al 50%
- Welding voltage min/max (V)
- 21.8 / 26.6 V
- Fuel tank capacity (L)
- 4.3
- Consumption (L/h)
- 0.9 al 75% del carico
- Running time (h)
- 4.7
- Acoustic pressure
- 77 dB(A) at 7 m
- Length (mm)
- 520
- Width (mm)
- 860
- Height (mm)
- 650
- Dry weight (Kg)
- 160
- Silenced
- No
- Super silenced
- No
Specific References
New
CGM 170SDE - SINGLEPHASE MOTORWELDING
CGM 170SDE is a light and versatile singlephase motorwelder, equipped with a Lombardini 15 LD 350 gasoline engine capable of delivering a maximum power of 3KVA.
The CGM 170SDE motorwelder is equipped with Lombardini gasoline engines with recoil start. Mounted on a fixed base and operating at 3000 rpm, they are suitable for welding and singlephase 230V power supply.
On request: fairing, hoods, silenced units and special equipment. CGM 170SDE motor welders are suitable for non-continuous use in case of emergency, it is recommended not to use them for more than 6 continuous hours and for more than 500 hours/year.
Technical characteristics CGM 170SDE
Phase type : Singlephase
Maximum singlephase power : 2.4 KW / 3 KVA
Engine : Lombardini 15 LD 350
Fuel: Diesel
Cylinders : 1
Displacement : 349 cm3
Maximum engine power : 6.3 HP
Welding at 50%: 170
Tank : 4.3 Lt
Socket : N.2 x 230V SCHUKO
Boosting : Electric with battery
Acoustic Power : 77 dB(A) at 7 m
Voltage : 230 V
Frequency : 50 Hz
Power Factor : 0. 8
Welding current : 45-170 A
Number of turns : 3000 rpm
Autonomy : 4.7 h
Consumption at 3/4 load : 0.9 L/h
Oil capacity : 1. 2 Lt
Alternator : SINCRO, with brushes
Number of Poles : 2
Number of Phases : 1
Welding voltage : 21.8 - 26.6 V
Power consumption : 9. 5 hp / 7.5 KW
Voltage regulation : Condenser
Width : 860 mm
Length : 520 mm
Height : 650 mm
Weight : 160 Kg
Are you looking for a welding machine with different technical characteristics? Here you can find the full range of CGM or other specialized brands
Images and technical data are not binding and may be subject to revision by the supplier.
* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
