GENMAC Combiflash G221HEO-M5 THREE-PHASE MOTOR WELDER 7,2KVA
      GENMAC Combiflash G221HEO-M5 THREE-PHASE MOTOR WELDER 7,2KVA
      GENMAC Combiflash G221HEO-M5 THREE-PHASE MOTOR WELDER 7,2KVA

      GENMAC Combiflash G221HEO-M5 THREE-PHASE MOTOR WELDER 7,2KVA

      Power Supply: Gasoline
      Firing: Electric
      Phase Type: Single Phase / Three Phase
      Maximum Single Phase Power: 2.4KVA / 1.9KW
      Maximum Three Phase Power: 7.2KVA / 5. 7KW
      Welding Current: 40 - 200 A
      Maximum Welding Current: 220 A ac
      Service (A): 200 - 35% / 170 - 60%
      Welding Type: Electrode
      Voltage: 230 / 400 V
      Frequency: 50 Hz
      Motor: Honda GX 390
      Emission Standard: Stage V
      Socket panel: 1 x Schuko 16A 230V / 1 x 32A 400 V
      3000 rpm
      Tank: 19 Lt.
      Autonomy @ 75%: 9 h fixed rpm
      Length (mm): 810
      Width (mm): 550
      Height (mm): 680
      Dry weight (Kg): 115

      List price
      2,721.82 € tax incl.
      2,231.00 € tax excl.
      Discounted Price
      2,721.82 € tax incl.
      2,231.00 € tax excl.
      Shipping Free to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: GENMAC Combiflash G221HEO-M5 THREE-PHASE MOTOR WELDER 7,2KVA

      PERSONAL DATA


      Ask a question
      Product: GENMAC Combiflash G221HEO-M5 THREE-PHASE MOTOR WELDER 7,2KVA
      Offer on letterhead
      Product: GENMAC Combiflash G221HEO-M5 THREE-PHASE MOTOR WELDER 7,2KVA
      GENMAC
      Combiflash G221HEO-M5

      Data sheet

      Phase
      Single phase / Three phase
      Maximum power single phase (KW)
      1.9
      Maximum power single phase (KVA)
      2.4
      Maximum power three phase (KW)
      5.7
      Maximum power three phase (KVA)
      7.2
      Fuel
      Gasoline
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Engine
      Honda GX390
      Emissions Regulations
      Stage 5
      Engine rpm (rpm)
      3000
      Starting system
      Electric
      Cooling
      Air
      Poles
      2
      Welding current (A)
      200 - 35% / 170 - 60%
      Type of welding
      MMA
      Current max (A)
      220
      Fuel tank capacity (L)
      19
      Running time (h)
      9
      Length (mm)
      810
      Width (mm)
      550
      Height (mm)
      680
      Dry weight (Kg)
      115
      Silenced
      Yes
      Super silenced
      No
      Voltage regulator
      No
      Engine manufacturer
      Honda

      Specific References

      New

      GENMAC Combiflash G221HEO-M5 THREE-PHASE MOTOR WELDER 7,2KVA

      The Genmac Combiflash G221HEO-M5 three-phase motor welder is equipped with a Honda GX390 Stage V Gasoline engine capable of delivering a power of 7.2KVA.

      Genmac Combiflash G221HEO-M5 is ideal for having electrical power always at hand in any place and environment (construction sites, markets, beaches, camping sites or for first aid in difficult areas), combined with a powerful electrode welder.

      Genmac Combiflash G221HEO-M5 is equipped with a Honda GX390 engine capable of delivering a power of 7.2KVA with gasoline supply and an "air" cooling system by means of a fan, guaranteeing maximum efficiency and durability even for long and continuous work both as a welder and as a generator set. The motorwelder generates 7.2KVA in just 3000 rpm.

      The lightness of the machine and the possibility of requesting a mobilization kit are greatly appreciated by those customers who carry out repairs on streets or squares and who, due to the lack of parking space or the distance between them and their vehicles, must carry the motorwelder by hand for considerable distances (old town centers, uncomfortable areas, etc.)

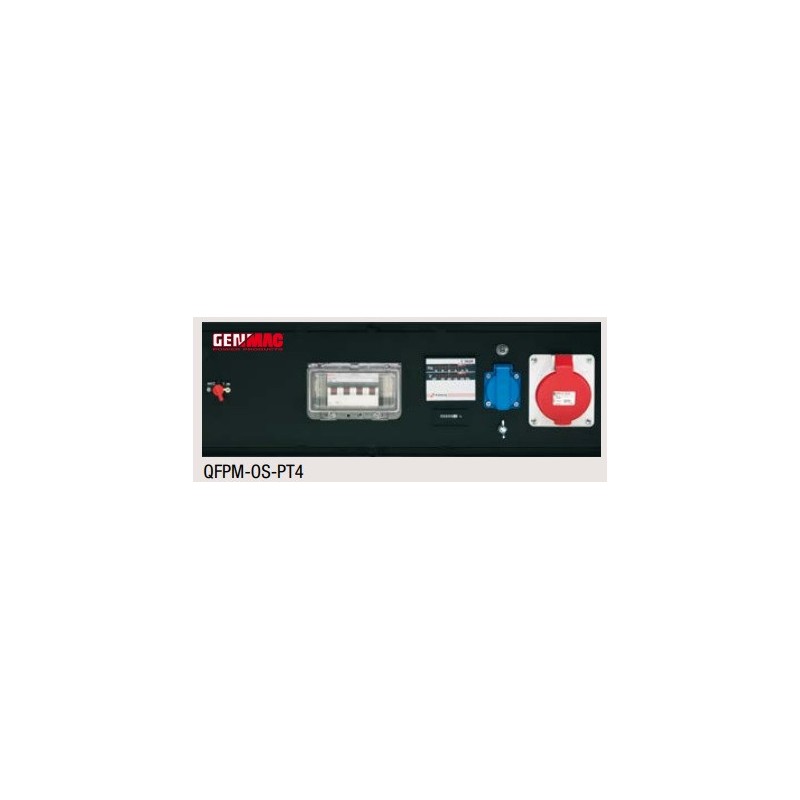

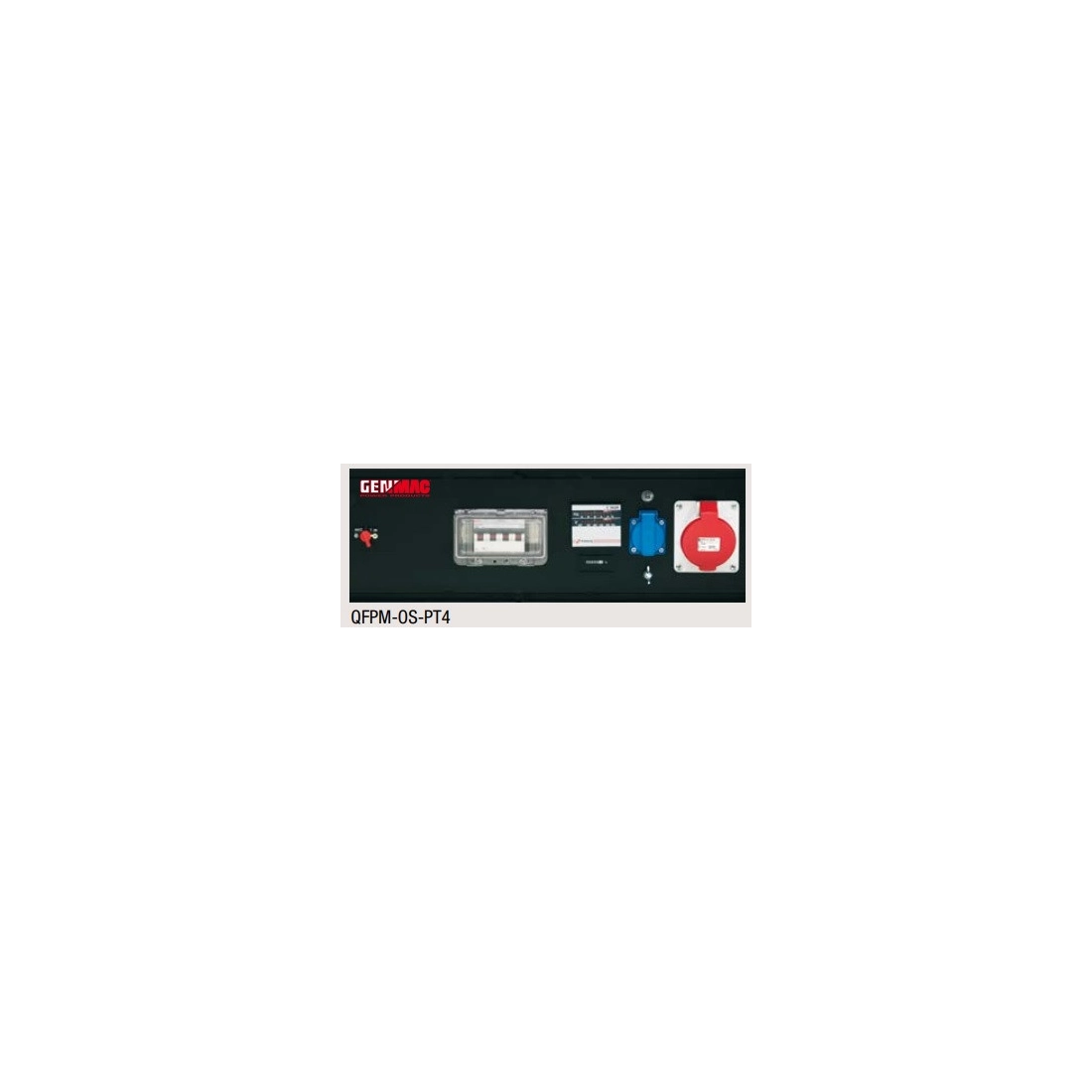

      On the side, the Genmac is equipped with 1 current output with 230V 16A SCHUKO type attack and 1 of the 400V 32A CEE type suitable for the connection of any electrical appliance of common use.

      CHARACTERISTICS MOTOR WELDER GENMAC Combiflash G221HEO-M5 7,2KVA

      Power Supply: Gasoline
      Firing: Electric
      Phase Type: SinglePhase / ThreePhase
      Maximum SinglePhase Output: 2.4KVA / 1.9KW
      Maximum ThreePhase Output: 7.2KVA / 5. 7KW
      Welding Current: 40 - 200 A
      Maximum Welding Current: 220 A ac
      Service (A): 200 - 35% / 170 - 60%
      Welding Type: Electrode
      Voltage: 230 / 400 V
      Frequency: 50 Hz
      Motor: Honda GX 390
      Emission Standard: Stage V
      Socket panel: 1 x Schuko 16A 230V / 1 x 32A 400 V
      3000 rpm
      Tank: 19 Lt.
      Autonomy @ 75%: 9 h fixed rpm
      Length (mm): 810
      Width (mm): 550
      Height (mm): 680
      Dry weight (Kg): 115

      If you are looking for another product then you can consult on our catalog other Motor Welders.

      Images and technical data are not binding.
