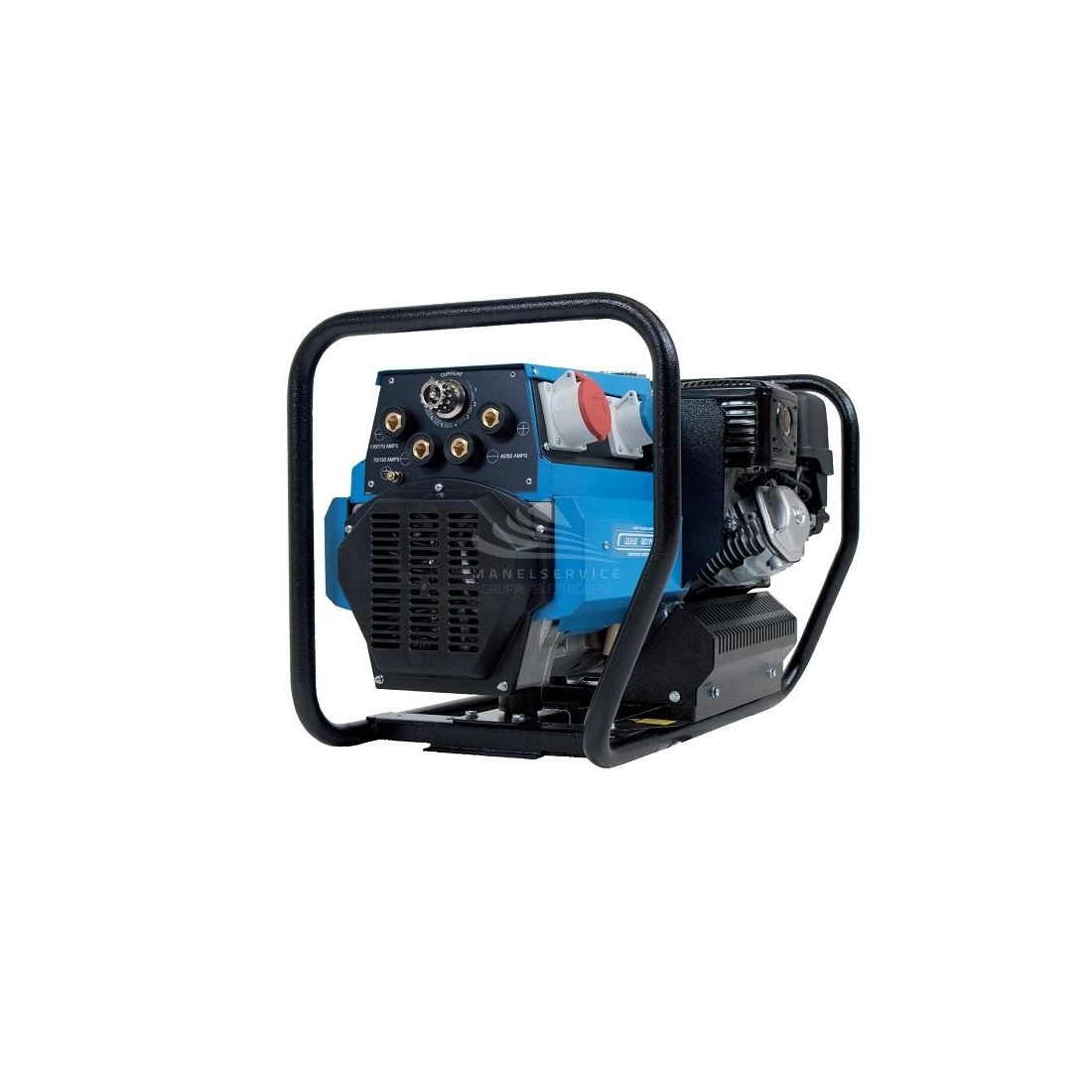

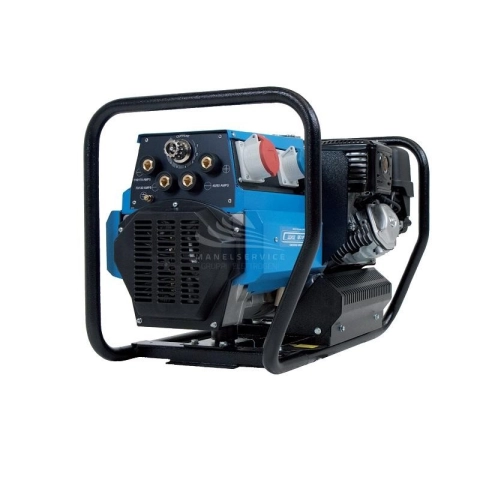

GENSET MPM 5/170 I-CX/H - ENGINE DRIVEN WELDER 4.5 KVA

Name: GENSET MPM 5/170 I-CX/H - ENGINE DRIVEN WELDER 4.5 KVA
Brand: GENSET
SKU: MPM 5/170 I-CX/H
Price: 3422.1 EUR
Availability: InStock

Reference MPM 5/170 I-CX/H

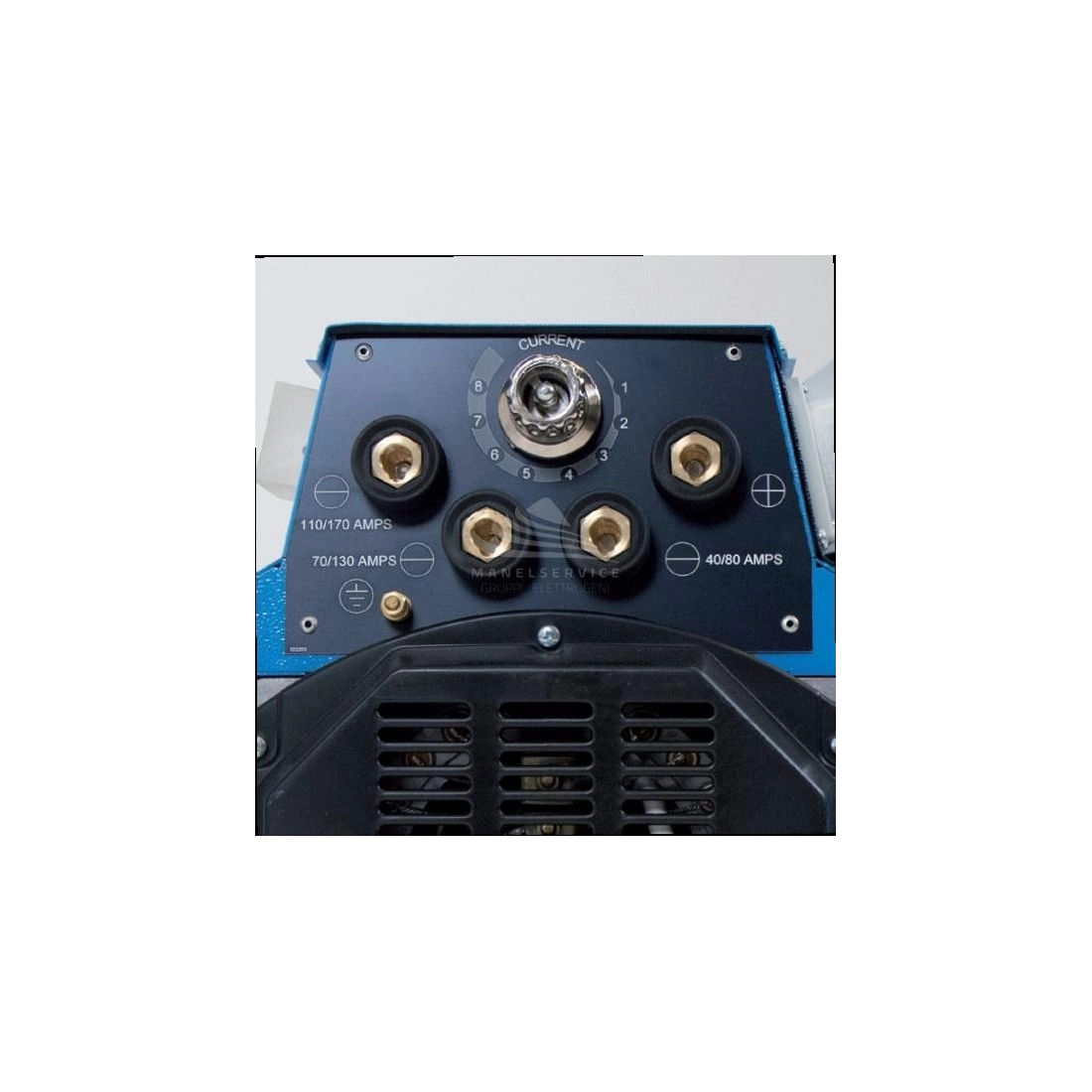

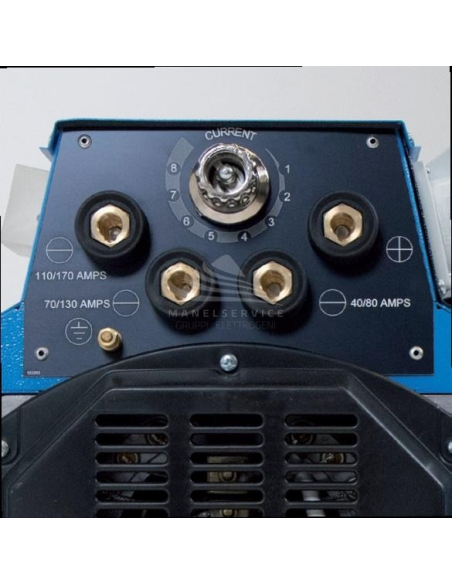

GENSET MPM 5/170 I-CX/H - Welding current control

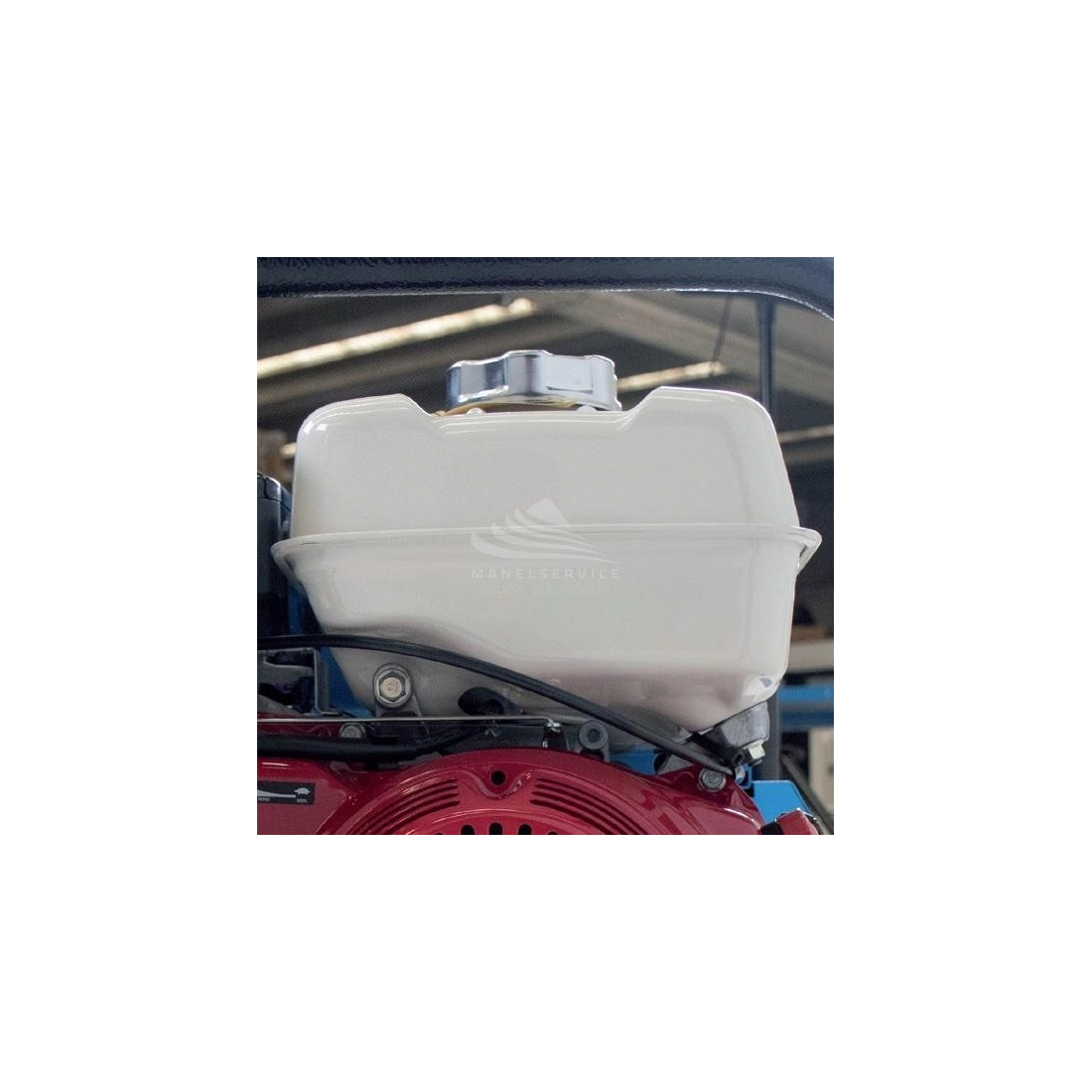

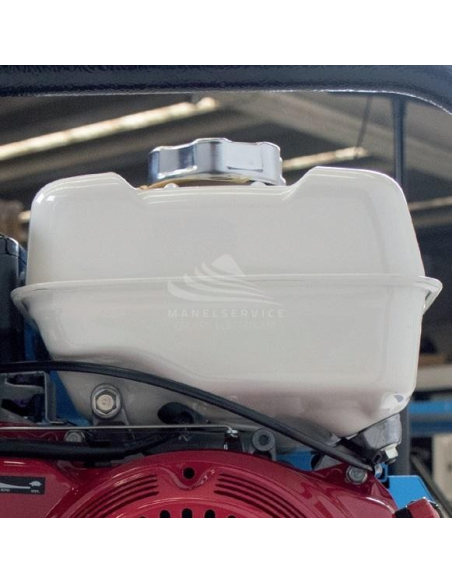

GENSET MPM 5/170 I-CX/H - 3.5 Litre tank

Maximum power Three-phase: 4.5 KVA
Maximum power Three-phase: 3.6 KW
Power continuous use Three-phase: 4 KVA
Power continuous use Three-phase: 3.2 KW
Maximum power Single-phase: 3 KVA
Maximum power Single-phase: 2.4 KW
Fuel: Gasoline
Voltage: 230/400 V
Frequency: 50 Hz

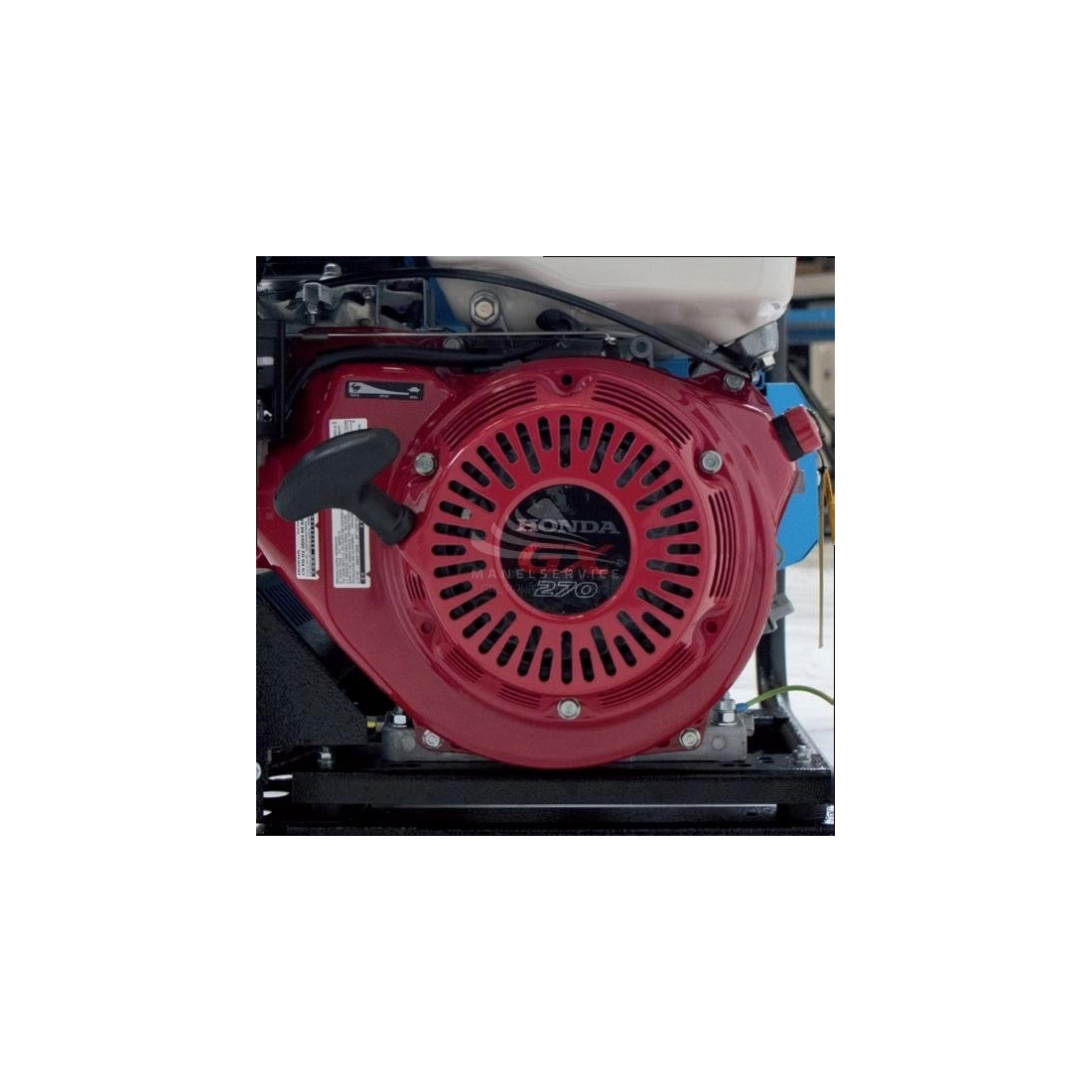

Engine: Honda GX 270 (STAGE V)
Starting: Manual
Consumption: 2.2 Lt/h
Length: 720 mm
Width: 480 mm
Height: 515 mm
Weight: 94 Kg

List price

5,978.00 € tax incl.

4,900.00 € tax excl.

Discounted Price

3,422.10 € tax incl.

2,805.00 € tax excl.

Shipping from 61.00 € to Italy buy it today. tax incl.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference MPM 5/170 I-CX/H

Data sheet

Phase: Single phase / Three phase
Maximum power single phase (KW): 2.4
Maximum power single phase (KVA): 3
Maximum power three phase (KW): 3.6
Continuous power three phase (KW): 3.2
Maximum power three phase (KVA): 4.5
Continuous power three phase (KVA): 4
Fuel: Gasoline
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 1 x 400V 16A CEE - 1 x 230V 16A CEE
Engine: Honda GX270
Engine rpm (rpm): 3000
Ignition: Recoil
Starting system: Manual
Engine capacity (cm³): 270
Number cylinders: 1
Cooling: Air
Alternator: Asynchronous
Protection degree: IP23
Motor insulation class: H
Regulation current (A): 40 - 170
Open circuit voltage (V): 90
Maximum diameter electrodes (mm): 4
Intermittence: 170 A al 35% / 140 A al 60%
Fuel tank capacity (L): 5.3
Consumption (L/h): 2.2
Running time (h): 2.41
Acoustic power: 95 dB(A)
Acoustic pressure: 70 dB(A) at 7 m
Length (mm): 720
Width (mm): 480
Height (mm): 515
Dry weight (Kg): 94
Silenced: No
Super silenced: No
Product type: Engine driven welder
Voltage regulator: No
Engine manufacturer: Honda

Specific References

Condition New

GENSET MPM 5-170 I-CX-H MOTORWELDING FROM 4.5 KVA

The GENSET MPM 5-170 I-CX-H motorwelder has a 4,5 KVA singlephase threephase gasoline motor with manual start, equipped with a trolley for easy transport.
Thanks to its compact size and very low weight, the GENSET MPM 5-170 I-CX-H is a lightweight and easy to transport motor welder.
The GENSET also has a low fuel consumption: only 2.2 Lt/h at 75% load.
The MPM 5-170 I-CX-H engine driven welder, thanks to the high quality and efficiency of its components, is suitable for welding DC electrodes with a maximum diameter of 4 mm.

Main advantages of the GENSET MPM 5-170 I-CX-H motorwelding machine

MOTORWELDING MACHINE WITH CONTINUOUS CURRENT
OUTPUT OF 170A
WITH ALTERNATED CURRENT THREEPHASE AND SINGLEPHASE GENERATOR
PETROL ENGINE 3000 RPM

Technical characteristics of the GENSET MPM 5-170 I-CX-H motorwelder

Welding method: Electrode
Automatic stop for low oil level
Differential switch
Protections for power outputs
1 threephase outlet CEE 400V - 16A
1 singlephase outlet CEE 230V - 16A
Voltmeter
Trolley: two wheels and handles
Welding cables Ø 25 mm2
(5+3 mt) with accessories
Lwa 95 (70 dB at 7 mt)
DC welding
Current adjustment: electromechanical
Intermittance at 35%: 170A - 27V
Intermittance at 60%: 140A - 26V
Electronic adjustment (DC mode): 40A - 170A
Trigger voltage: 90V
Maximum electrode diameter: 4 mm
Alternator: asynchronous, self-excited and self-protected
Three-phase power (emergency): 4.5kVA - 400V
Three-phase power (continuous): 4kVA - 400V
Single-phase output (maximum): 3kVA - 230V
Factor cos ф: 0.8
Petrol engine 300 rpm
Type: Honda GX270 - 1 cyl. - 270 cm3
Maximum output: 7.8 HP (5.8 kWm)
Start: manual
Cooling: air
Fuel tank capacity: 5.3 lt
Fuel consumption at 75% load: 2.2 lt/h
Isolation class: H
Environmental temperature: 40 °C (*)
Reference altitude: 1000 m (*)
Protection class: IP 23
Dimensions (L x W x H): 720 x 480 x 515 mm
Dry weight: 94 kg

For more information on this and other power welders, please feel free to contact us.

Images and technical data are not binding.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
