CGM 300SDET - THREE PHASE ELECTRIC START MOTOR WELDER
OUT OF STOCK
Phase Type : Three phase
Maximum three phase power : 6.8 KW / 8.5 KVA
Maximum single phase power : 3.2 KW / 4 KVA
Motor : Lombardini 12LD 477/2
Fuel : Diesel
Cylinders : 2
Displacement : 594 cm3
Maximum Engine Power : 17. 3 HP
Max Welding Current : 300-240 A at 35%/60%
Tank : 7 Lt
Sockets : 1 CEE 3-pole 230V socket, 1 CEE 5-pole 400V socket
Starting : Electric with battery
Acoustic Power : 77 dB(A) at 7 m
Voltage : 230 V / 400 V
Frequency : 50 Hz
Power Factor : 0. 8
Welding current : 35-400 A
Cooling : Air
Number of turns : 3000 rpm
Autonomy : 2.2 h
Consumption at 3/4 load : 3.2 L/h
Oil capacity : 2. 5 Lt
Alternator : SINCRO, with brushes
Number of Poles : 2
Number of Phases : 3
Welding voltage : 21.5 - 28.8 V
Power consumption : 11. 5 hp / 8.5 KW
Tension regulation : Compound
Width : 1100 mm
Length : 650 mm
Height : 800 mm
Weight : 240 Kg
CGM 300SDET /
Data sheet
- Phase
- Three phase
- Maximum power single phase (KW)
- 3.2
- Maximum power single phase (KVA)
- 4
- Maximum power three phase (KW)
- 6.8
- Maximum power three phase (KVA)
- 8.5
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Voltage (V)
- 230 / 400
- Sockets configuration
- 1 x 230 V 3P CEE + 1 x 400 V 5P CEE
- Engine
- Lombardini 12LD477/2
- Engine rpm (rpm)
- 3000
- Starting system
- Electric
- Engine capacity (cm³)
- 594
- Number cylinders
- 2
- Oil capacity (L)
- 2.5
- Cooling
- Air
- Alternator
- With brushes
- Poles
- 2
- Welding current (A)
- 220-170 A al 35%/60%
- Welding voltage min/max (V)
- 21.5 / 28.8
- Fuel tank capacity (L)
- 7
- Consumption (L/h)
- 3.2 al 75% del carico
- Running time (h)
- 2.2
- Acoustic pressure
- 77 dB(A) at 7 m
- Length (mm)
- 650
- Width (mm)
- 1100
- Height (mm)
- 800
- Dry weight (Kg)
- 240
- Silenced
- No
- Super silenced
- No
Specific References
New

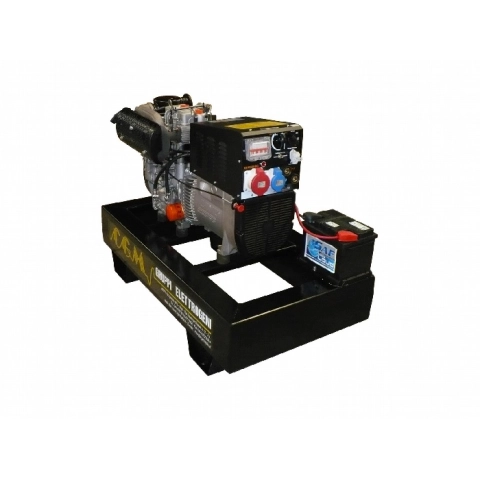

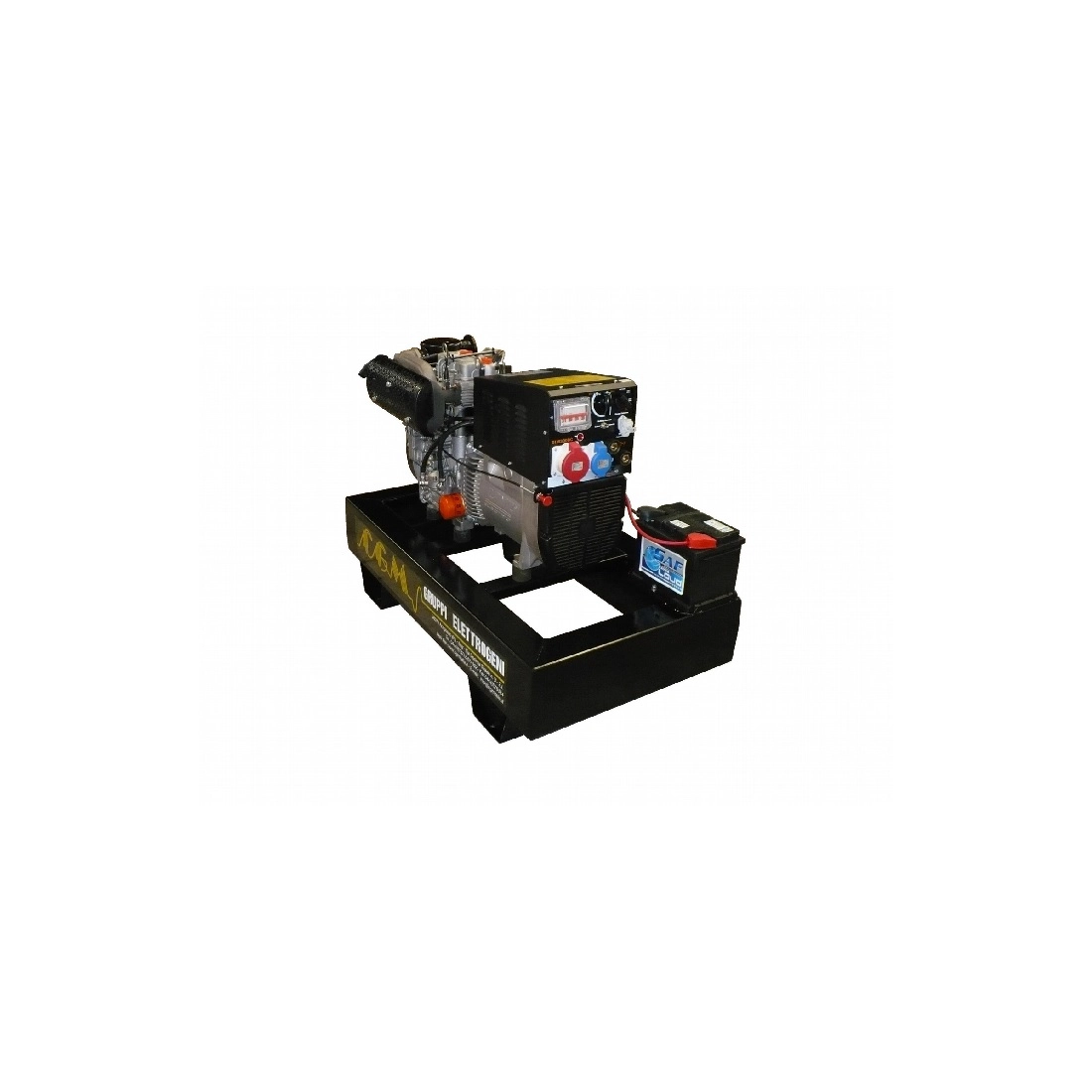

CGM 300SDET THREEPHASE MOTORWELDING MACHINE ELECTRICALLY STARTED
CGM 300SDET is a threephase engine motorwelder equipped with a Lombardini 12LD 477/2 Diesel engine capable of delivering a power of 8,5KVA.
The CGMs are motorwelders equipped with Honda petrol or Lombardini diesel engines with electric or recoil start.
Mounted on a fixed base and operating at 3000 rpm, they are suitable for welding and supplying 400V threephase and/or 230V singlephase.
The CGM 300SDET engine driven welders of 3000 rpm are suitable for non-continuous emergency use, it is not recommended to use them for more than 6 continuous hours and for more than 500 hr/year.
TECHNICAL CHARACTERISTICS CGM 300SDET
Phase Type : Threephase
Maximum threephase output: 6.8 KW / 8.5 KVA
Maximum singlephase output: 3.2 KW / 4 KVA
Motor : Lombardini 12LD 477/2
Fuel : Diesel
Cylinders : 2
Displacement : 594 cm3
Maximum Engine Power : 17. 3 HP
Max Welding Current : 300-240 A at 35%/60%
Tank : 7 Lt
Sockets : 1 CEE 3-pole 230V socket, 1 CEE 5-pole 400V socket
Starting : Electric with battery
Acoustic Power : 77 dB(A) at 7 m
Voltage : 230 V / 400 V
Frequency : 50 Hz
Power Factor : 0. 8
Welding current : 35-400 A
Cooling : Air
Number of turns : 3000 rpm
Autonomy : 2.2 h
Consumption at 3/4 load : 3.2 L/h
Oil capacity : 2. 5 Lt
Alternator : SINCRO, with brushes
Number of Poles : 2
Number of Phases : 3
Welding voltage : 21.5 - 28.8 V
Power consumption : 11. 5 hp / 8.5 KW
Tension regulation : Compound
Width : 1100 mm
Length : 650 mm
Height : 800 mm
Weight : 240 Kg
Discover our wide range of motorwelding machines click here!
Images is technical data are not binding and may be subject to revision by supplier.
