GENMAC Combiflash RG181KEO MOTOR WELDER SINGLE-PHASE 6,1KVA
      GENMAC Combiflash RG181KEO MOTOR WELDER SINGLE-PHASE 6,1KVA
      GENMAC Combiflash RG181KEO MOTOR WELDER SINGLE-PHASE 6,1KVA

      GENMAC Combiflash RG181KEO MOTOR WELDER SINGLE-PHASE 6,1KVA

      Power Supply: Diesel
      Firing: Electric
      Phase Type: Single Phase
      Maximum Power: 6.1KVA / 5. 5KW
      Welding current: 60 - 170 A
      Maximum welding current: 180 A ac
      Service (A): 170 - 35% / 125 - 60%
      Welding type: Electrode
      Voltage: 230V
      Frequency: 50 Hz
      Motor: Kohler KD440
      Socket panel: 1 x Schuko 16A 230V / 1 x 32A 230V
      3000 rpm
      Tank: 19 Lt.
      Autonomy @ 75%: 14 h fixed rpm
      Length (mm): 810
      Width (mm): 550
      Height (mm): 680
      Dry weight (Kg): 120

      List price
      3,257.40 € tax incl.
      2,670.00 € tax excl.
      Discounted Price
      3,257.40 € tax incl.
      2,670.00 € tax excl.
      Shipping Free to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: GENMAC Combiflash RG181KEO MOTOR WELDER SINGLE-PHASE 6,1KVA

      PERSONAL DATA


      Ask a question
      Product: GENMAC Combiflash RG181KEO MOTOR WELDER SINGLE-PHASE 6,1KVA
      Offer on letterhead
      Product: GENMAC Combiflash RG181KEO MOTOR WELDER SINGLE-PHASE 6,1KVA
      GENMAC
      Combiflash RG181KEO

      Data sheet

      Phase
      Single phase
      Maximum power single phase (KW)
      5.5
      Maximum power single phase (KVA)
      6.1
      Fuel
      Diesel
      Frequency (Hz)
      50
      Voltage (V)
      230
      Engine
      Kohler KD 440
      Engine rpm (rpm)
      3000
      Starting system
      Electric
      Cooling
      Air
      Poles
      2
      Welding current (A)
      170 - 35% / 125 - 60%
      Type of welding
      MMA
      Current max (A)
      180
      Fuel tank capacity (L)
      19
      Running time (h)
      14
      Length (mm)
      810
      Width (mm)
      550
      Height (mm)
      680
      Dry weight (Kg)
      120
      Silenced
      Yes
      Super silenced
      No
      Voltage regulator
      No
      Engine manufacturer
      Kohler

      Specific References

      New

      GENMAC Combiflash RG181KEO MOTOR WELDER SINGLE-PHASE 6,1KVA

      The Genmac Combiflash RG181KEO single-phase motor welder is equipped with a Kohler Diesel engine capable of delivering a power of 6.1KVA.

      This motorwelder is ideal for having electrical current always at hand in any place and environment (construction sites, markets, beaches, campsites or for first aid in difficult areas), combined with a electrode welder.

      The small size and moderate weight of the Genmac Combiflash RG181KEO motorwelder make it one of the most requested professional products in the Genmac line.

      Fitted with a Kohler KD440 engine capable of delivering a power of 6.1KVA with Diesel supply and an "air" cooling system by means of a fan, guaranteeing maximum efficiency and durability even for long and continuous work both as a welder and as a generator set. The MotorWelder generates a maximum power of 6.1KVA at only 3000 rpm.

      The starting of the single-phase motorwelder 6,1KVA Genmac Combiflash RG181KEO, is done through an automatic electric start module.

      The lightness of the machine and the possibility of requesting a mobilization kit are greatly appreciated by those customers who carry out repairs on streets or squares and who, for reasons of lack of parking space or distance for their vehicles, have to carry the motor welding machine by hand for considerable distances (historical center, uncomfortable areas, etc.)

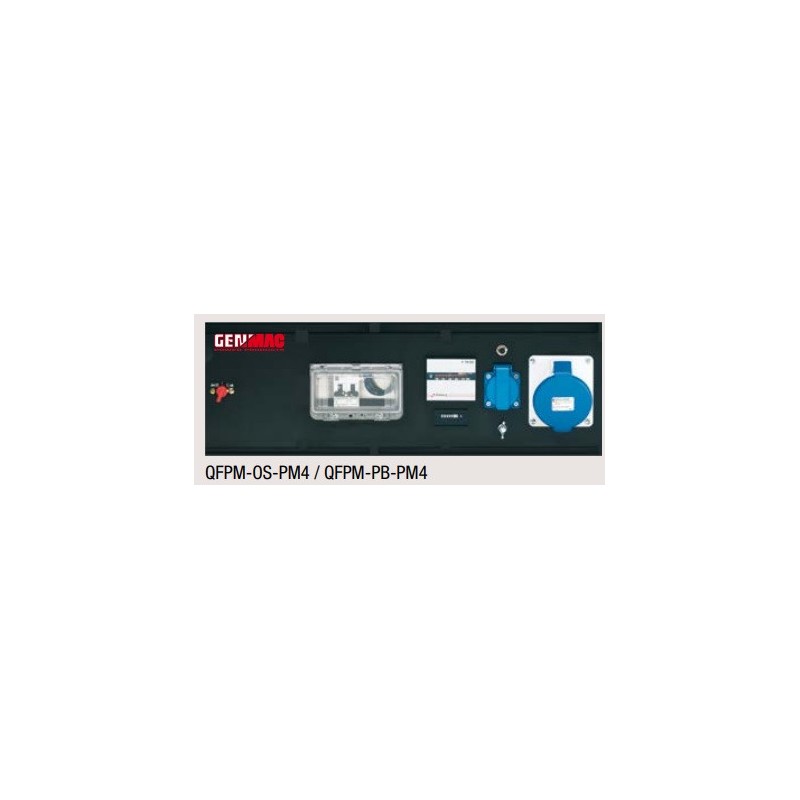

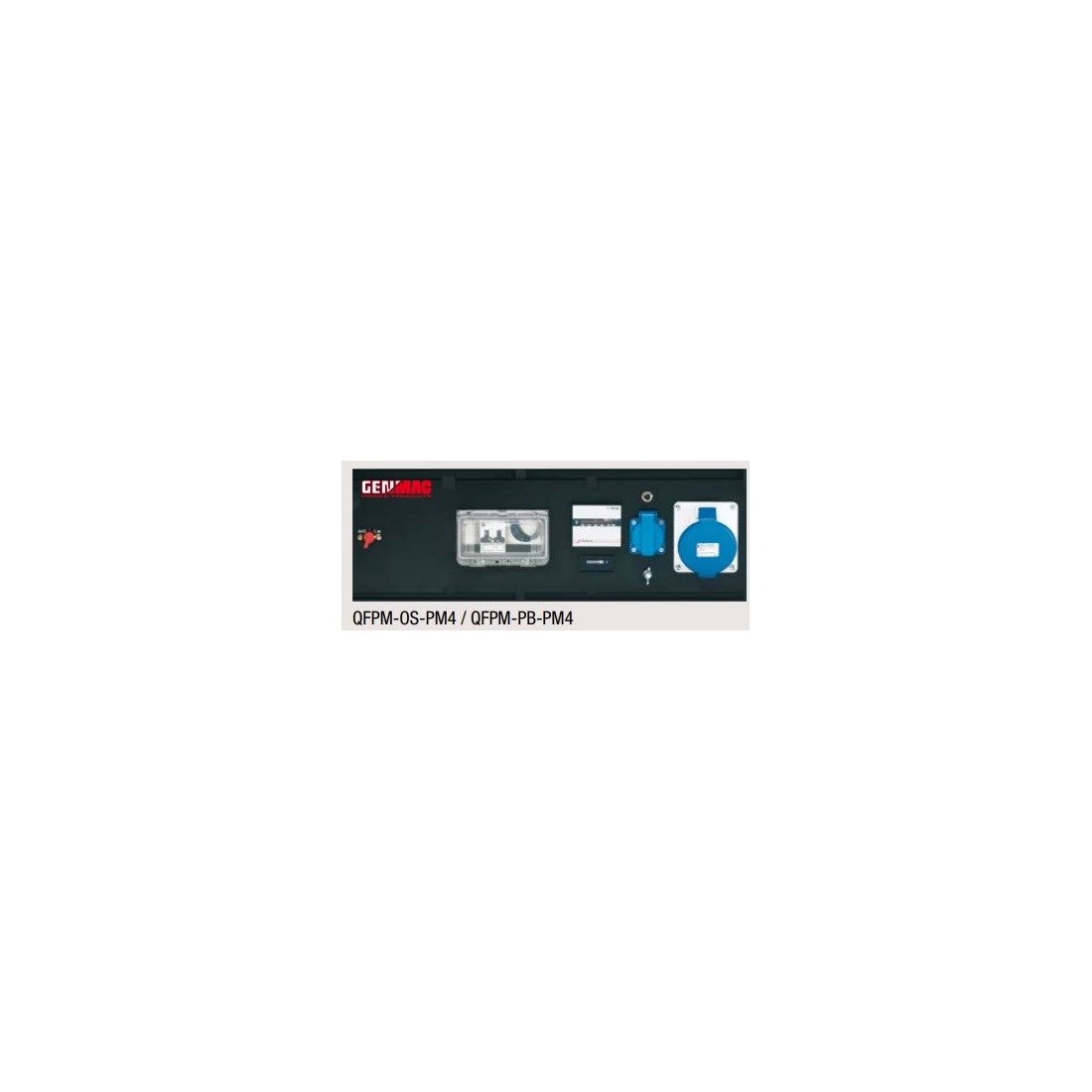

      On the side the motorwelder, is equipped with 1 current output with attack type SCHUKO from 230V 16A and 1 of the type CEE from 230V 32A suitable for the connection of any electrical appliance of common use.

      TECHNICAL CHARACTERISTICS MOTOR WELDER GENMAC Combiflash RG181KEO 6.1KVA

      Power Supply: Diesel
      Firing: Electric
      Phase Type: Single Phase
      Maximum Power: 6.1KVA / 5. 5KW
      Welding current: 60 - 170 A
      Maximum welding current: 180 A ac
      Service (A): 170 - 35% / 125 - 60%
      Welding type: Electrode
      Voltage: 230V
      Frequency: 50 Hz
      Motor: Kohler KD440
      Socket panel: 1 x Schuko 16A 230V / 1 x 32A 230V
      3000 rpm
      Tank: 19 Lt.
      Autonomy @ 75%: 14 h fixed rpm
      Length (mm): 810
      Width (mm): 550
      Height (mm): 680
      Dry weight (Kg): 120

      If you are looking for another product then you can consult on our catalog other Motor Welders.

      Images and technical data are not binding.
