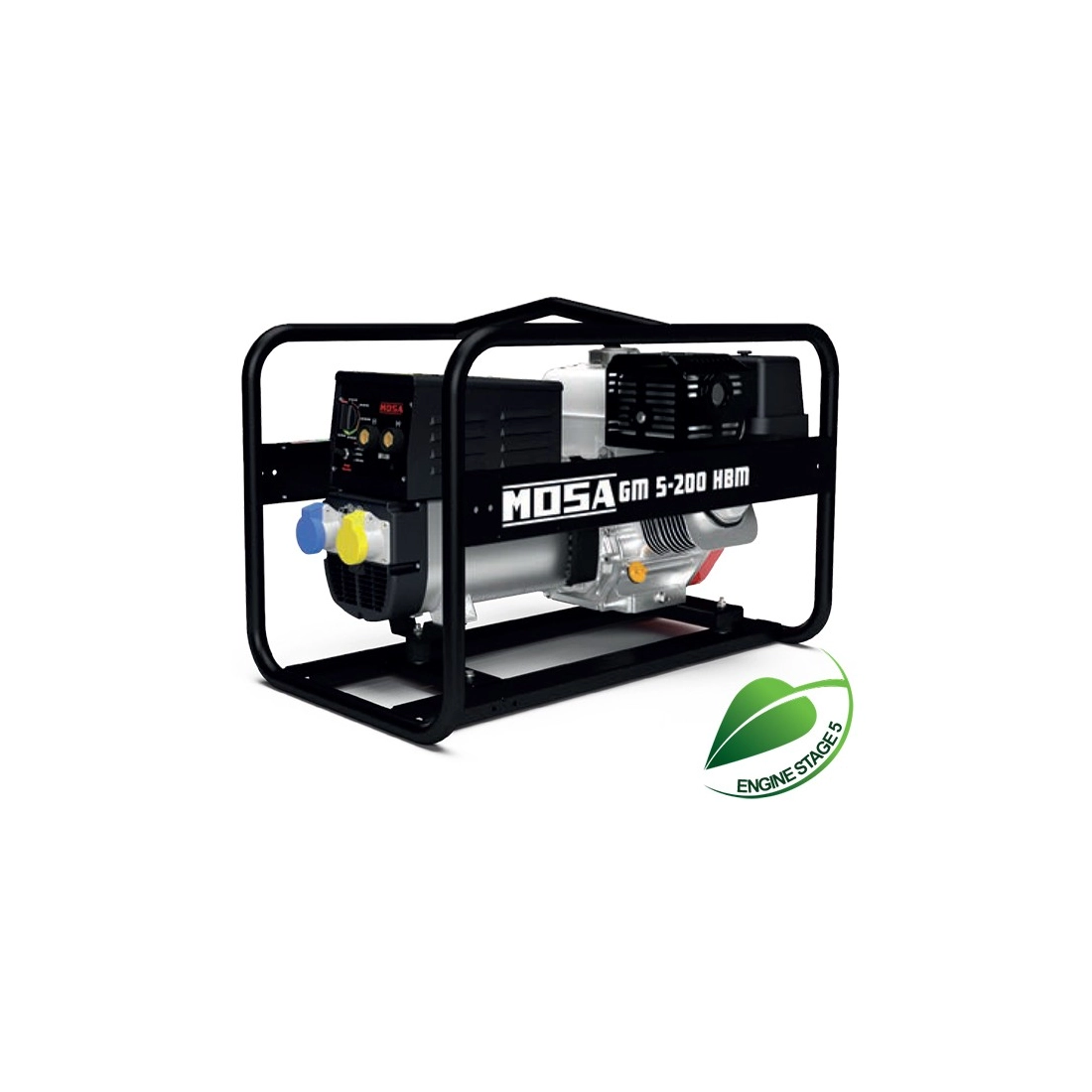

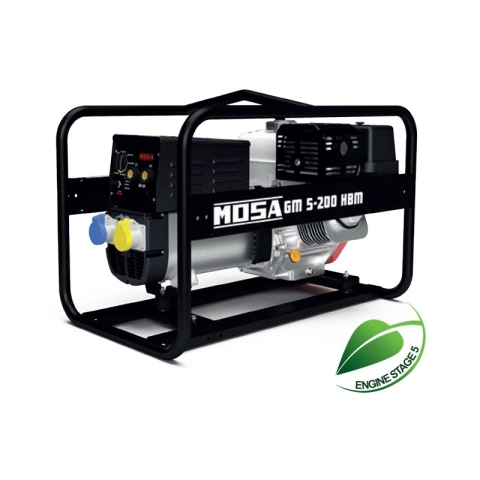

MOSA GM5-200 HBM MOTORWELDING 5KVA

MOSA GM5-200 HBM is a single-phase motorwelder equipped with a HONDA - GX 390 gasoline engine capable of delivering a power of 5KVA.

MOSA GM5-200 HBM is a motorwelder that performs the dual function of current source for arc welding and current generator for auxiliary generation.

The MOSA GM5-200 HBM motor motorwelder is intended for industrial and professional use. Driven by an endothermic engine, it consists of several parts such as: the engine, the alternator, the electrical and electronic controls, the body and a protective structure. The assembly is carried out on a steel structure on which elastic supports are foreseen in order to dampen vibrations and eventually eliminate resonances that would produce noise.

The MOSA GM5-200 HBM is built in accordance with IEC- EN 60974-10. It must be installed and operated in accordance with the provisions below to achieve electromagnetic compatibility. The limits required by IEC- EN 60974-10 may not be adequate to completely eliminate interference when the equipment involved is in close proximity or has a high degree of sensitivity. In these cases, it may be necessary to use other measures to further reduce interference.

TECHNICAL FEATURES MOSA GM5-200 HBM

Welding current: 40A / 21.6V ÷ 200A / 20V
Service: 160A / 26.4V - 60%, 120A / 24.8 - 100%
Trigger voltage (open circuit voltage): 85 V

ENGINE DATA
Model: HONDA - GX 390
Fuel: Gasoline
Net standby power: 8.2 kWm (11.1 hp)
Net PRP power: 6. 4 kWm (8.7 hp)
Cylinders / Displacement: 1 / 389 cm³ (0.39 l.)
Bore / Stroke: 88 / 64 (mm)
Compression Ratio: 8. 2 : 1
110 % (Standby power): 3.5 lt./h
100 % PRP: 3.2 lt./h
75 % PRP: 2.4 lt./h
50 % PRP: 1.6 lt./h

NOMINAL OUTPUT
Single-phase output max: 5 kVA (kW) / 230 V / 21. 7 A
Single-phase output PRP: 4 kVA (kW) / 230 V / 17.4 A
Single-phase output max: 2.5 kVA (kW) / 115 V / 21.7 A
Single-phase output PRP: 2 kVA (kW) / 115 V / 17.4 A

GENERAL SPECIFICATIONS
Tank capacity: 6. 1 l
Autonomy (60% soldering): 2.9 h
Measured acoustic power LwA: 97 dB(A) (71 dB(A) @ 7m)
Guaranteed acoustic power LwA: 97 dB(A) (71 dB(A) @ 7m)

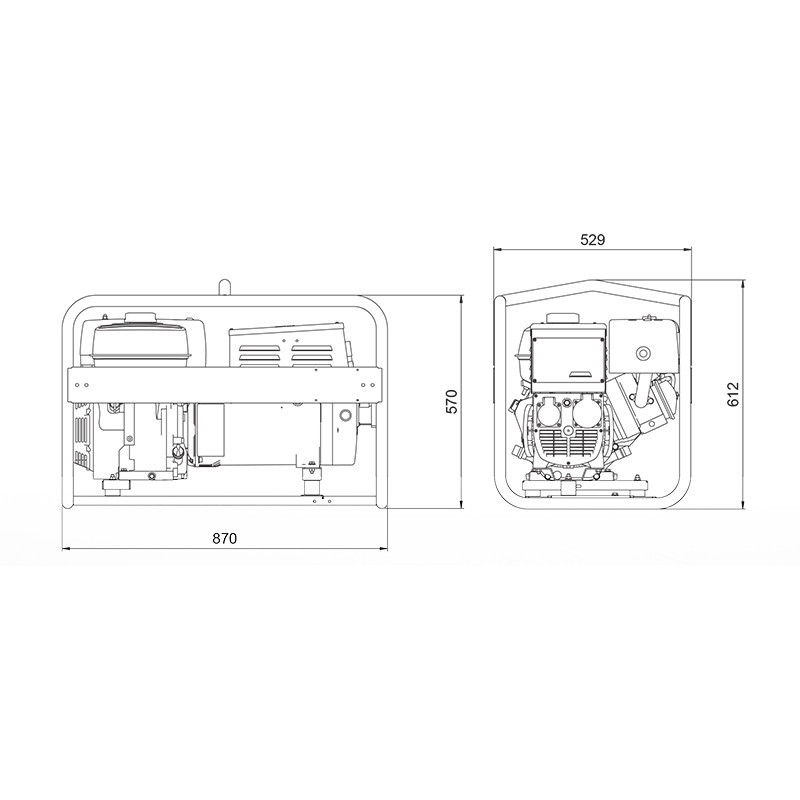

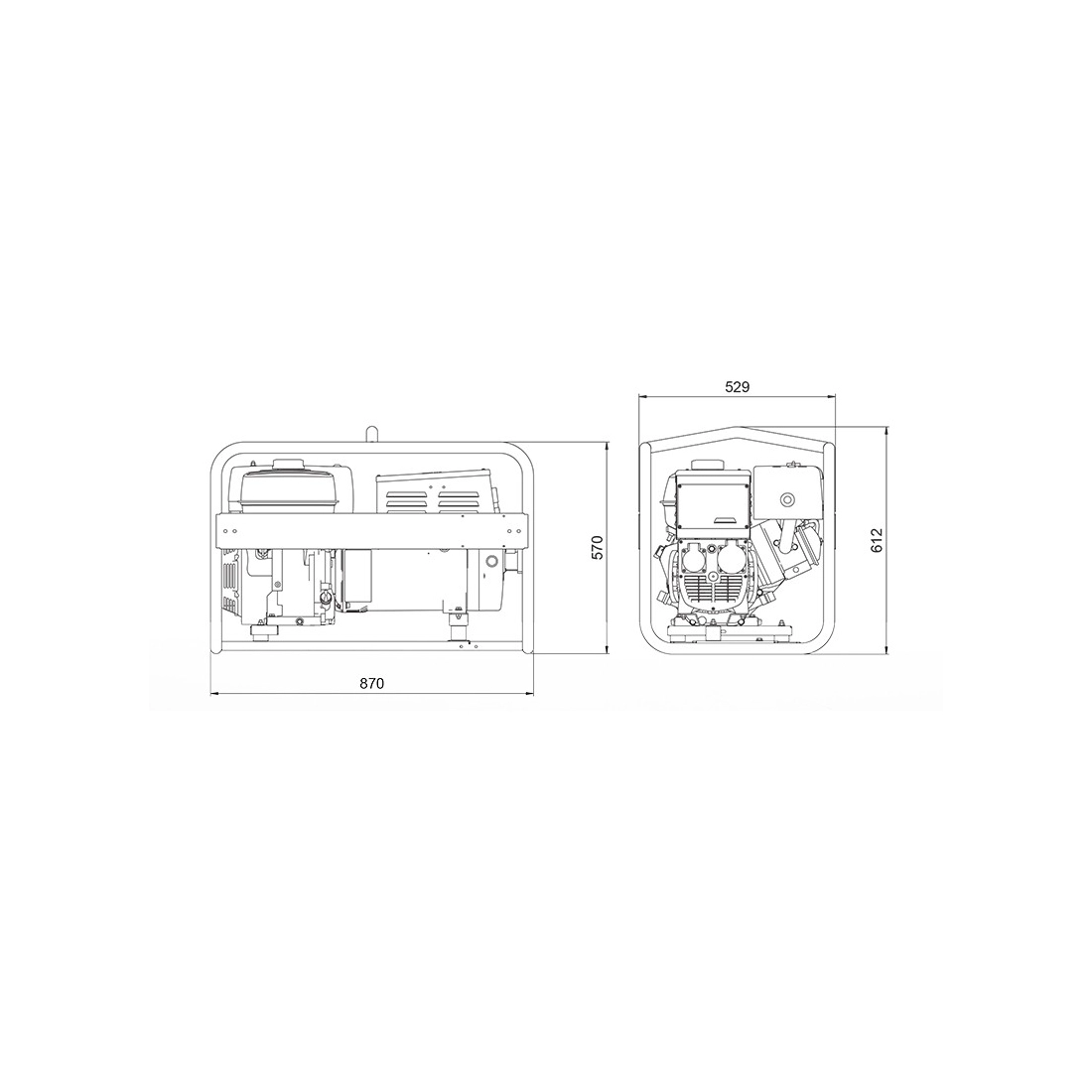

Width: 870 mm
Length: 525 mm
Height: 613 mm
Dry weight: 97 kg

Are you looking for a motorwelder with different technical characteristics? Here you can find the full range of MOSA or other brands specializing in the field.

Images and technical data are not binding.
