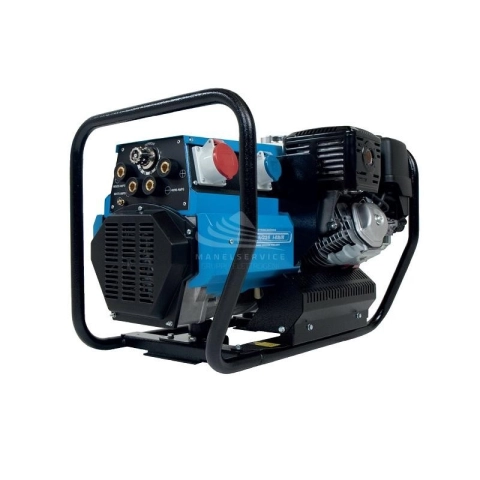

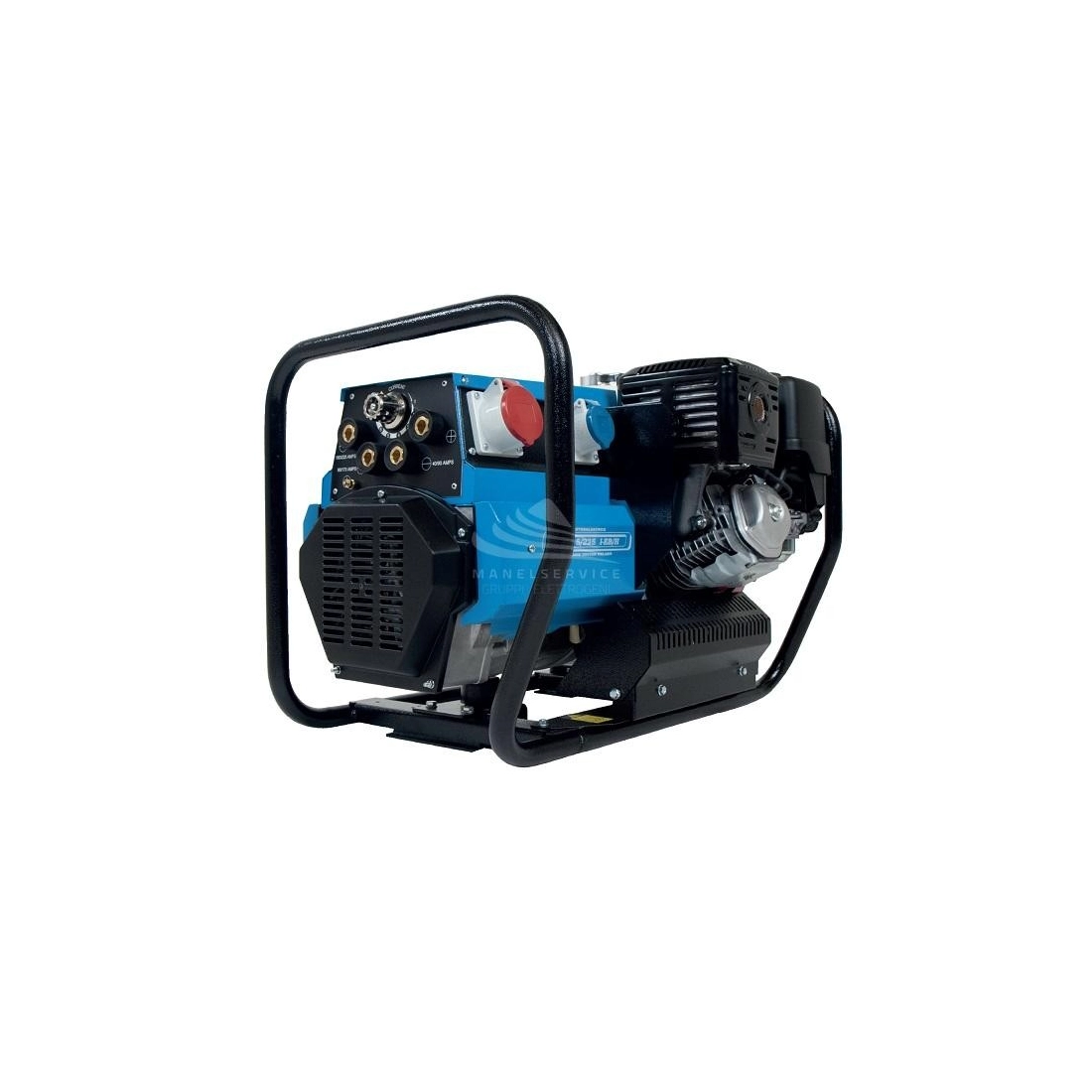

GENSET MPM 5/225 I-EB/H - ENGINE DRIVEN WELDER 5 KVA

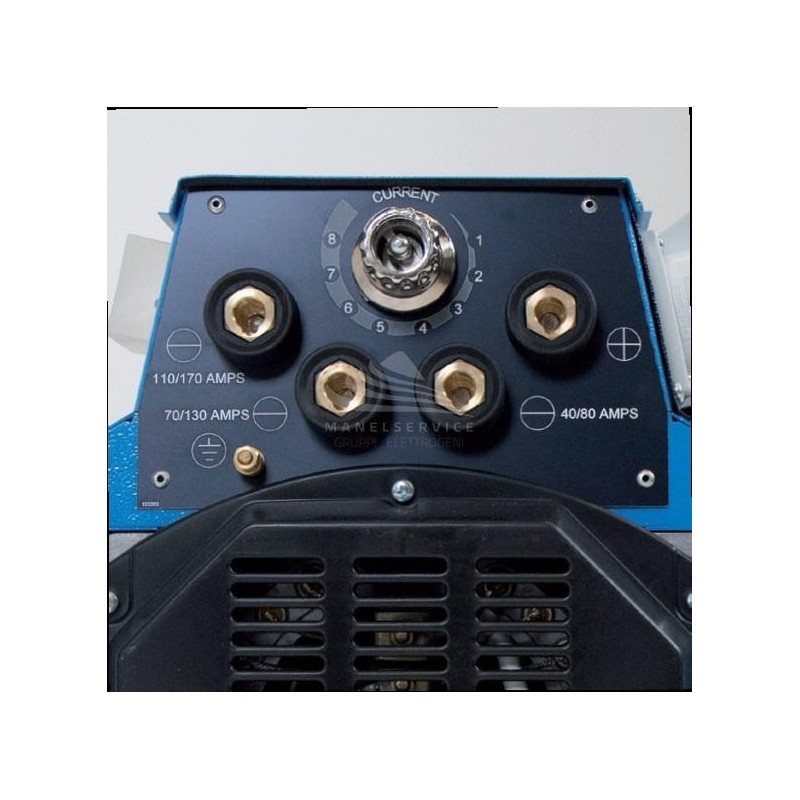

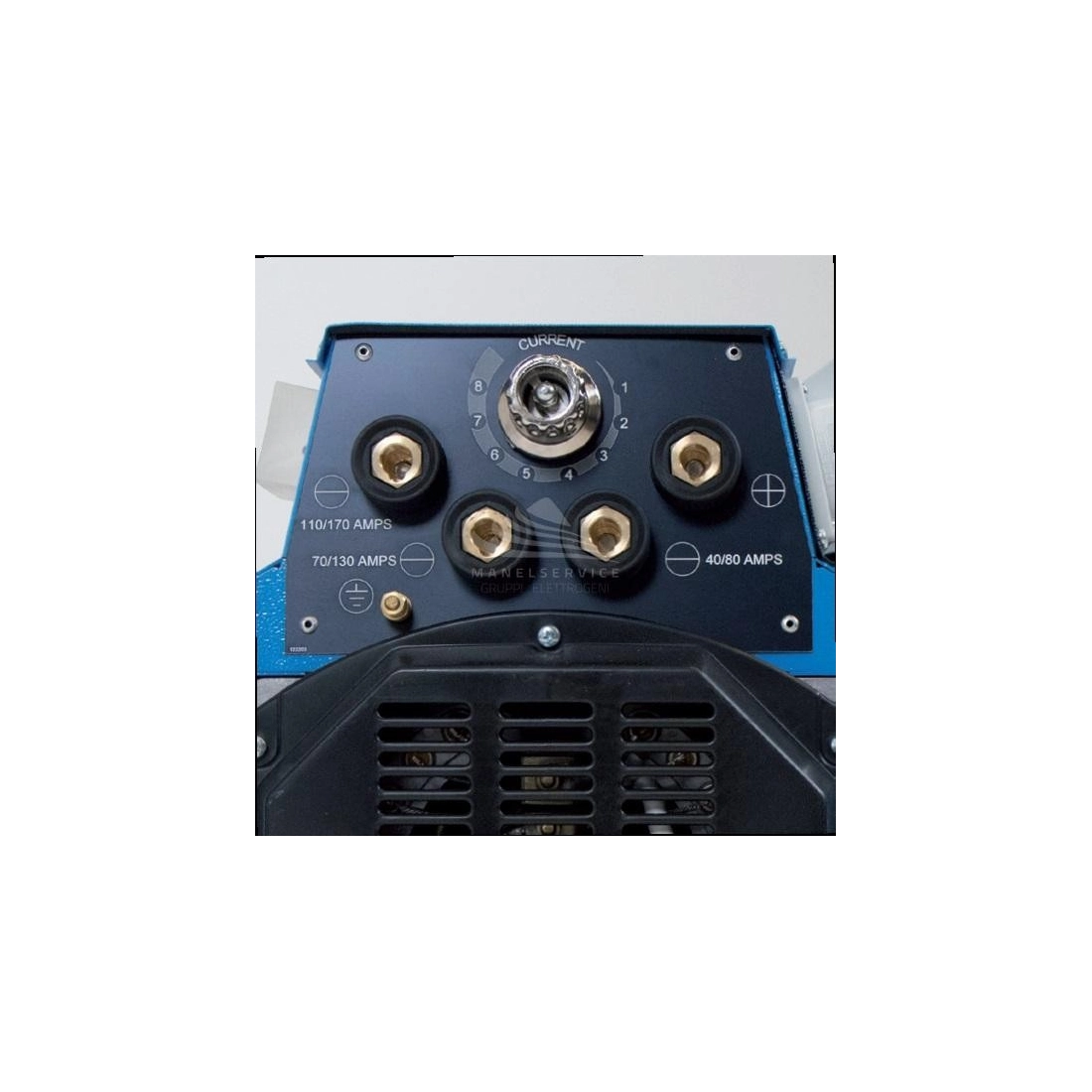

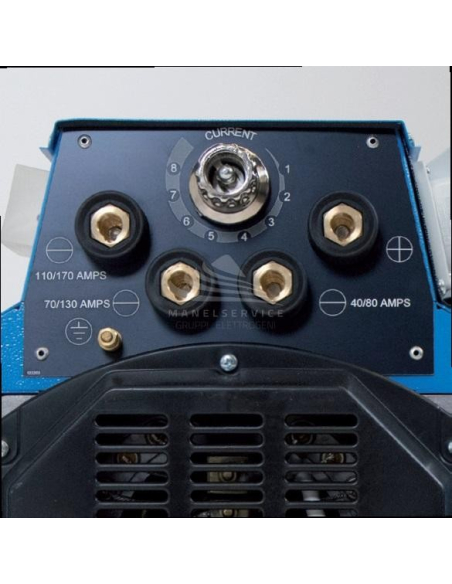

GENSET MPM 5/225 I-EB/H - Welding current control

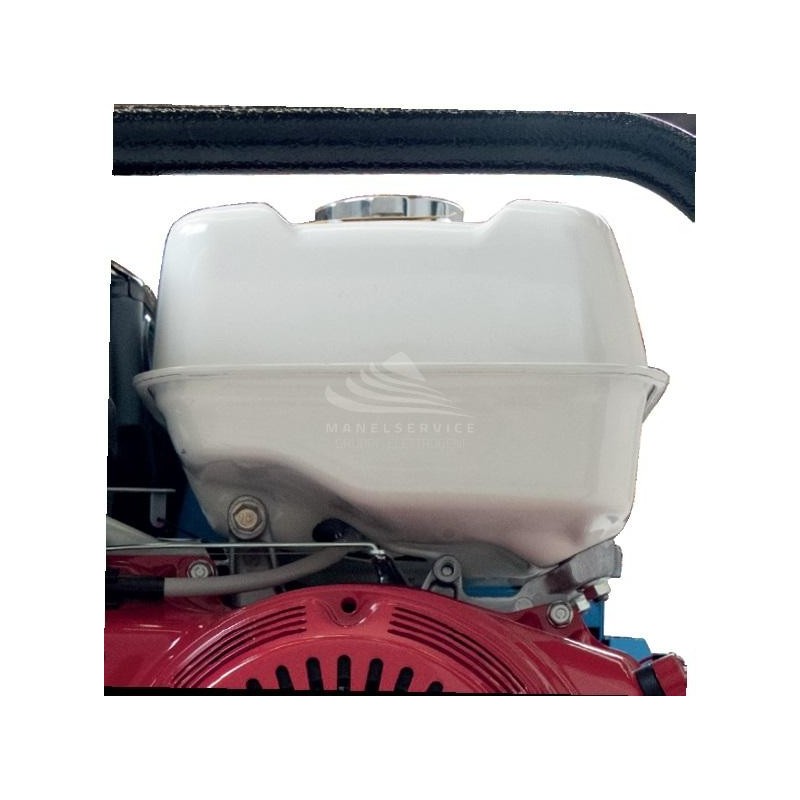

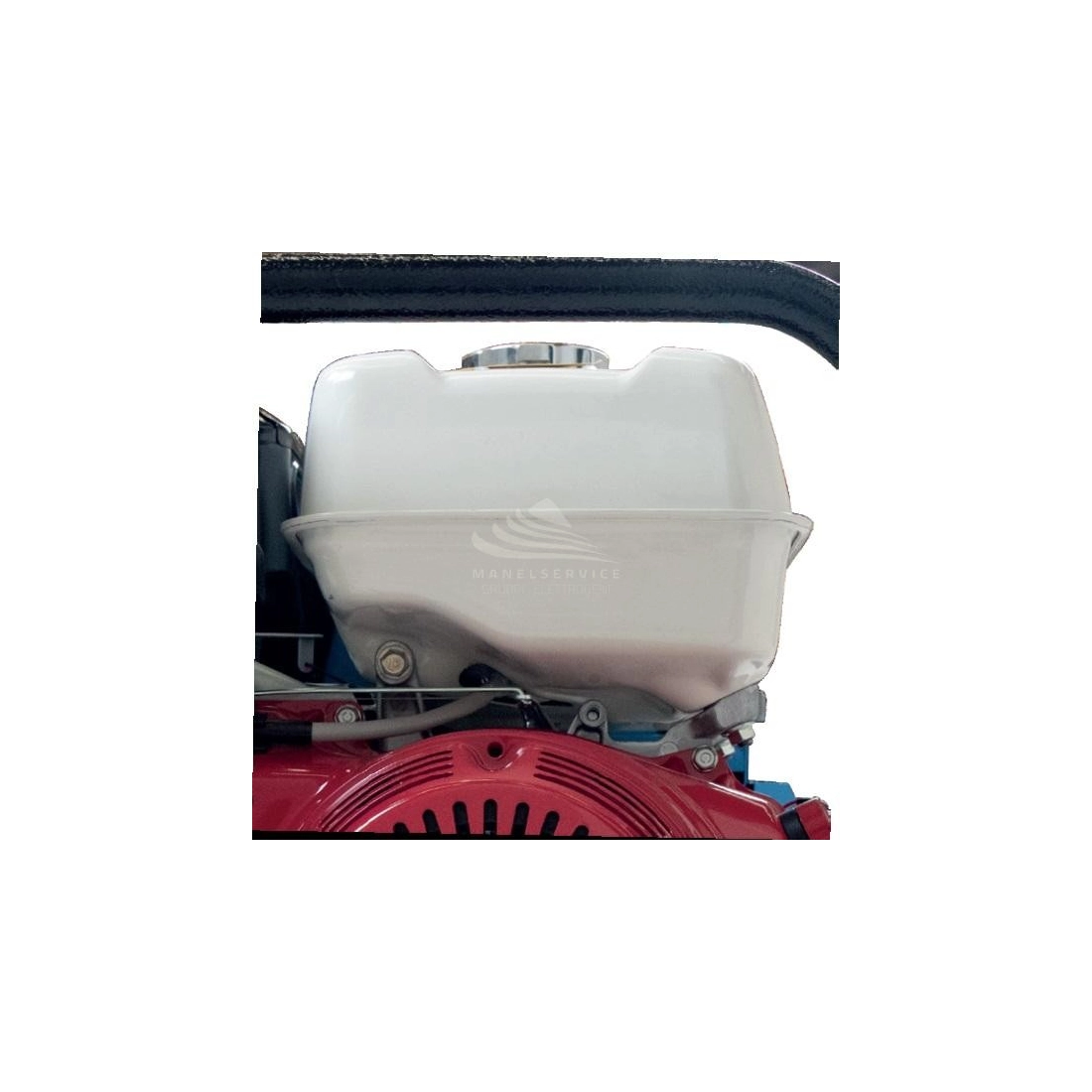

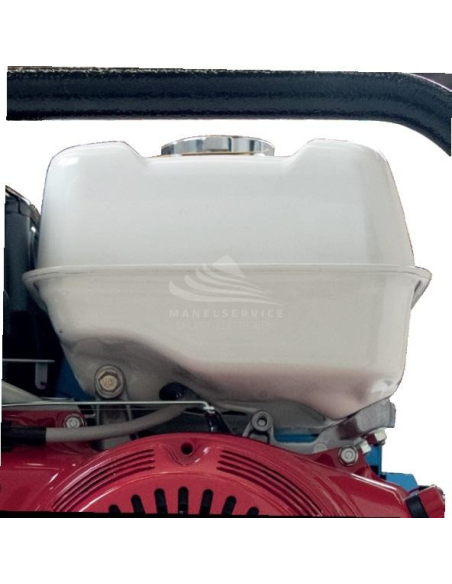

GENSET MPM 5/225 I-EB/H - 6.1 Litre tank

Reference MPM 5/225 I-EB/H

Maximum three-phase power: 5 KVA
Three phase maximum power: 4 KW
Three phase continuous use power: 4.5 KVA
Three-phase continuous use power: 3.6 KW
Single-phase maximum power: 4 KVA
Single-phase maximum power: 3.2 KW
Fuel: Gasoline
Voltage: 230/400 V
Frequency: 50 Hz
Engine: Honda GX 390 (STAGE V)
Starting: Manual
Consumption: 3.3 Lt/h
Length: 720 mm
Width: 480 mm
Height: 515 mm
Weight: 95 Kg

Download Scheda tecnica MPM 5/225 I-EB/H Download Technical data MPM 5/225 I-EB/H

Product Details
Description

Phase: Single phase / Three phase
Maximum power single phase (KW): 3.2
Maximum power single phase (KVA): 4
Maximum power three phase (KW): 4
Continuous power three phase (KW): 3.6
Maximum power three phase (KVA): 5
Continuous power three phase (KVA): 4.5
Fuel: Gasoline
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 1 x 400V 16A CEE - 1x 230V 16A CEE
Engine: Honda GX390
Emissions Regulations: Stage 5
Engine rpm (rpm): 3000
Ignition: Recoil
Starting system: Manual
Engine capacity (cm³): 390
Number cylinders: 1
Cooling: Air
Alternator: Asynchronous
Protection degree: IP23
Motor insulation class: H
Regulation current (A): 40 - 225
Open circuit voltage (V): 90
Maximum diameter electrodes (mm): 5
Intermittence: 225 A al 35% / 225 A al 40% / 170 A al 60%
Fuel tank capacity (L): 6.1
Consumption (L/h): 3.3
Running time (h): 1.85
Acoustic power: 98 dB(A)
Acoustic pressure: 73 dB(A) at 7 m
Length (mm): 720
Width (mm): 480
Height (mm): 515
Dry weight (Kg): 95
Silenced: No
Super silenced: No
Product type: Engine driven welder
Voltage regulator: No
Engine manufacturer: Honda

Brand

GENSET MPM 5-225 I-EB-H MOTORWELDING MACHINE FROM 5 KVA

The GENSET MPM 5-200 I-EL-H electrode motorwelder has a 5 KVA singlephase threephase Stage V gasoline engine with manual start, equipped with a trolley for easy transport.
Thanks to its compact size and very low weight, the GENSET is a lightweight and easy to transport motor welder.
The GENSET MPM 5-200 I-EL-H also has a low fuel consumption: only 2.2 Lt/h at 75% load.
The GENSET engine driven welder, thanks to the high quality and efficiency of its components, is suitable for welding DC electrodes with a maximum diameter of 4 mm.

Main advantages of the GENSET MPM 5-225 I-EB-H engine driven welder

MOTOR WELDING MACHINE WITH CONTINUOUS CURRENT 225A
WITH ALTERNATE CURRENT THREEPHASE AND SINGLEPHASE GENERATOR
AUXILIARY POWER AVAILABLE
BENZINE ENGINE 3000 RPM

Main advantages of the GENSET MPM 5-225 I-EB-H motor welder

Welding method: Electrode
Automatic stop for low oil level
Life-saving differential switch
Protections for power outputs
1 three-hase outlet CEE 400V - 16A
1 singlephase outlet CEE 230V - 16A
Voltmeter
Lwa 98 (73 dB at 7 mt)
Current adjustment: electromechanical
Intermittance at 35%: 225A - 29V
Intermittance at 40%: 225A - 22V
Intermittance at 60%: 170A - 27V
Electronic regulation (DC mode): 40A - 225A
Trigger voltage: 90V
Maximum electrode diameter: 5 mm
Ac 50 Hz AC alternator
Type: asynchronous, self-excited and self-protected
Threephase output (emergency): 5kVA - 400V
Threephase output (continuous): 4.5kVA - 400V
Singlephase output (maximum): 4kVA - 230V
Factor cos ? 0.8
Petrol engine 3000 rpm
Honda GX390 - 1 cil. - STAGE V - 390 cm3
Maximum power: 11,5 hp (8,7 kWm)
Start: manual
Cooling: air
Fuel tank capacity: 6,1 lt
Fuel consumption at 75% load: 3.3 lt/h
Isolation class: H
Ambient temperature: 40 °C (*)
Reference altitude: 1000 m (*)
Protection class: IP 23
Dimensions (L x W x H): 720 x 480 x 515 mm
Dry weight: 95 kg

In addition to the MOTOSALDATRICE GENSET MPM 5-200 I-EL-H on our site is available the whole range genset viewable by clicking here
Images MOTOSALDATRICE GENSET MPM 5-200 I-EL-H 5KVA and technical data are not binding.

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
