MOSA MAGIC WELD150 MOTOR WELDER 150A MOTOR HONDA GX200 STAGE V

Name: MOSA MAGIC WELD150 MOTOR WELDER 150A MOTOR HONDA GX200 STAGE V
Brand: MOSA
SKU: C0CN5050
Price: 1573.8 EUR
Availability: InStock

Reference C0CN5050

Welding current: 150A / 20V ÷ 130A / 25.2V
Adjusting scope: continuous 20A / 20.8V to 150A / 20V
Duty: 130A / 25.2V @ 60% ÷ 100A / 24V @ 100%
Trigger voltage (no load): 67 VDC
Welding Type: Coated Electrode Welding (SMAW)
Engine Model: Honda GX 200
Fuel: Gasoline
Starter: Manual Stappo
Engine RPM: 4000 rpm
Cylinders / Displacement: 1 /196 cm³
Emissions Standards: StageV
Tank capacity: 3.1 l
Consumption (60% welding): 1.25 l/h
Autonomy (60% welding): 2.5 h
Acoustic pressure : 99 dB(A) (74 dB(A) @ 7m)
Width: 434 mm
Length: 490 mm
Height: 373 mm
Dry weight: 34 kg

List price

3,050.00 € tax incl.

2,500.00 € tax excl.

Discounted Price

1,573.80 € tax incl.

1,290.00 € tax excl.

Shipping from 36.60 € to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference C0CN5050

Data sheet

Fuel: Gasoline
Frequency (Hz): 50
Engine: Honda GX200
Emissions Regulations: Stage 5
Engine rpm (rpm): 4000
Starting system: Manual recoil
Engine capacity (cm³): 196
Number cylinders: 1
Cooling: Air
Regulation current (A): 20A / 20.8V - 150A / 20V
Welding current (A): 130A / 25,2V @ 60% ÷ 100A / 24V @ 100%
Open circuit voltage (V): 67
Type of welding current: DC
Type of welding: Coated Electrode Welding (SMAW)
Fuel tank capacity (L): 3.1
Consumption (L/h): 1.25 at 60% of load
Running time (h): 2,5 at 60% of load
Acoustic power: 99 dB(A)
Acoustic pressure: 74 dB(A) at 7 m
Length (mm): 434
Width (mm): 490
Height (mm): 373
Dry weight (Kg): 34
Silenced: No
Super silenced: No
Engine manufacturer: Honda

Specific References

Condition New

MOSA MAGIC WELD150 MOTOR WELDER 150A HONDA GX200 STAGEV ENGINE

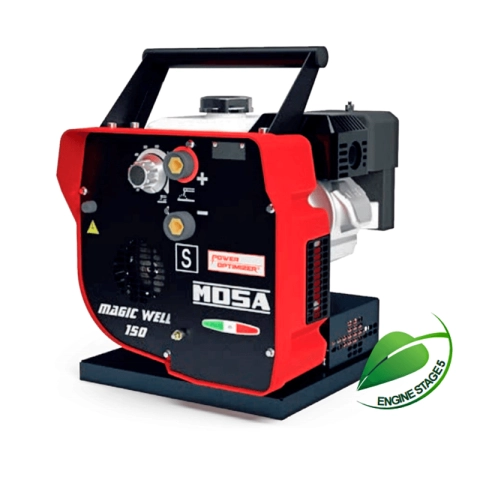

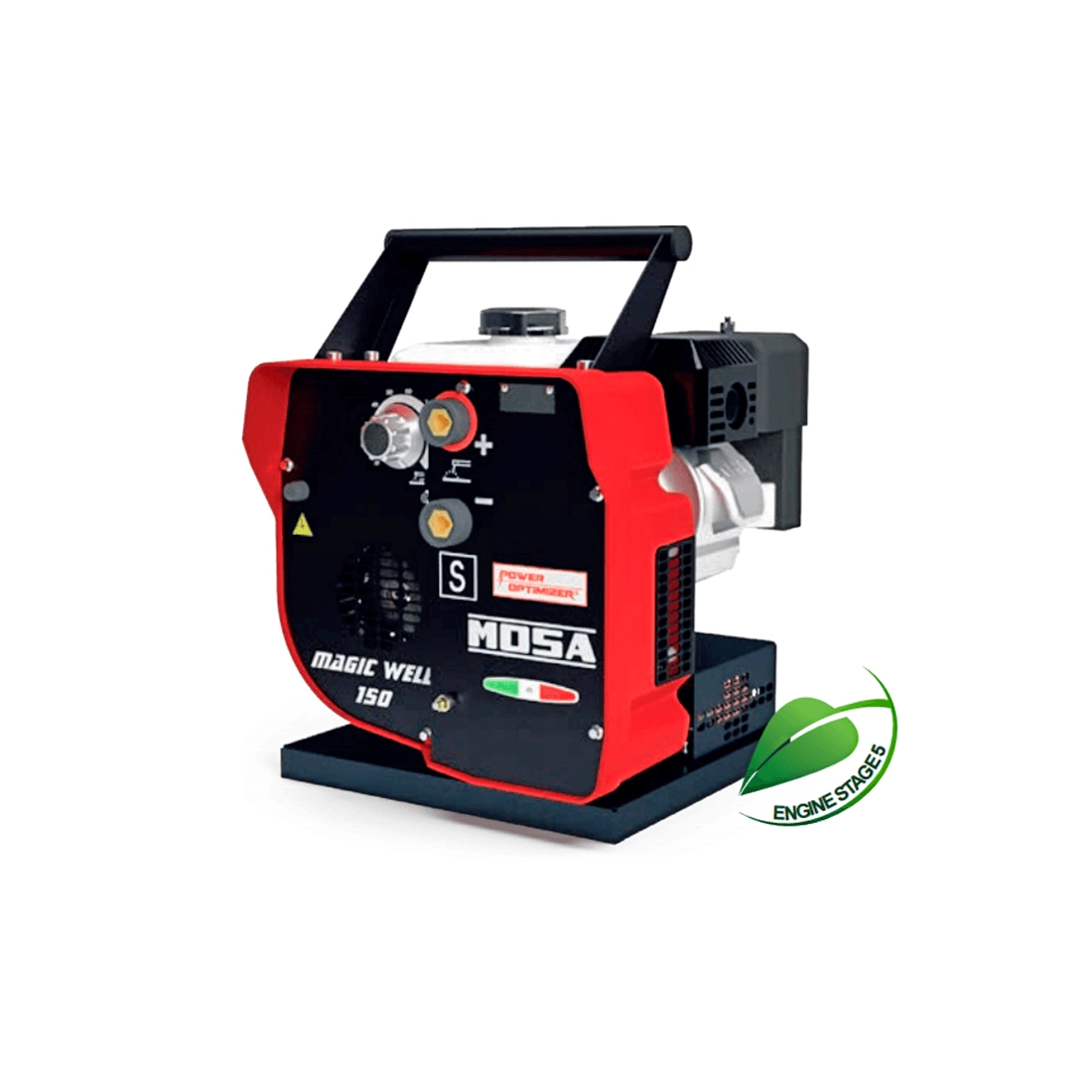

Mosa Magic Weld150 is a power welder equipped with a HONDA GX200 StageV petrol engine. Coated electrode welding is arc welding with protected metal.

The Mosa Magic Weld150 is a highly versatile power welding machine that offers auxiliary power generation. Despite its small size, thanks to the permanent magnet alternator, the machine still offers good power. Mosa Magic Weld150 It is equipped with a powerful 196 cc Honda GX 200 engine, which can deliver a maximum power of 5.8 HP. The tank has a maximum capacity of 3.1 litres. This makes the Mosa Magic Weld150 perfect for use as a welder when an electrical connection is not available.

This DC electrode welder is simple to use and can be easily transported thanks to the convenient top handle. In addition, the auxiliary current is micro-interrupted to protect the connected tools. The Mosa Magic Weld150 is the ideal choice for those looking for a powerful, reliable and easy-to-use electrode welder.

STAGEV EMISSION REGULATIONS Mosa Magic Weld150

Mosa Magic Weld150 is equipped with STAGEV "mobile" motorisation, as required by European Regulation 2016/1628. These new engines make it possible to exponentially reduce particulate and nitrogen oxide emissions from the generator into the environment, and ensure a reduction in environmental impact

by 200% compared to standard engines.

TECHNICAL SPECIFICATIONS Mosa Magic Weld150:

Are you looking for a welding machine with different technical characteristics? Here you can find the full range of MOSA or other brands specializing in the field.

Images and technical data are not binding.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
