TELWIN MOTOINVERTER 264DCE

Reference 815980

OUT OF PRODUCTION

Phase Type: Single-Phase
Power: 8.1 KW
Mechanical Power: 11 Hp
Frequency: 50 Hz
Voltage: 230 V
Welding Current Type: DC
Welding Type: MMA / TIG
No-load Voltage: 113 V
Current Adjustment: 5-230 A
Maximum Current: 200 A
Electrode Diameter: 1. 6 - 5 mm
Fuel: Diesel
Engine: Lombardini 15LD440
Boosting: Electric
Length: 1050 mm
Width: 580 mm
Height: 720 mm
Weight: 107 Kg

Download Scheda tecnica MOTOINVERTER 264D Download Technical data MOTOINVERTER 264D Download Ficha técnica MOTOINVERTER 264D Download Fiche technique MOTOINVERTER 264 Download Manual MOTOINVERTER 264D

Product Details
Description

Phase: Single phase
Frequency (Hz): 50
Voltage (V): 230
Engine: Lombardini 15LD440
Engine rpm (rpm): 3500
Starting system: Electric
Engine capacity (cm³): 442
Cooling: Air
Power (KW): 8.1
Protection degree: IP23
No-load voltage (V): 113
Regulation current (A): 5 - 230
Diameter electrodes (mm): 1.6 - 5
Type of welding current: DC
Type of welding: MMA / MIG
Current max (A): 200
Fuel tank capacity (L): 5
Acoustic power: 98 dB(A)
Length (mm): 1050
Width (mm): 580
Height (mm): 720
Voltage regulator: Inverter
Weight (Kg): 107

EAN13: 8004897883250

Brand

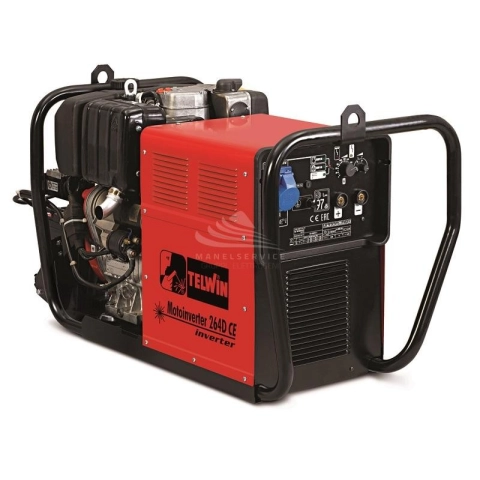

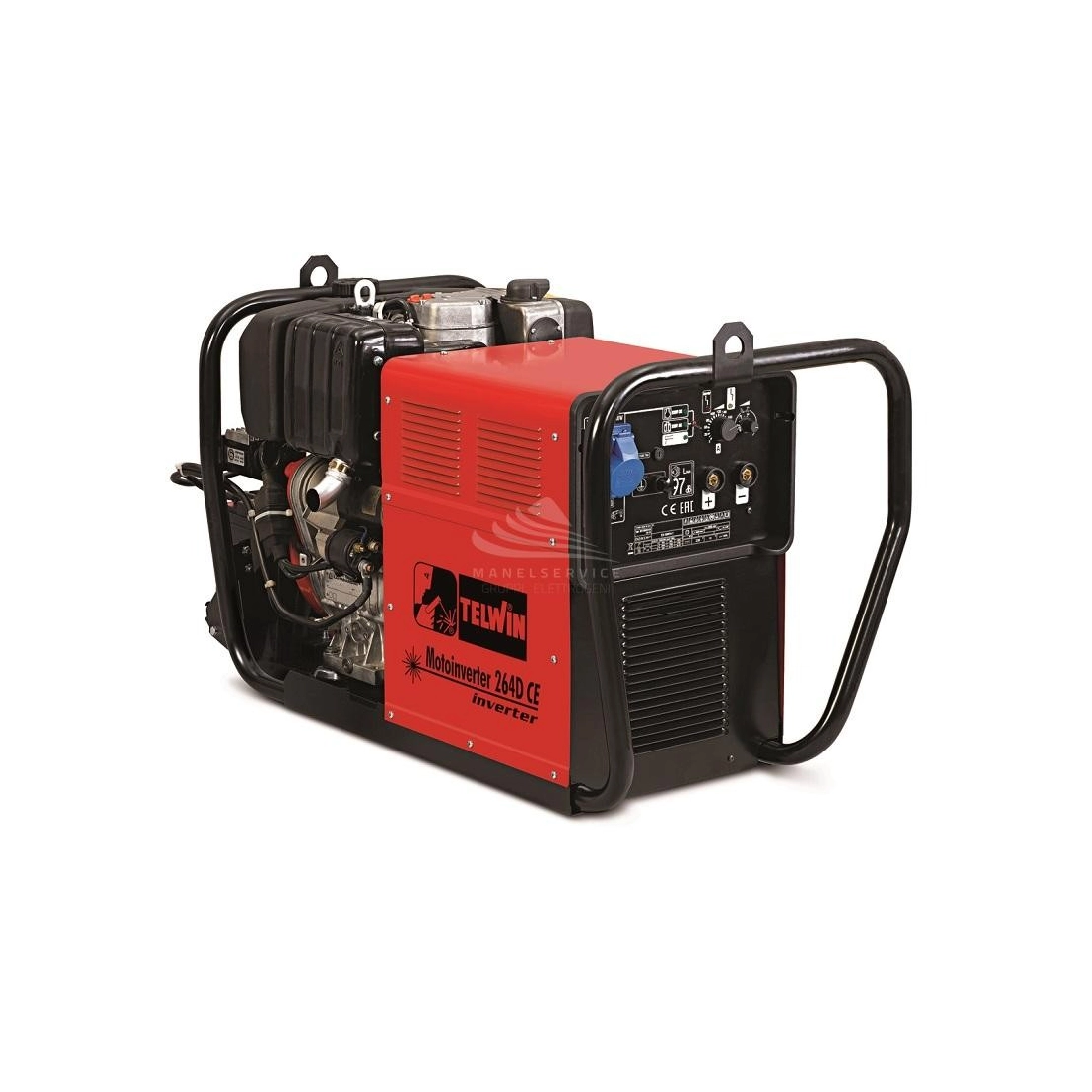

TELWIN MOTOINVERTER 264DCE MOTORWELDING 8,1KW

TELWIN MOTOINVERTER 264DCE is a motorwelder equipped with a Lombardini 15LD440 engine powered by gasoline, provides a three-phase power of 8.1KW.

TELWIN MOTOINVERTER 264DCE is a petrol driven welder with inverter technology with high frequency permanent magnet alternator for MMA and TIG-DC electrode welding with smear ignition.

TELWIN MOTOINVERTER 264DCE with inverter technology and high-frequency permanent magnet alternator for MMA and TIG-DC electrode welding with spark ignition.

TELWIN MOTOINVERTER 264DCE has flexibility of use with a wide variety of electrodes: rutile, basic, cellulosic, stainless, cast iron, etc. It can also be used as a direct current (DC) generator to power power power tools such as drills, grinders, etc.
Features:
- Automatic block for lack of oil
- Motor overspeed protection
- Continuous adjustment of welding current
- High stability of the current to the variations of the engine revolutions
- Hot start and anti-stick devices
- Arc force adjustment
- Welder-generator selector
- Thermostatic protection.

TECHNICAL FEATURES TELWIN MOTOINVERTER 264DCE

Are you looking for a welding machine with different technical characteristics? Here you can find the whole range of TELWIN or other specialized brands.

Images and technical data are not binding.

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
