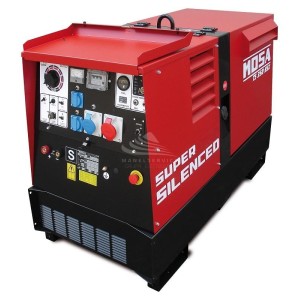

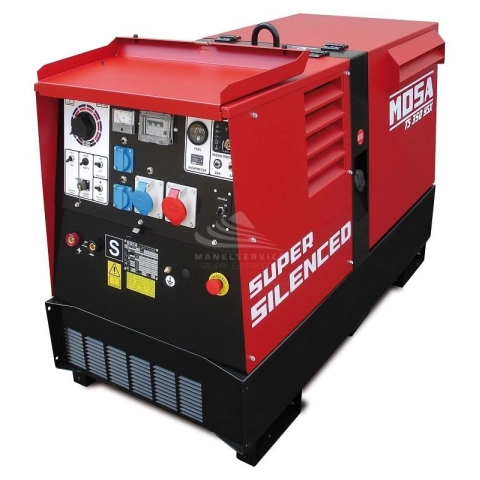

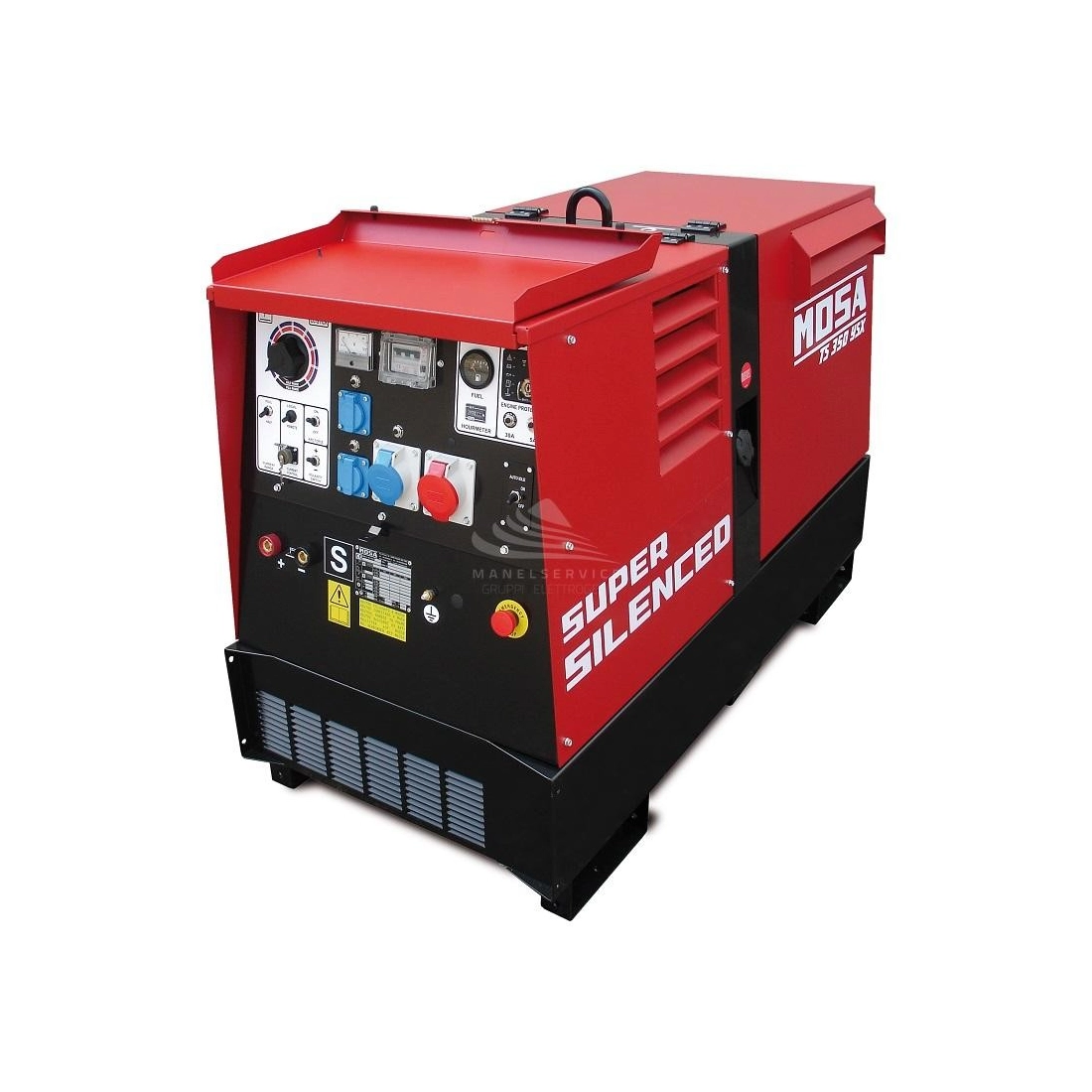

MOSA TS 350 YSX-BC MMA TIG Supersilenced Arc Welder

C0UQ0000PZ
      MOSA TS 350 YSX-BC MMA TIG Supersilenced Arc Welder
      MOSA TS 350 YSX-BC MMA TIG Supersilenced Arc Welder

      Fuel: Diesel
      Phase Type: Single Phase / Three Phase
      Voltage: 230 V / 400 V
      Maximum power Single-phase 230 V (kVA): 7
      Maximum power three-phase 400 V (kVA): 12
      Welding current (A): 350 A at 35% - 320 A at 60% - 270 A at 100%.
      Type of welding current: DC
      Welding type: MMA STICK - TIG
      Supported electrodes: all maximum diameter 6 mm
      Silenced: Silenced 70 dB(A) @ 7m
      LENGTH (mm): 1610
      WIDTH (mm): 720
      HEIGHT (mm): 1110
      Dry weight (Kg): 530
      Electric Start

      List price
      24,997.80 € tax incl.
      20,490.00 € tax excl.
      Discounted Price
      12,875.62 € tax incl.
      10,553.78 € tax excl.
      Shipping from 195.20 € to Italy buy it today.
      Calculate Shipping Cost
      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      MOSA
      C0UQ0000PZ

      Data sheet

      Phase
      Single phase / Three phase
      Maximum power single phase (KW)
      5.6
      Maximum power single phase (KVA)
      7
      Maximum power three phase (KW)
      9.6
      Maximum power three phase (KVA)
      12
      Fuel
      Diesel
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Sockets configuration
      1x400V 32A 3P+N+T CEE + 1x230V 32A 2P+T CEE + 2x230V 16A 2P+T SCHUKO
      Engine
      Yanmar 3TNV76, 4 stroke
      Emissions Regulations
      Stationary Use
      Engine rpm (rpm)
      3000
      Starting system
      Electric
      Engine capacity (cm³)
      1116
      Number cylinders
      3
      Cooling
      Water
      Inyección
      Indirect
      Alternator
      Asynchronous three-phase, self-excited, self-regulated, brushless
      Regulation current (A)
      20 - 350
      Welding current (A)
      350 at 35% - 320 at 60% - 270 at 100%
      Open circuit voltage (V)
      65
      Maximum diameter electrodes (mm)
      6
      Type of welding current
      DC
      Type of welding
      MMA / MIG
      Fuel tank capacity (L)
      45
      Consumption (L/h)
      3.4
      Running time (h)
      13
      Acoustic power
      92 dB(A)
      Acoustic pressure
      67 dB(A) at 7 m
      Length (mm)
      1610
      Width (mm)
      720
      Height (mm)
      1110
      Dry weight (Kg)
      530
      Silenced
      Yes
      Super silenced
      Yes
      Engine manufacturer
      Yanmar

      Specific References

      New

      MOSA TS350 YSX-BC MMA TIG MotorWelding

      MOSA TS350 YSX-BC is a single/threephase motorwelding equipped with a Yanmar 3 TNV 76 diesel engine capable of delivering a maximum power of 12KVA.

      MOSA TS350 YSX-BC is equipped with water-cooled and an asynchronous alternator, and can be used simultaneously as a welder and as a three-phase and single-phase generator set.
      The welding current is continuous and can weld any type of electrode (basic, rutile, cellulosic) up to 6 mm in diameter. The BC (base current) characteristic is particularly suitable for downward welding of pipes.

      The MOSA TS350 YSX-BC motorwelder are suitable for a wide range of uses, including work on metal structures and pipes.

      The MOSA TS350 YSX-BC motorwelder is equipped with a sturdy frame, which not only protects the machine from impact, but also reduces noise emission making it super quiet, with a sound emission of 70 dB perceived at 7 m.

      The small size and moderate weight of the threephase 12 KW MOSA TS350 YSX-BC motorwelder make it one of the most popular professional products of the MOSA line.

      TECHNICAL CHARACTERISTICS MOSA TS350 YSX-BC

      Fuel: Diesel
      Phase type: Singlephase / Threephase
      Voltage: 230 V / 400 V
      Maximum singlephase 230 V power (kVA): 7
      Maximum threephase 400 V power (kVA): 12
      Welding current (A): 350 A at 35% - 320 A at 60% - 270 A at 100%
      Welding current type: DC
      Welding Type: MMA STICK - TIG
      Electrodes Supported: all maximum diameter 6 mm
      Silenced: Silenced 70 dB(A) @ 7m
      LENGTH (mm): 1610
      WIDTH (mm): 720
      HEIGHT (mm): 1110
      Dry Weight (Kg): 530
      Electrical Start

      Are you looking for a motorwelder with different characteristics? Here you can find the full range of MOSA or other specialized brands

      Images and specifications are not binding and may be subject to revision by the supplier.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
      MOSA CTL 400
          Discounted price
          tax incl.
          1,010.00 € 634.67 €
          520.22 € tax excl.
          GASOLINE TANK 20 LT | Manel Service
              ACCESSORIES / SPARE PARTS
              Metal approved 20 lt gasoline jerry can
              TANICA BENZINA 20 LT
              Discounted price
              tax incl.
              78.00 € 56.12 €
              46.00 € tax excl.
              KIT MESSA A TERRA 10 METRI
                  ACCESSORIES / SPARE PARTS
                  GROUNDING KIT 10 METRES
                  KIT MESSA A TERRA 10 MT
                  Discounted price
                  tax incl.
                  109.80 €
                  90.00 € tax excl.
                  KIT MESSA A TERRA 25 METRI
                      ACCESSORIES / SPARE PARTS
                      GROUNDING KIT 25 METRES
                      KIT MESSA A TERRA 25 MT
                      Discounted price
                      tax incl.
                      125.66 €
                      103.00 € tax excl.
                      KIT MESSA A TERRA 35 METRI
                          ACCESSORIES / SPARE PARTS
                          GROUNDING KIT 35 METRES
                          KIT MESSA A TERRA 35 MT
                          Discounted price
                          tax incl.
                          130.54 €
                          107.00 € tax excl.
                          MOSA CARRELLO TRAINO VELOCE CTV 1/O
                              FOR GENERATING SETS
                              M873819613
                              Discounted price
                              tax incl.
                              4,540.00 € 2,852.87 €
                              2,338.42 € tax excl.

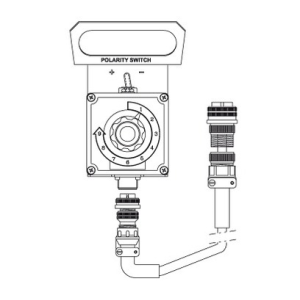

                              MOSA COMANDO A DISTANZA TCM 35
