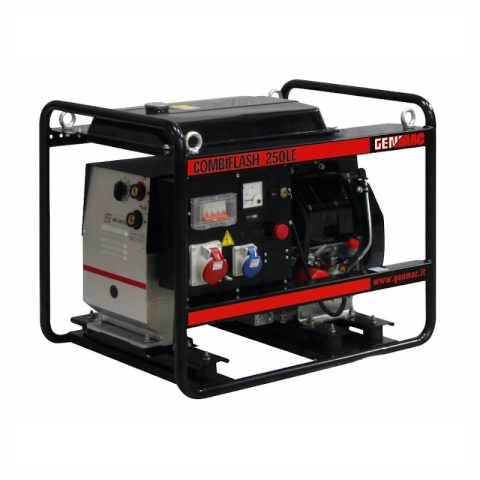

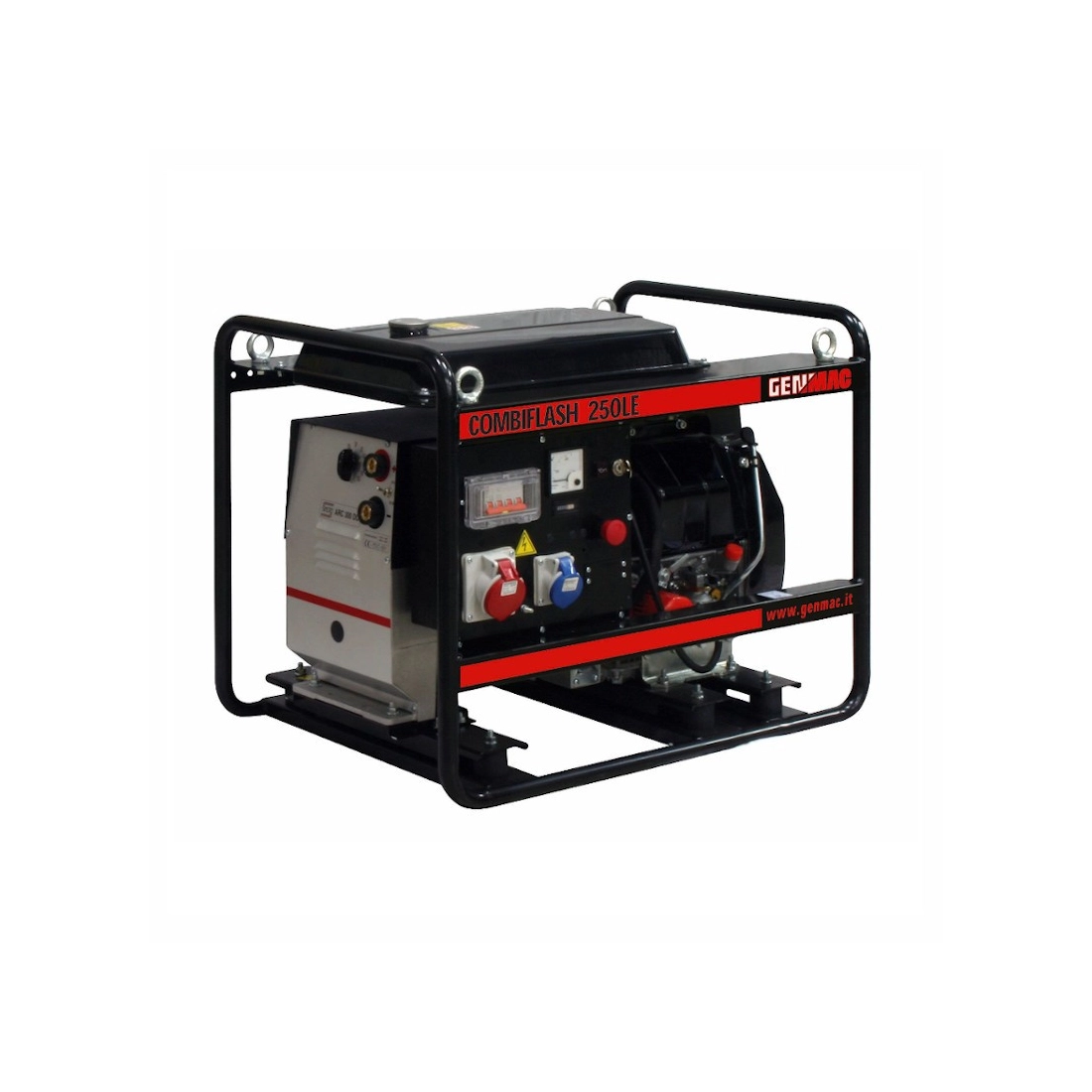

GENMAC Combiflash G221HO-M5 THREE-PHASE MOTOR WELDER 7,2KVA
Genmac Combiflash G221HO-M5 is a motorwelder is equipped with a Honda GX390 Stage V gasoline engine capable of delivering a power of 7,2KVA with capacitor voltage regulator (AVR optional).
The Genmac Combiflash G221HO-M5 is ideal for having electrical power always at hand in any place and environment (construction sites, markets, beaches, camping or for first aid in uncomfortable areas), combined with a powerful electrode welder.
The small size and moderate weight of the threephase 7,2KVA Genmac Combiflash G221HO-M5 motorwelder make it one of the most popular professional products in the Genmac line.
Equipped with a Honda GX390 engine capable of delivering a output of 7.2KVA with gasoline supply and an "air" cooling system by means of a fan, it guarantees maximum efficiency and durability even for long and continuous work as both a motorwelder and a welding machine. The motorwelder generates a maximum output of 7,2KVA in just 3000 rpm.
Start-up of the 7.2KVA Genmac Combiflash G221HO-M5 three-phase motorwelder is via an Manual start module.
TECHNICAL CHARACTERISTICS OF GENMAC Combiflash G221HO-M5 7,2KVA
Power Supply: Gasoline
Starting: Manual
Phase Type: SinglePhase / ThreePhase
Maximum SinglePhase Power: 2.4KVA / 1.9KW
Maximum ThreePhase Power: 7.2KVA / 5. 7KW
Welding Current: 40 - 200 A
Maximum Welding Current: 220 A ac
Service (A): 200 - 35% / 170 - 60%
Welding Type: Electrode
Voltage: 230 / 400 V
Frequency: 50 Hz
Motor: Honda GX 390
Emission Standard: Stage V

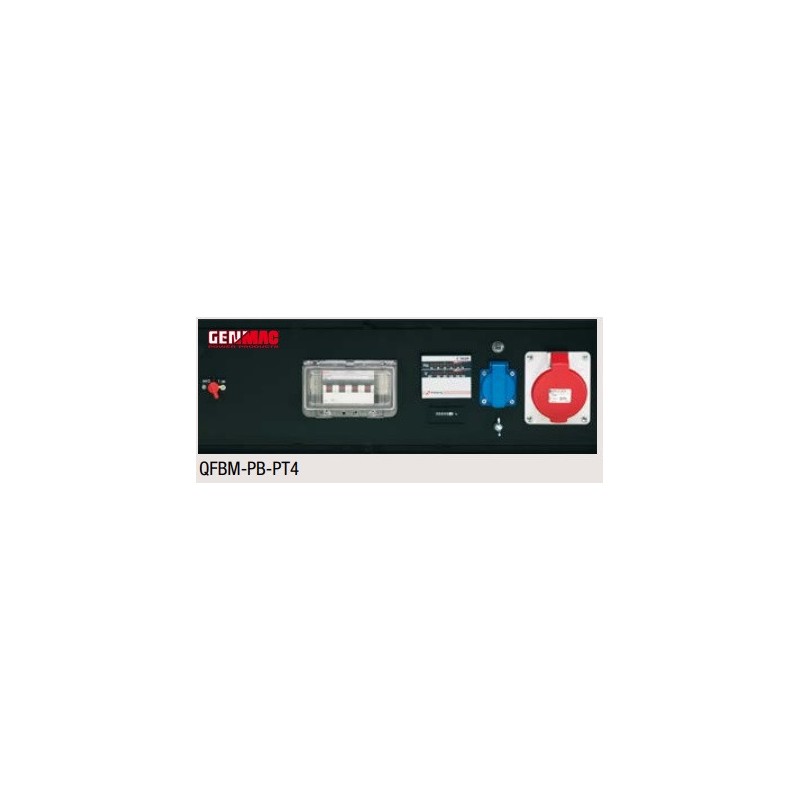

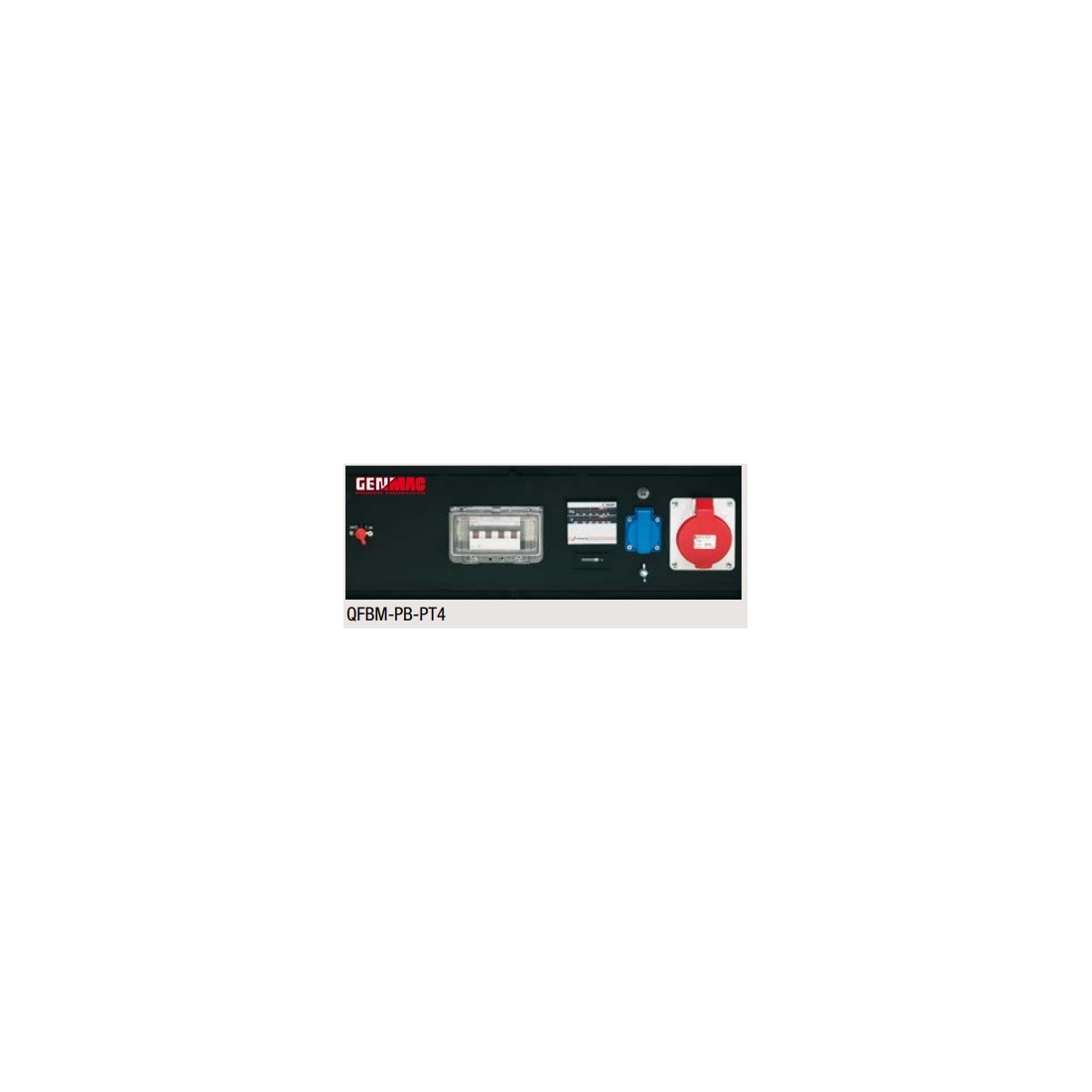

Socket panel: 1 x Schuko 16A 230V / 1 x 32A 400 V
3000 rpm
Tank: 19 Lt.
Autonomy @ 75%: 9 h fixed rpm
Length (mm): 810
Width (mm): 550
Height (mm): 680
Dry weight (Kg): 99
If you are looking for another product then you can consult other motorwelder in our catalog.
Images and technical data are not binding.
