GENSET MPM 9/310 SSY

Name: GENSET MPM 9/310 SSY
Brand: GENSET
SKU: MPM 9/310 SS-Y
Price: 9635.56 EUR
Availability: InStock

Reference MPM 9/310 SS-Y

Maximum three-phase power: 8 KVA
Maximum three-phase power: 6.4 KW
Single-phase maximum power: 7 KVA
Single-phase maximum power: 5.6 KW
Fuel: Diesel
Voltage: 230/400 V
Frequency: 50 Hz
Engine: Yanmar 3TNM72
Starting: Electric
Consumption: 3.3 Lt/h
Length: 1530 mm
Width: 683 mm
Height: 1142 mm
Weight: 482 Kg
Super silenced

List price

16,836.00 € tax incl.

13,800.00 € tax excl.

Discounted Price

9,635.56 € tax incl.

7,898.00 € tax excl.

Shipping from 164.70 € to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference MPM 9/310 SS-Y

Data sheet

Phase: Single phase / Three phase
Maximum power single phase (KW): 5.6
Maximum power single phase (KVA): 7
Maximum power three phase (KW): 6.4
Maximum power three phase (KVA): 8
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 1 x 400V 16A CEE - 1 x 230V 32A CEE
Engine: Yanmar 3TNM72
Engine rpm (rpm): 3000
Starting system: Electric
Engine capacity (cm³): 784
Number cylinders: 3
Cooling: Water
Alternator: Asynchronous
Protection degree: IP23
Motor insulation class: H
Regulation current (A): 30 - 300
Open circuit voltage (V): 70
Maximum diameter electrodes (mm): 6
Intermittence: 300 A al 35% / 270 A al 60%
Fuel tank capacity (L): 30
Consumption (L/h): 3.3
Running time (h): 9.09
Acoustic power: 92 dB(A)
Acoustic pressure: 67 dB(A) at 7 m
Length (mm): 1530
Width (mm): 683
Height (mm): 1142
Dry weight (Kg): 482
Silenced: Yes
Super silenced: Yes
Product type: Engine driven welder
Voltage regulator: No
Engine manufacturer: Yanmar

Specific References

Condition New

GENSET MPM 9/310SSY

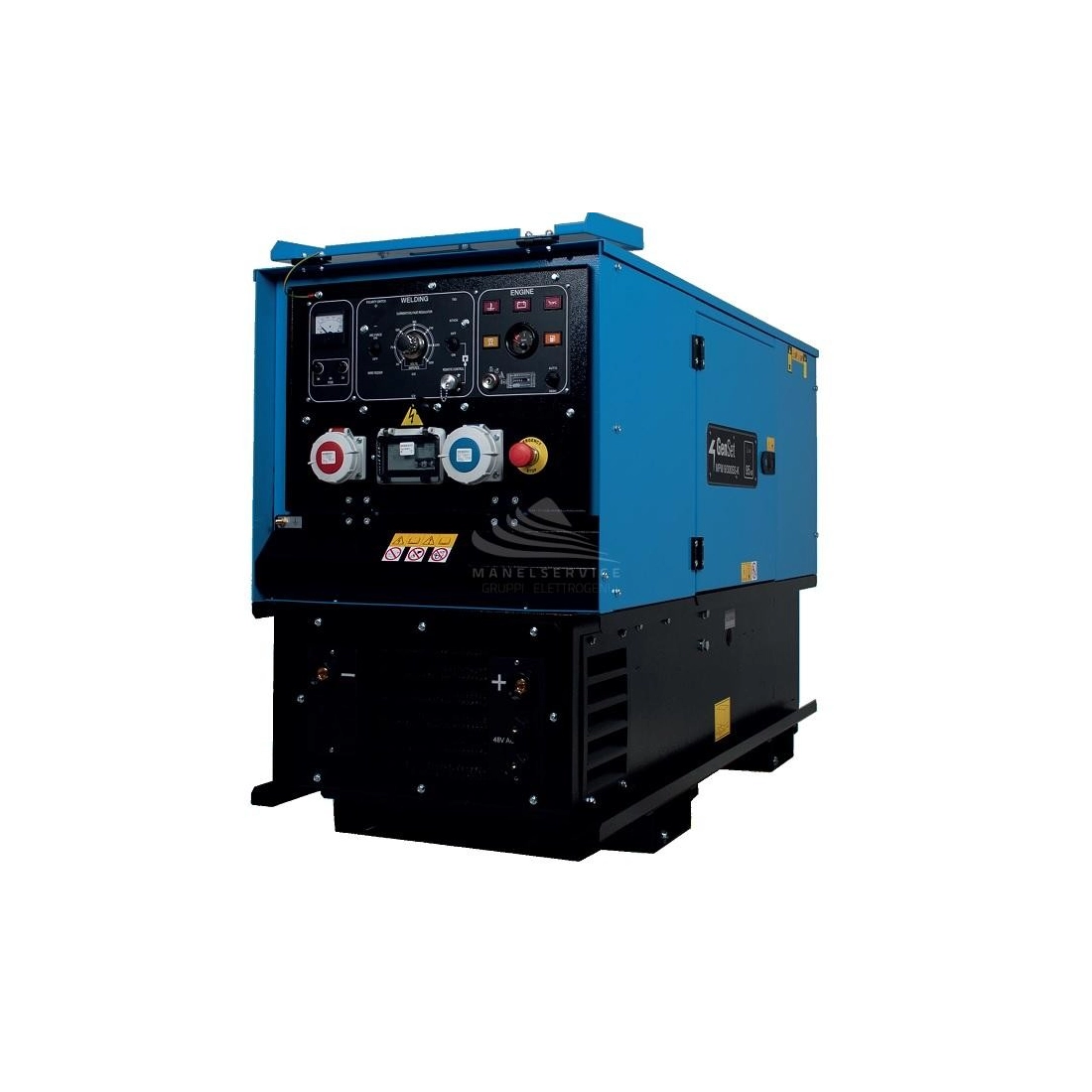

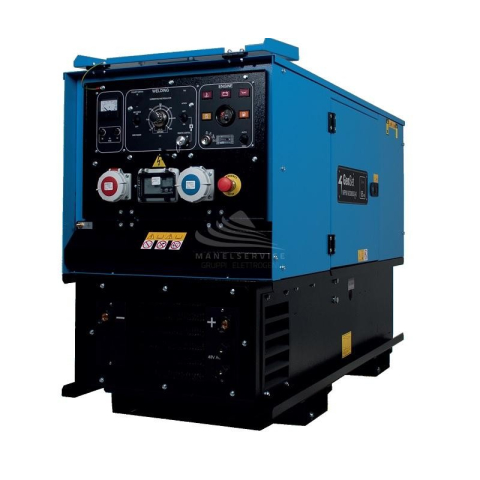

The GENSET MPM 9/310SSY is a singlephase/threephase 8 KVA motorwelder with electric key start and 12V battery.
This motorwelder consists of the Yanmar 3TNM72 engine. The engine of the GENSET MPM 9/310SSY motorwelder is diesel powered and has a speed of 3000 rpm.
The GENSET MPM 9/310SSY is a professional motorwelder suitable for various uses and its hood makes this motorwelder one of the quietest in its class. Thanks to the convenient central lifting hook, the GENSET MPM 9/310SSY is easy to transport.
The GENSET MPM 9/310SSY features a fuel tank with a User Friendly opening fuel gauge that makes the cap safe and convenient to open and close. In addition, this motorwelder also has a low fuel consumption: only 3.3 Lt/h at 75% load.
This product from GENSET is of excellent quality and thanks to the hood it is also supersilenced.

Main features of the GENSET MPM 9/310SSY motorwelder:
Maximum threephase output: 8 KVA
Maximum threephase output: 6. 4 KW
Maximum singlephase power: 7 KVA
Maximum singlephase power: 5.6 KW
Fuel: Diesel
Voltage: 230/400 V
Frequency: 50 Hz
Motor: Kubota D722
Start: Electric
Consumption: 3. 3 Lt/h
Length: 1360 mm
Width: 530 mm
Height: 870 mm
Weight: 345 Kg
Super silenced

The GENSET MPM 9/310SSY motor welder has electronic current regulation and intermittence at 35% of 300A - 32V and 60% of 270A - 31V.
The electronic regulation (DC mode) of GENSET MPM 9/310SSY is 30A - 300A and the trigger voltage is 70V.
The maximum diameter with which to weld is 6 mm.

If you are looking for other products such as the GENSET MPM 9/310SSY then you can view our extensive catalog dedicated to motor welding machines.

Images and technical data are not binding.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
