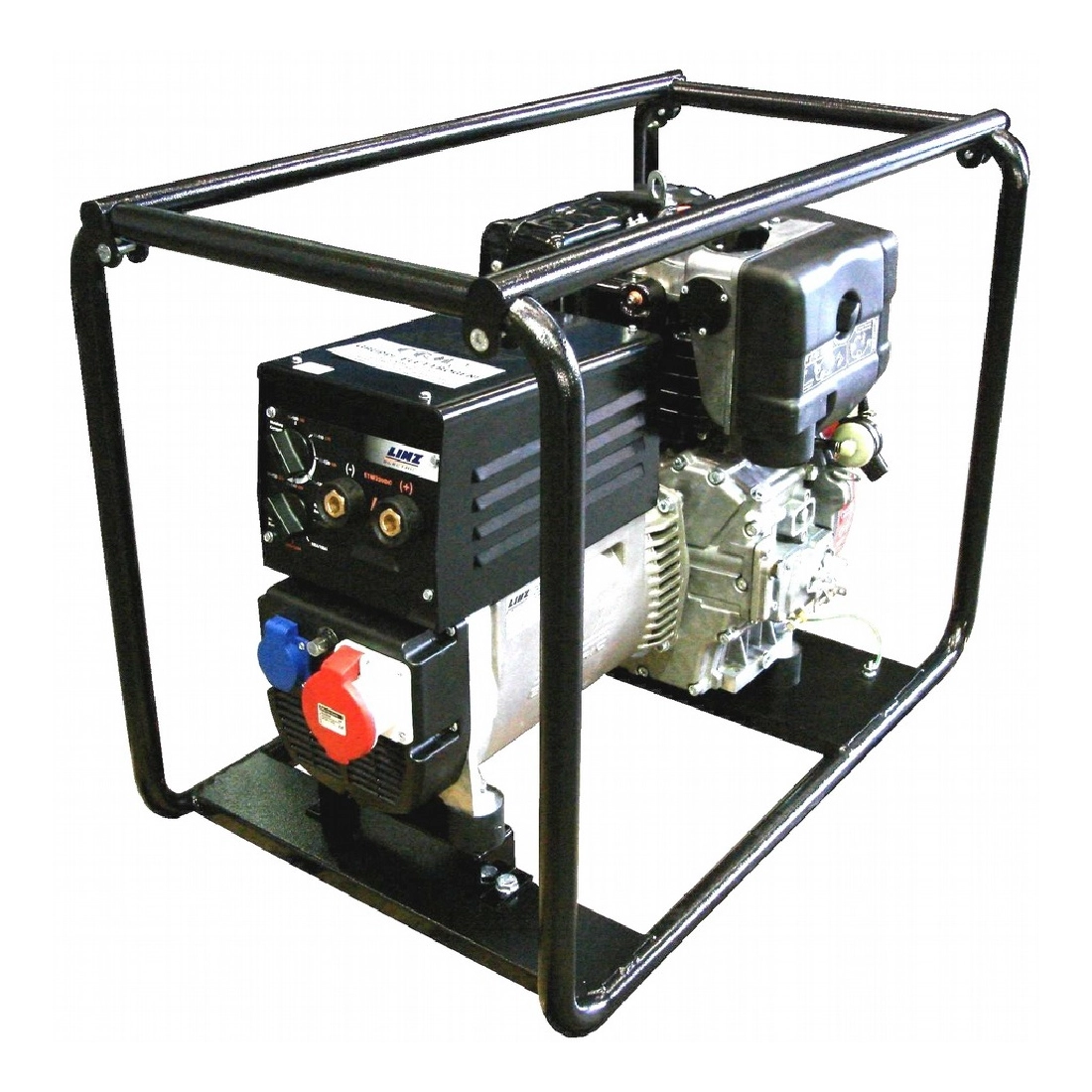

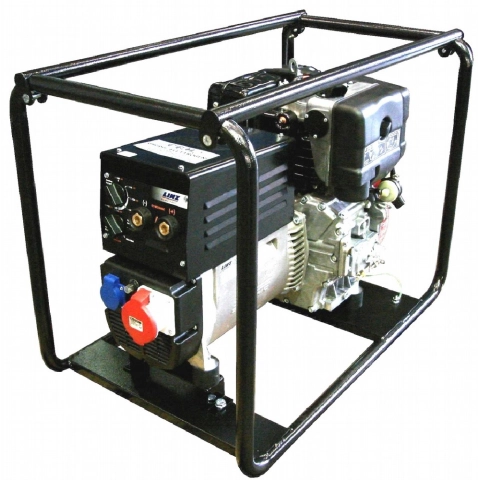

CGM 220SDET - MOTOSALDATRICE A STRAPPO

OUT OF STOCK

Phase Type : Three-phase
Max three-phase power : 5.2 KW / 6.5 KVA
Max single-phase power : 2.8 KW / 3.5 KVA
Motor : Lombardini 25LD 330/2
Fuel : Diesel
Cylinders : 2
Displacement : 654 cm3
Max Motor Power : 11. 7 HP
Max Welding Current : 220-170 A at 35%/60%
Tank : 4 Lt
Sockets : 1 CEE 3-pole 230V socket, 1 CEE 5-pole 400V socket
Starting : Electric with battery
Acoustic Power : 77 dB(A) at 7 m
Voltage : 230 V / 400 V
Frequency : 50 Hz
Power Factor : 0. 8
Welding current : 40-220 A
Cooling : Air
Number of turns : 3000 rpm
Autonomy : 3.3 h
Consumption at 3/4 load : 2 L/h
Oil capacity : 1. 5 Lt
Alternator : SINCRO, with brushes
Number of Poles : 2
Number of Phases : 3
Welding voltage : 21.5 - 28.8 V
Power consumption : 11. 5 hp / 8.5 KW
Voltage regulation : Compound
Width : 860 mm
Length : 520 mm
Height : 650 mm
Weight : 180 Kg

Payment methods:

Product: CGM 220SDET - MOTOSALDATRICE A STRAPPO

Start of Rental

End of Rental

Where to collect / receive the Product

Do you need cables?

SÌNO

Additional Tank?

SÌNO

PERSONAL DATA

Name

Surname

Phone

Company

City

State

Postal Code

Country

VAT or CF

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Ask a question

Product: CGM 220SDET - MOTOSALDATRICE A STRAPPO

Full Name

Company

Phone

City

Country

Postal code

Message

reCAPTCHA

Offer on letterhead

Product: CGM 220SDET - MOTOSALDATRICE A STRAPPO

Name

Surname

Company

VAT

Phone

City

Country

Postal code

Shipping address

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference CGM 220SDET /

Data sheet

Phase: Three phase
Maximum power single phase (KW): 2.8
Maximum power single phase (KVA): 3.5
Maximum power three phase (KW): 5.2
Maximum power three phase (KVA): 6.5
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 1 x 230 V 3P CEE + 1 x 400 V 5P CEE
Engine: Lombardini 25LD330.2, 4 stroke
Engine rpm (rpm): 3000
Starting system: Electric
Engine capacity (cm³): 654
Number cylinders: 2
Oil capacity (L): 1.5
Cooling: Air
Alternator: With brushes
Poles: 2
Welding current (A): 220-170 A al 35%/60%
Welding voltage min/max (V): 21.5 / 28.8
Fuel tank capacity (L): 4
Consumption (L/h): 2 at 75% of the load
Running time (h): 3.3
Acoustic pressure: 77 dB(A) at 7 m
Length (mm): 520
Width (mm): 860
Height (mm): 650
Dry weight (Kg): 180
Silenced: No
Super silenced: No

Specific References

Condition New

CGM 220SDET MOTORWELDER

CGM 220SDET is a light and versatile Threephase motorwelder, equipped with a Lombardini 25LD 330/2 gasoline engine capable of delivering a maximum output of 6.5KVA.

The CGM 220SDET motorwelder is equipped with Lombardini 25LD 330/2 gasoline engines with recoil start. Mounted on a fixed base and operating at 3000 rpm, they are suitable for welding and Threephase 400V power supply.

TECHNICAL CHARACTERISTICS CGM 220SDET

Phase Type : Threephase
Max threephase output: 5.2 KW / 6.5 KVA
Max singlephase output: 2.8 KW / 3.5 KVA
Motor : Lombardini 25LD 330/2
Fuel : Diesel
Cylinders : 2
Displacement : 654 cm3
Max Motor Power : 11. 7 HP
Max Welding Current : 220-170 A at 35%/60%
Tank : 4 Lt
Sockets : 1 CEE 3-pole 230V socket, 1 CEE 5-pole 400V socket
Starting : Electric with battery
Acoustic Output : 77 dB(A) at 7 m
Voltage : 230 V / 400 V
Frequency : 50 Hz
Power Factor : 0. 8
Welding current : 40-220 A
Cooling : Air
Number of turns : 3000 rpm
Autonomy : 3.3 h
Consumption at 3/4 load : 2 L/h
Oil capacity : 1. 5 Lt
Alternator : SINCRO, with brushes
Number of Poles : 2
Number of Phases : 3
Welding voltage : 21.5 - 28.8 V
Output consumption : 11. 5 hp / 8.5 KW
Voltage regulation : Compound
Width : 860 mm
Length : 520 mm
Height : 650 mm
Weight : 180 Kg

Are you looking for a motorwelding machine with different technical characteristics? Here you can find the full range of CGM or other specialized brands

Images and technical data are not binding and may be subject to revision by the supplier.
