CGM 500SDETL - THREEPHASE MOTORWELDER

CGM 170SB - MOTOSALDATRICE A STRAPPO
search
  • CGM 170SB - MOTOSALDATRICE A STRAPPO
CGM
CGM 500SDETL /
New product

OUT OF STOCK

Phase type : Three phase
Maximum three-phase power: 12.8 KW / 16 KVA
Maximum single-phase power: 5.2 KW / 6.5 KVA
Engine: FPT F32 AM1A
Fuel: Diesel
Cylinders: 4
Displacement: 3200 cm3
Max Motor Power: 39 HP
Max welding current: 500-390 A at 35%/60%.
Fuel tank: 50 Lt
Sockets: 1 outlet CEE 3 poles 230V, 1 outlet CEE 5 poles 400V
Starting: Electric with battery
Acoustic power: 77 dB(A) at 7 m
Voltage: 230 V / 400 V
Frequency: 50 Hz
Power factor: 0.8
Welding current: 35-500 A
Cooling: Water
Number of turns : 1500 rpm
Autonomy: 8.3 h
Consumption at 3/4 load: 6 L/h
Oil capacity: 8.8 Lt
Alternator : LINZ, Brushless
Number of Poles: 4
Number of Phases : 3
Welding Voltage: 20 - 40 V
Power consumption: 35.4 hp / 26 KW
Voltage regulation : AVR
Width: 1500 mm
Length: 900 mm
Height: 1500 mm
Weight: 700 Kg

Technical features
Phase
Three phase
Maximum power single phase (KW)
5.2
Maximum power single phase (KVA)
6.5
Maximum power three phase (KW)
12.8
Maximum power three phase (KVA)
16
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Sockets configuration
1 x 230 V 3P CEE + 1 x 400 V 5P CEE
Engine
FPT F32 AM1A
Engine rpm (rpm)
1500
Starting system
Electric
Engine capacity (cm³)
594
Number cylinders
4
Oil capacity (L)
8.5
Cooling
Water
Alternator
Linz, brushless
Poles
4
Welding current (A)
220-170 A al 35%/60%
Welding voltage min/max (V)
21 - 32
Fuel tank capacity (L)
50
Consumption (L/h)
6 at 75% of the load
Running time (h)
15.1
Acoustic pressure
77 dB(A) at 7 m
Length (mm)
900
Width (mm)
1500
Height (mm)
1500
Dry weight (Kg)
700
AVR
Yes
Silenced
No
Super silenced
No
Details

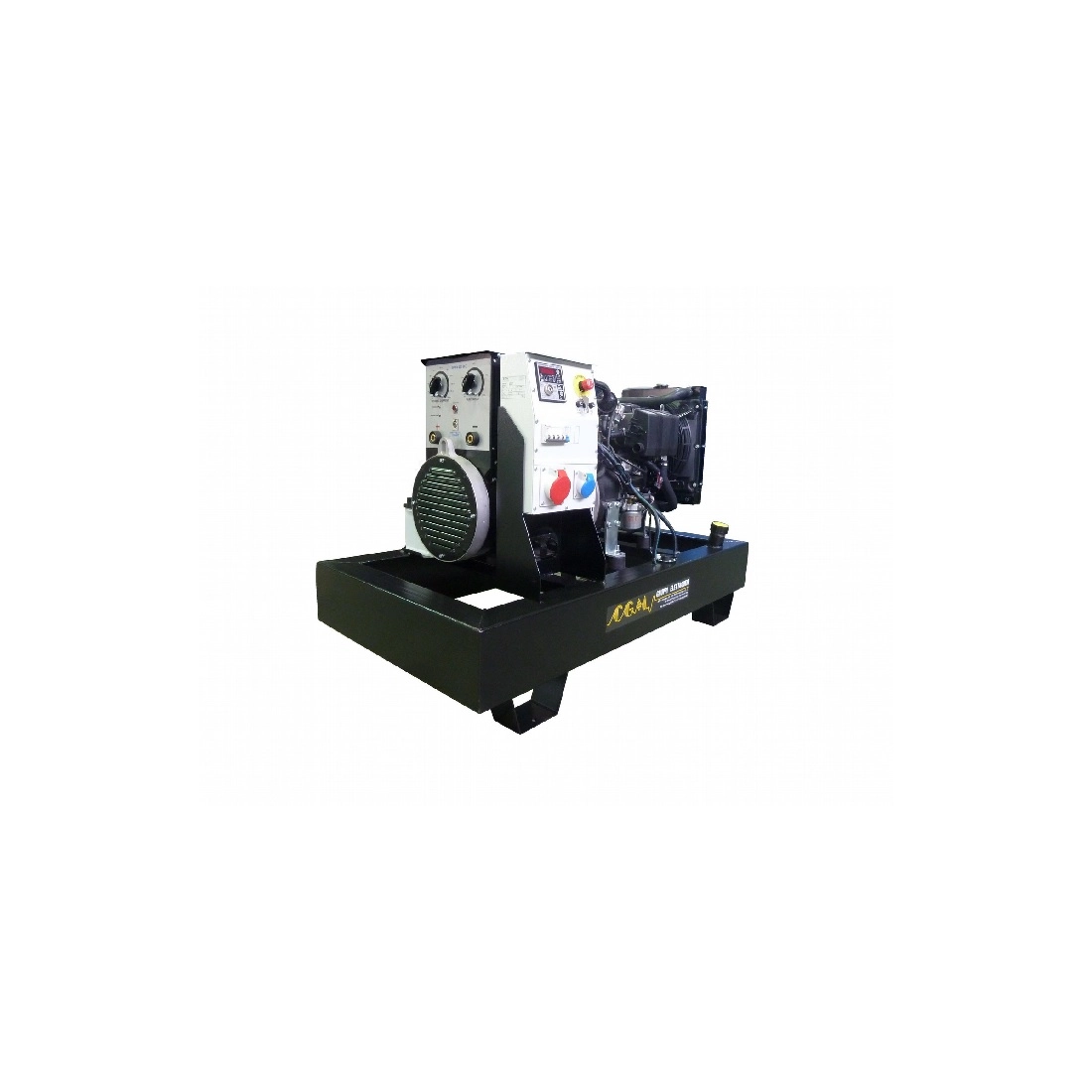

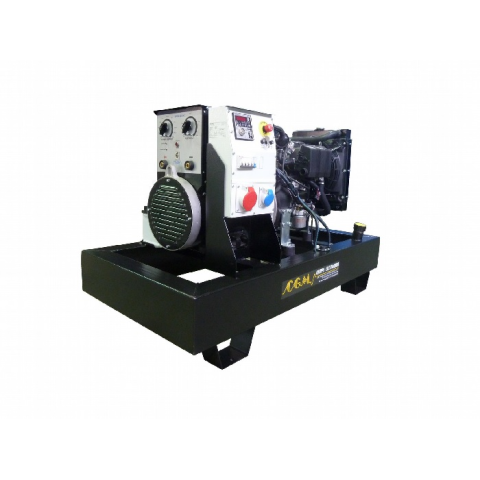

CGM 500SDETL THREEPHASE MOTORWELDING 16KVA

CGM 500SDETL is a single/threephase motorwelder equipped with an FPT F32 AM1A engine with Diesel power supply, able to deliver a power of 16KVA.

CGM 500SDETL is equipped with a practical electric starting system that allows a practical and fast use. The motorwelder is mounted on a fixed base and operates at 1500 rpm, suitable for welding on either 400V threephase or 230V singlephase.

CGM 500SDETL can operate simultaneously as a welder and as a three-phase and singlephase generator set. Suitable for a wide range of applications, including metal structure construction, pipeline construction and construction site use.

The CGM 500SDETL motorwelder features a rugged frame, which not only protects the machine from impact, but also reduces noise emission making it super quiet, with a sound emission of 77 dB perceived at 7 m

TECHNICAL FEATURES CGM 500SDETL

Phase type : Threephase
Maximum threephase output: 12.8 KW / 16 KVA
Maximum singlephase output: 5.2 KW / 6. 5 KVA
Engine: FPT F32 AM1A
Fuel: Diesel
Cylinders : 4
Displacement : 3200 cm3
Max Engine output: 39 HP
Max Welding Current : 500-390 A at 35%/60%
Tank : 50 Lt
Sockets : 1 CEE 3-pole 230V socket, 1 CEE 5-pole 400V socket
Power supply : Electric with battery
Acoustic Power : 77 dB(A) at 7 m
Voltage : 230 V / 400 V
Frequency : 50 Hz
Power factor : 0. 8
Welding current : 35-500 A
Cooling : Water
Number of turns : 1500 rpm
Autonomy : 8.3 h
Consumption at 3/4 load : 6 L/h
Oil capacity : 8. 8 Lt
Alternator : LINZ, Brushless
Number of Poles : 4
Number of Phases : 3
Welding voltage : 20 - 40 V
Power consumption : 35.4 hp / 26 KW
Voltage regulation : AVR
Width : 1500 mm
Length : 900 mm
Height : 1500 mm
Weight : 700 Kg

Are you looking for a motorwelder with different characteristics? Here you can find the entire range of CGM or other brands specializing in the field

Please note that the image is purely for demonstration purposes.
