TECNOGEN SH160E

Name: TECNOGEN SH160E
Brand: TECNOGEN
SKU: SH160E
Price: 1520 EUR
Availability: InStock

OUT OF STOCK

Soldering at 60%: 110
Maximum single-phase power: 3.8 KVA
Fuel: Gasoline
Voltage: 230V
Engine: Honda GX270
Boosting: Electric
Length: 920 mm
Width: 520 mm
Height: 660 mm
Weight: 83 Kg

List price

1,854.40 € tax incl.

1,520.00 € tax excl.

Discounted Price

1,854.40 € tax incl.

1,520.00 € tax excl.

Shipping Free to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Product: TECNOGEN SH160E

Start of Rental

End of Rental

Where to collect / receive the Product

Do you need cables?

SÌNO

Additional Tank?

SÌNO

PERSONAL DATA

Name

Surname

Phone

Company

City

State

Postal Code

Country

VAT or CF

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Ask a question

Product: TECNOGEN SH160E

Full Name

Company

Phone

City

Country

Postal code

Message

reCAPTCHA

Offer on letterhead

Product: TECNOGEN SH160E

Name

Surname

Company

VAT

Phone

City

Country

Postal code

Shipping address

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference SH160E

Data sheet

Phase: Single phase
Maximum power single phase (KVA): 3.8
Fuel: Gasoline
Frequency (Hz): 50
Voltage (V): 230
Engine: HONDA GX270
Engine rpm (rpm): 3000
Starting system: Elettrico
Engine capacity (cm³): 270
Number cylinders: 1
Cooling: Air
Welding current (A): 180 al 35% - 170 al 60%
Fuel tank capacity (L): 6
Consumption (L/h): 0,8 al 75% del carico
Running time (h): 4
Acoustic power: 95 dB(A)
Length (mm): 920
Width (mm): 520
Height (mm): 660
Dry weight (Kg): 83
Inverter: No
AVR: No
Compound: No
Silenced: Yes
Super silenced: No

Specific References

Condition New

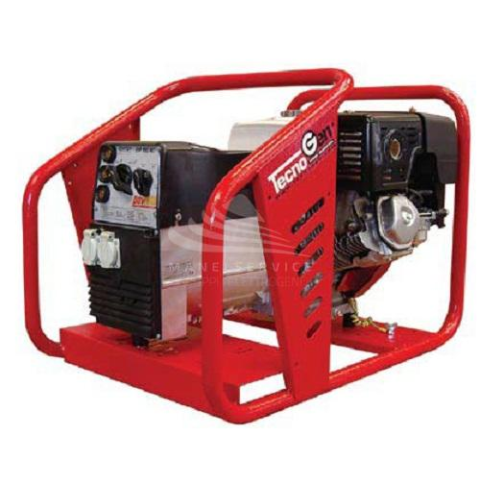

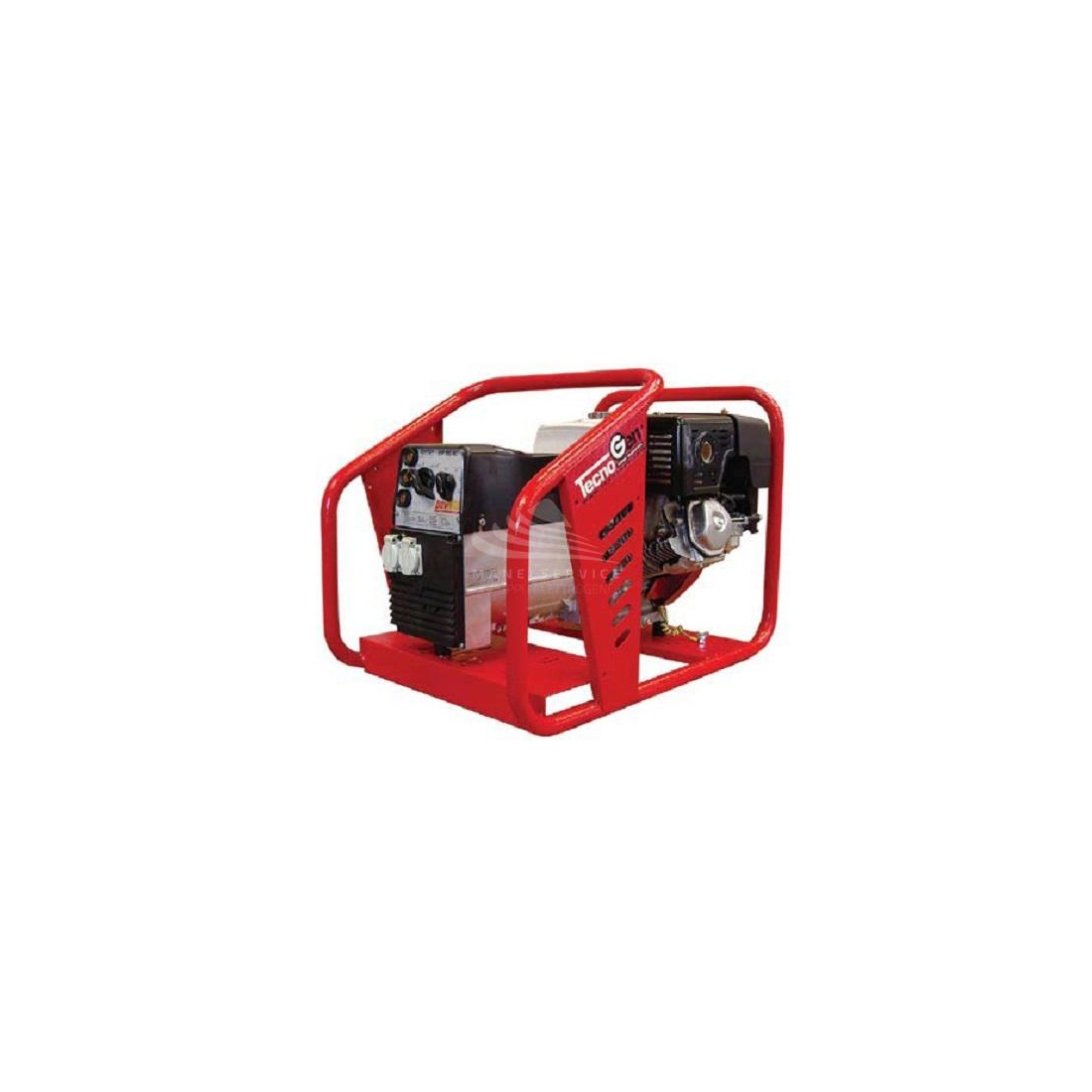

TECNOGEN SH160E MOTORWELDER 3,8KVA

TECNOGEN SH160E is a motorwelder equipped with a Honda GX270 gasoline engine, capable of delivering a singlephase power of 3.8KVA.

TECNOGEN SH160E is a motorwelder with a welding current from 120 to 160A max., with a gasoline engine at 3600 rpm max. air-cooled, in an open frame complete with recoil starter.

TECNOGEN SH160E features a rugged frame to protect a powerful HONDA GX270 motor capable of delivering 5KVA singlephase power with a maximum load consumption of 2.4 L/h.

TECNOGEN SH160 is with electric start with 12V battery supplied with acid or manual with self-winding, with control panel QM115 composed of single-phase CEE socket 2P+T 16A, thermal protection, singlephase Schuko socket 2P+T 16A.

TECHNICAL FEATURES TECNOGEN SH160E

Soldering at 60%: 110
Maximum single-phase power: 3.8 KVA
Fuel: Gasoline
Voltage: 230V
Engine: Honda GX270
Boosting: Electric
Length: 920 mm
Width: 520 mm
Height: 660 mm
Weight: 83 Kg

Are you looking for a motorwelding with different technical characteristics? Here you can find the full range of TECNOGEN and other specialized brands.

The images are purely indicative.

Download
