TECNOGEN SD200YTE

Name: TECNOGEN SD200YTE
Brand: TECNOGEN
SKU: SD200YTE
Price: 5014.2 EUR
Availability: InStock

Reference SD200YTE

Soldering at 60%: 170
Maximum three-phase power: 6.3 KVA
Fuel: Diesel
Voltage: 400V
Engine: Yanmar L100AE
Boosting: Electric
Length: 920 mm
Width: 520 mm
Height: 660 mm
Weight: 115 Kg

Prezzo

4,110.00 € tax excl.

5,014.20 € tax incl.

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference SD200YTE

Data sheet

Phase: Three phase
Maximum power single phase (KVA): 5.5
Maximum power three phase (KVA)
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Engine: YANMAR L100AE
Engine rpm (rpm): 3000
Starting system: Electric
Engine capacity (cm³): 160
Number cylinders: 1
Cooling: Air
Welding current (A): 180 al 35% - 170 al 60%
Fuel tank capacity (L): 5.5
Consumption (L/h): 0,8 al 75% del carico
Running time (h): 2,5
Length (mm): 78
Width (mm): 52
Height (mm): 56
Dry weight (Kg): 27
Inverter: No
AVR: No
Compound: No
Silenced: Yes
Super silenced: No

Specific References

Condition New

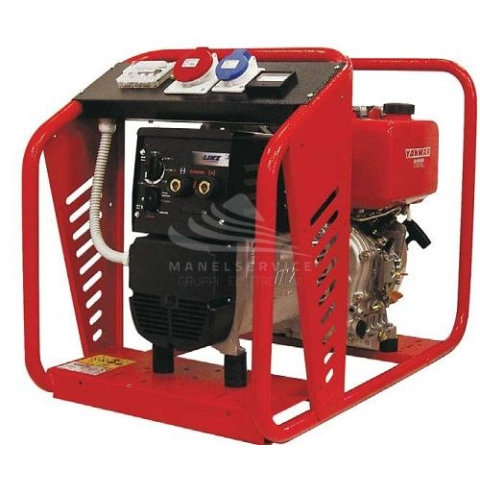

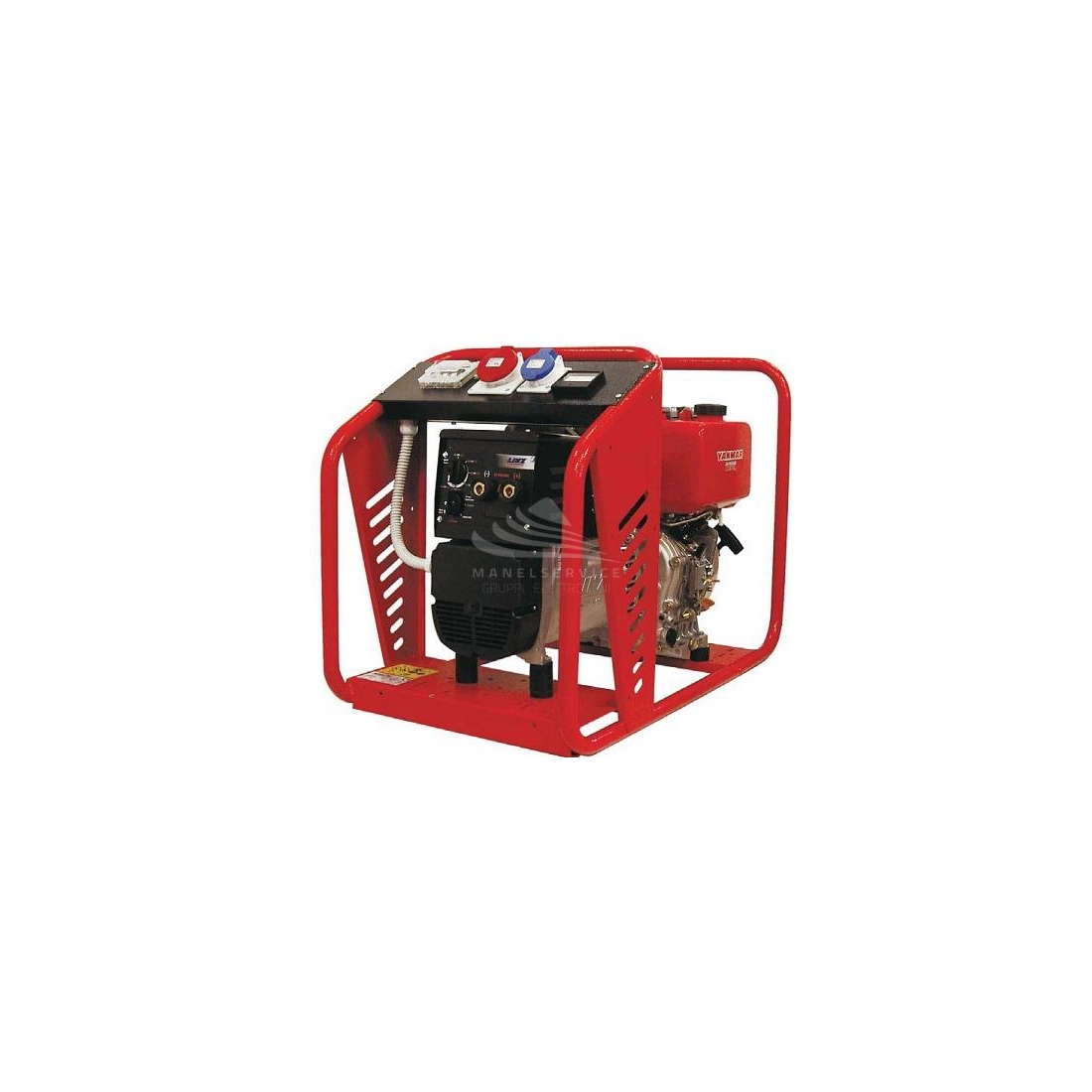

TECNOGEN SD200YTE MOTORWALKER 6,3KVA

TECNOGEN SD200YTE is a motorwelder equipped with a Yanmar L100AE gasoline engine, capable of delivering a three-phase power of 6.3KVA.

TECNOGEN SD200YTE is a motorwelder with a welding current from 120 to 160A max., with a 3600 rpm max. air-cooled gasoline engine, in an open frame complete with recoil starter.

TECNOGEN SD200YTE is equipped with a sturdy frame to protect a powerful Yanmar L100AE motor capable of delivering a three-phase power of 6,3KVA with a maximum load consumption of 2.4 L/h.

TECNOGEN SD210LTE is with electric start with 12V battery supplied with acid or manual with self-winding, with QM115 control panel composed of three-phase EEC socket 2P+E 16A, thermal protection, three-phase Schuko socket 2P+E 16A.

Technical characteristics TECNOGEN SD200YTE

Soldering at 60%: 170
Maximum three-phase power: 6.3 KVA
Fuel: Diesel
Voltage: 400V
Engine: Yanmar L100AE
Boosting: Electric
Length: 920 mm
Width: 520 mm
Height: 660 mm
Weight: 115 Kg

Are you looking for a motorwelding with different technical characteristics? Here you can find the full range of TECNOGEN and other specialized brands.

The images are purely indicative.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
