PRAMAC W220 TDC 5.5KW Motor Welding Machine

Name: PRAMAC W220 TDC 5.5KW Motor Welding Machine
Brand: PRAMAC
SKU: LA220CH1000
Price: 2016.66 EUR
Availability: InStock

Reference LA220CH1000

Maximum single-phase output: 2.4 KW
Continuous use single-phase output: 2 KW
Maximum three-phase power: 5.5 KW
Continuous use three-phase power: 4. 16 KW
Fuel: Gasoline
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: Honda GX390 Recoil
Start: Tear-off
Welding Current: 40-220 A
Min/max Welding Voltage: 21. 6 V / 28.8 V
Electrode diameter: 5 mm
Consumption: 2.2 at 75% load
Length: 875 mm
Width: 620 mm
Height: 600 mm
Weight: 80 Kg

List price

3,904.00 € tax incl.

3,200.00 € tax excl.

Discounted Price

2,016.66 € tax incl.

1,653.00 € tax excl.

Shipping Free to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference LA220CH1000

Data sheet

Phase: Single phase / Three phase
Maximum power single phase (KW): 2.4
Continuous power single phase (KW): 1.8
Maximum power single phase (KVA): 2.7
Continuous power single phase (KVA): 2.3
Maximum power three phase (KW): 5.5
Continuous power three phase (KW): 4.47
Maximum power three phase (KVA): 6.8
Continuous power three phase (KVA): 5.6
Fuel: Gasoline
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 1 x 400V 16A 3P+T CEE - 1 x 230V 16A 2P+T CEE - 1 x 230V 16A SCHUKO
Engine: Honda GX390 Recoil, naturally aspirated
Speed governor: Mechanical
Starting system: Pull starter
Engine capacity (cm³): 389
Oil capacity (L): 1.1
Cooling: Air
Protection degree: IP23
Welding current (A): 40-220
Welding voltage min/max (V): 21.6 / 28.8
Diameter electrodes (mm): 5
Fuel tank capacity (L): 6.1
Consumption (L/h): 0,8 al 75% del carico
Running time (h): 2.8 at 75% of the load
Acoustic power: 97 dB(A)
Acoustic pressure: 72 dB(A) at 7 m
Length (mm): 875
Width (mm): 620
Height (mm): 600
Dry weight (Kg): 80
Silenced: No
Super silenced: No
ATS Switch device: No
Voltage regulator: No
Engine manufacturer: Honda

Specific References

Condition New

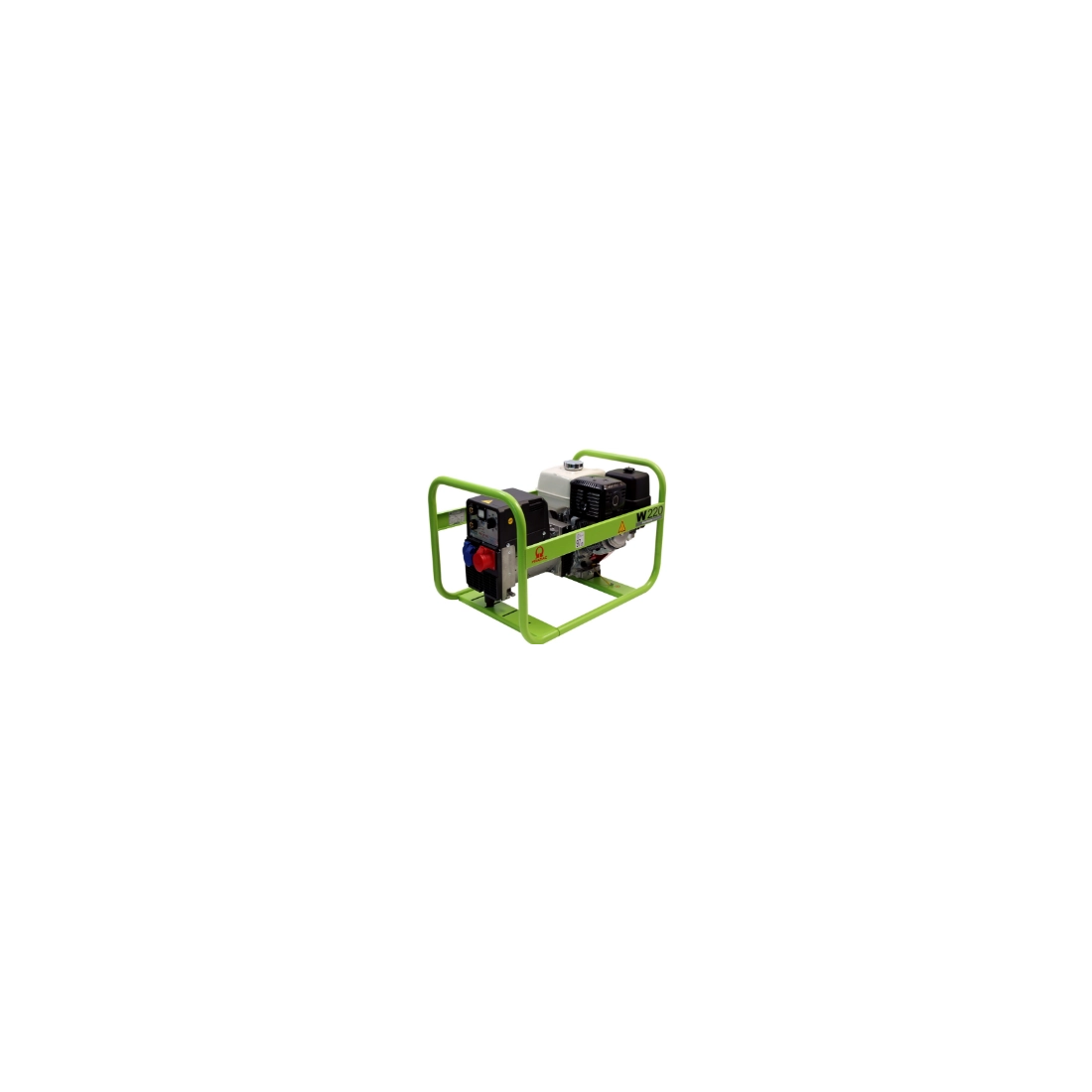

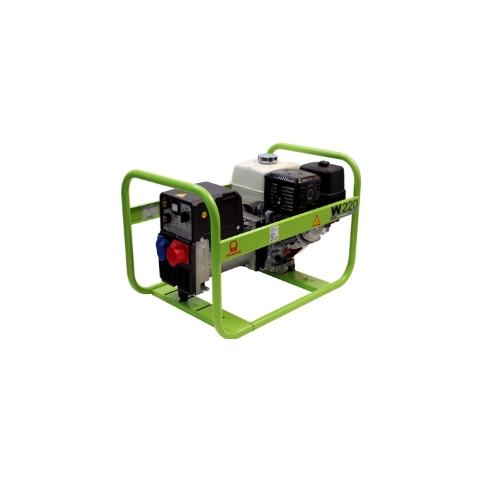

PRAMAC W220 TDC ENGINE-DRIVEN WELDER 5.5 kW

PRAMAC W220 TDC is a light, compact engine-driven welder, equipped with a Honda GX390 recoil gasoline engine capable of delivering 5.5 kW.

PRAMAC engine-driven welders are the ideal choice for small repairs or more demanding craft applications. With 220 A output, you can use rutile, basic, or cellulosic electrodes up to 5 mm in diameter.
Mechanical adjustment of welding current.

Reliability, sturdiness, and low noise to meet every need.

Technical features PRAMAC W220 TDC:

Single-phase max power: 2.4 kW

Single-phase continuous power: 2 kW

Three-phase max power: 5.5 kW

Three-phase continuous power: 4.16 kW

Fuel: Gasoline

Voltage: 230 V / 400 V

Frequency: 50 Hz

Engine: Honda GX390 (recoil)

Starting: Recoil

Welding current: 40–220 A

Welding voltage min/max: 21.6 V / 28.8 V

Electrode diameter: 5 mm

Consumption: 2.2 at 75% load

Length: 875 mm

Width: 620 mm

Height: 600 mm

Weight: 80 kg

If you are looking for a product with similar features, CLICK HERE. You will find the entire dedicated category.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
