TECNOGEN SD210LTE

Name: TECNOGEN SD210LTE
Brand: TECNOGEN
SKU: SD210LTE
Price: 3023.16 EUR
Availability: InStock

Reference SD210LTE

Welding at 60%: 170
Maximum three-phase power: 7 KVA
Fuel: Diesel
Voltage: 400V
Engine: Lombardini 15LD440
Boosting: Electric
Length: 920 mm
Width: 520 mm
Height: 660 mm
Weight: 115 Kg

List price

6,046.32 € tax incl.

4,956.00 € tax excl.

Discounted Price

3,023.16 € tax incl.

2,478.00 € tax excl.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference SD210LTE

Data sheet

Phase: Three phase
Maximum power single phase (KVA): 3.5
Maximum power three phase (KVA): 7
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Engine: LOMBARDINI 15LD440
Engine rpm (rpm): 3000
Starting system: Elettrico
Engine capacity (cm³): 442
Number cylinders: 1
Cooling: Air
Welding current (A): 180 al 35% - 170 al 60%
Fuel tank capacity (L): 5
Consumption (L/h): 1.6 al 75% del carico
Running time (h): 3.1
Length (mm): 920
Width (mm): 520
Height (mm): 660
Dry weight (Kg): 115
Inverter: No
AVR: No
Compound: No
Silenced: Yes
Super silenced: No

Specific References

Condition New

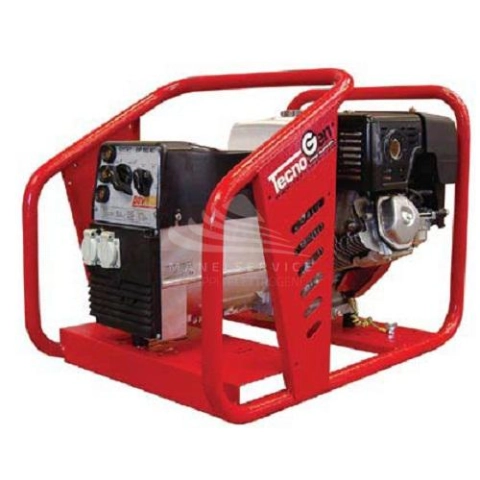

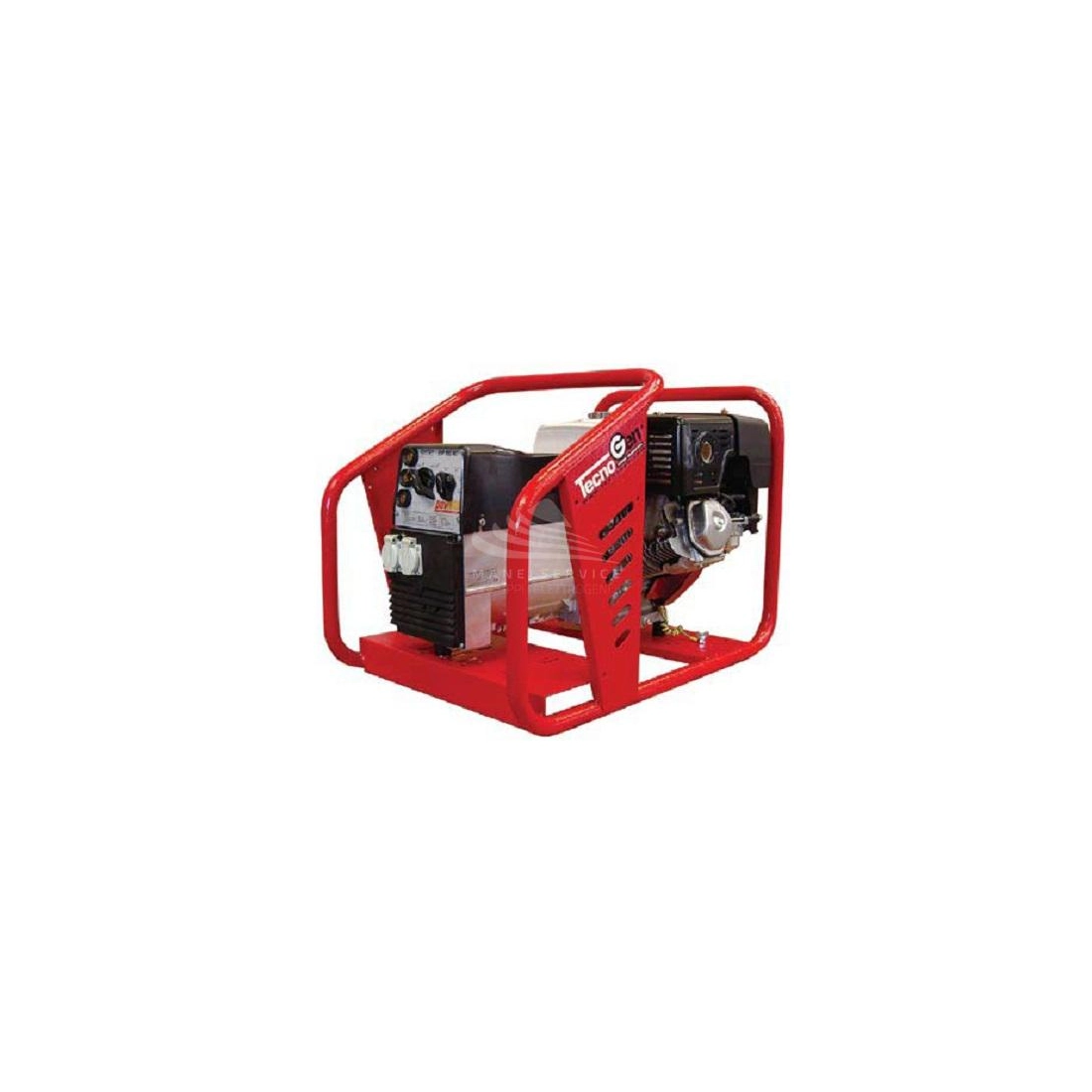

TECNOGEN SD210LTE MOTORWALDER 7KVA

TECNOGEN SD210LTE is a motorwelder equipped with a Lombardini 15LD440 gasoline engine, capable of delivering a threephase power of 7KVA.

TECNOGEN SD210LTE is a motorwelder with a welding current of 120 to 160A max., with an air-cooled, 3600 RPM max. gasoline engine in an open frame complete with recoil starter.

TECNOGEN SD210LTE is equipped with a sturdy frame to protect a powerful Lombardini 15LD440 engine capable of delivering a three-phase power of 7KVA with a maximum load consumption of 2.4 L/h.

TECNOGEN SD210LTE is with electric start with 12V battery supplied with acid or manual with self-winding, with control panel QM115 composed of three-phase CEE socket 2P+T 16A, thermal protection, three-phase Schuko socket 2P+T 16A.

Technical characteristics TECNOGEN SD210LTE

Welding at 60%: 170
Maximum three-phase power: 7 KVA
Fuel: Diesel
Voltage: 400V
Engine: Lombardini 15LD440
Boosting: Electric
Length: 920 mm
Width: 520 mm
Height: 660 mm
Weight: 115 Kg

Are you looking for a motorwelding with different technical characteristics? Here you can find the full range of TECNOGEN and other specialized brands.

The images are purely indicative.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
