WFM C165-MTH

Reference 09318

Maximum power Single-phase: 1. 6KW
Maximum single-phase power: 2KVA
Maximum three-phase power: 4KW
Maximum three-phase power: 5KVA
Fuel: Gasoline
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: Honda GX270
Start: Self-recoiling
Welding current: 160 A (max) - 120 A (60%)
Trigger voltage: 85 V
Electrode diameter: 1 mm - 3. 5 mm
Consumption: 2.4 Lt at 100% load
Length: 690 mm
Width: 500 mm
Height: 510 mm
Weight: 85 Kg

Prezzo

1,239.00 € tax excl.

1,511.58 € tax incl.

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 09318

Data sheet

Phase: Single phase / Three phase
Maximum power single phase (KW): 1.6
Maximum power single phase (KVA): 2
Maximum power three phase (KW): 4
Maximum power three phase (KVA): 5
Fuel: Gasoline
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 1 x 400V 16A 5P CEE - 1 x 230V 16A 3P CEE
Engine: Honda GX270
Engine rpm (rpm): 3000
Ignition: Recoil
Starting system: Pull starter
Engine capacity (cm³): 270
Number cylinders: 1
Oil capacity (L): 1.1
Cooling: Air
Alternator: Synchronous
Welding current (A): 160 (max) - 120 at 60%
Open circuit voltage (V): 85
Diameter electrodes (mm): 1 - 3.5
Fuel tank capacity (L): 6
Consumption (L/h): 2.4 at 100% of the load
Running time (h): 2.5 at 100% of the load
Acoustic power: 95 dB(A)
Acoustic pressure: 70 dB(A) at 7 m
Length (mm): 690
Width (mm): 500
Height (mm): 510
Dry weight (Kg): 85
Inverter: No
AVR: No
Compound: No
Silenced: No
Super silenced: No

Specific References

Condition New

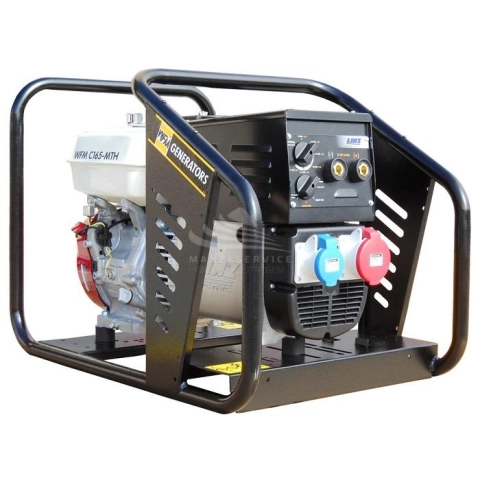

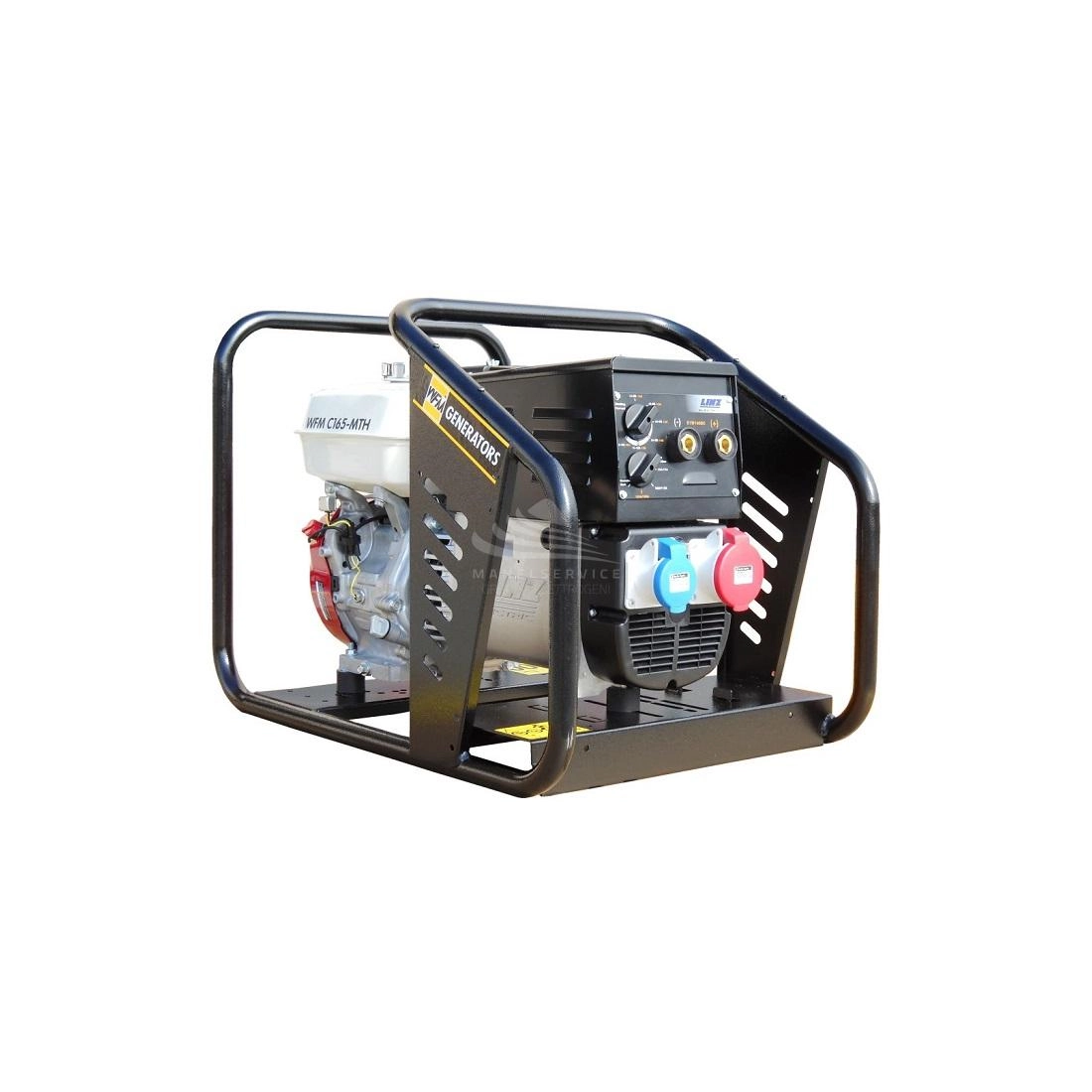

WFM C165-MTH THREEPHASE MOTORWELDER 5KVA

WFM C165-MTH is a motorwelder equipped with a Honda GX270 gasoline engine, capable of delivering a three-phase power of 5KVA.

WFM C165-MTH is a motorwelder machine with a welding current from 120 to 160A max, with air-cooled petrol or diesel engine at 3000 rpm, in open frame complete with recoil starter with self-winding or key start including battery depending on the model and electrical panel with sockets and protection as standard.

WFM C165-MTH is equipped with a sturdy frame to protect a powerful HONDA GX270 engine capable of delivering a three-phase power of 5KVA with a consumption at maximum load of 2.4 L/h.

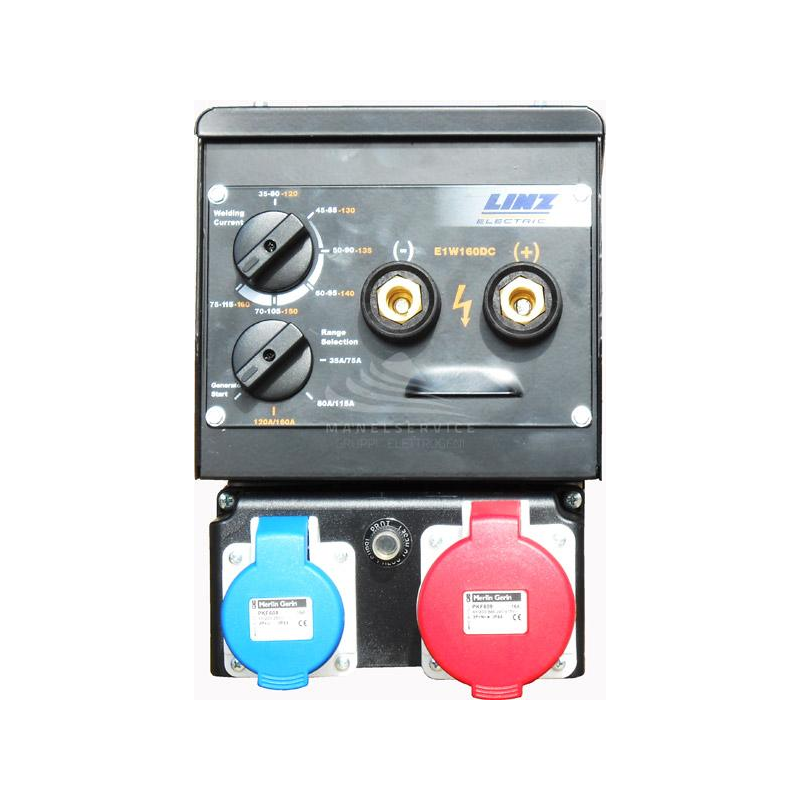

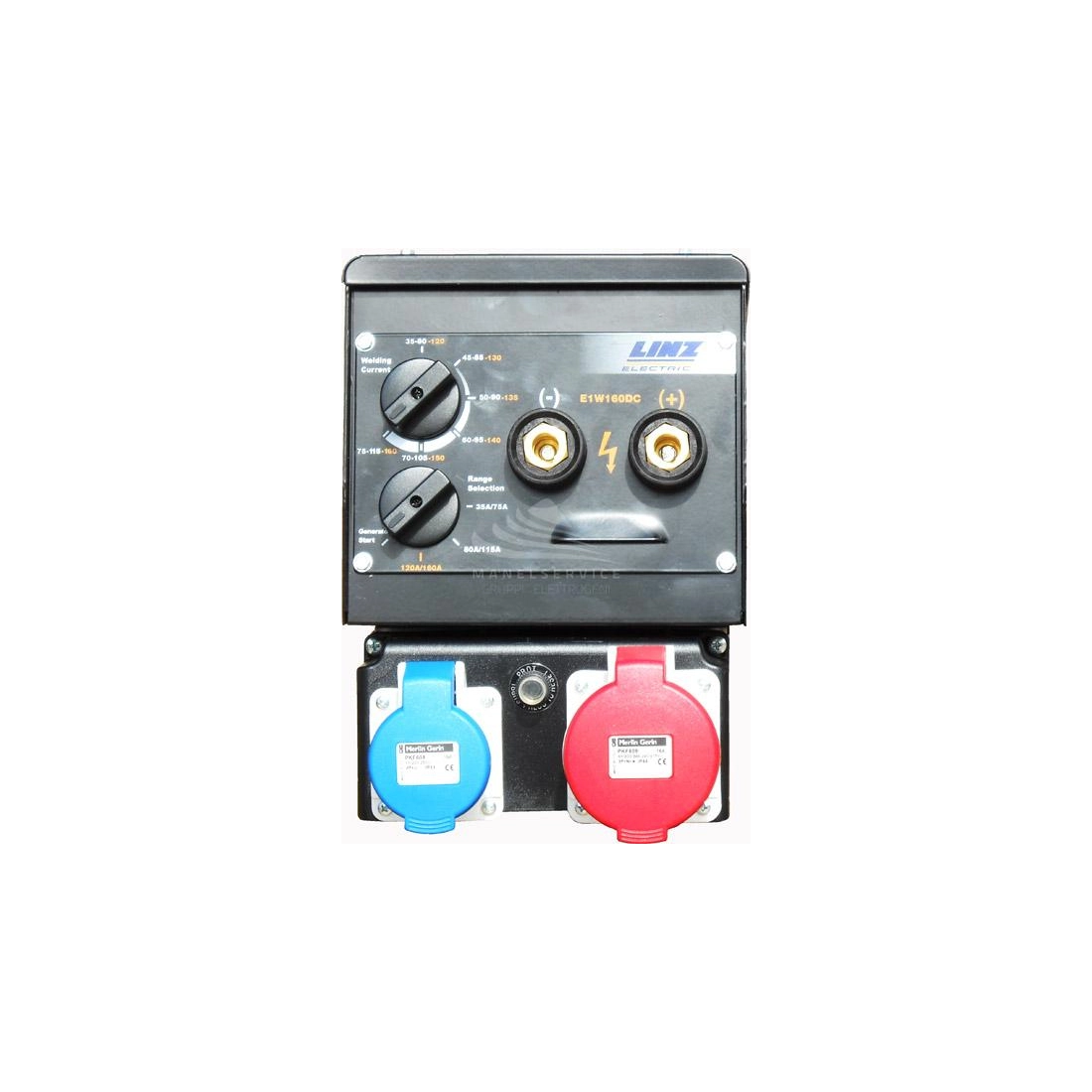

WFM C165-MTH is an electric starter with 12V battery supplied with acid or manual battery with self-winding, low oil level protection, muffler, primary Italian brand alternator with built-in welder.

TECHNICAL CHARACTERISTICS WFM C165-MTH MOTORWELDER

Maximum power Singlephase: 1. 6KW
Maximum singlephase power: 2KVA
Maximum threephase power: 4KW
Maximum threephase power: 5KVA
Fuel: Gasoline
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: Honda GX270
Start: Self-recoiling
Welding current: 160 A (max) - 120 A (60%)
Trigger voltage: 85 V
Electrode diameter: 1 mm - 3. 5 mm
Consumption: 2.4 Lt at 100% load
Length: 690 mm
Width: 500 mm
Height: 510 mm
Weight: 85 Kg
