      CGM 220SDE /

      OUT OF STOCK

      Phase type : Single phase
      Max single phase power : 4 KW / 5 KVA
      Motor : Lombardini 25LD 330/2
      Fuel : Diesel
      Cylinders : 2
      Displacement : 654 cm3
      Max engine power : 11. 7 HP
      Max welding current : 200-170 A at 35%/60%
      Tank : 4 Lt
      Sockets : N.2 x 230V SCHUKO
      Power supply : Electric with battery
      Acoustic power : 77 dB(A) at 7 m
      Voltage : 230 V
      Frequency : 50 Hz
      Power factor : 0. 8
      Welding current : 40-220 A
      Cooling : Air
      Number of turns : 3000 rpm
      Autonomy : 3.3 h
      Consumption at 3/4 load : 2 L/h
      Oil capacity : 1. 5 Lt
      Alternator : SINCRO, with brushes
      Number of Poles : 2
      Number of Phases : 1
      Welding voltage : 21.6 - 28.6 V
      Power consumption : 11. 5 hp / 8.5 KW
      Voltage regulation : Condenser
      Width : 860 mm
      Length : 520 mm
      Height : 650 mm
      Weight : 180 Kg

      Custom Quote
      Product: CGM 170SB - MOTOSALDATRICE A STRAPPO

      PERSONAL DATA


      Ask a question
      Product: CGM 170SB - MOTOSALDATRICE A STRAPPO
      Offer on letterhead
      Product: CGM 170SB - MOTOSALDATRICE A STRAPPO
      CGM
      CGM 220SDE /

      Data sheet

      Phase
      Single phase
      Maximum power single phase (KW)
      4
      Maximum power single phase (KVA)
      5
      Fuel
      Diesel
      Frequency (Hz)
      50
      Voltage (V)
      230
      Sockets configuration
      2 x 230V SCHUKO
      Engine
      Lombardini 25LD330.2, 4 stroke
      Engine rpm (rpm)
      3000
      Starting system
      Electric
      Engine capacity (cm³)
      654
      Number cylinders
      2
      Oil capacity (L)
      1.5
      Cooling
      Air
      Alternator
      With brushes
      Poles
      2
      Welding current (A)
      200 at 35% / 170 at 60%
      Welding voltage min/max (V)
      21.6 / 28.6
      Fuel tank capacity (L)
      4
      Consumption (L/h)
      2 at 75% of the load
      Running time (h)
      3.3
      Acoustic pressure
      77 dB(A) at 7 m
      Length (mm)
      520
      Width (mm)
      860
      Height (mm)
      650
      Dry weight (Kg)
      180
      Silenced
      No
      Super silenced
      No

      Specific References

      New

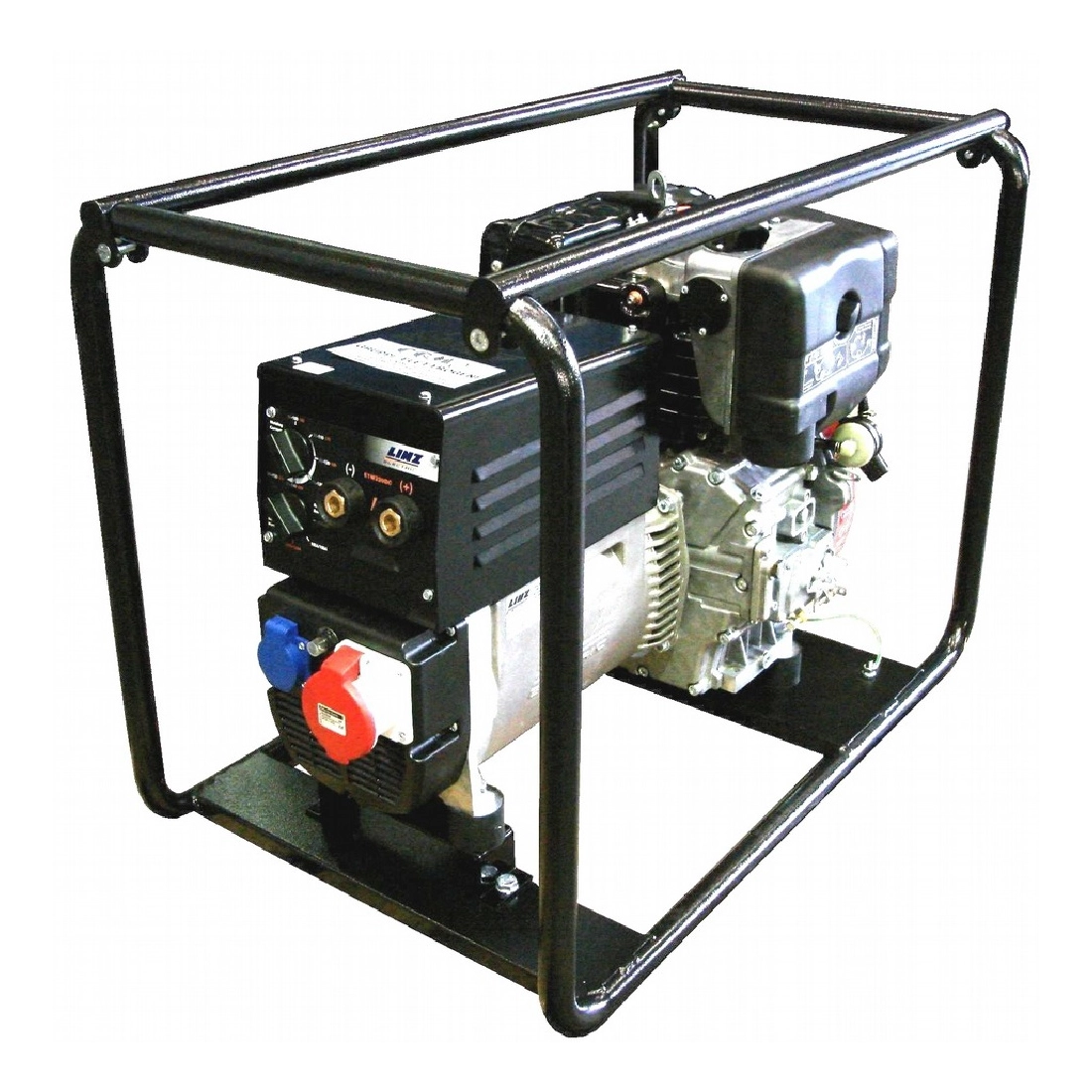

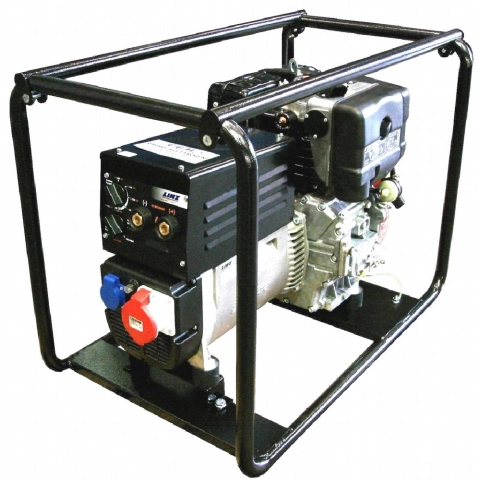

      CGM 220SDE MOTORWELDER

      CGM 220SDE is a singlephase, light and versatile motorwelder, equipped with a Lombardini 25LD 330/2 gasoline engine capable of delivering a maximum output of 5KVA.

      The CGM 220SDE motorwelder is equipped with Lombardini gasoline engines with recoil start. Mounted on a fixed base and operating at 3000 rpm, they are suitable for welding and singlephase power supply at 230V.

      TECHNICAL CHARACTERISTICS CGM 220SDE

      Phase type : Singlephase
      Max single phase output : 4 KW / 5 KVA
      Motor : Lombardini 25LD 330/2
      Fuel : Diesel
      Cylinders : 2
      Displacement : 654 cm3
      Max engine output: 11. 7 HP
      Max welding current : 200-170 A at 35%/60%
      Tank : 4 Lt
      Sockets : N.2 x 230V SCHUKO
      Power supply : Electric with battery
      Acoustic power : 77 dB(A) at 7 m
      Voltage : 230 V
      Frequency : 50 Hz
      Power factor : 0. 8
      Welding current : 40-220 A
      Cooling : Air
      Number of turns : 3000 rpm
      Autonomy : 3.3 h
      Consumption at 3/4 load : 2 L/h
      Oil capacity : 1. 5 Lt
      Alternator : SINCRO, with brushes
      Number of Poles : 2
      Number of Phases : 1
      Welding voltage : 21.6 - 28.6 V
      Output consumption : 11. 5 hp / 8.5 KW
      Voltage regulation : Condenser
      Width : 860 mm
      Length : 520 mm
      Height : 650 mm
      Weight : 180 Kg

      Are you looking for a welding machine with different technical characteristics? Here you can find the full range of CGM or other specialized brands

      Images and technical data are not binding and may be subject to revision by the supplier.
