Genset MPM 20/500 SS-Y Engine welder 20KVA STAGE 0

Reference MPM 20/500 SS-Y

Phase type: Single phase / Three phase

Maximum single phase power (KVA): 6.6

Maximum three phase power (KVA): 20

Fuel: Diesel

Voltage (V): 230 / 400

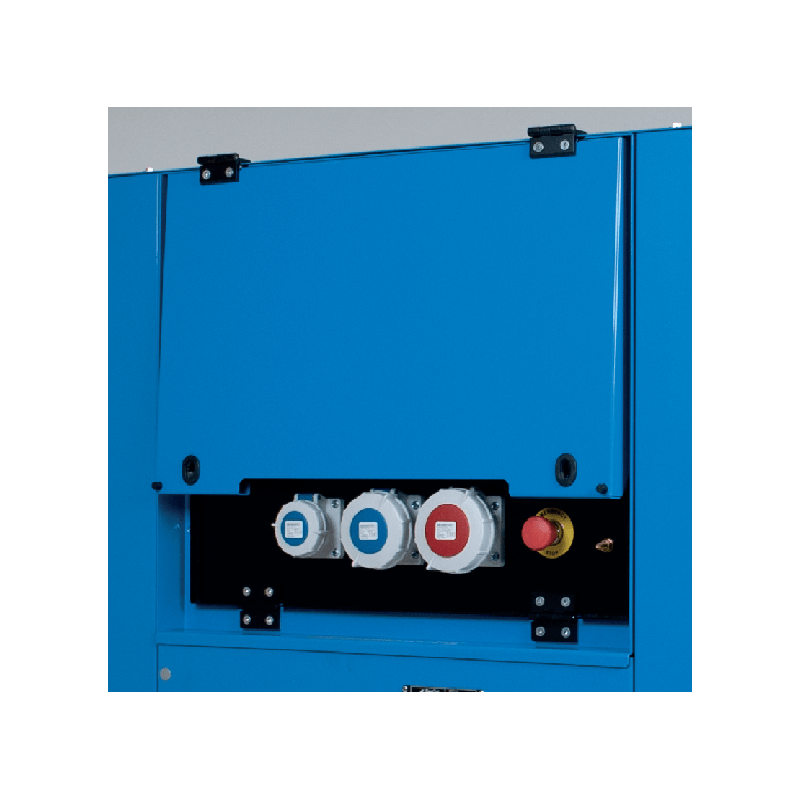

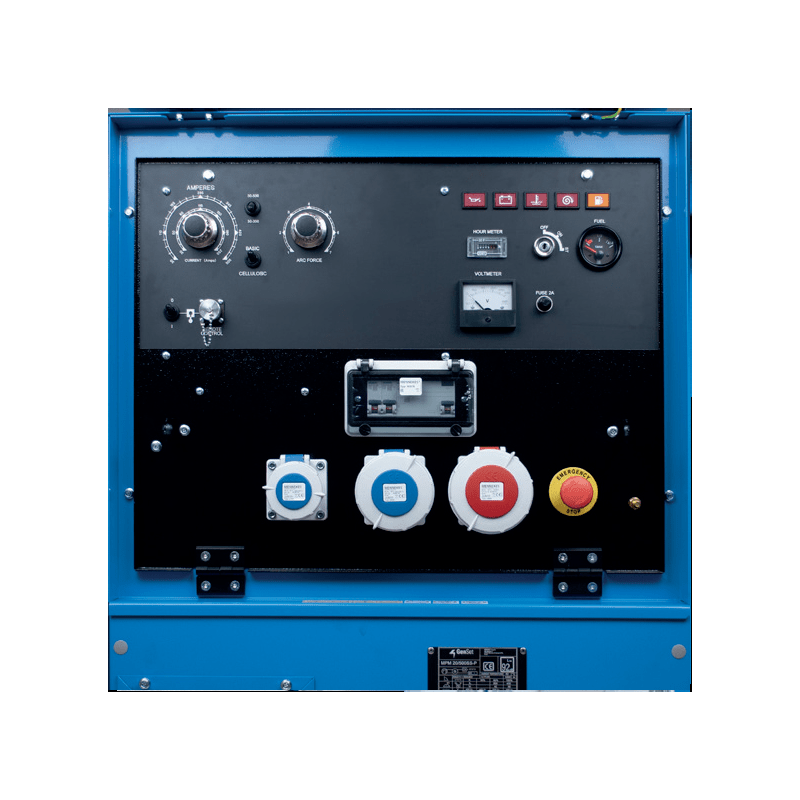

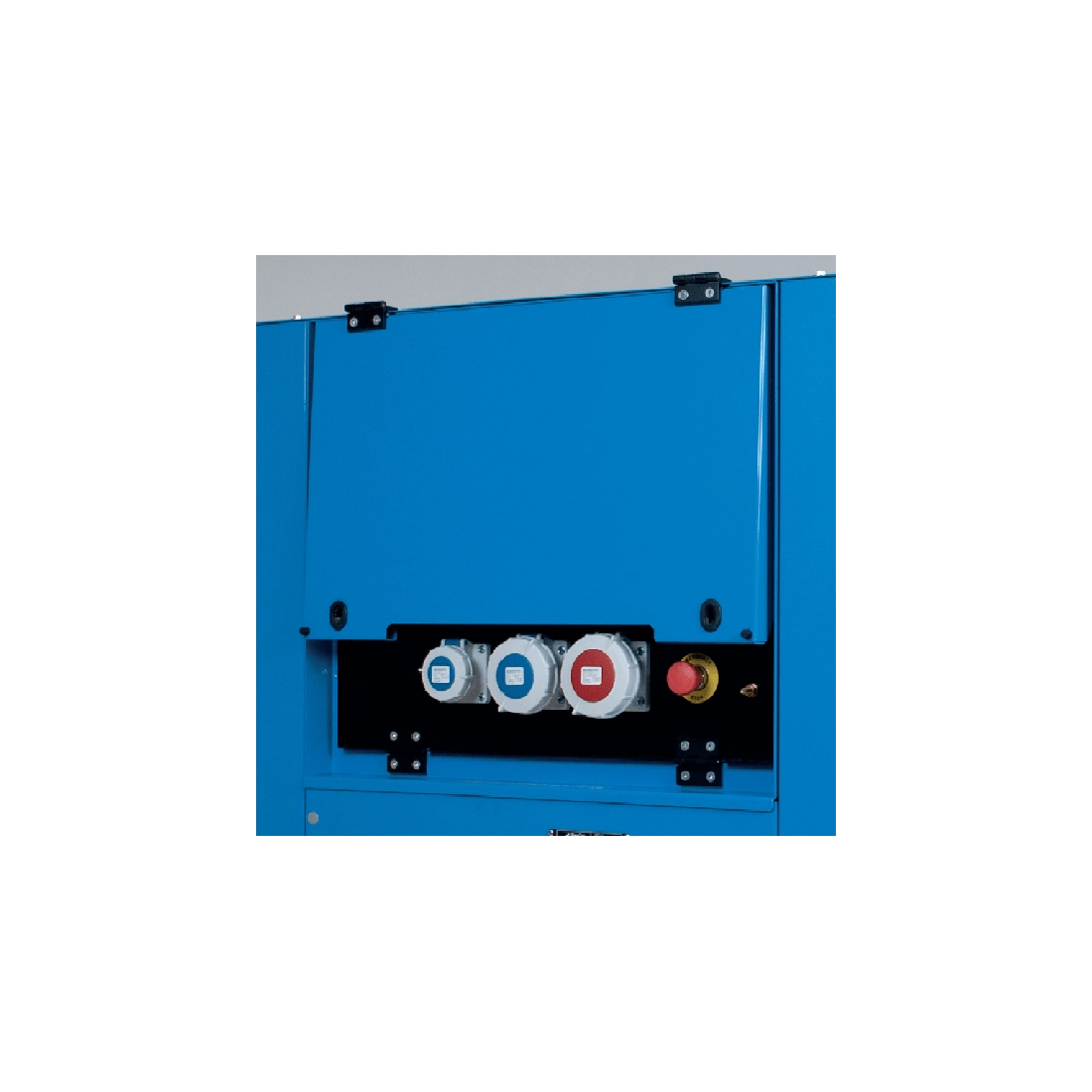

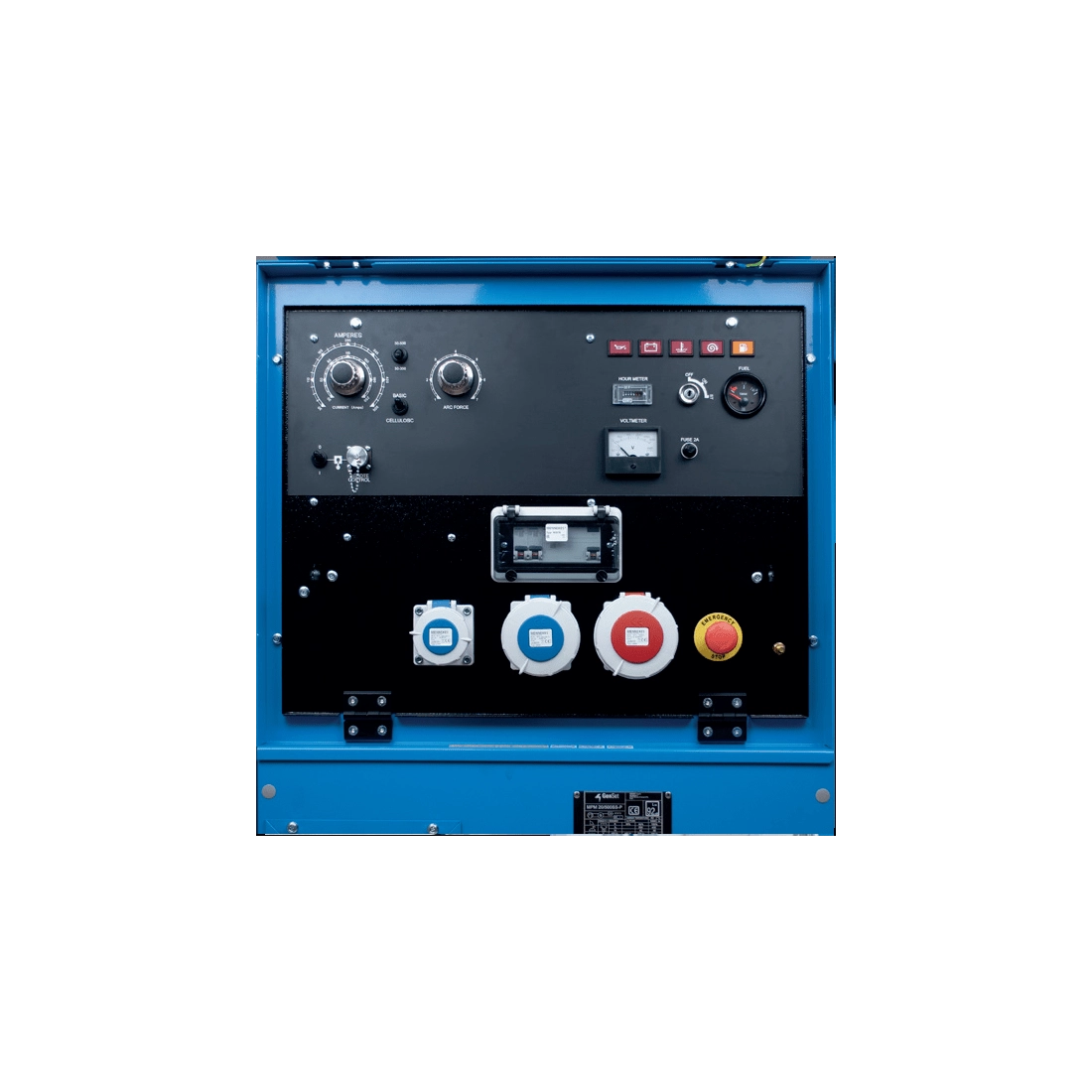

Socket configuration: 1 x 16 A – 400 V single phase, 1 x 32 A – 230 V single phase, 1 x 32 A – 400 V three phase

Engine: Yanmar 4TNV98

Engine speed (rpm): 1500

Starting: Electric

Displacement (cm³): 3319

Number of cylinders: 4

Cooling: Water

Alternator: Asynchronous

Ignition voltage (V): 70

Fuel tank capacity (L): 70

Consumption (L/h): 6.7 at 75% load

Acoustic power: 92 (67 dB at 7 m)

Product dimensions (cm): 2015 x 900 x 1300

Dry weight (Kg): 945

Silenced: Yes

Regulation range: 30 A - 500 A

Intermittence at 60%: 500 A - 40 V
Emission: Stage 0

Download Scheda MPM20/500

Product Details
Description

Phase: Single phase / Three phase
Maximum power single phase (KVA): 6.6
Maximum power three phase (KVA): 20
Fuel: Diesel
Voltage (V): 230 / 400
Sockets configuration: 1 x 16 A – 400 V single phase. 1 x 32 A – 230 V single phase. 1 x 32 A – 400 V three phase.
Engine: Yanmar 4TNV98
Engine rpm (rpm): 1500
Starting system: Elettrico
Engine capacity (cm³): 3319
Number cylinders: 4
Cooling: Water
Alternator: Asincrono
Open circuit voltage (V): 70
Fuel tank capacity (L): 70
Consumption (L/h): 6.7 al 75% del carico
Acoustic power: 92 (67 dB a 7 mt)
Dry weight (Kg): 945
Silenced: Yes
Intermittency at 60%: 500 A - 40 V
Product Dimensions (cm): 2015 x 900 x 1300
Adjustment range: 30 A - 500 A

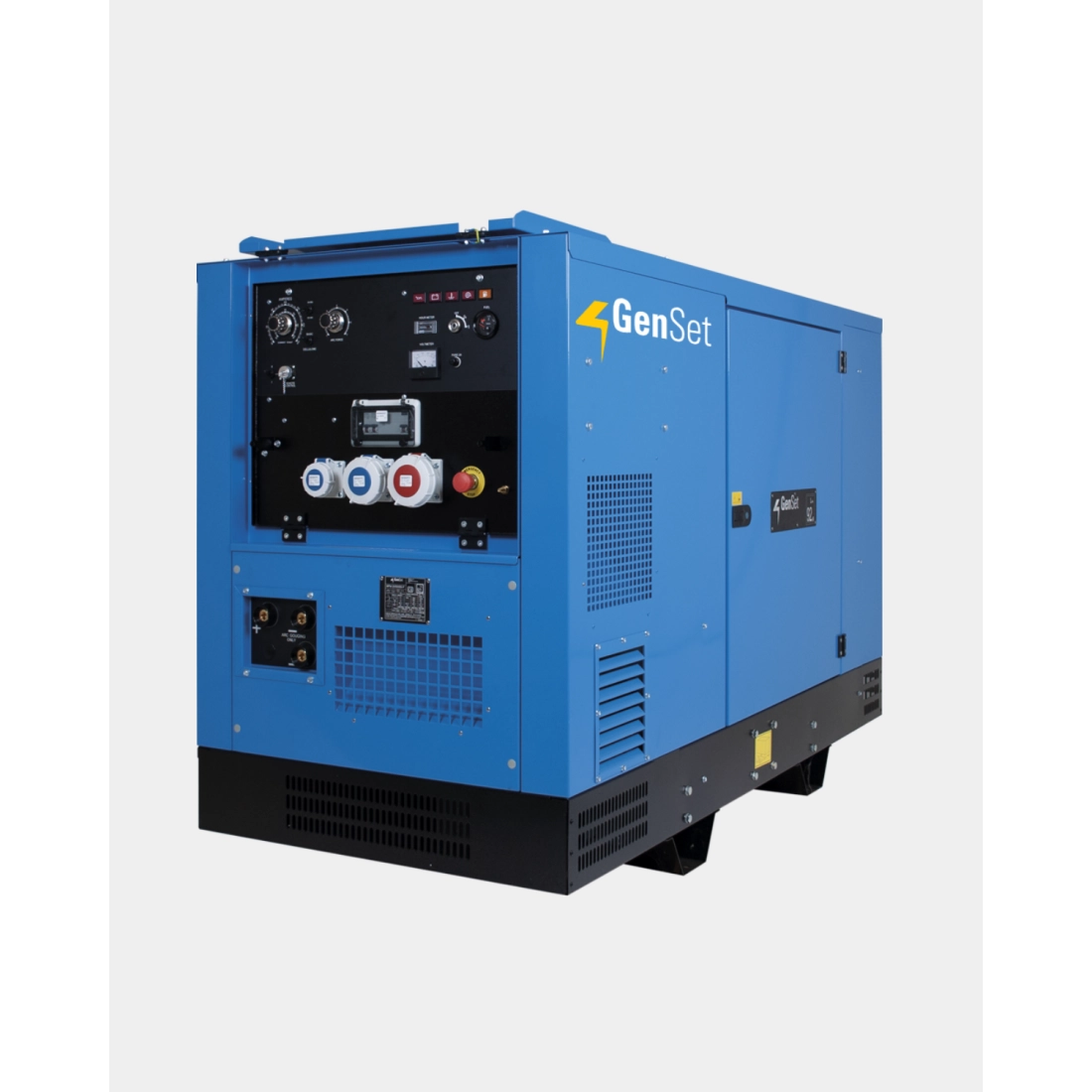

Genset MPM 20/500 SS-Y 20KVA STAGE 0 Engine-Driven Welder

Genset MPM 20/500 SS-Y is a super-silenced 20 kVA STAGE 0 engine-driven welder, equipped with a three-phase Yanmar 4TNV98 diesel engine,
ideal for arc welding and simultaneous electricity generation on construction sites.?

Main features

Designed for professional applications, it delivers a maximum three-phase power of 20 kVA at 400 V and a single-phase power of 6.6 kVA at 230 V,
with asynchronous alternator and current regulation range from 30 A to 500 A (intermittent 500 A - 40 V at 60%).
The 1500 rpm engine with 4 cylinders, displacement of 3319 cm³ and water cooling, includes electric starter,
70 L tank and consumption of 6.7 L/h at 75% load.

Design and silence

Silenced with a sound power of 92 Lwa (67 dB at 7 m),
it has compact dimensions of 2015 x 900 x 1300 mm and a dry weight of 945 kg, facilitating transport and handling.

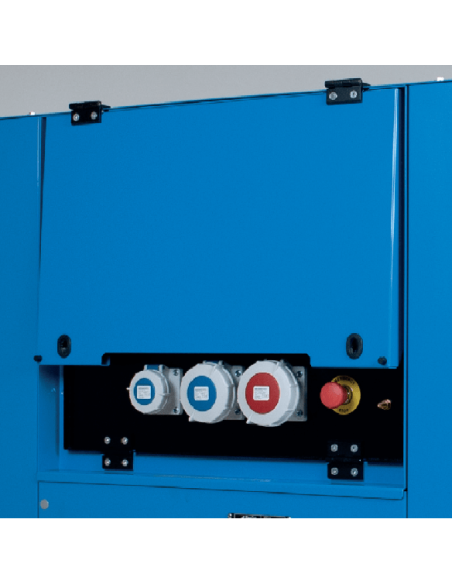

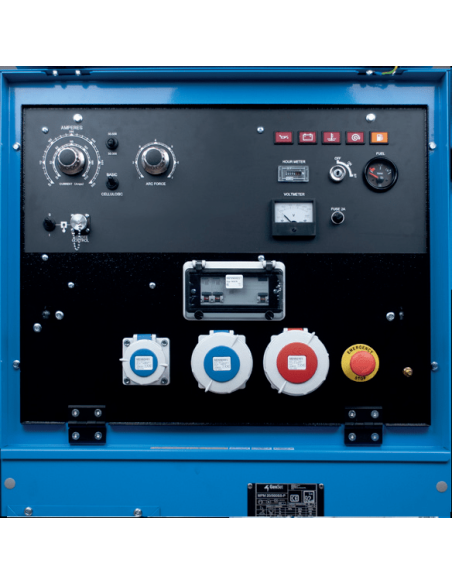

The socket configuration includes 1x16A 400V single-phase, 1x32A 230V single-phase and 1x32A 400V three-phase, with a starting voltage of 70 V.

This compact and durable welder is suitable for frequent use in industrial contexts, guaranteeing reliability and STAGE 0 emissions.

TECHNICAL CHARACTERISTICS:
? ?
Phase type: Single phase / Three-phase

Maximum single-phase power (KVA): 6.6

Maximum three-phase power (KVA): 20
