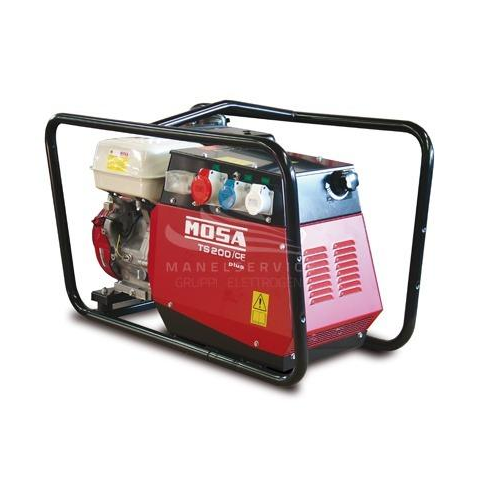

MOSA TS 200 BS-CF
Fuel: Petrol
Phase Type: Single / Three Phase
Voltage: 230 V / 400 V
Single-phase power 230 V (kVA): 5
Three-phase power 400 V (kVA): 6
Duty Cycle (A): 190 A al 35% - 160 A al 60% - 120 A al 100%
Welding output: CC
Type of welding: MMA STICK
Electrodes: any kind up to 4 mm
Silenced: NO
Lenght (mm): 910
Width (mm): 530
Height (mm): 580
Dry weight (Kg): 111
List price
tax incl.
tax excl.
Discounted Price
3,098.80 € tax incl.
2,540.00 € tax excl.
Shipping Free to Italy buy it today.
Calculate Shipping Cost
C0GN7060
Data sheet
- Phase
- Single phase / Three phase
- Maximum power single phase (KW)
- 4
- Maximum power single phase (KVA)
- 5
- Maximum power three phase (KW)
- 4.8
- Maximum power three phase (KVA)
- 6
- Fuel
- Gasoline
- Frequency (Hz)
- 50
- Voltage (V)
- 230 / 400
- Sockets configuration
- 1 x 400V 16A 3P+N+T CEE - 1 x 230V 16A 2P+T CEE - 1 x 48V 32A 2P CEE
- Engine
- Honda GX390, 4 stroke, OHV
- Emissions Regulations
- Stationary Use
- Engine rpm (rpm)
- 3000
- Starting system
- Manual
- Engine capacity (cm³)
- 389
- Number cylinders
- 1
- Cooling
- Air
- Alternator
- Asynchronous three-phase, self-excited, self-regulated, brushless
- Regulation current (A)
- 20 - 190
- Welding current (A)
- 190 at 35% - 160 at 60% - 120 at 100%
- Open circuit voltage (V)
- 98
- Maximum diameter electrodes (mm)
- 4
- Type of welding current
- DC
- Type of welding
- MMA
- Fuel tank capacity (L)
- 6.5
- Consumption (L/h)
- 1.86
- Running time (h)
- 3.5
- Acoustic power
- 98 dB(A)
- Acoustic pressure
- 73 dB(A) at 7 m
- Length (mm)
- 910
- Width (mm)
- 530
- Height (mm)
- 580
- Dry weight (Kg)
- 111
- Silenced
- No
- Super silenced
- No
- Engine manufacturer
- Honda
Specific References
New
The TS-200 BS/CF is a professional machine, without electronics capable of delivering up to 200 A with a duty cycle of 60%.
The welding current is adjusted by changing the rpm of the engine. Equipped with an 11.1 HP HONDA GX-390 petrol engine and an asynchronous alternator, it can be used as a welder or as a three-phase and single-phase electrical generator up to 6 kVA.
The welding current is available on two scales, selectable by means of the connection to two different welding sockets. The TS-200 BS/CF is able to weld any kind of electrode (rutile, basic, cellulose) up to 4 mm in diameter.
An engine-driven welder suitable for a wide range of uses from maintenance to site welding fabrication.
In according with CE regulation
WELDING
Current range, continuous: 20 ÷ 100A / 90 ÷ 190A
Duty cycle: 190 A 35% - 160 A 60% - 120 A 100%
Open circuit voltage: 98 V
Arc welding source in D.C. welding
Welds any type of electrode, including cellulosic
Double welding scale 20-100A / 90-190A
A.C. generator, single-phase and three-phase
GENERAL
Sockets: 1x400V 16A 3P+N+T CEE - 1x230V 16A 2P+T CEE - 1x48V 32A 2P CEE
Protective frame
Dry weight: 111 kg
Dimensions: 910x530x580 mm
Acoustic power LwA (pressure LpA): 98 dB(A) (73 dB(A) @ 7 m)
In according with CE regulation
The welding current is adjusted by changing the rpm of the engine. Equipped with an 11.1 HP HONDA GX-390 petrol engine and an asynchronous alternator, it can be used as a welder or as a three-phase and single-phase electrical generator up to 6 kVA.
The welding current is available on two scales, selectable by means of the connection to two different welding sockets. The TS-200 BS/CF is able to weld any kind of electrode (rutile, basic, cellulose) up to 4 mm in diameter.
An engine-driven welder suitable for a wide range of uses from maintenance to site welding fabrication.
In according with CE regulation
WELDING
Current range, continuous: 20 ÷ 100A / 90 ÷ 190A
Duty cycle: 190 A 35% - 160 A 60% - 120 A 100%
Open circuit voltage: 98 V
Arc welding source in D.C. welding
Welds any type of electrode, including cellulosic
Double welding scale 20-100A / 90-190A
A.C. generator, single-phase and three-phase
GENERAL
Sockets: 1x400V 16A 3P+N+T CEE - 1x230V 16A 2P+T CEE - 1x48V 32A 2P CEE
Protective frame
Dry weight: 111 kg
Dimensions: 910x530x580 mm
Acoustic power LwA (pressure LpA): 98 dB(A) (73 dB(A) @ 7 m)
In according with CE regulation
