GENSET PMPM 20/600 SS-Y Motorized welder 20KVA

  • New
    GENSET PMPM 20/600 SS-Y Motorized welder 20KVA
    GENSET PMPM 20/600 SS-Y Motorized welder 20KVA
    GENSET PMPM 20/600 SS-Y Motorized welder 20KVA
    GENSET PMPM 20/600 SS-Y Motorized welder 20KVA
    MPM 20/600 SS-Y

    Phase type: Single-phase / Three-phase
    Maximum single-phase power (KVA): 6.6
    Maximum three-phase power (KVA): 20
    Fuel: Diesel
    Voltage (V): 230 / 400
    Socket configuration: 1 three-phase CEE socket 32 ​​A, 400 V A - 50 Hz, 1 single-phase CEE socket 32 ​​A, 230 V - 50 Hz, 1 single-phase CEE socket 16 A, 230 V - 50 Hz
    Engine: Yanmar 4TNV98T
    Engine speed (rpm): 1500
    Starting: Electric
    Displacement (cm³): 3319
    Number of cylinders: 4
    Cooling: Water
    Alternator: Asynchronous
    Voltage Starting current (V): 70
    Fuel tank capacity (L): 70
    Consumption (L/h): 8.1 at 75% load
    Sound power: 90 Lwa
    Product dimensions (cm): 2015 x 900 x 1300
    Dry weight (Kg): 975
    Silenced: Yes
    Output socket: single-phase 48 V
    Adjustment range: 30 A - 600 A
    Intermittent duty at 60%: 600 A - 40 V

    List price
    32,086.00 € tax incl.
    26,300.00 € tax excl.
    Discounted Price
    17,446.00 € tax incl.
    14,300.00 € tax excl.
    Quantity :
    Shipping from 359.90 € to Italy buy it today. tax incl.
    Calculate Shipping Cost
    Ask a question
    Offer on letterhead
    Download PDF
    Ask a question

    I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

    Offer on letterhead
    MPM 20/600 SS-Y

    Data sheet

    Phase
    Single phase / Three phase
    Maximum power single phase (KVA)
    6.6
    Maximum power three phase (KVA)
    20
    Fuel
    Diesel
    Voltage (V)
    230 / 400
    Sockets configuration
    1 three-phase CEE socket 32 ​​A, 400 V A - 50 Hz, 1 single-phase CEE socket 32 ​​A, 230 V - 50 Hz, 1 single-phase CEE socket 16 A, 230 V - 50 Hz
    Engine
    YANMAR 4TNV98T
    Engine rpm (rpm)
    1500
    Starting system
    Elettrico
    Engine capacity (cm³)
    3319
    Number cylinders
    4
    Cooling
    Water
    Alternator
    Asincrono
    Open circuit voltage (V)
    70
    Fuel tank capacity (L)
    70
    Consumption (L/h)
    8.1 at 75% load
    Acoustic power
    90 Lwa
    Dry weight (Kg)
    975
    Silenced
    Yes
    Output socket
    single-phase 48 V
    Intermittency at 60%
    600 A - 40 V
    Product Dimensions (cm)
    2015 x 900 x 1300
    Adjustment range
    30 A - 600 A

    Specific References

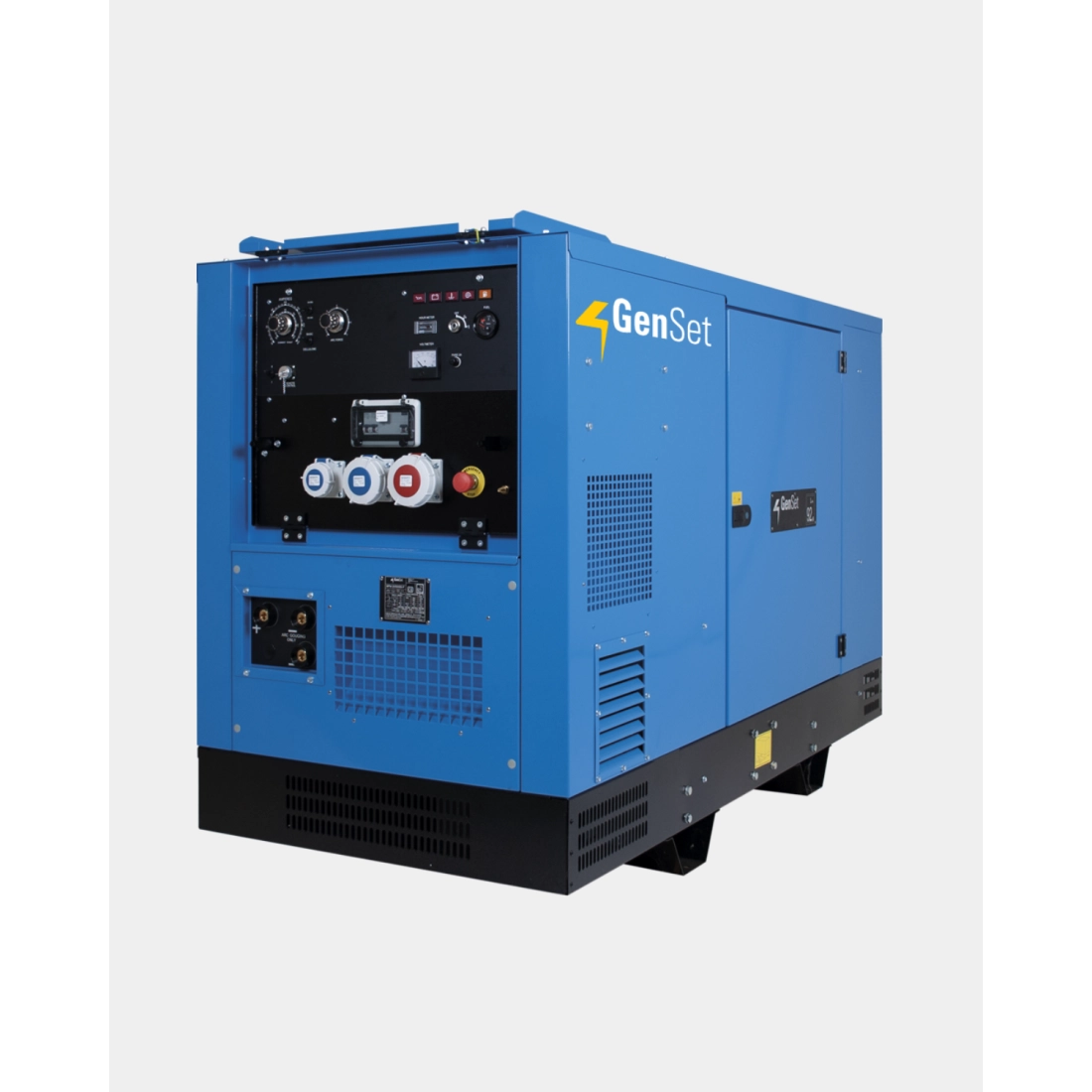

    GENSET MPM 20/600 SS-Y 20KVA Welder


    Single-phase/three-phase diesel generator set with Yanmar 4TNV98T water-cooled engine, 4 cylinders,
    displacement 3319 cm³, 1500 rpm and electric start.

    Maximum single-phase power 6.6 kVA, three-phase 20 kVA at 230/400V; 70 L tank, consumption 8.1 L/h at 75% (silent 90 Lwa),
    dimensions 2015x900x1300 cm, dry weight 975 kg.

    Welding output 48V (30-600A, intermittent 60% at 600A-40V) with automatic motor stop, double current regulation,
    arc force, hour meter, voltmeter, differential switch, socket protections; Three-phase CEE sockets 32A 400V, single-phase 32A/16A 230V,
    remote control ready, emergency stop, fuel level, lifting hook, fork pockets, battery included.

    Technical Features:

    Phase type: Single-phase / Three-phase
    Maximum single-phase power (KVA): 6.6
    Maximum three-phase power (KVA): 20
    Fuel: Diesel
    Voltage (V): 230 / 400
    Socket configuration: 1 three-phase CEE socket 32 ​​A, 400 V A - 50 Hz, 1 single-phase CEE socket 32 ​​A, 230 V - 50 Hz,
     1 single-phase CEE socket 16 A, 230 V - 50 Hz
    Engine: Yanmar 4TNV98T
    Engine speed (rpm): 1500
    Starting: Electric
    Displacement (cm³): 3319
    Number of cylinders: 4
    Cooling: Water
    Alternator: Asynchronous
    Starting voltage (V): 70
    Fuel tank capacity (L): 70
    Consumption (L/h): 8.1 at 75% load
    Sound power: 90 Lwa
    Product dimensions (cm): 2015 x 900 x 1300
    Dry weight (Kg): 975
    Silenced: Yes
    Output socket: single-phase 48 V
    Adjustment range: 30 A - 600 A
    Intermittent duty at 60%: 600 A - 40 V

    If you are looking for a product with similar technical characteristics Click HERE.

    * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
