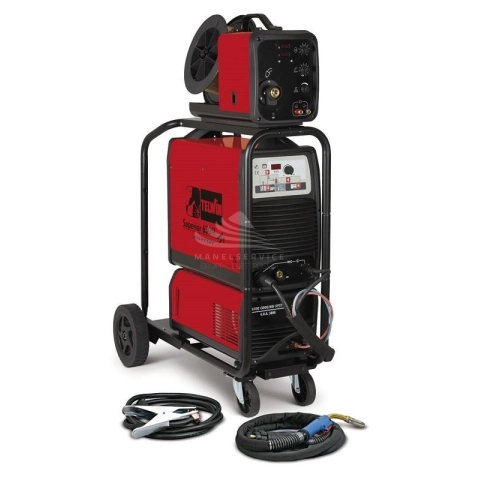

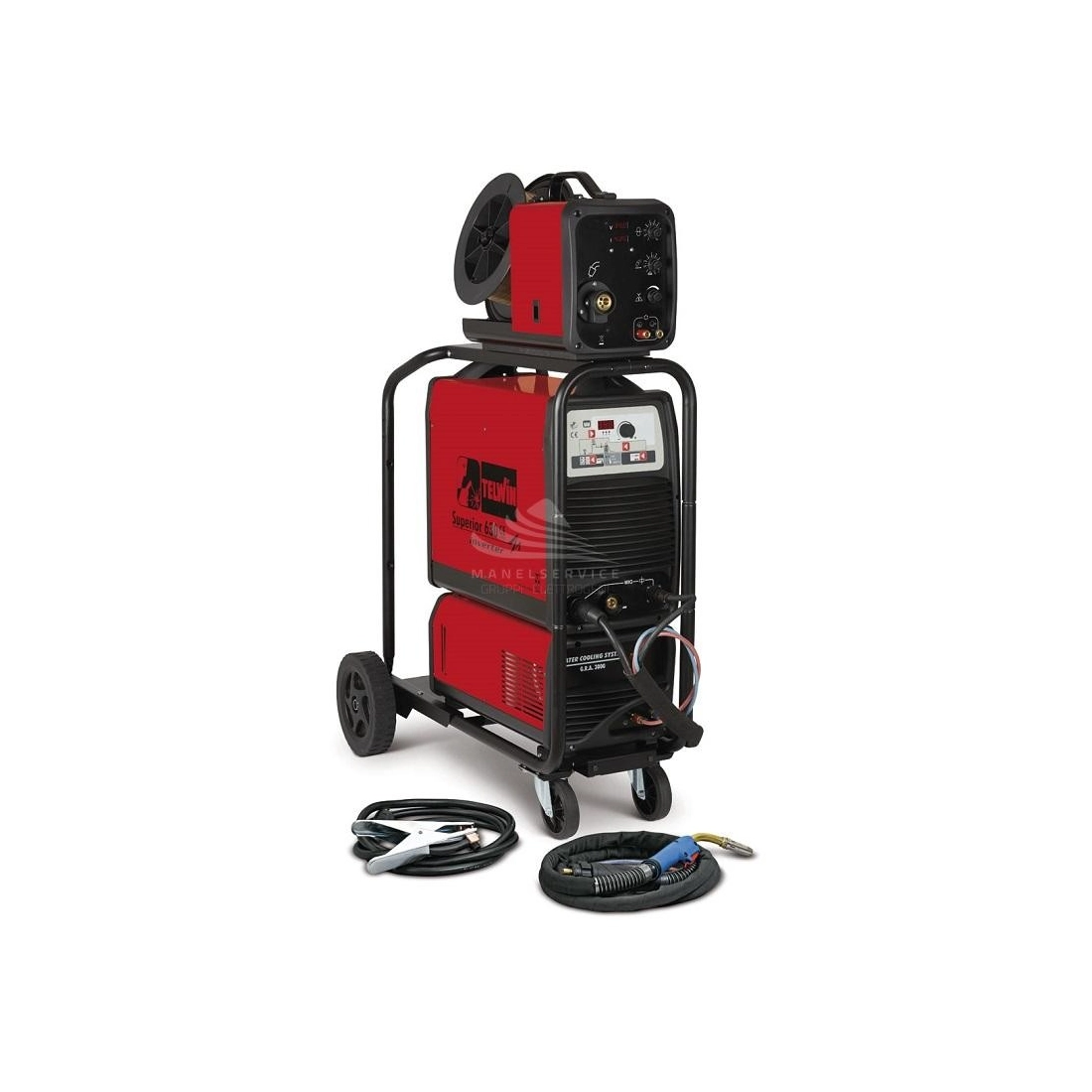

TELWIN SUPERIOR 630 CE VRD MIG PACK AQUA 230-400V

OUT OF PRODUCTION

Phase: Single phase / Three phase
Frequency: 50/60 Hz
Voltage: 230 / 400 V
Type of welding: MIG-MAG/FLUX/MMA/TIG DC-Lift
No-load voltage: 65 / 73 V
Regulation current: 10 - 450 / 10 - 600 A
Current max: 400 / 500 A
Diameter electrodes: 1.6 - 8 mm
Steel welding wire diameter: 0.6 - 2.4 mm
Inox welding wire diameter: 0.8 - 2.4 mm
Aluminium welding wire diameter: 0.8 - 1.6 mm
Flux cored welding wire diameter: 1 - 2.4 mm
Brazing wire diameter: 0.8 - 1.2 mm
Length: 950 mm
Width: 450 mm
Height: 1450 mm
Weight: 108 Kg

Payment methods:

Product: TELWIN SUPERIOR 630 CE VRD MIG PACK AQUA 230-400V

Start of Rental

End of Rental

Where to collect / receive the Product

Do you need cables?

SÌNO

Additional Tank?

SÌNO

PERSONAL DATA

Name

Surname

Phone

Company

City

State

Postal Code

Country

VAT or CF

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Ask a question

Product: TELWIN SUPERIOR 630 CE VRD MIG PACK AQUA 230-400V

Full Name

Company

Phone

City

Country

Postal code

Message

reCAPTCHA

Offer on letterhead

Product: TELWIN SUPERIOR 630 CE VRD MIG PACK AQUA 230-400V

Name

Surname

Company

VAT

Phone

City

Country

Postal code

Shipping address

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 816044

Data sheet

Phase: Single phase / Three phase
Frequency (Hz): 50 / 60
Voltage (V): 230 / 400
Efficiency (%): 86
Protection degree: IP23
No-load voltage (V): 65 / 73
Regulation current (A): 10 - 450 / 10 - 600
Diameter electrodes (mm): 1.6 - 8
Ø steel welding wire (mm): 0.6 - 2.4
Ø inox welding wire (mm): 0.8 - 2.4
Ø aluminium welding wire (mm): 0.8 - 1.6
Ø flux cored welding wire (mm): 1 - 2.4
Ø brazing wire (mm): 0.8 - 1.2
Type of welding: Multiprocess
MIG-MAG welding: MIG-MAG/FLUX
Current max (A): 400 / 500
Length (mm): 950
Width (mm): 450
Height (mm): 1450
Voltage regulator: Inverter
Weight (Kg): 108

Specific References

EAN13: 8004897948393

Condition New

High power MIG-MAG/FLUX/MMA/TIG multi-process inverter generator suitable for heavy duty use on worksites and industrial environments.
MIG-MAG/TIG welding of all types of steels and steel by-products and MMA welding of all types of electrodes up to 8 mm in diameter.
The optional removable wire feeder and connection cables make it possible to increase the field of intervention.
Compactness and easy transport features guarantee high levels of mobility and flexibility of use.
Complete with wirefeeder, MIG-MAG welding accessories, trolley and water cooling unit GRA 3000.

Not binding images and technical data.
