HELVI SPOT CAR EVO 5000

99500044
      HELVI SPOT CAR EVO 5000
      HELVI SPOT CAR EVO 5000

      Discontinued Product

      Phase type: Three-phase
      Frequency: 50/60 Hz
      Voltage: 400 V
      Power: 6000 VA
      Power peak: 13000 VA
      Delayed fuse: T20 A
      Type of welding: Spot welding
      No-load voltage: 7.5 V
      Output current : 3600 A
      Maximum output current: 5000 A
      Insulation: H
      Degree of protection: IP22S
      Length: 370 mm
      Width: 250 mm
      Height: 280 mm
      Weight: 30.6 Kg

      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      HELVI
      99500044

      Data sheet

      Phase
      Three phase
      Frequency (Hz)
      50 / 60
      Voltage (V)
      400
      Protection degree
      IP22S
      Power (VA)
      6000
      Motor insulation class
      H
      No-load voltage (V)
      7.5
      Output current (A)
      3600
      Maximum output current (A)
      5000
      Length (mm)
      370
      Width (mm)
      250
      Height (mm)
      280
      Product type
      Welding machine
      Weight (Kg)
      30.6

      Specific References

      New

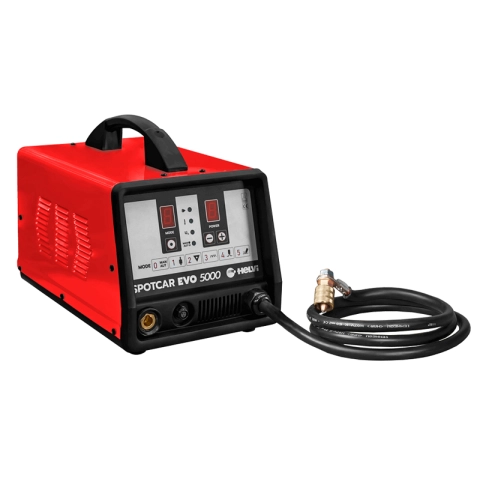

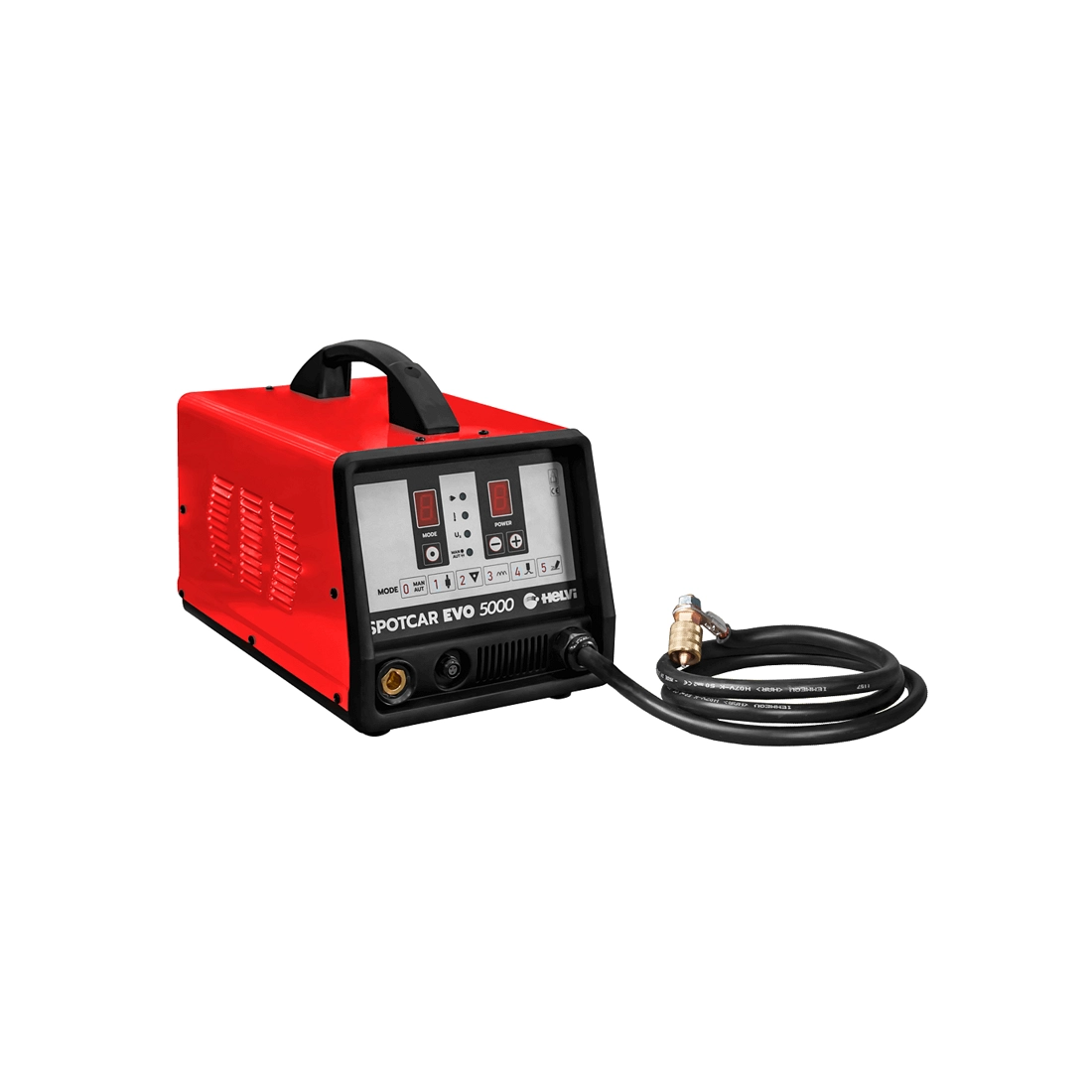

      HELVI SPOT CAR EVO 5000

      HELVI SPOT CAR EVO 5000 is a multifunction spotter welding machine for bodywork repairs . HELVI SPOT CAR EVO 5000 has a microprocessor control with synergic programs for welding washers, rivets, corrugated wire, sheet warmer function. The HELVI SPOT CAR EVO 5000  is designed with start of the welding cycle by contact and manual. The HELVI welding machine is supplied with gun and ground cable, accessory kit consisting of: extractor hammer, 10 three-pointed washers, head for three-pointed washers and carbon electrode.

      The HELVI welding machine has been designed to address and solve problems that arise in the bodywork in fact it allows:
      - The elimination of dents present in the bodywork
      - The intermittent welding of small sheets
      - The welding of rivets, washers, screws of various diameters and supports for moldings

      HELVI SPOT CAR EVO 5000 is a three-phase spotter welding machine with 400 V power supply and a frequency of 50/60 Hz. HELVI SPOT CAR EVO 5000 has a 50% power rating of 6000 VA with a peak power of 13000 VA.
      The output current is 3600 A and a maximum output current of 5000 A with a delayed fuse T20 A. < br /> The no-load voltage of HELVI SPOT CAR EVO 5000 is 7.5 V.
      The HELVI SPOT CAR EVO 5000 has an H insulation and an IP22S degree of protection.
      HELVI SPOT CAR EVO 5000 is very compact and comfortable to carry thanks to its very light weight of about 30 kg and its convenient handle.

      Technical characteristics of the HELVI SPOT CAR EVO 5000 :
      Phase type: Three-phase
      Frequency: 50/60 Hz
      Voltage: 400 V
      Power: 6000 VA
      Power peak: 13000 VA
      Delayed fuse: T20 A
      Type of welding: Spot welding
      No-load voltage: 7.5 V
      Output current : 3600 A
      Maximum output current: 5000 A
      Insulation: H
      Degree of protection: IP22S
      Length: 370 mm
      Width: 250 mm
      Height: 280 mm
      Weight: 30.6 Kg

      If, on the other hand, you are looking for another product similar to the HELVI welding machine then we recommend that you view the entire range dedicated to welding machines .

      Images and technical data not binding.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
