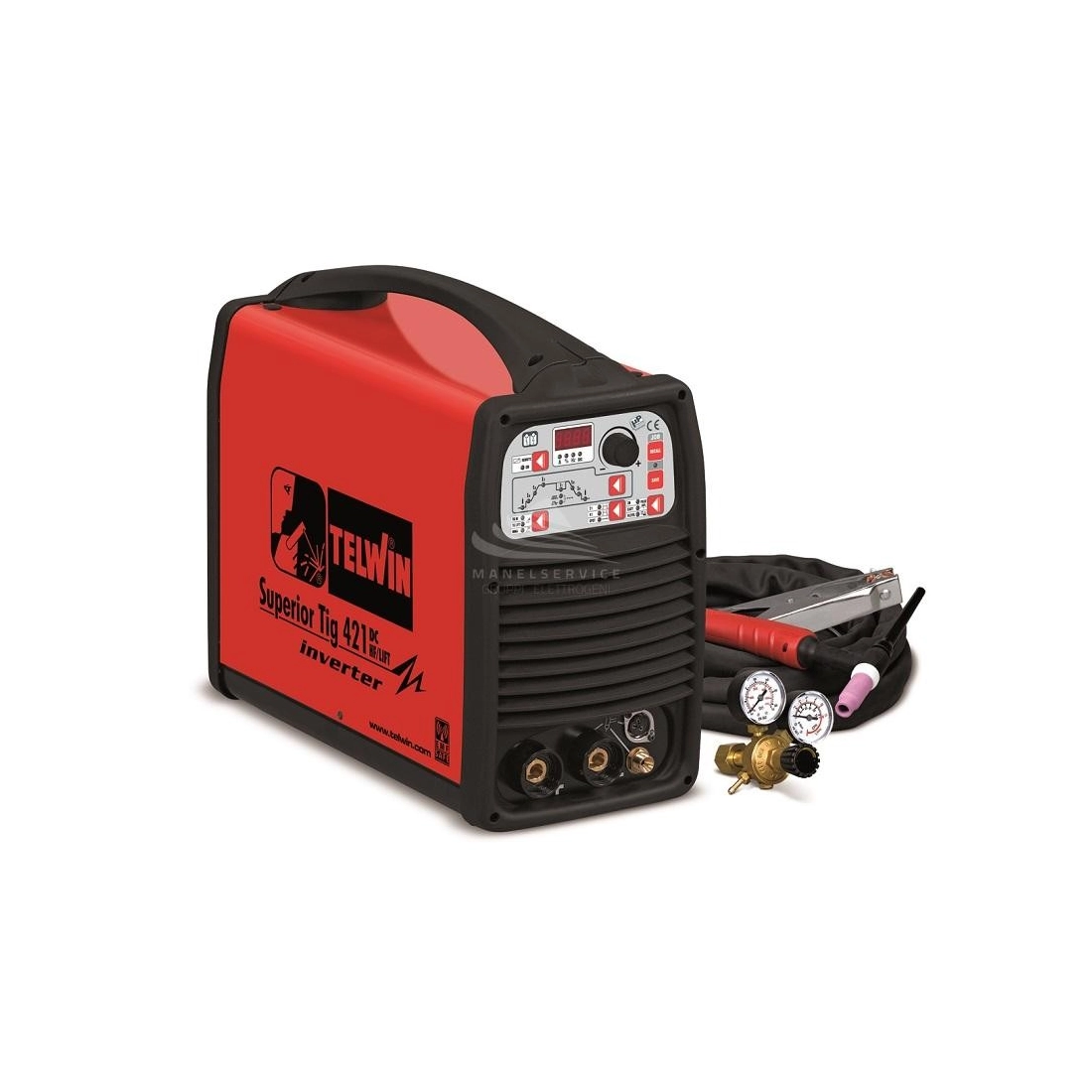

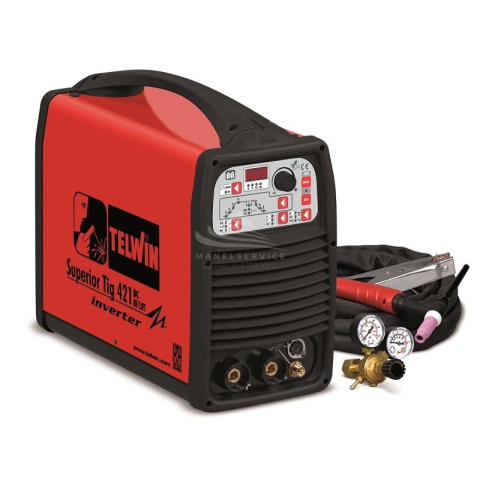

TELWIN SUPERIOR TIG 421 DC-HF/LIFT 400V

Reference 816132

DISCONTINUED PRODUCT

Phase: Three phase
Frequency: 50/60 Hz
Voltage: 400 V
Type of welding: TIG/MMA
No-load voltage: 64 V
Regulation current: 5 - 350 A
Current max: 350 A
Diameter electrodes: 1.6 - 6 mm
Length: 530 mm
Width: 240 mm
Height: 450 mm
Weight: 32.4 Kg

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 816132

Data sheet

Phase: Three phase
Frequency (Hz): 50 / 60
Voltage (V): 400
Efficiency (%): 85
Protection degree: IP23
No-load voltage (V): 64
Regulation current (A): 5 - 350
Diameter electrodes (mm): 1.6 - 6
Type of welding: MMA / MIG
Current max (A): 350
Length (mm): 530
Width (mm): 240
Height (mm): 450
Voltage regulator: Inverter
Weight (Kg): 32.4

Specific References

EAN13: 8004897837154

Microprocessor controlled, TIG (high frequency HF or LIFT striking), PULSE TIG and MMA inverter welding machine in direct current (DC).
Use with a wide range of materials such as steel, stainless steel, titanium, copper, nickel and their alloys.
Features:
- pulse and EASY pulse operation
- 9 customized welding programmes
- TIG regulations: bi-level, start up/end current, spot welding time, pre/post gas, current up/down slope, balance DC, square wave frequency
- MMA regulations: arc force and hot start according to the type of electrode in use
- anti-stick device
- remote control and G.R.A. water cooling connector
- storage on on-board E2PROM of the last 10 alarms
- thermostatic, overvoltage, undervoltage, inside dirtiness, overcurrent, phase failure, water cooling unit protections.
Complete with TIG welding accessories.

Not binding images and technical data.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
