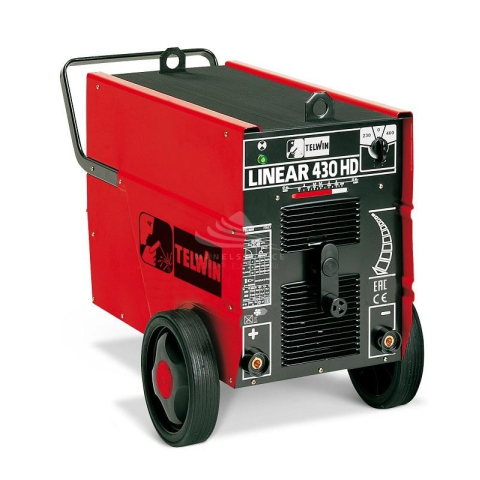

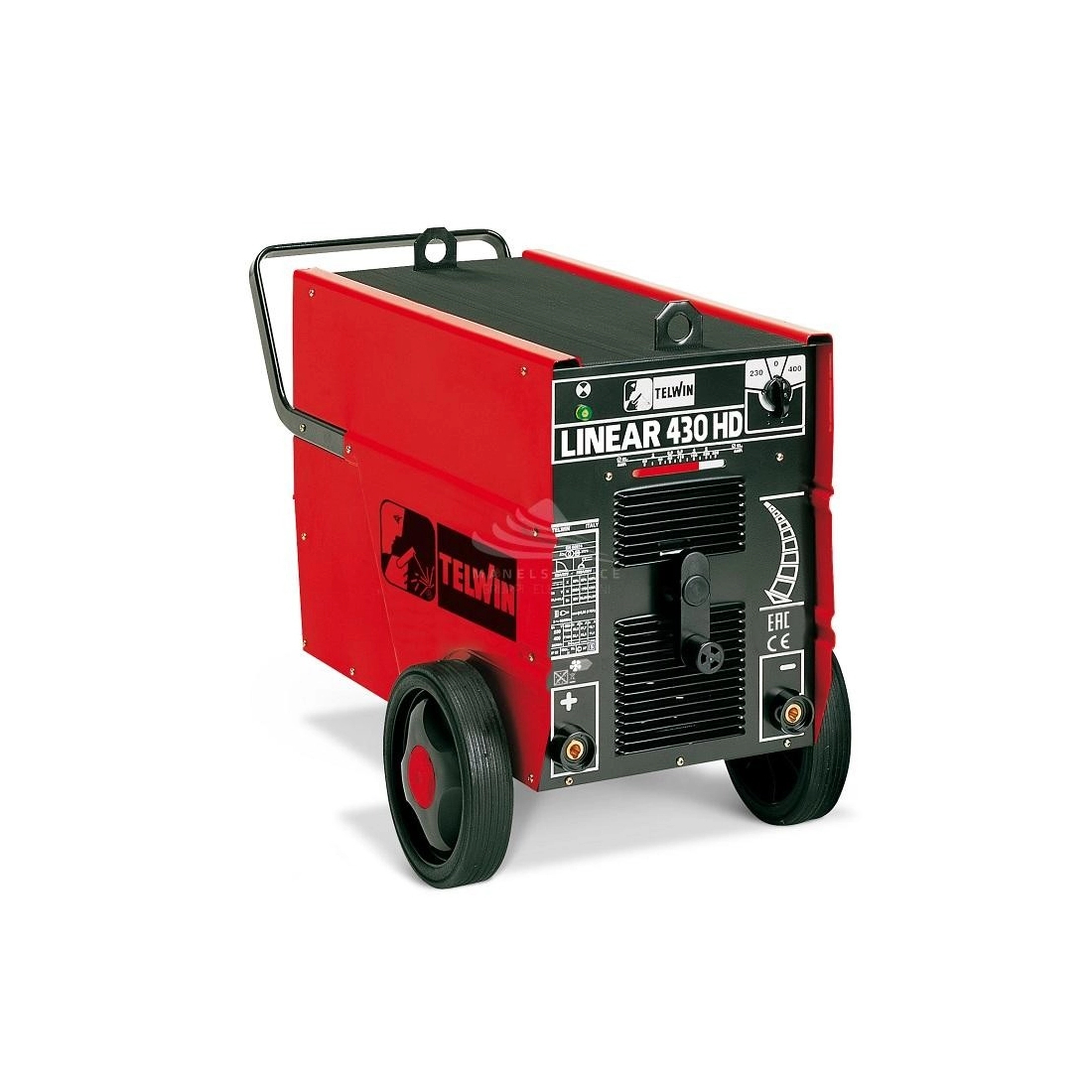

TELWIN LINEAR 430HD 230V/400V
PRODUCT DISCONTINUED and has been replaced by TELWIN LINEAR 450i
Phase: Single phase / Three phase
Frequency: 50/60 Hz
Voltage: 230 / 400 V
Type of welding current: DC
Type of welding: MMA
No-load voltage: 62 V
Regulation current: 80 - 360 A
Current max: 325 A
Diameter electrodes: 2 - 6 mm
Length: 950 mm
Width: 490 mm
Height: 680 mm
Weight: 101 Kg
819090
Data sheet
- Phase
- Single phase / Three phase
- Frequency (Hz)
- 50 / 60
- Voltage (V)
- 230 / 400
- Protection degree
- IP22
- No-load voltage (V)
- 62
- Regulation current (A)
- 80 - 360
- Diameter electrodes (mm)
- 2 - 6
- Type of welding current
- DC
- Type of welding
- MMA
- Current max (A)
- 325
- Length (mm)
- 950
- Width (mm)
- 490
- Height (mm)
- 680
- Weight (Kg)
- 101
Specific References
- EAN13
- 8004897958460
New
MMA, rectified, electrode welding machine in direct current (DC). Stepless regulation of welding current.
Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron and aluminium.
GOODS THAT CANNOT BE SOLD WITHIN THE EUROPEAN COMMUNITY.
However, it is possible to proceed with the purchase if the customer declares where the goods will be exported.
Not binding images and technical data.
